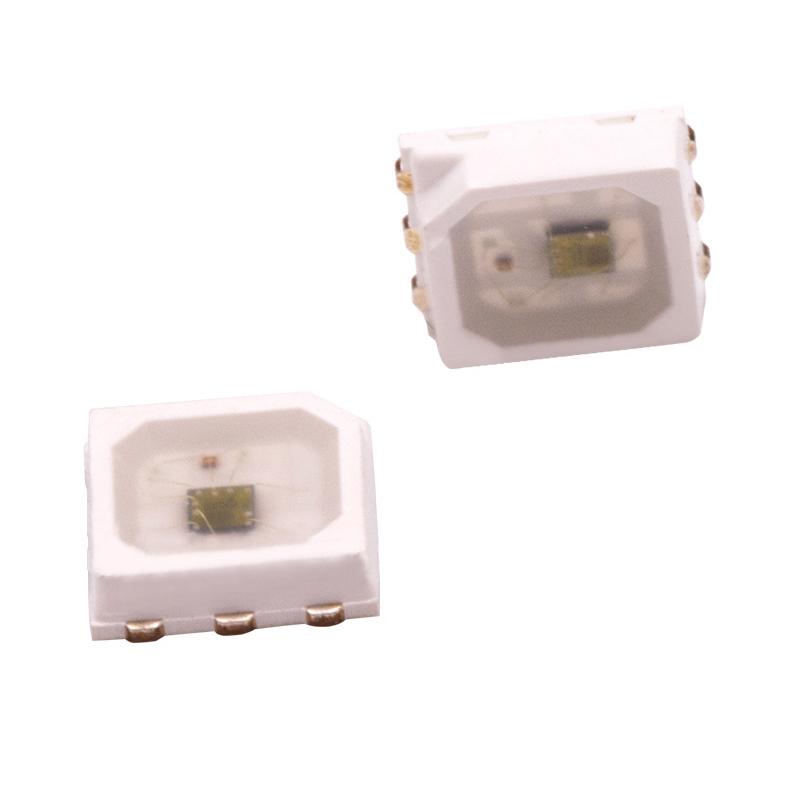

WS2813B RGB 3535SMD Digital Intelligent Addressable LED Chip, DIY LED Chip, 500PCS By Sale
WS2813B-Mini is an intelligent control LED light source that the control circuit and RGB chip are integrated into a package of 3535 components. Its internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V voltage programmable constant current control part, which achieves a highly consistent color effect.
Dual-signal wires version, signal break-point continuous transmission. Any pixel's failure won't affect signal transfer and the total emitting effect.
The data transfer protocol uses a single NZR communication mode. After the pixel power-on reset, the DIN port receive data from the controller, the first pixel collects the initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit is sent to the next cascade pixel through the DO port. After transmission for each pixel, the signal to reduce by 24bit. Every pixel adopts auto-reshaping transmit technology, making the pixel cascade numbers are not limited to the signal transmission, only relate to the speed of signal transmission.
The BIN receives the data signal, and then compare the data with the DIN side after phagocytosis of 24bit data, if DINdo NOT receives the signal, then switching to BIN for receiving the input signal, which ensures that any the IC's damage does not affect the signal cascade transmission and make the BIN in state of receiving signal until a restart after power-off. Refresh Frequency updates to 2KHz, Low Frame Frequency and no Flicker appear in HD Video Camera.
RESET time>280jus, it won't cause wrong reset while interruption, it supports the lower frequency and inexpensive MCU.
Integrated circuit chips enable the circuit control simpler，neater and more reliable while NO extra components are needed.
There's a choice of 16mA or 5mA current version, and also a choice of high brightness or cost-effective version. That is to say,wS2813 is provided with four versions.
The control circuit and RGB chip are integrated into 3535 components, to form an external control pixel.Intelligent Reverse-connection protection.
Using the built-in signal reshaping circuit to achieve the signal waveform shaping, and no distortion of waveform of the signal takes place.
The grey levels of each pixel are 256 levels, which achieves“256*256*256=16777216" full-color display, and refresh frequency reaches to 2KHz.
Serial cascade interface, data receiving and decoding depend on just one signal line. Dual-signal wires version, signal break-point continuous transmission.
Any two points the distance more than 5M transmission signal without any increase circuit. When the refresh rate is 30fps, cascade numbers is at least 1024 pixels.
Data transmitting at speeds of up to 800Kbps.
Good color consistency reliability, high cost-effective.
Standards and Certifications
LED Type: SMD LED 3535
LED Chip Type: WS2813B-3535
Emitting Color: Addressable Full Color RGB
Working Current: Red/Green/Blue
Working Voltage: DC 5V
Wavelength: B: 460-475nm, R: 620-630nm, G: 520-535 nm
Beam Angle: 120degrees
Waterproof Rating: non-waterproof

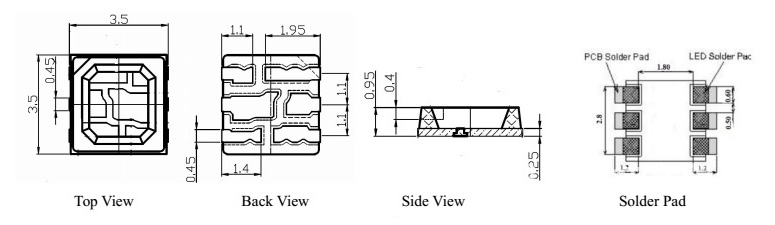

LED Chip Size
1* 500pcs WS2813B SMD5050 LED Chip
