Product Information

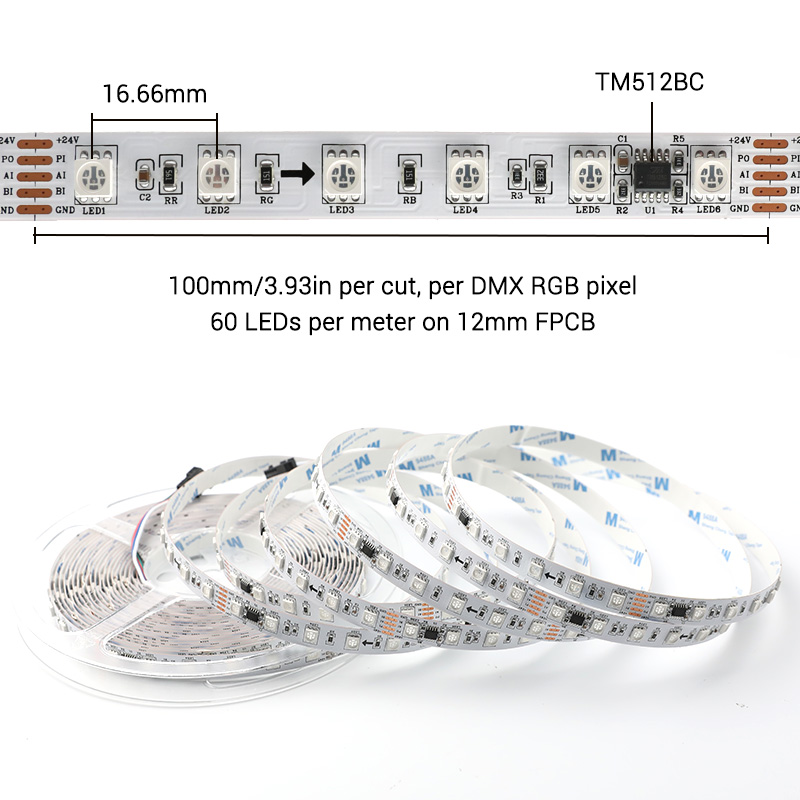

This 24V digital RGB LED strip light utilizes external TM512BC driver chips to interface with native DMX512 control systems without separate sub-decoders. Engineered for architectural chases, stage production, and commercial facade lighting, each 10-meter continuous reel integrates 60 SMD5050 RGB LEDs per meter across a 12mm wide white flexible printed circuit board.
Every TM512BC IC independently regulates 6 LEDs (1 pixel per 100mm) using 3 discrete DMX address channels, producing clean color gradients and pixel-mapped sequencing. The default setup includes 5-pin JST-SM connectors on input and output ends for immediate plug-and-play linking, with optional IP67 screw-locking waterproof connectors and silicone housing configurations available for damp or wet environments.
Key Features of the DMX512 RGB LED Strip
Direct DMX512 Signal Protocol
Receives standard differential DMX512 (A/B) data directly onto the PCB, pairing directly with an ArtNet DMX controller without SPI-to-DMX intermediary converters.
External TM512BC Driver IC
Equipped with 10 external TM512BC IC chips per meter, assigning 3 DMX channels per 6-LED group to deliver 10 individually controllable pixels per meter.
24V DC Extended 10-Meter Run
24V operation minimizes current draw and reduces voltage drop, allowing full 10-meter single-feed runs when energized by a regulated 24V Mean Well power supply.
Standard 5-Pin JST Connections

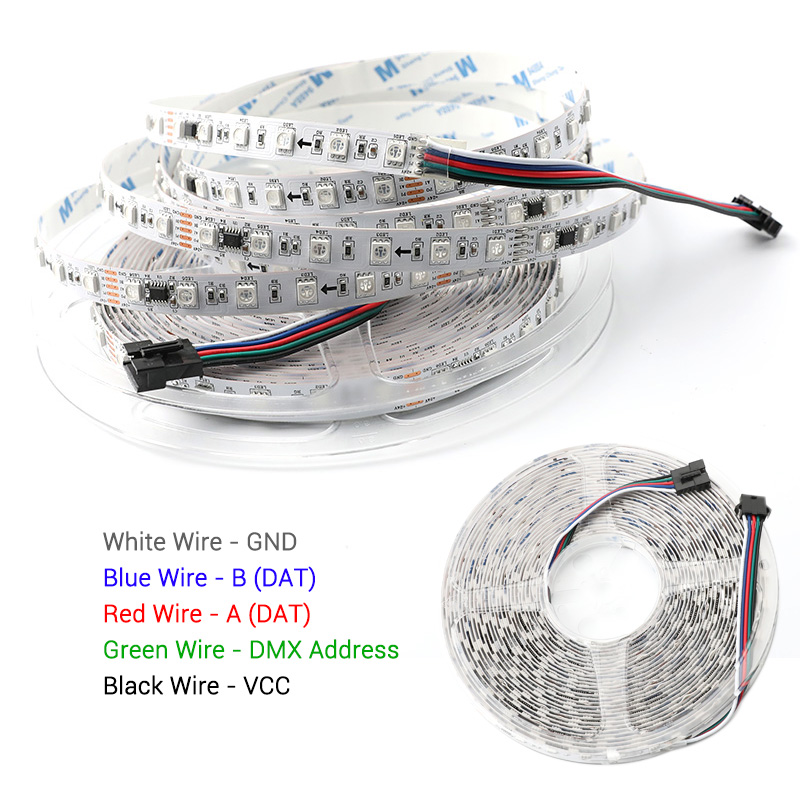

Equipped with factory 5-pin JST-SM connectors (V+, PI/Address write, DMX+, DMX-, GND), and readily extended with matched 5-pin connector cables.
Even Neon Diffusion Compatibility
Mounts directly inside a 12mm silicone neon diffuser to convert bare point-source diodes into continuous, dotless color-chasing neon lines.
Flexible 100mm Cut Intervals
Clear cut marks spaced every 100mm (6 LEDs) let you tailor exact segment lengths on site without damaging upstream or downstream DMX addressing.
Technical Highlights and Engineering Details
- Native DMX512 communication enables transmission rates of 250 kbps, sustaining refresh frequencies suitable for high-speed camera capture without flicker.
- External TM512BC architecture separates the driver IC package from the SMD5050 LED heat sink, increasing thermal dissipation across the 2oz double-sided copper PCB.
- Differential signal lines (DMX+ and DMX-) run alongside an integrated address-writing line (PI) for automated batch DMX address programming using an external address coder.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | DMXRGB-TM512-5050X60 |
| Input Voltage | DC 24V |
| Power Consumption | 14.4W per meter / 144W per 10m reel |
| LED Chip Type | SMD5050 Tri-color RGB |
| LED Density | 60 LEDs per meter (600 LEDs per reel) |
| Control IC | TM512BC External IC |
| IC Density | 10 ICs per meter (100 ICs per reel) |
| Pixel Resolution | 10 pixels per meter (6 LEDs per pixel) |
| DMX Channels per Pixel | 3 channels (Red, Green, Blue) |
| DMX Channels per Reel | 300 DMX channels per 10m reel |
| Cut Interval | 100mm (3.94 in) / 6 LEDs |
| PCB Width | 12mm (0.47 in) |
| PCB Thickness | 2oz double-sided copper |
| PCB Color | White |
| Default Connector | 5-pin JST-SM (V+, PI, DMX+, DMX-, GND) |
| Optional Waterproof Rating | IP20 indoor / IP67 silicone tube |
| Standard Reel Length | 10 meters (32.8 feet) |
Application Scenarios for DMX Controlled RGB LED Tape
How to Install & Use This LED Strip
- Inspect and bench-test the 10-meter LED strip light before unrolling or mounting, verifying that all DMX channels and RGB diodes respond to your controller.
- Write the starting DMX address using a dedicated handheld or software-based DMX address programmer connected to the PI address-writing line.
- Measure installation runs and, if necessary, cut the LED strip strictly along the marked copper solder pads located every 100mm.
- Terminate connections using the 5-pin JST-SM plugs or solder 5-conductor lead wires to the DC24V, PI, DMX+, DMX-, and GND solder pads, observing polarity.
- Apply power from a regulated 24V DC driver and route DMX signal lines into your lighting console or distribution node to begin programming.
⚠ Precautions
- Do not exceed a 10-meter continuous run from a single power injection point; install parallel DC24V power feeds for runs extending past 10 meters to prevent voltage drop and thermal strain on PCB traces.
- Ensure the DC power supply capacity provides at least 20% electrical headroom above the total strip wattage (144W strip load requires a minimum 175W to 200W driver).
- Maintain proper signal line polarities: DMX+ and DMX- must connect correctly across the entire run; reversing differential lines will interrupt DMX communication.
What is in the Box
- ✓1 x 10m (32.8ft) Reel 24V DMX RGB LED Strip Light with TM512BC IC
