Special Price: $113.98

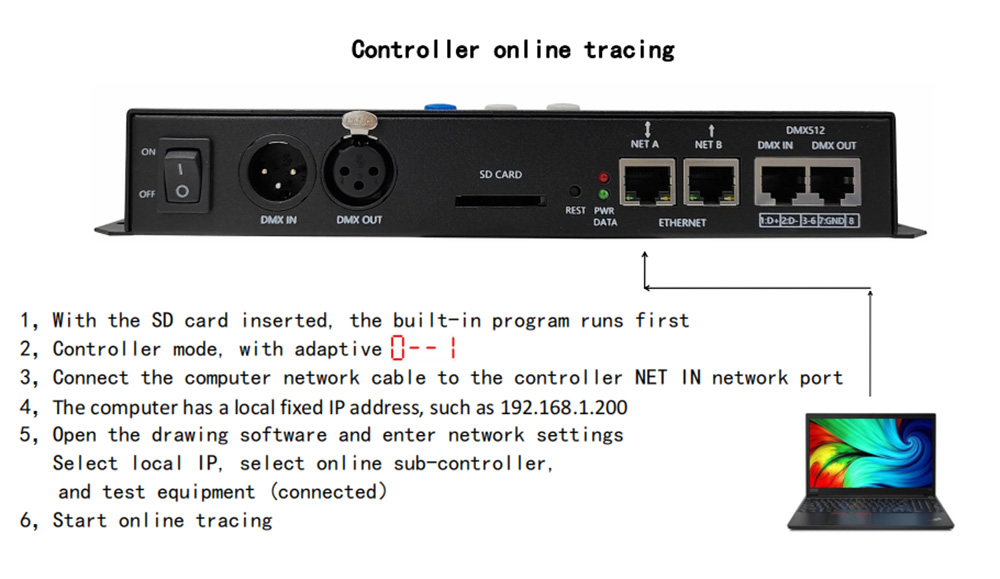

The 508S is a stand-alone SD card 8-port online+offline artnet dmx controller. This dmx spi controller can be connected to the computer for real-time preview and debugging, can be connected to MADRIX ARTNET, and can be inserted for offline playback. With 8 sets of output ports, 508S artnet dmx wifi controller can output DMX512, TTL, SPI data signals, and support lamps of various signal types in the industry. The 508S uses FPGA as the core processor and realizes high load, high frame rate, and high gray level control with FPGA's super data processing ability. The 508S reads the program in the SD card, which is plug and play. It is an offline LED controller with stable performance and strong applicability.

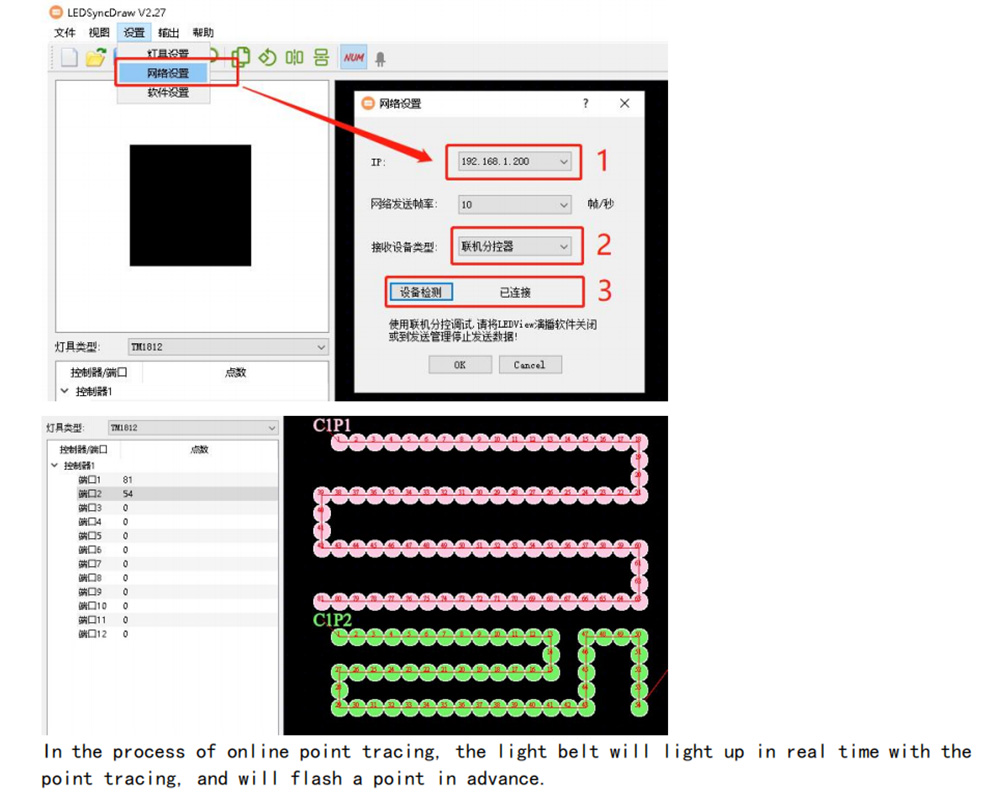

The 508S madrix dmx controller has an external console trigger function, which can be connected to the console and KTV intelligent light control box. It is very suitable for lighting control of bars and KTV rooms, receiving instructions from the console to call programs, and adjusting speed and brightness. 508S can apply to various LED lighting projects such as landscape lighting, building outlines, advertising words, entertainment places, etc. Combined with the multi-functional editing software ShadowDraw, it can achieve any color gradient, jump, light tracing, pictures, videos, text, and other effects. At present, artnet dmx 508S has been widely used in LED lighting projects such as office buildings, hotels, shop signs, etc.
Function Features:
1.As the core processor, FPGA really realizes high load, high speed and high gray control.

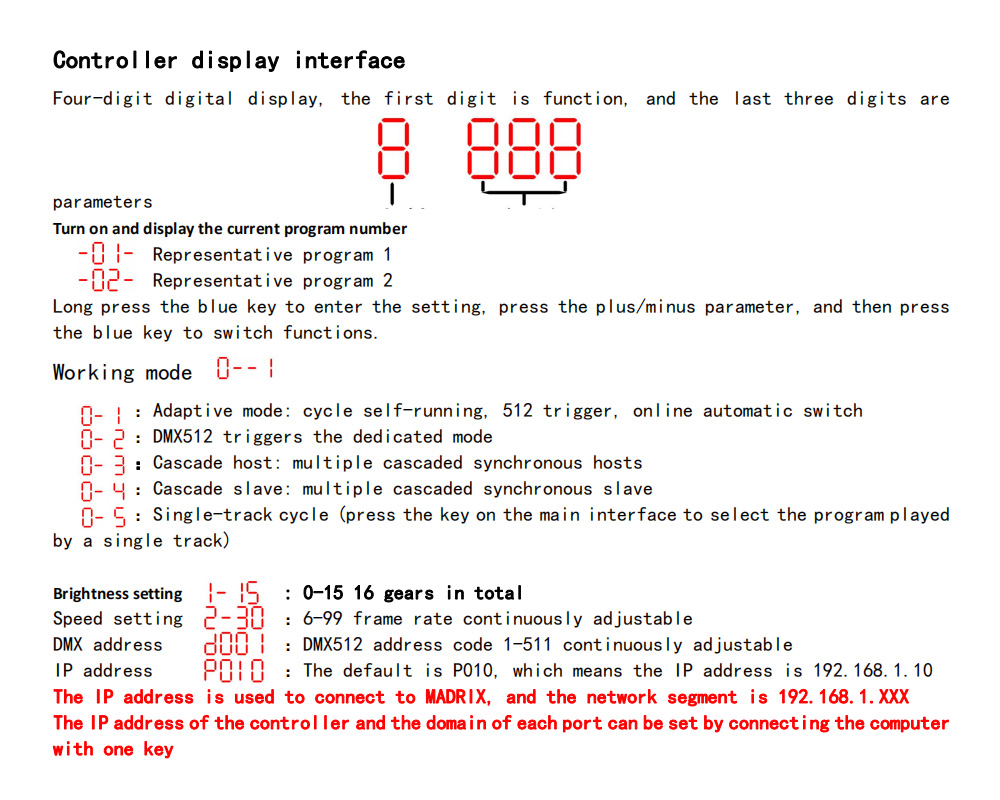

2.With digital display screen, display parameters and address codes, and set address codes and parameters in combination with keys.
3.Single SD card can be offline.

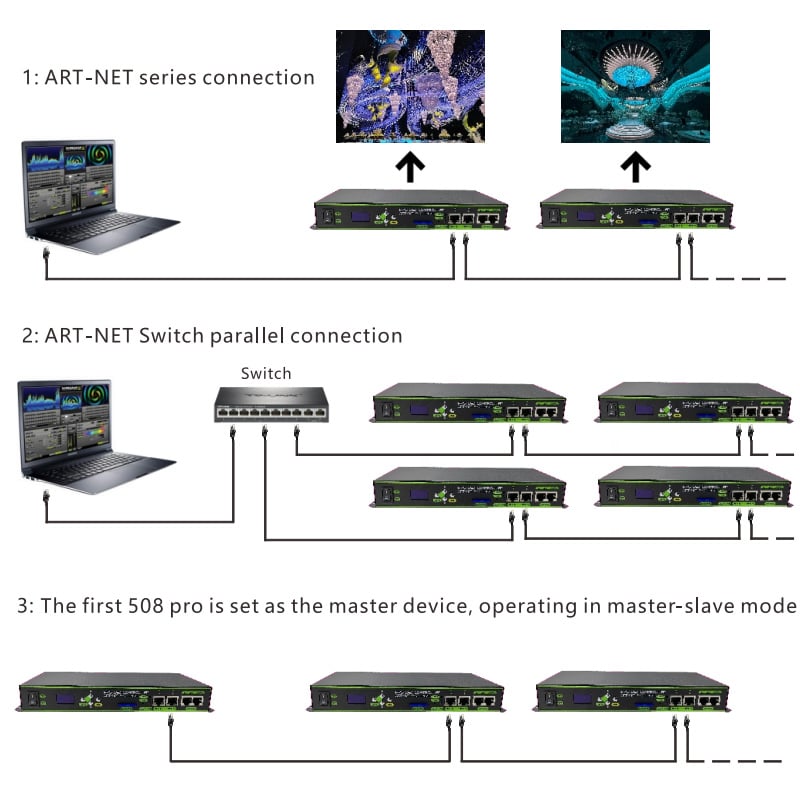

4.Multiple sets can be synchronized offline in series.

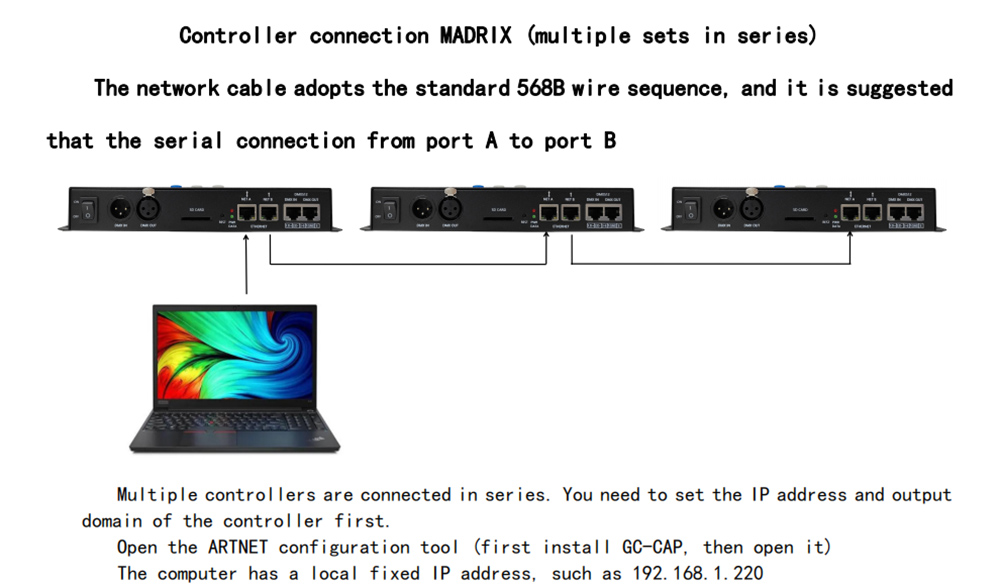

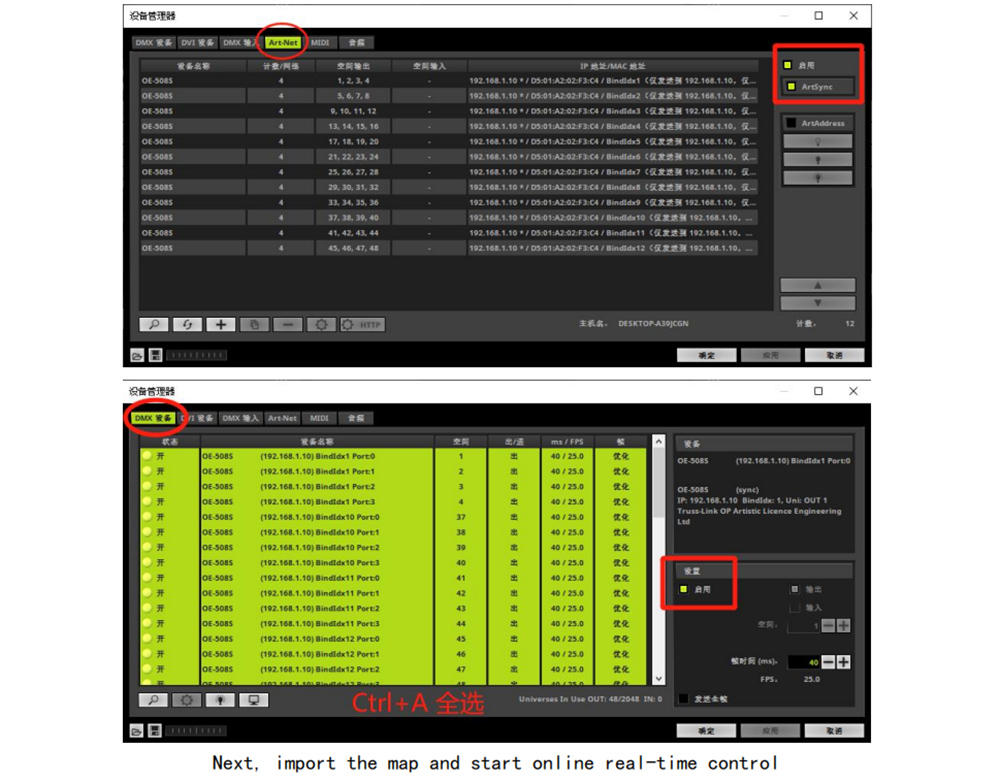

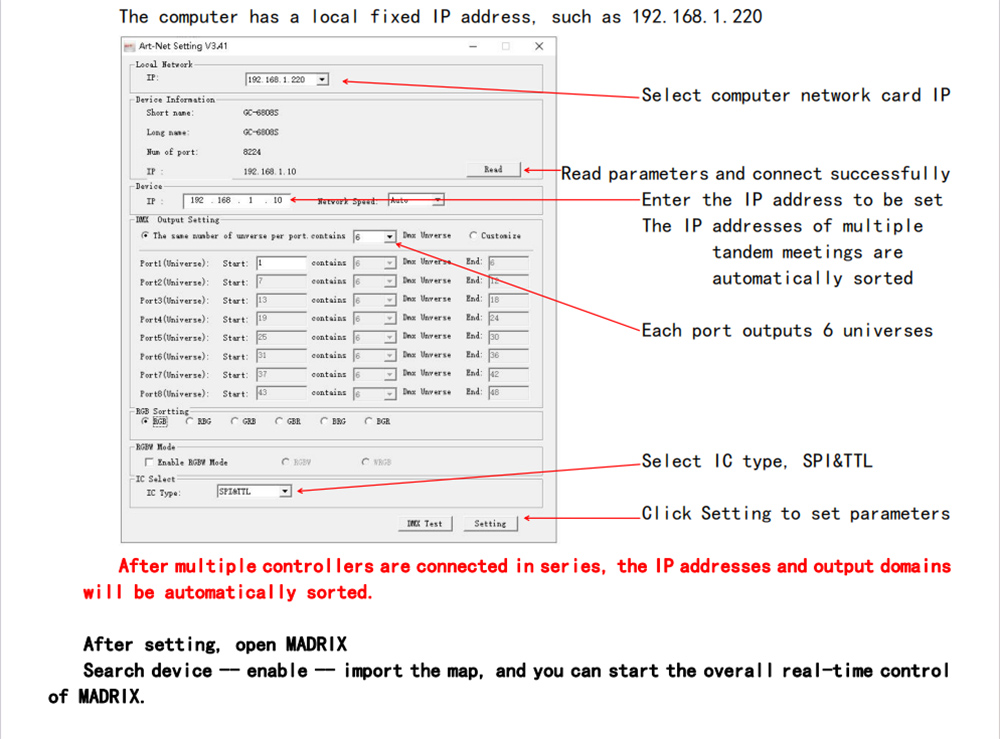

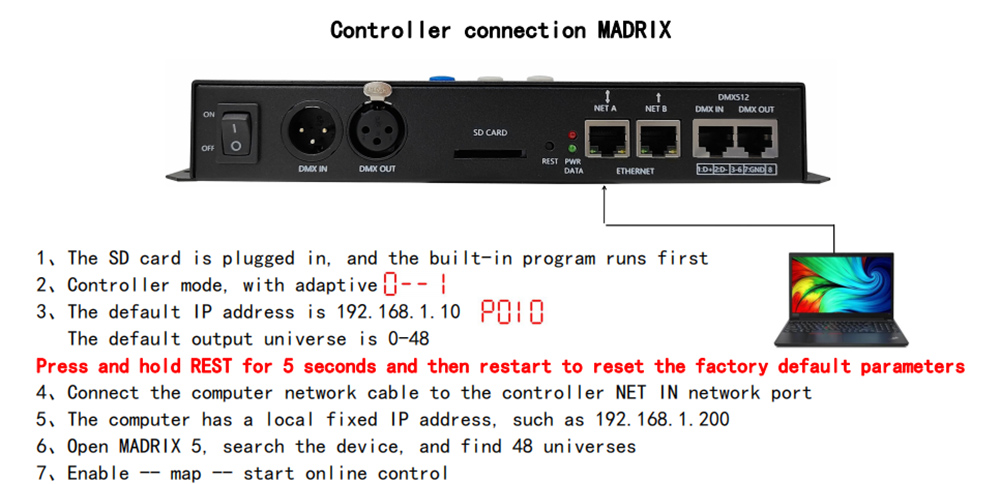

5.Real-time control of multiple cascaded MADRIX.
6.8-port output, 1024 pixels per port, 8192 pixels per unit.
7.It can support all kinds of light-driven ICs: DMX512, UCS series, TM series, and other LED industry-driven ICs.
Including but not limited to the following ICs:WS2812B, SK6812, WS2811, WS2815, UCS1903, SK6812, TM1824, SM16704, UCS2904, etc.
8.Output interface can be compatible with differential signal and TLL signal at the same time.
9.Support RGB and RGBW four-color control and a variety of special controls. RGBW can select energy-saving mode and brightening mode.
10.Support brightness and speed key adjustment.
11.Support large-capacity SD card, and support up to 64 program files.

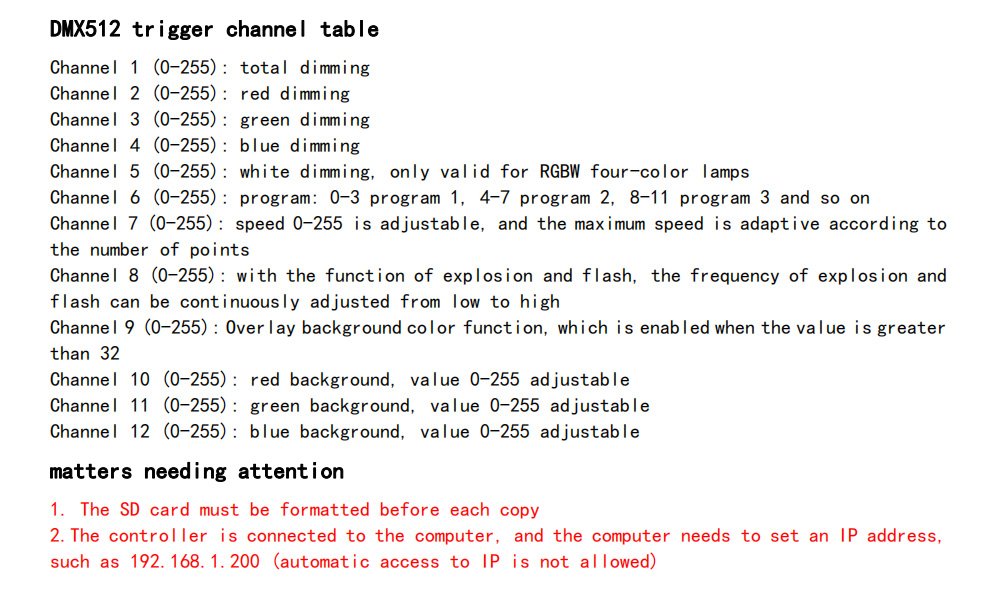

12.Support external console control, support access to the intelligent central control of the private room, real-time control, support console push rod overlay background color.

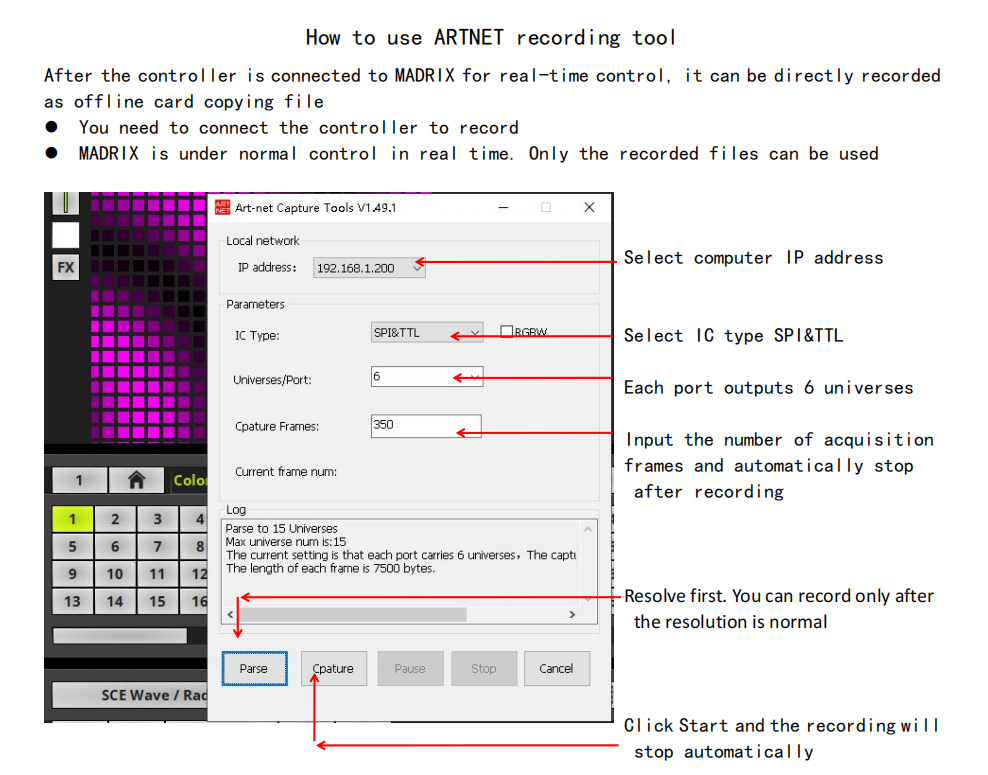

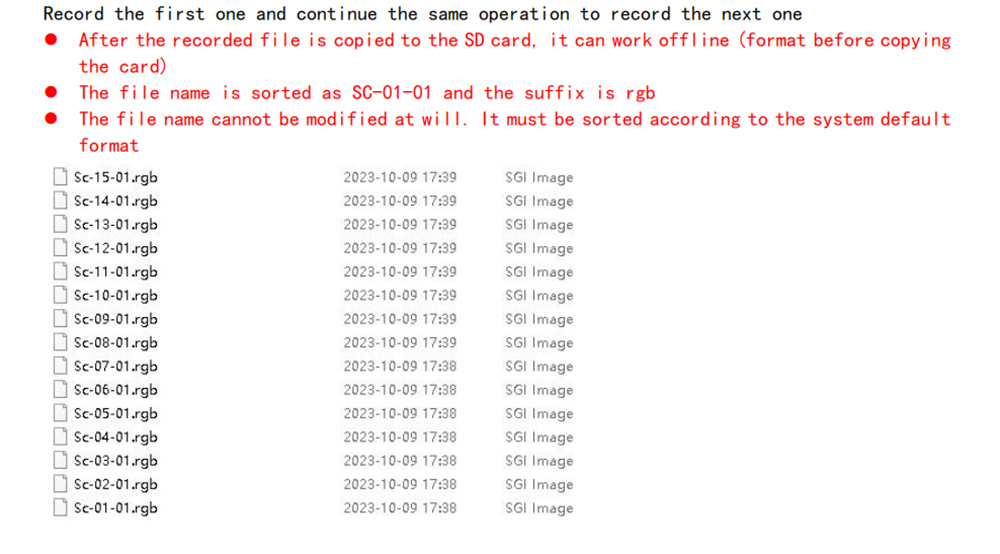

13.Supports online debugging of ARTNET Sir Michael. What you see is what you get. You can record ARTNET to generate offline card copying files.
508S 8 CH Artnet DMX Controller PDF Download
Standards and Certifications
Specification
Working Voltage: | AC 90-240V |
Power Consumption: | 3W |
Input Trigger Interface: | RJ45 (DMX512) |
Input Network Port: | RJ45 (ART-NET)(MADRIX) |
Output Interface: | 8x3pin (DMX512&TTL compatible) |
Model: | 508S |
Output Signal: | DMX512/TTL |
Working Temperature: | -20℃~65℃ |
Dimension: | L245×W140×H35 mm |
Weight (G.W): | 1.1 Kg |
