DMX512/UCS1903 RGB DC12V 300LEDs Addressable Programmable Flex LED Strip Lights, 16.4feet/roll

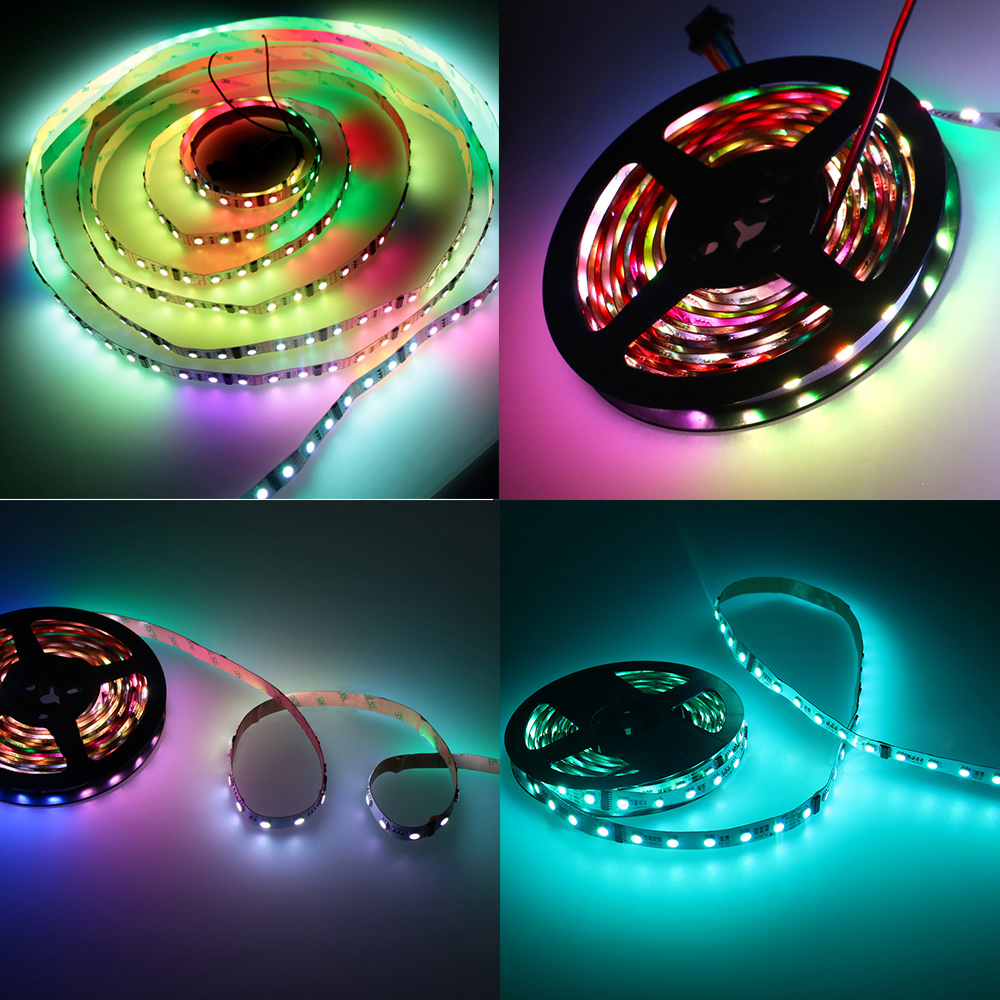

256 brightness display and 24-bit color display. Each pixel can have its own color and brightness. You can control them individually and set them to any color or animation you want.
Work great with Arduino or SPI controller or programmable led controller, ready-to-go library, Fast LED library and Raspberry Pi, etc. It’s very easy to program.

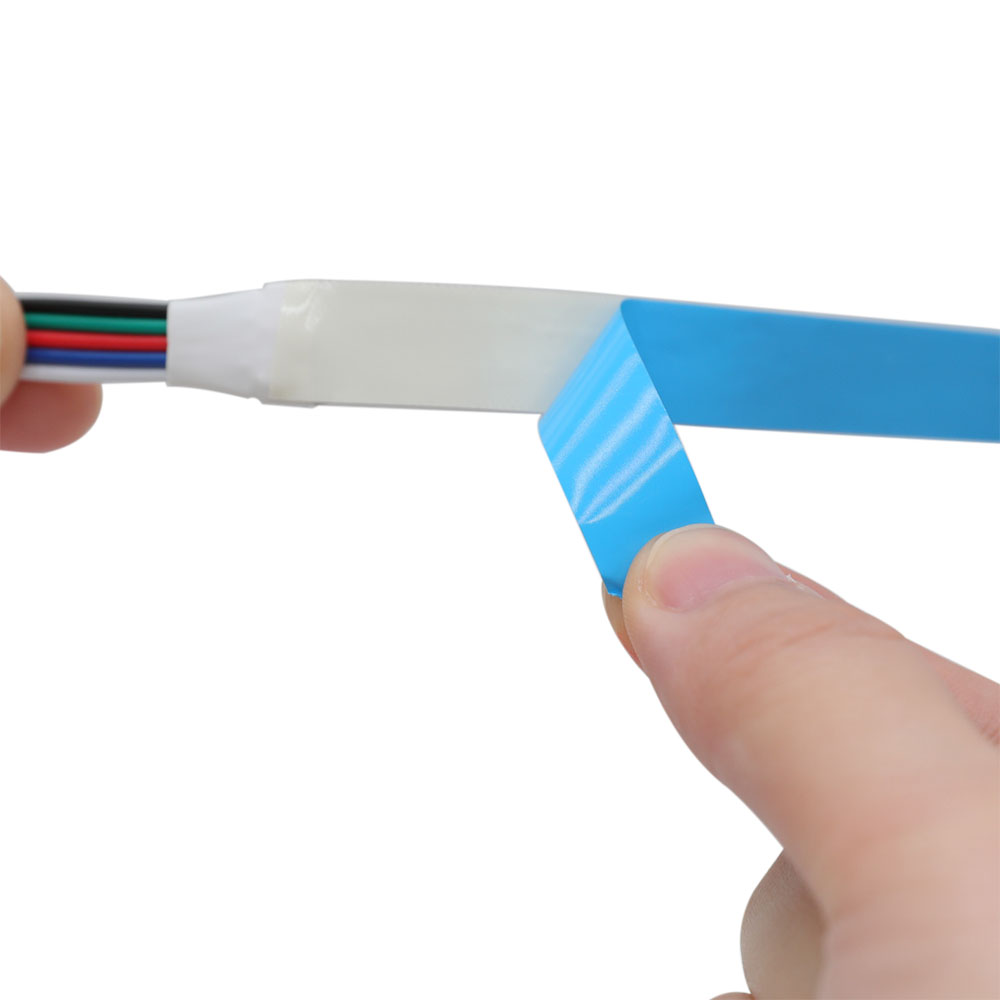

The strip is made of flexible PCB material, and comes with an adhesive backing and can be stuck just about anywhere, IP67 waterproof Covered with clear silicone weatherproof sheathing, which protects it very well and makes it easy to clean. It comes with silicone clips and screws. You can fix it in some place you want.
It comes with 5-PIN connectors and separated power/ground wires on both ends.
This is our recommended T-1000S Programmable controller link. We are a professional lighting system company, you can tell us your lighting project requirements, we will recommend the most reasonable lighting solutions for you. If you need a customized lighting scheme, please feel free to contact me.
Standards and Certifications

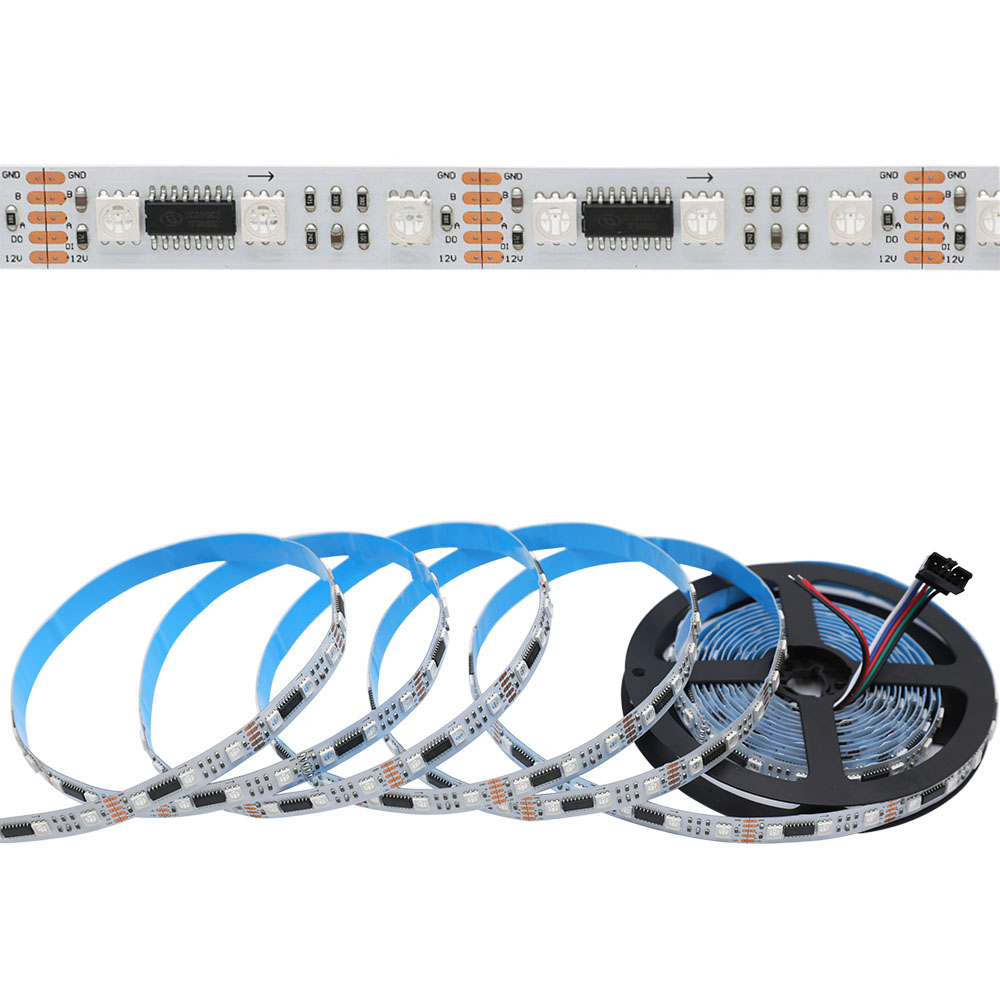

LED Strip Type: SMD 5050 300LEDs/16.4ft
LED Chip: DMX512/UCS1903 IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

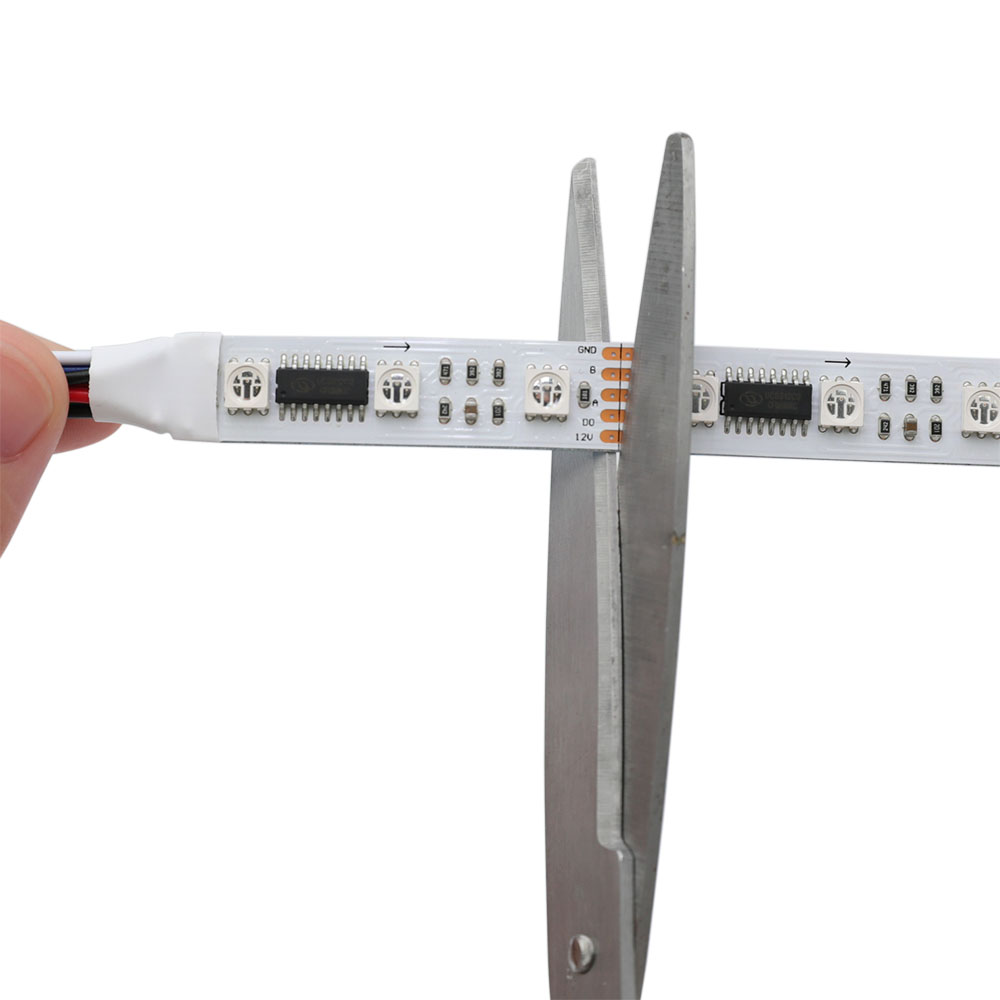

Dimension: 16.4ft/roll, every 3 PCS LED can be cut
LED Quantity: 60 LEDs per 1meter (3.28 ft)
IC Quantity: 20 per 1meter (3.28 ft)
Warantty: 3 years

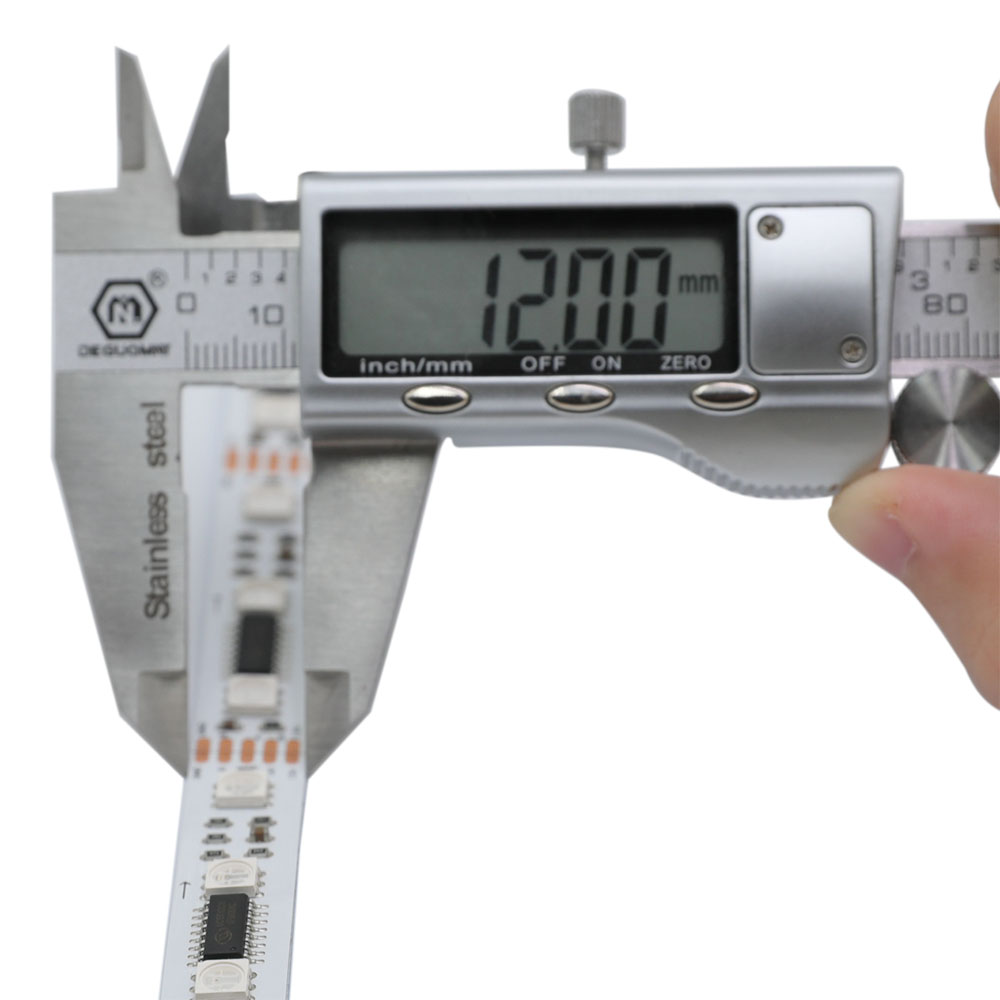

Dimensions: L500cm(127 in ) x W1.2cm(0.47 in ) x H0.25cm(0.10 in )
Input Voltage(V): 12VDC
Working Power: 72W/16.4ft Max
Lumen Per LED: 20~22Lumen 6600lm/16.4ft 402lm/ft 91.7lm/watt Max
Beam Pattern: 120 degree
Water Proof: Non-waterproof IP20 or Waterproof IP67/IP65
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);

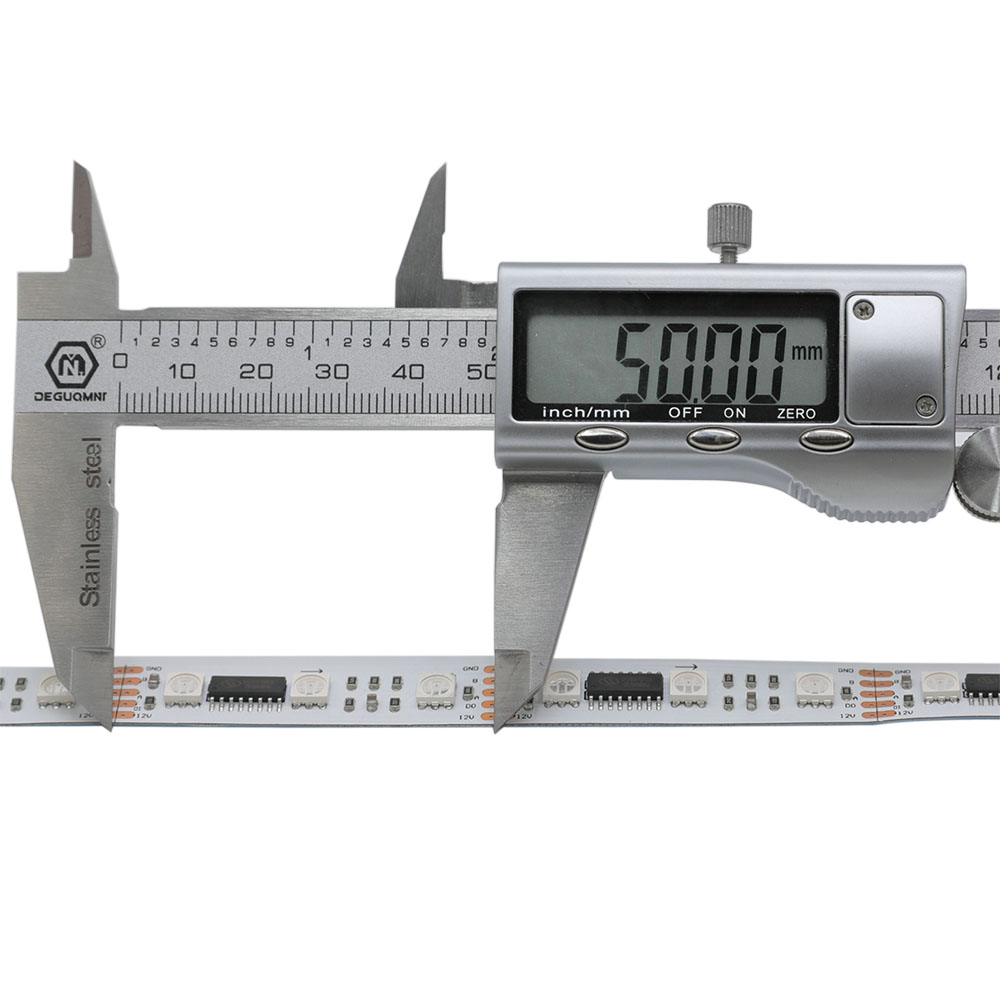

Light strip size
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
DMX512 Console Connection diagram:
