Product Information
Deliver stable and reliable power to your outdoor lighting with the SuperLightingLED PSWP-24V-40W, a robust 36W DC24V power supply. As a high-performance AC to DC switching power supply, it efficiently converts standard 110-220V AC household electricity into a clean 24V DC output, perfect for a wide range of low-voltage applications. Its IP67 waterproof rating ensures complete protection against dust and moisture, making it the ideal led driver power supply for landscape lighting, outdoor signage, and any project exposed to the elements. With a 36W capacity, this compact unit is perfectly balanced for small to medium-sized installations of 24V LED light strips, offering a dependable power source without the bulk or cost of higher-wattage alternatives.
Key Features
Reliable 36W Power Output
Provides a steady 36 Watts (1.5A) of power, ideal for small to medium-length runs of 24V LED tape lighting.
IP67 Waterproof Design
Fully sealed and protected against dust ingress and temporary water immersion, ensuring safe operation in outdoor and wet locations.
Constant Voltage (CV)
Engineered to maintain a consistent 24V DC output, crucial for ensuring even brightness across compatible LED light strips.
Universal AC Input
Accepts a wide input voltage range of 110V to 220V AC, making it suitable for use in various regions without a converter.
Compact & Slim Profile
Measures just 153mm long and 20mm wide, allowing for easy concealment within channels, posts, or tight spaces.
Technical Highlights
- Engineered with standard safety protections against short circuits and overloads.
- Durable, sealed enclosure prevents corrosion and damage from environmental factors.
- Efficient power conversion minimizes energy waste and heat generation.
- Pre-stripped input and output wires for straightforward, secure connections.
Product Specifications
| Parameter | Details |
|---|---|
| Model | PSWP-24V-40W |
| Product Type | Constant Voltage Waterproof Power Supply |
| Input Voltage | AC 110-220V |
| Output Voltage | DC 24V |
| Output Power | 36W |
| Output Current | 1.5A |
| IP Rating | IP67 Waterproof |

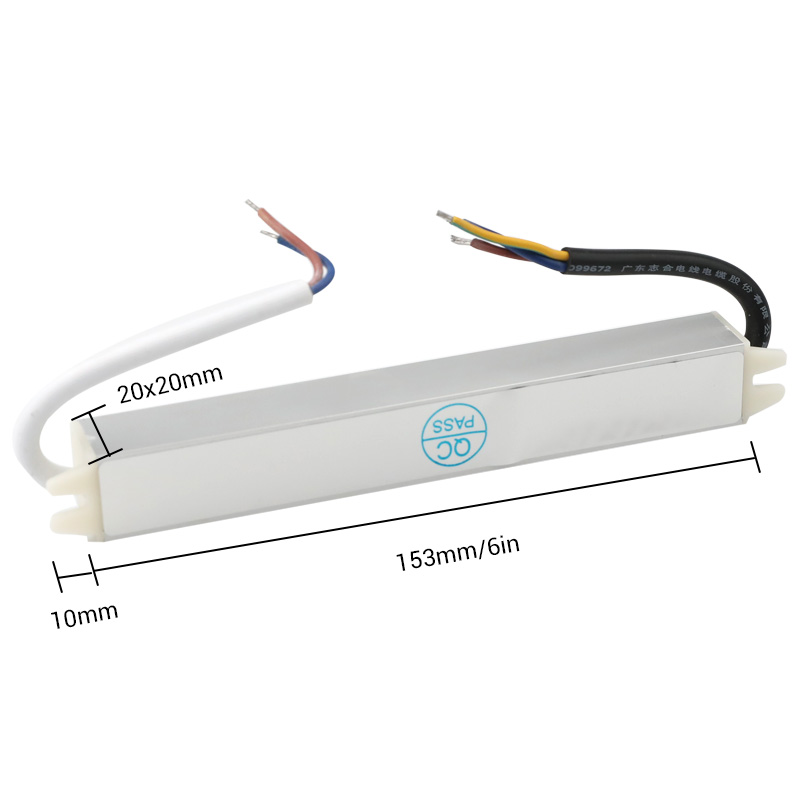

| Dimensions (L*W*H) | 153mm x 20mm x 20mm |
| Output Channels | 1 |
Application Scenarios
How to Wire & Install This Power Supply
- Verify Compatibility: Confirm that your LED lights require a DC 24V input and that their total power consumption does not exceed 36 Watts.
- Calculate Power Headroom: For longevity and stable performance, it is recommended to load the driver to only 80% of its capacity. The ideal maximum load for this driver is approximately 29W. It's crucial to calculate power for LED strip lights to ensure you don't overload the driver.
- Connect AC Input: De-energize your mains circuit. Securely connect the live/hot and neutral wires from your AC 110-220V source to the corresponding input leads of the driver.
- Connect DC Output: Connect the red positive (+) and black negative (-) output wires from the driver to your 24V LED lighting, ensuring the polarity is correct.
- Test System: Once all connections are secure and waterproofed if necessary, restore power to the AC circuit to test your lighting installation.
- Always disconnect from mains power before installation or maintenance. Installation should be performed by a qualified electrician.
- Do not exceed 80% of the driver's maximum power rating (29W) to ensure reliability and prevent overheating.
- Incorrect polarity on the DC output can damage your LED lights. Always double-check connections.
- This is a Constant Voltage driver. Do not use it with LEDs that require a constant current driver.
- For outdoor use, ensure all wire connections are made within a suitable waterproof enclosure to maintain system integrity.
What's in the Box
- ✓1 x 36W DC24V IP67 Waterproof LED Driver (Model: PSWP-24V-40W)
Frequently Asked Questions
Q: What does an IP67 rating mean for this LED driver?
A:IP67 means the driver is completely dust-tight and can withstand temporary immersion in water up to 1 meter deep for 30 minutes, making it highly suitable for outdoor and wet environments.
Q: Is this a constant current or constant voltage power supply?
A:This is a Constant Voltage driver, specifically designed to provide a stable 24V DC output for products like standard LED light strips. It is not suitable for LEDs requiring constant current.
Q: How many feet of LED strip can this 36W driver power?
A:This depends on the power consumption of your specific LED strip (Watts per foot/meter). For example, if your strip uses 4W/ft, you could power up to 7 feet (28W total), which respects the 80% maximum load rule.
Q: Can I use this driver for my garden lights?
A:Yes, absolutely. Its IP67 waterproof rating and 24V DC output make it an ideal outdoor power supply for low-voltage garden and landscape lighting.
Q: What is the difference between this 36W driver and the 60W model?
A:The primary difference is power capacity. This 36W model is designed for smaller projects with lower power needs, while the 60W model can support a larger load, such as longer LED strip runs or more light fixtures.
Q: Will this power supply work with both 120V US and 220V European power?
A:Yes, its universal AC input range of 110-220V allows it to work with standard residential voltages in North America, Europe, and many other regions without any adjustments.
