DC12-24V Zigbee RGBCCT Strip Controller Compatible with Amazon Alexa and Voice Smartphone APP Control
The Controller must works with Standard Light Link ZigBee Hub (Required),Compatible with Hue Bridge,Gateways Lightify Hub and Amazon Echo Plus
Directly Works with Alexa Echo Plus,Voice controlled your led strip light by speaking to Amazon Alexa,you can turn on/off,change the color,dim/brighten the LED light
For RGB and RGB+CCT( cold white and warm white)LED Strip Lights DC12-24V (The package only Zigbee Smart LED Controller,This controller is the 1 SSID version）

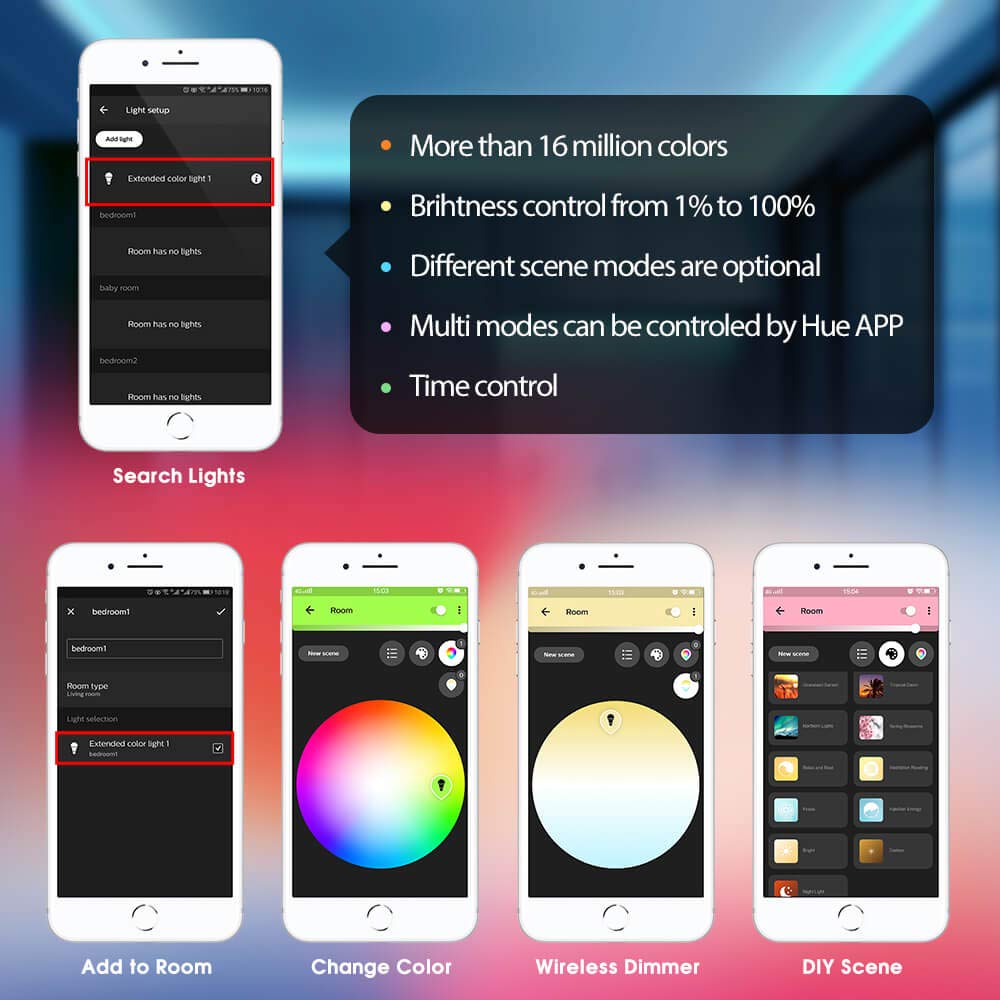

Works with Philips Hue APP: Control your LED lights from anywhere;You can make the lights lighting with the rhythm of music in your Smart Phone, You also can control multiple controllers(strip lights) at the same time on 1 app by setting up groups.

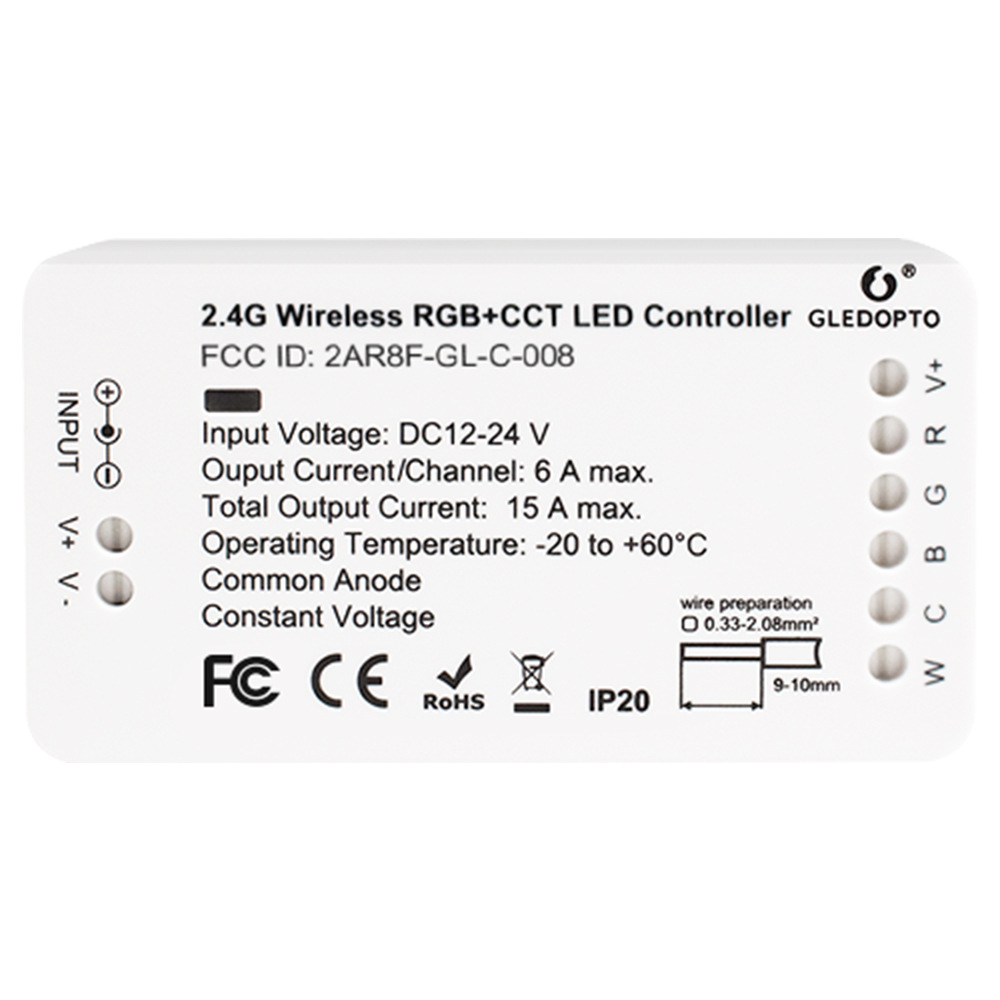

Input Voltage: DC12V-24V Output Max Current: 6A/CH
Total Output Current: 15 A
Max Load Power:180W(12V) / 360W(24V)
Remote Distance:10~15 meters
Connecting mode: common anode
Controled Method:ZIGBEE ZLL
Connection Mode:APP Control/Voice control
Static Power consumption: <1W

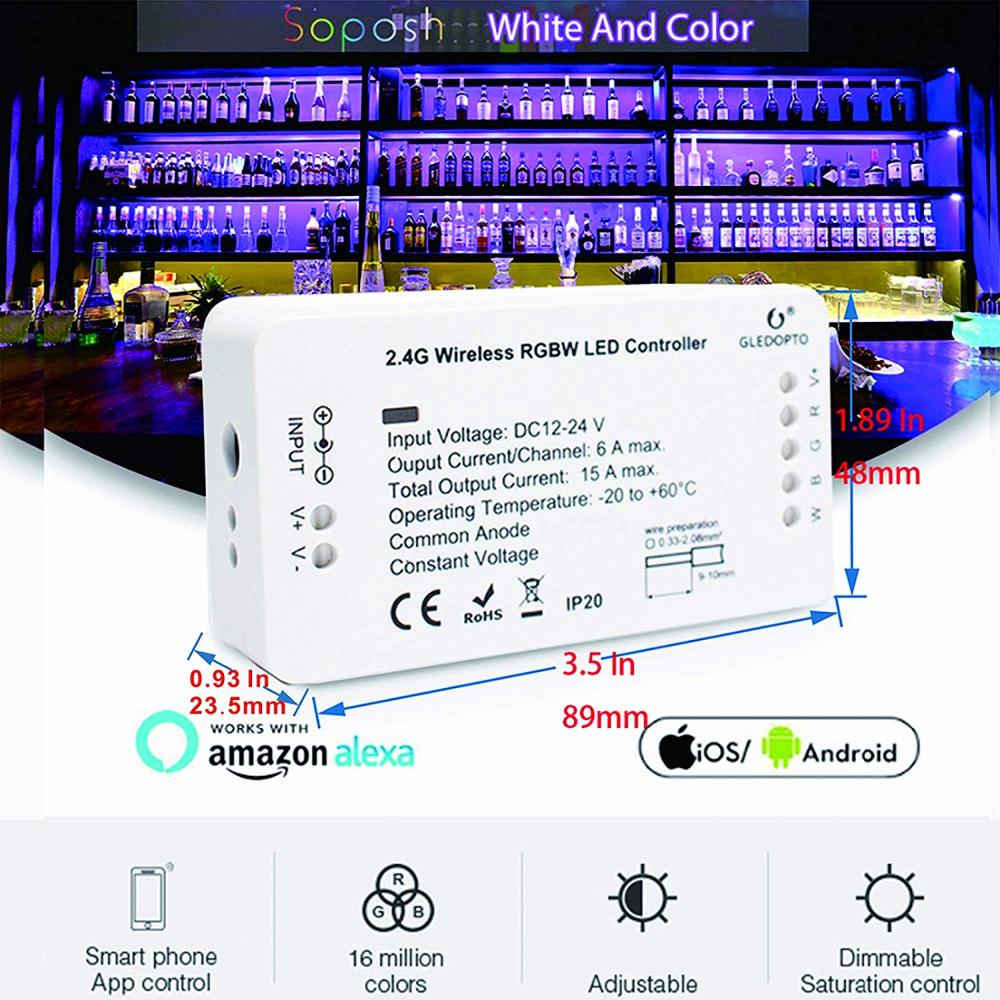

Size: L3.54 in*W1.9 in*H0.98 in

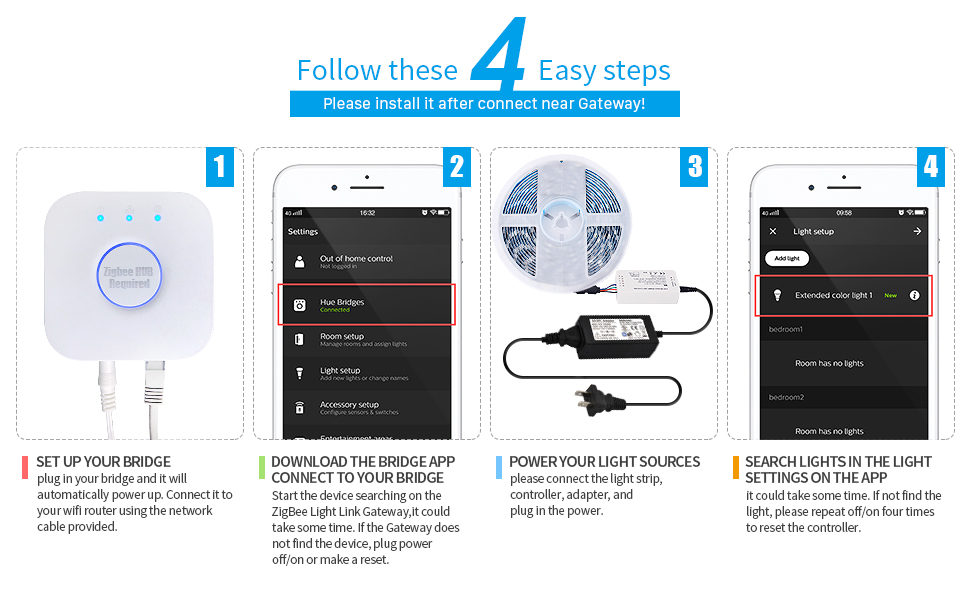

Connection with Gateway:
Connect the LED product to the controller;
Start the device searching on the ZigBee Light Link Gateway, it could take some time.(If the Gateway does not find the device, plug power off/on or make a reset.)
The Gateway found your device and you can assign it to the different rooms/zones/groups.
Now you can use the device.
Switch on your device.
Now switch off and on within 2 seconds.
Repeat off/on four times.
Reset is done when the device is switched on in the fifth time and the light stays on after blinking 4 times.
For RGBW/RGBW devices you will find two SSIDs. One for white/warmwhite, the other for RGB. **The Osram Gateway supports only one SSID, with the RGBW/RGBWW device it find only RGB.
