24V 2 Row 5-in-1 Full Color Tuning More Flexible S RGBCW LED Strip

Name: 24V 2 Row 5-in-1 Full Color Tuning More Flexible S RGBCW LED Strip
Brand: SuperLightingLED
SKU: FSLRGBWW-5T1X132-W20S
Price: 39.98 USD
Availability: InStock

Model: FSLRGBWW-5T1X132-W20S Review stars

0.0 (0 Reviews) Various options in stock

Starting at: $51.99 $39.9823% off

Qty Discounts Off Price
1-29 $39.98	30-49 $39.18	50-99 $38.38	100+ $37.58
* Discounts may vary based on options below

Select Specifications:

Select Kit:

Select PCB Width:

Select Length:

16.4ft (5 meters)

Select Waterproof Rating:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

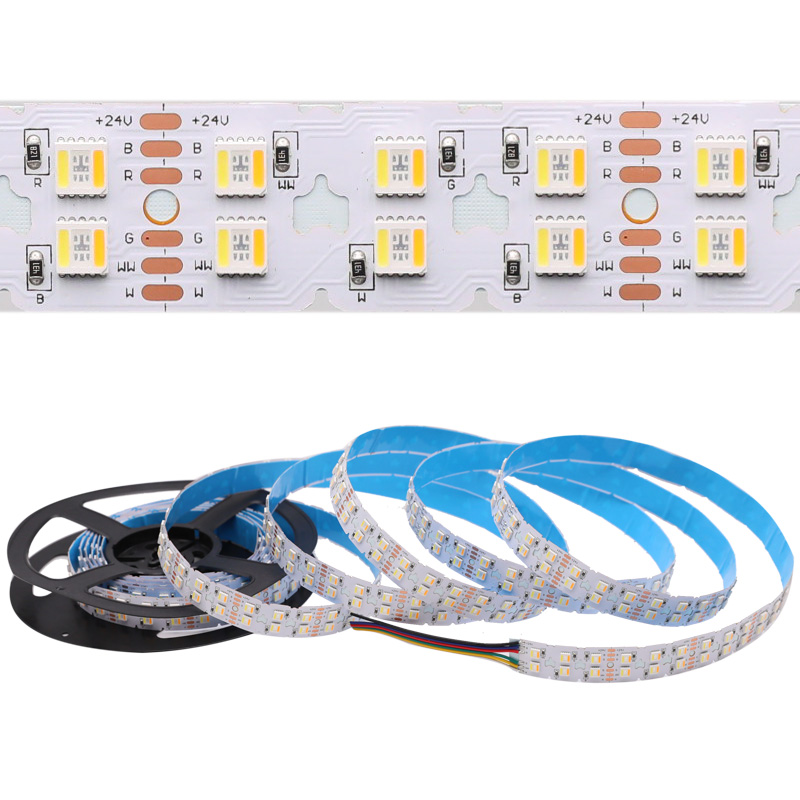

This 2 row RGBCW led strip (RGB, cool white 6500K, and warm white 2400K in one SMD5050 LED) uses a special printed circuit board design, presenting a micro S shape, which is more bendable and can be adapted to complex mounting surface shapes.

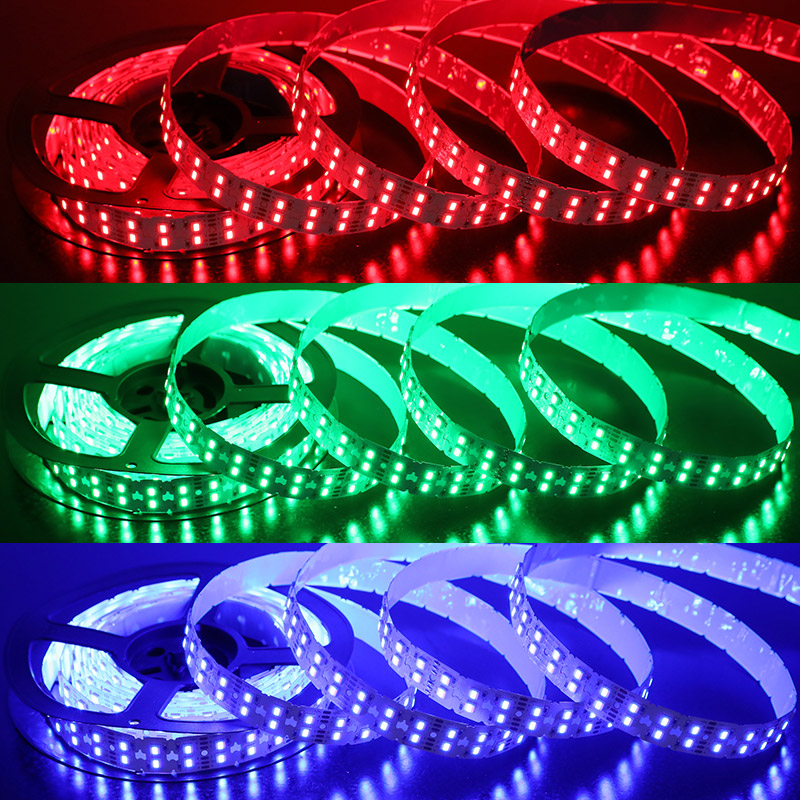

The double-row, high-density LED layout features 132 LEDs per meter, each LED integrates five different colors, namely Red (R), Green (G), Blue (B), Cool White (C) and Warm White (W), which provides more color choices and lighting effects and supports full color tuning.

Slightly S-shape printed circuit board, more flexible and bendable

Dual row 5-in-1 RGBCW SMD5050 LED design

Full color tuning, more color options, external RGB CCT control like smart controller WIFI-BT-WB5 in the kit

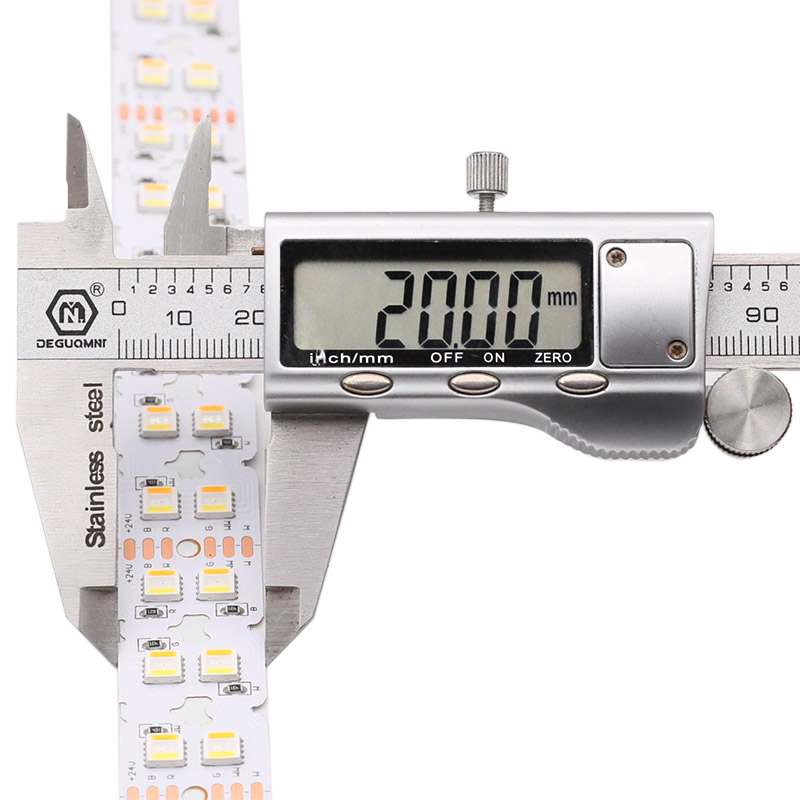

20mm board width to help heat dissipation

24V DC input, 45 watts per meter, LRS-350-24 Meanwell power supply in the kit

Adhesive backing for simple installation

LED Strip PDF Download

Product Specifications

LED Strip Type:	2 Row 5-in-1 Full Color Tuning More Flexible S RGBCW LED Strip
LED Chip:	SMD5050
Input Voltage:	DC24V
Product Size:	L16.4ft(5 meters)W20mm(0.79")H2.5mm
Light Color:	RGB + CCT 2400K-6500K
Lumen:	10-20lm/LED max, 402lm/ft-804lm/ft
LED Quantity:	132 LEDs per meter
Working Power:	45W/m max, 225W/Roll

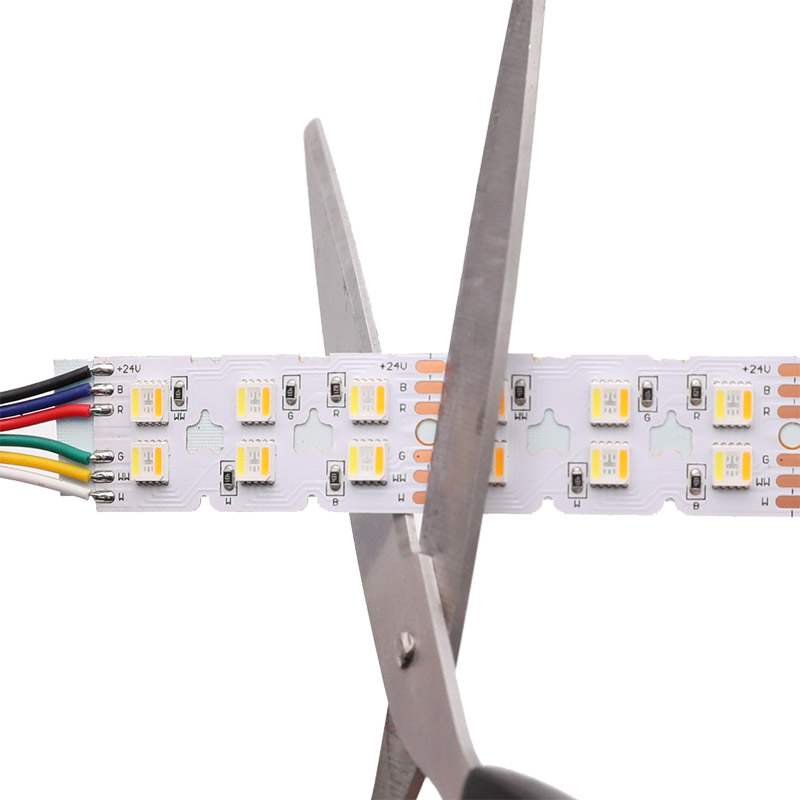

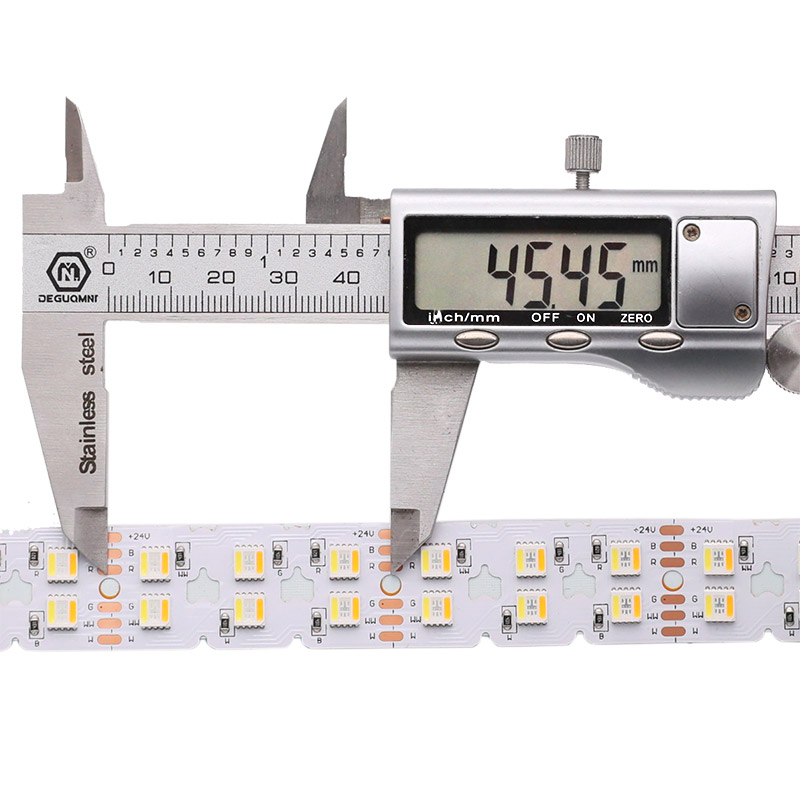

Cut Unit:	6 LEDs, 45.45mm(1.8")
Lifespan:	50,000+hours
Beam Pattern:	120 degrees
IP Rating:	Non-waterproof IP20

24V 2 Row 5-in-1 Full Color Tuning More Flexible S RGBCW LED Strip

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for FSLRGBWW-5T1X132-W20S

PDFFSLRGBWW-5T1X132-W20S product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does it need?

Colour-changing LED strip lights need a controller with one output per colour channel — for this model that is a 4-pin RGB controller at the same voltage. Choosing a controller

Which waterproof rating should I choose?

Available on this model: Outdoor Silicone Tube IP67 - With Brackets · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Will it fit an aluminium profile, and how dense are the LEDs?

PCB width 15mm (RGB + W2700K + W6500K) · 20mm (RGB + W2400K + W6500K). Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
