Single Row Series DC24V 5630SMD 360LEDs Flexible LED Strip Lights Home Lighting Waterproof 16.4ft Per Reel By Sale

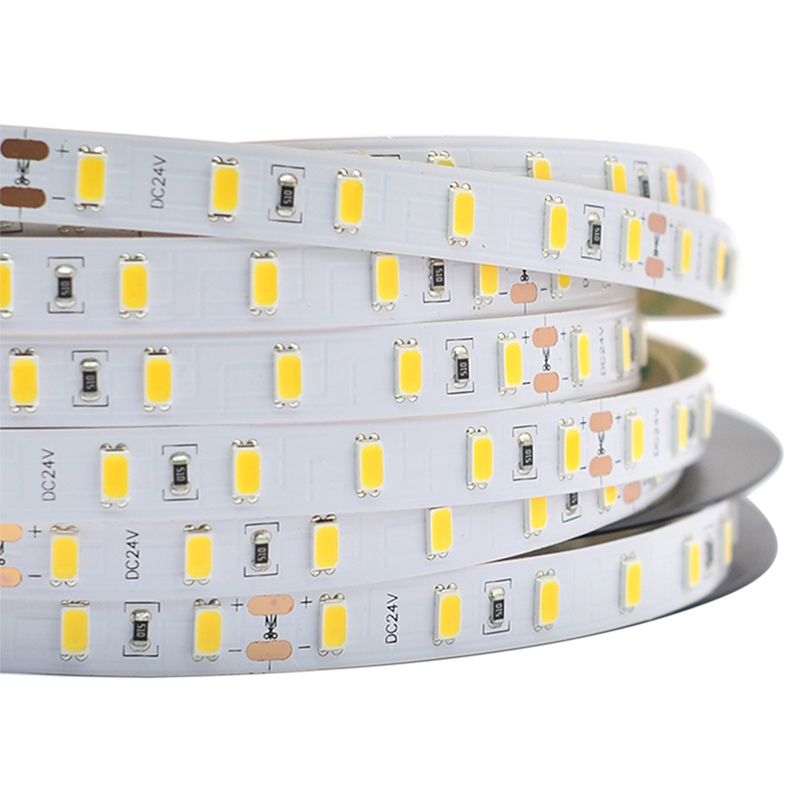

Universal single color super bright 5630 SMD(SMD: Surface Mounted Devices) Waterproof optional Flexible LED Tape strips, Epistar chip, 360LEDs/16.4ft, 16.4ft(5 meters) Per Reel By Sale.

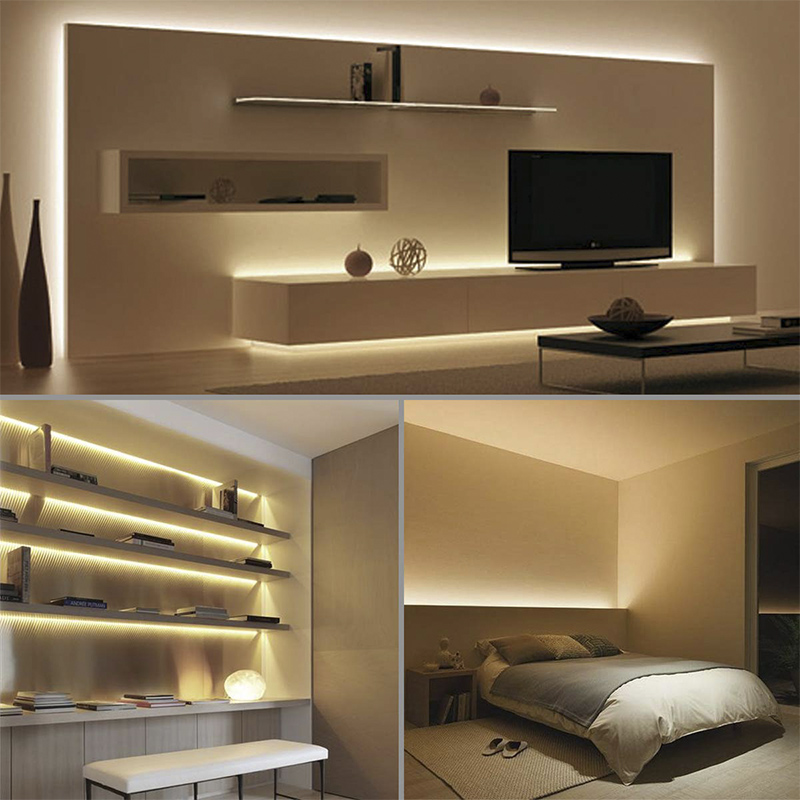

Our brightest super flexible LED Solid Color light Strips soft and easy bent for installation. Available in 5 meters (197 in) flexible light strips with adhesive backing and can be stuck just about anywhere. can be cut into 6-LED segments, so you could cut a different length for your project and request. This LED Light strip is perfect for retail shops, supermarkets, museums, galleries, photography or any indoor applications where presentation, appearance, and depth of color are critical, Suitable for the average home lighting as well as lighting professionals. High color rendering index (+95 CRI) enhances vibrant colors more than traditional LEDs nearly matching the color quality of incandescents. 24V DC operation. Dimmable - Connect LED Smart Dimmers.
Standards and Certifications
LED Strip Type: SMD 5630 360PCS/16.4ft
LED Chip: Super bright Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White, Daylight White,Cool White, Red, Green, Blue, Amber (optional)
Dimension: 16.4ft/roll, every 6 PCS LED can be cut
LED Quantity: 72 LEDs per 1meter (3.28 ft)
Warantty: 3 years

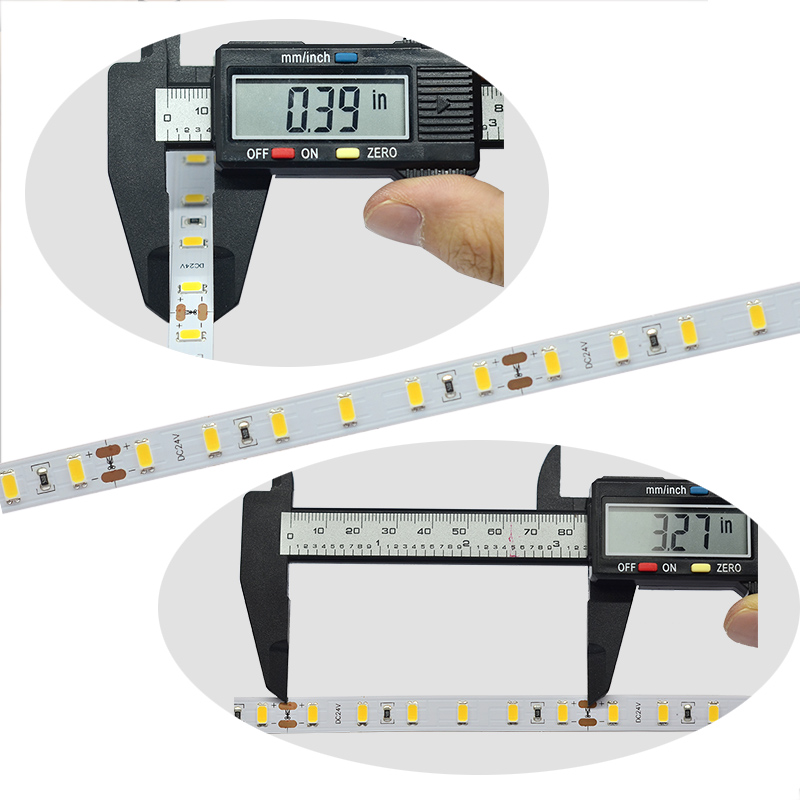

Dimensions: L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )
Input Voltage(V): 24V DC
Working Power: 3.6A 86.4W /16.4ft Max
Lamp Luminous Flux(lm): 20~22lm/LEDs 1584lm/m 483lm/ft
Color Temperature CCT(White): Warm White(2800-3500k), Daylight White(5000-6500k), Cool White(7500-10000k)
Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Beam Pattern: 120 degree
Water Proof: Non-waterproof; Waterproof IP65; Waterproof IP67; Waterproof IP68 Optional
CRI (Ra>): 95
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.

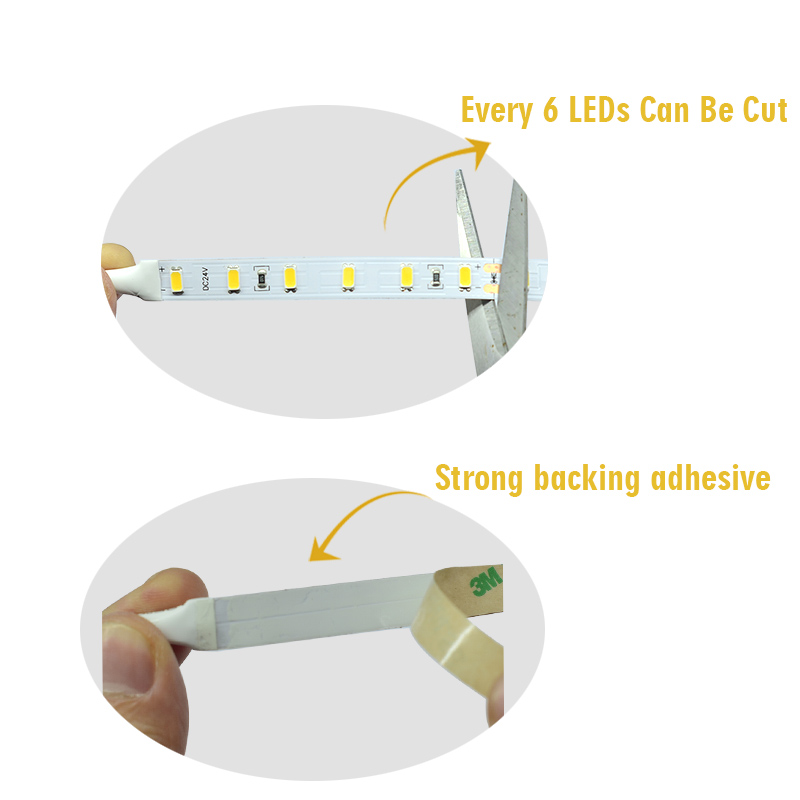

You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which will come with
allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements to many different surfaces.
