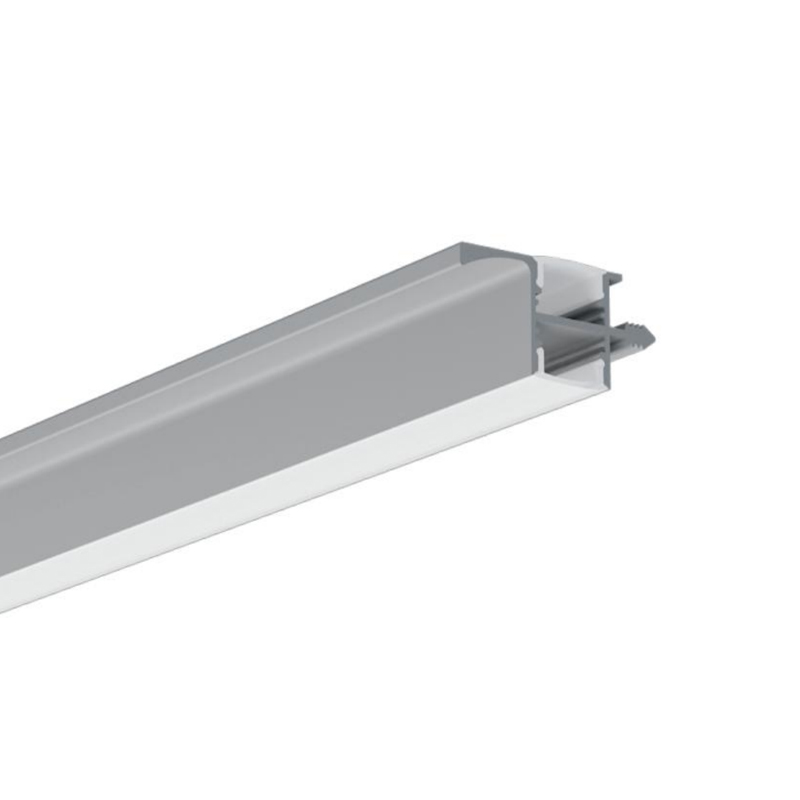

Cabinet Lighting Aluminum LED Strip Diffuser Profile For 15mm Double Row LED Strip Lights

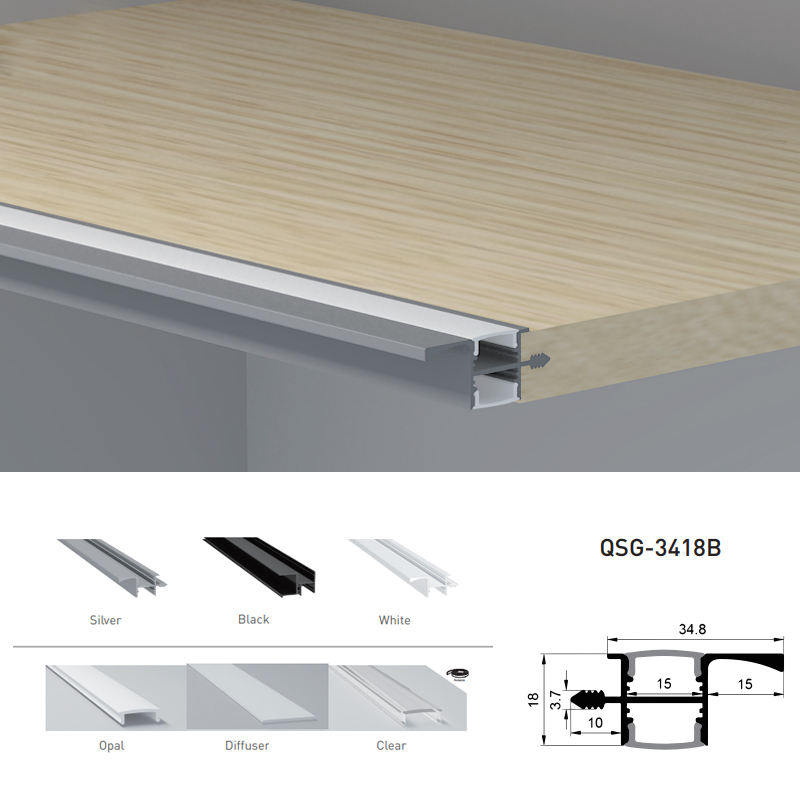

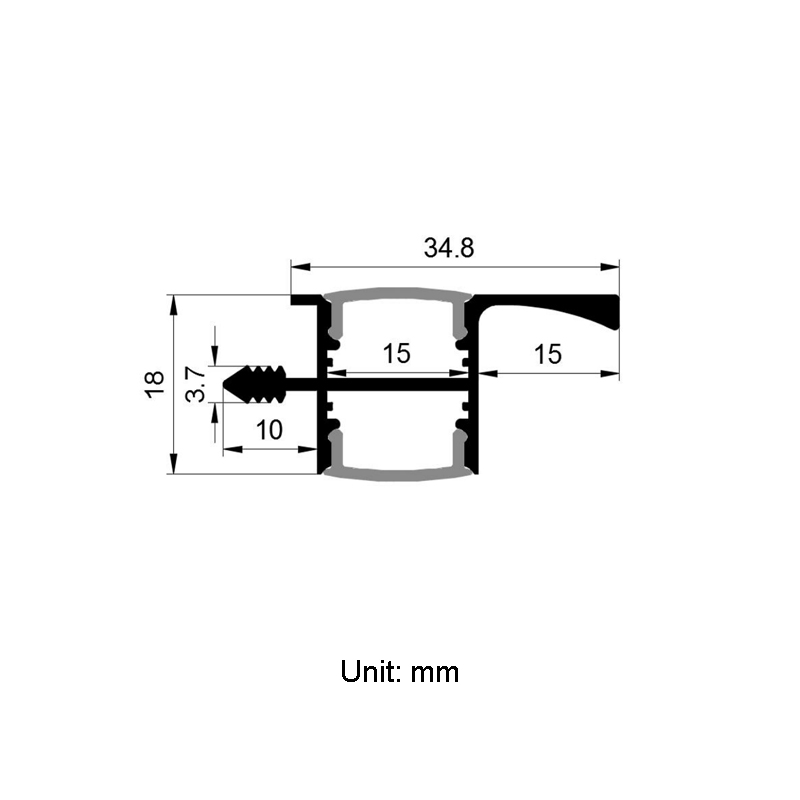

Check this cabinet light LED diffuser with a PC led diffuser to soft LED light output, highlight your cabinets and closets. Made of high-quality aluminum alloy, this led light strip diffuser channel has good heat dissipation. With 15mm/0.59in inner width, it can be used for double row led strip lights. There are silver, white, and black aluminum channel diffusers can be chosen. Complete look with end caps, is ideal for adding light to your closet.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
|Material||6063-T5 Aluminum Alloy|
|Aluminum Color||Silver /White /Black|
|LED Diffuser||PC opal microprism diffuser /PC semi-clear diffuser /PC clear microprism diffuser|

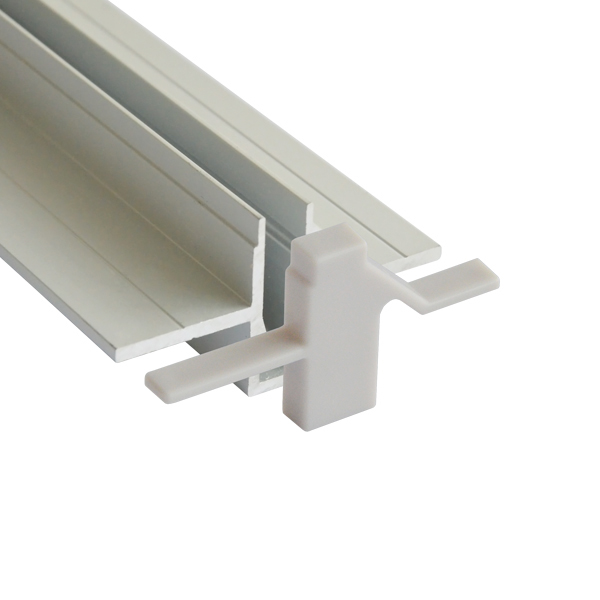

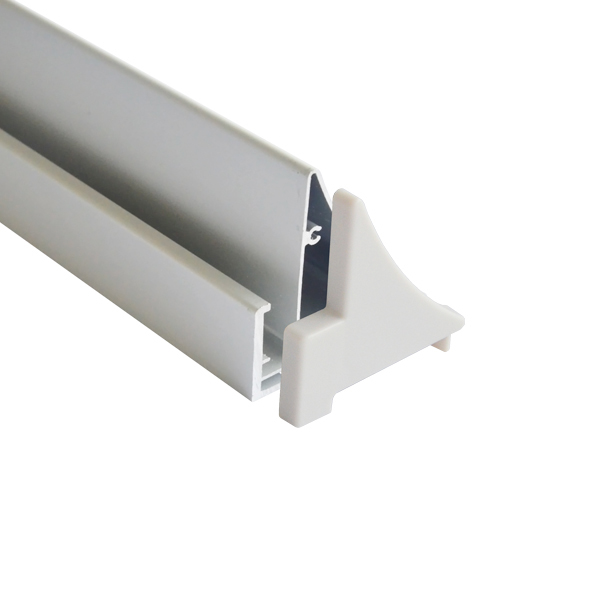

|Accessory||End cap without hole, end cap with wire hole|
|Apply to||15mm double-row 5050/2835/3528/5630/5730 flexible led strip lights|
Applications - Ultimate Guide to LED Aluminum Channel
Residential lighting: wardrobe, cabinet, kitchen, furniture, etc.
Commercial lighting: office/supermarket/shopping Mall
Stores shelf LED lighting
Heat sink and physical protection to the LEDs
Exhibition boot LED lighting
Backlight or supplementary lighting
