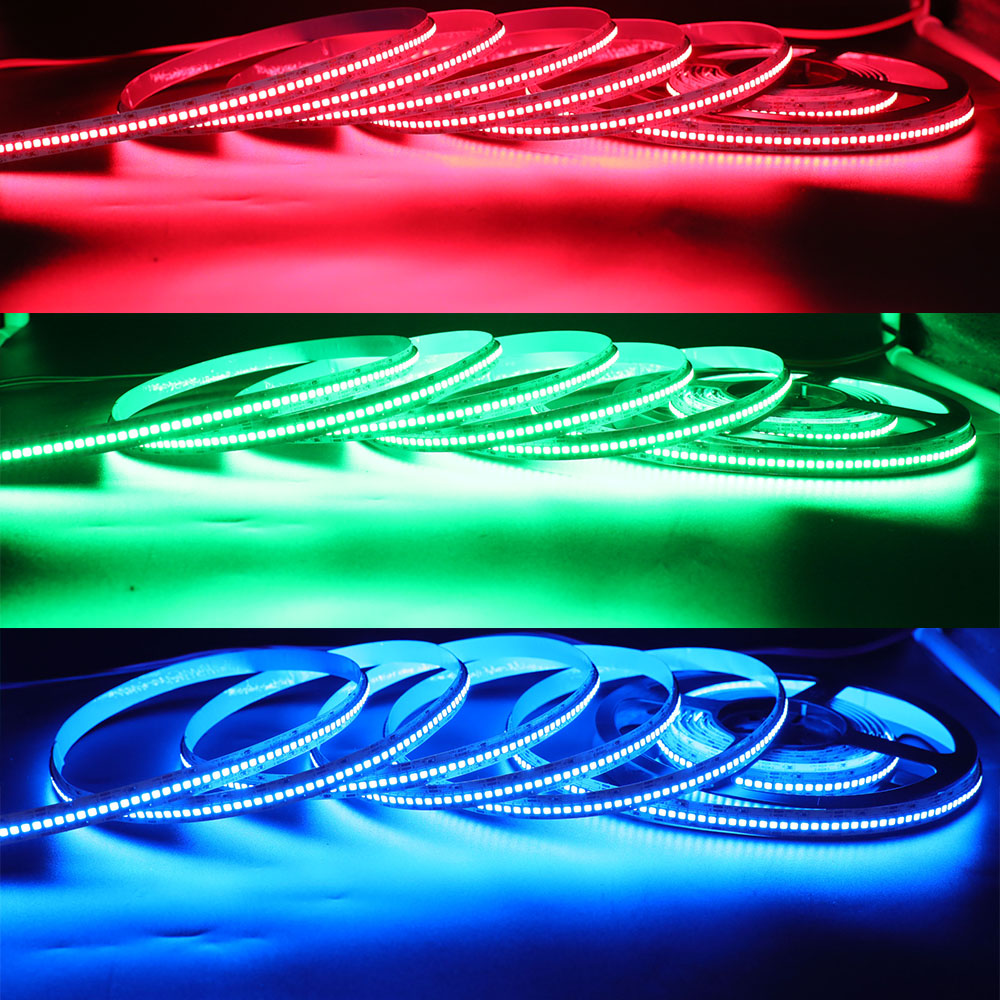

5m RGB Multi Color Lights Strip - 240LEDs/m High Density LED Strip - DC24V

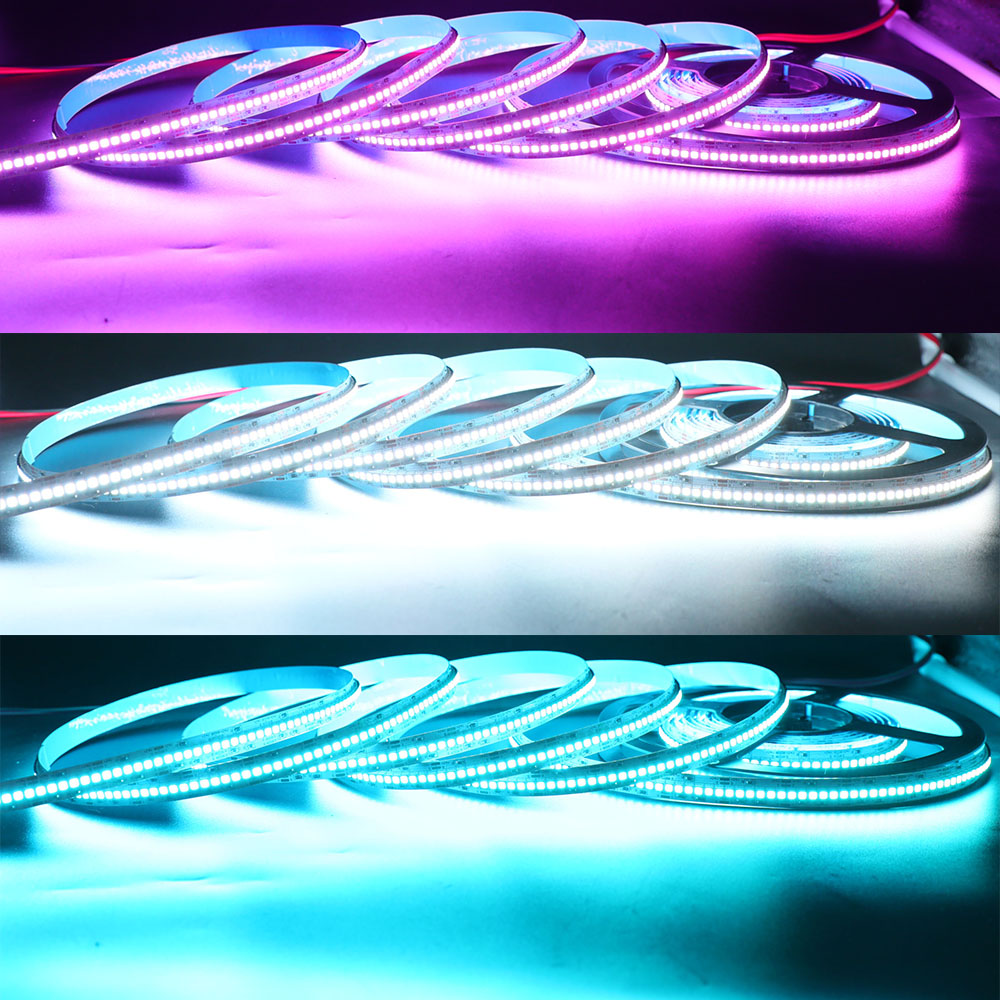

RGB color changing led strip lights use 3-in-1 RGB LEDs, which can display a variety of static colors and dynamic color effects through the control of the RGB controller. Use the mobile APP, remote control, or voice control to change the light color, brightness, and mode. It is the best item to use lights to create an entertainment atmosphere or mood lighting. This RGB led strip uses 24V safe voltage and needs to be driven by an AC to DC LED transformer.

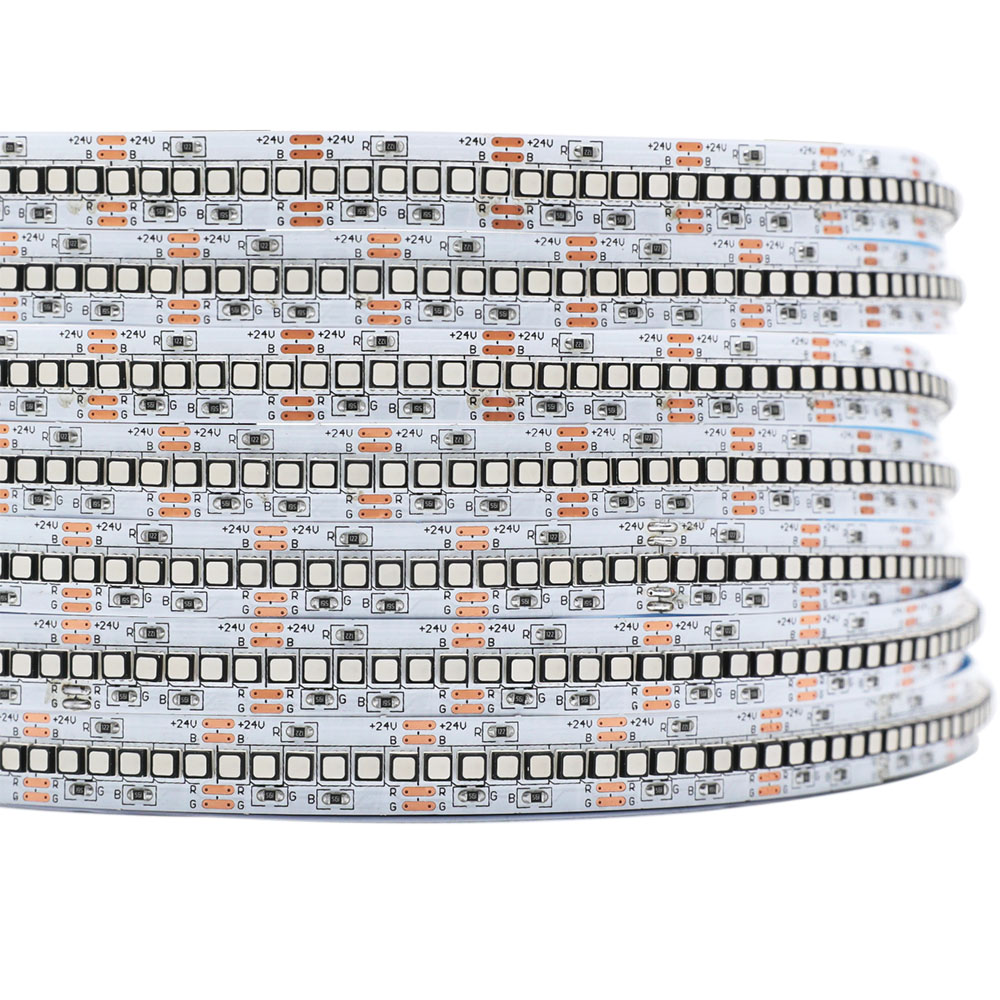

1. Adopt small size high power 3535SMD LED chips, every 6LEDs can be cut.

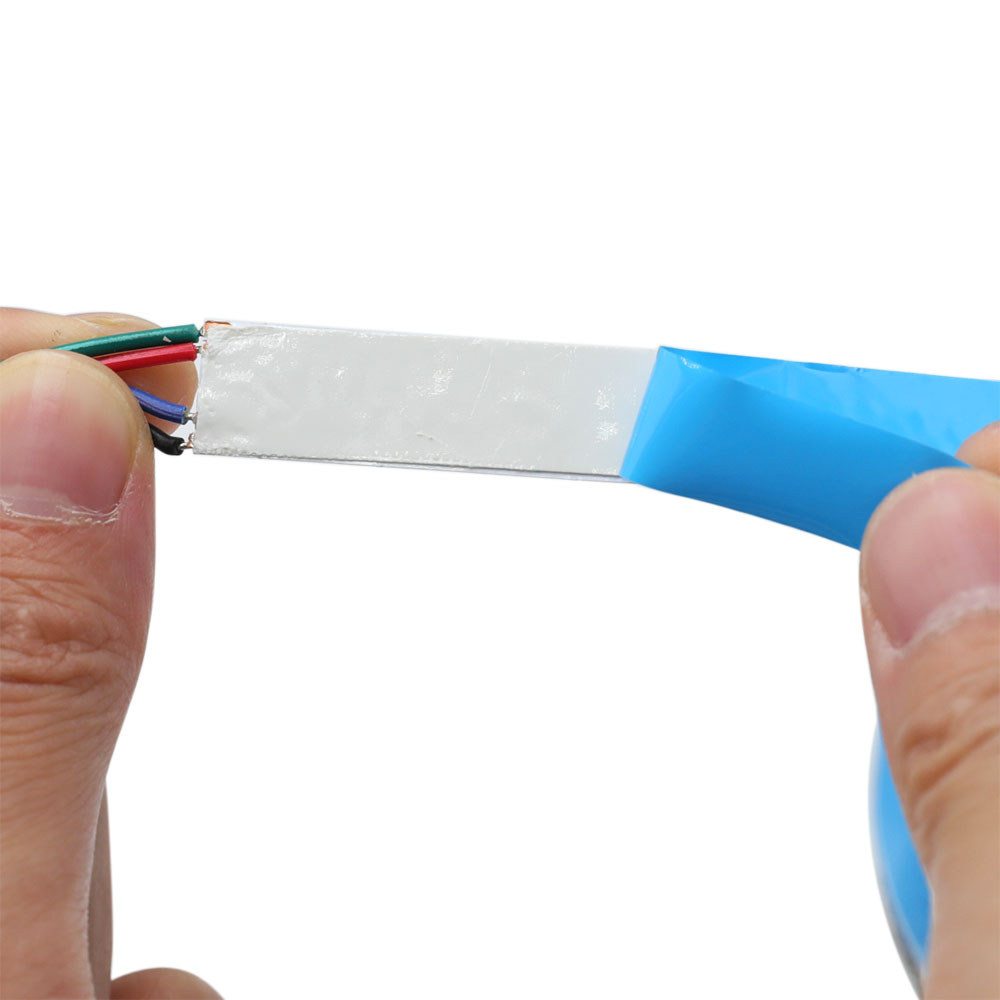

2. Using FPC board, with the adhesive backing tape, can be bent into any angle, install anywhere you want, very convenient.
3. With high quality SMD LED chips, high density of 240LEDs per meter, super bright, low consumption, low light attenuation, no color difference.

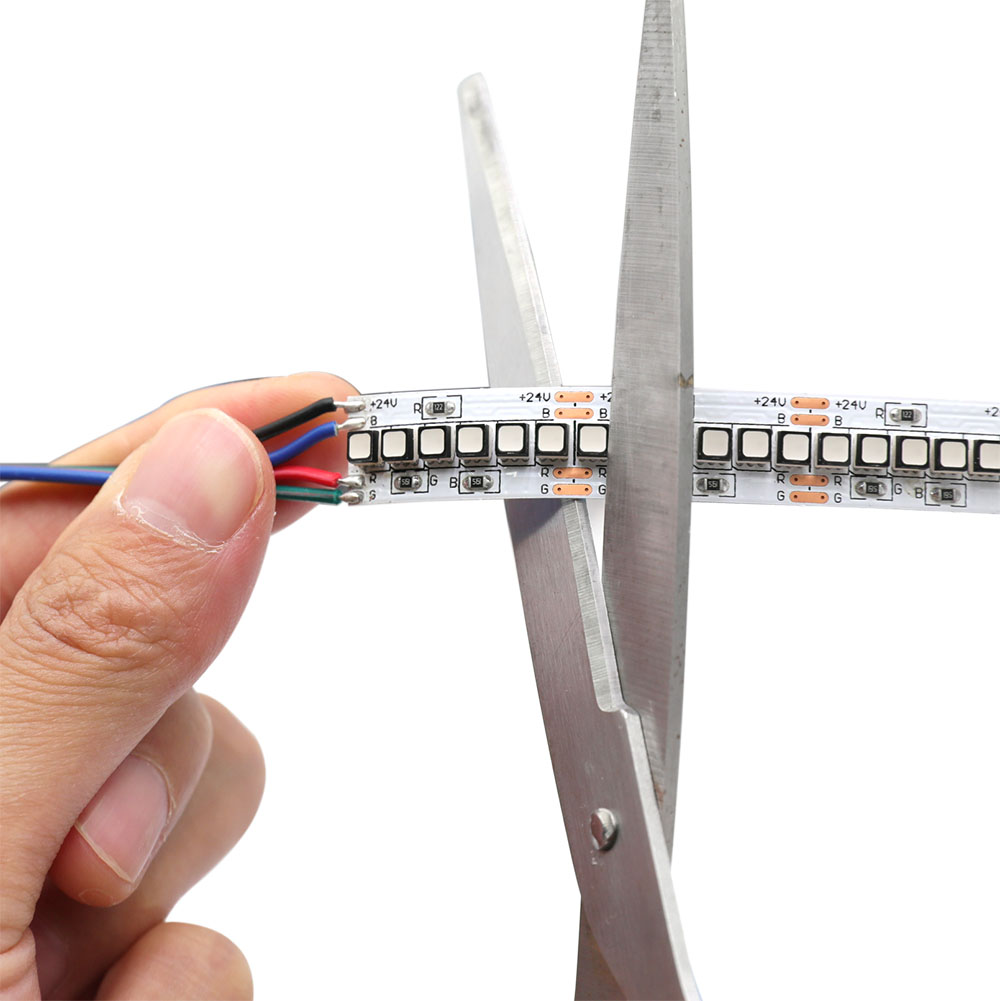

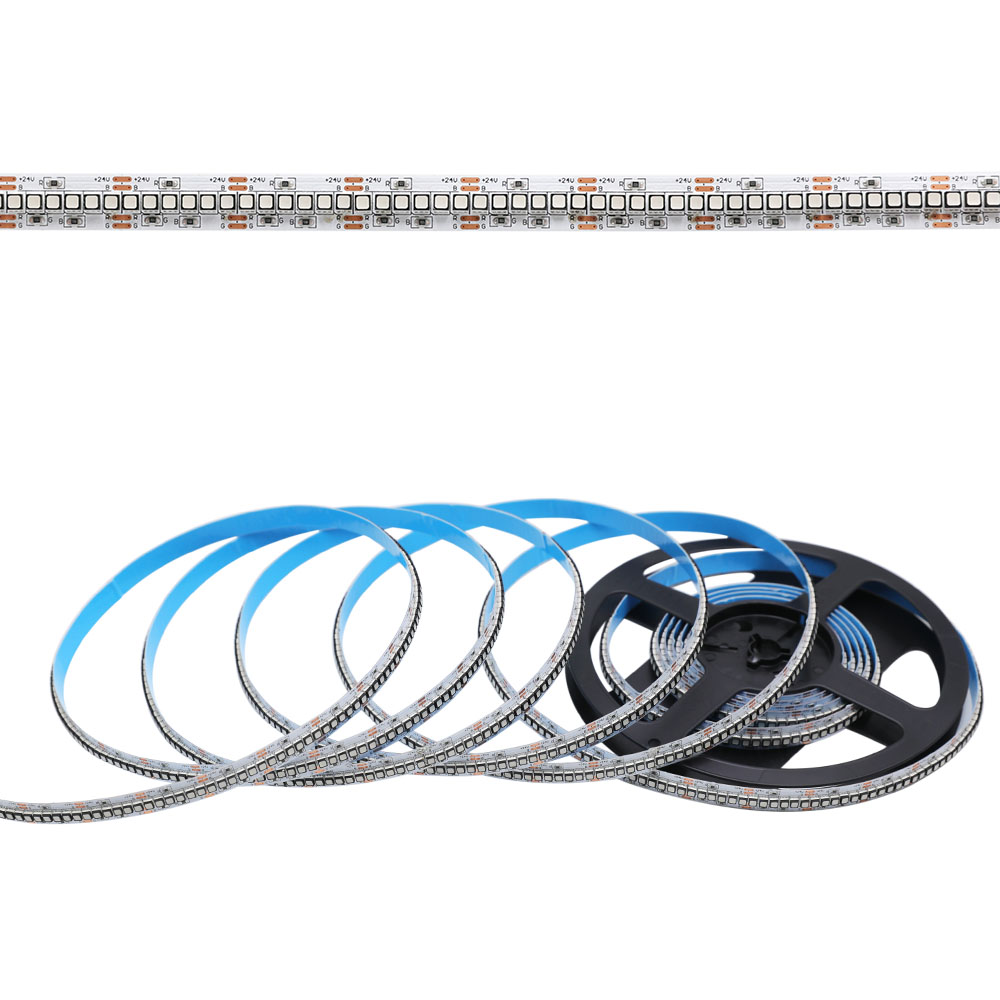

4. 5m/16.4ft in length, suitable for various lighting projects. You can cut and connect the RGB light strip to get your desired strip length.
5. IP20 Waterproof rating, suitable for indoor LED lighting projects.
Standards and Certifications
|LED Strip Type:||SMD 3535 RGB 1200LEDs/16.4ft|
|LED Chip:||Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|

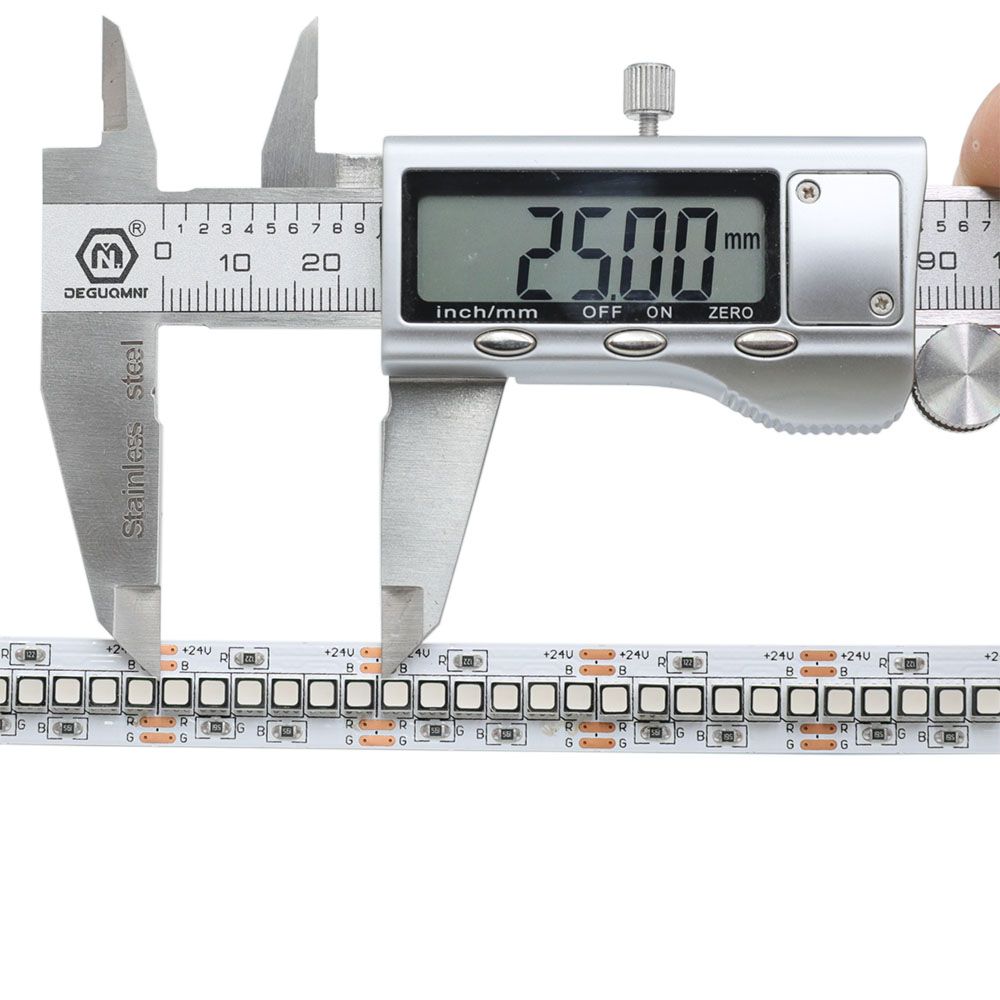

|Dimension:||16.4ft/roll, every 6 PCS LED can be cut|
|LED Quantity:||240 LEDs per 1meter (3.28 ft)|

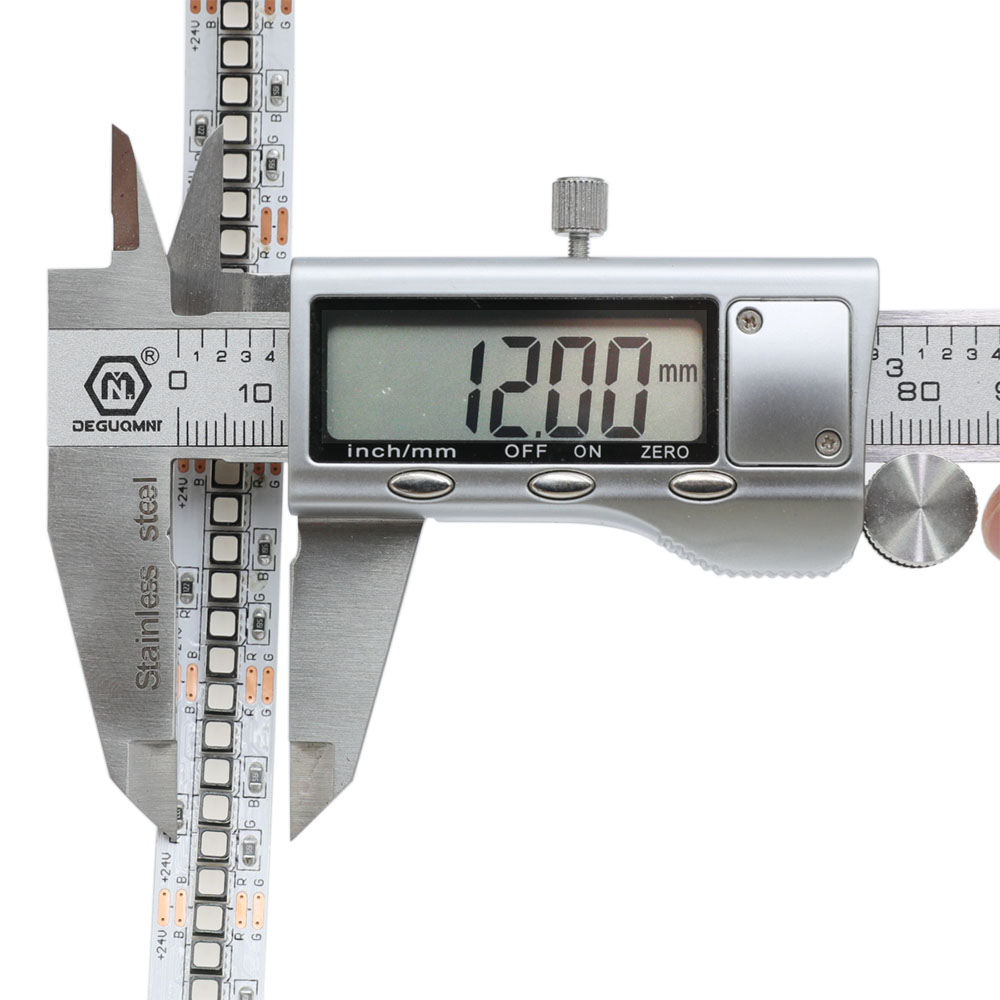

|Dimensions:||L500cm(196.8 in ) x W1.2cm(0.47 in ) x H0.25cm(0.10 in )|
|Input Voltage(V):||24 VDC|
|Working Power:||30W/m, 150W /16.4ft Max|
|Lamp Luminous Flux(lm):||20-22 lm/LEDs 26400 lm/16.4ft|
|Wavelength NM(RGBY):||Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)|
|Beam Pattern:||120 degree|
LED Light Strip Accessories
LED task Lighting
Retail LED lighting
Sign illumination LEDs
Automotive accent lighting
Display case and accent lighting
