Color Changing RGB LED Strip Lights - 12mm 24V 5050 3in1 LED - 120LEDs/m High Density
- $73.98 $35.9851% off
- $10.00 $7.9920% off
- $28.00 $29.98-7% off
Special Price: $73.98 $35.9851% off

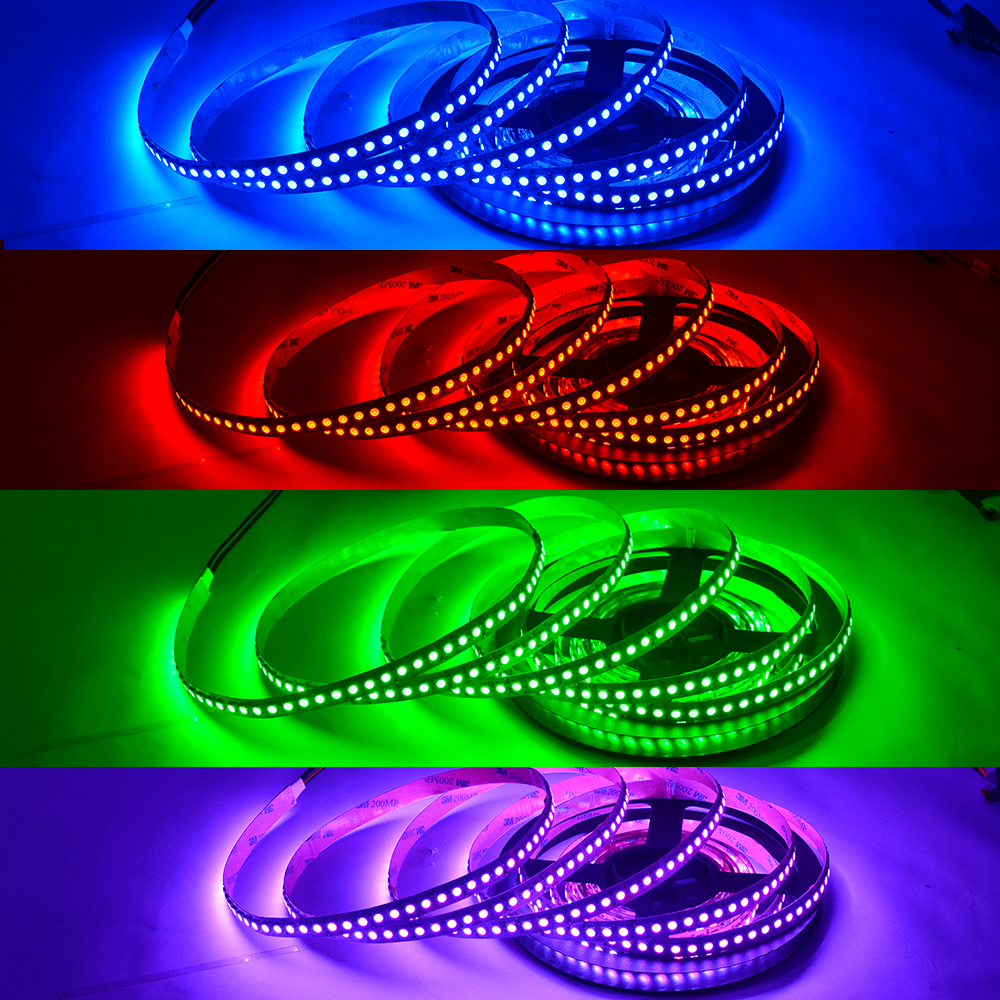

LED color changing RGB light strips use 3-in-1 RGB LEDs, which can display a variety of static colors and dynamic color effects through the control of the RGB controller. You can use mobile APP, remote control, or voice control to change the light colors, brightness, and color modes. It is the best item to use lights to create an entertainment atmosphere or mood lighting. This multi color RGB led strip uses 24V safe low voltage and needs to be driven by a 24V LED power supply.

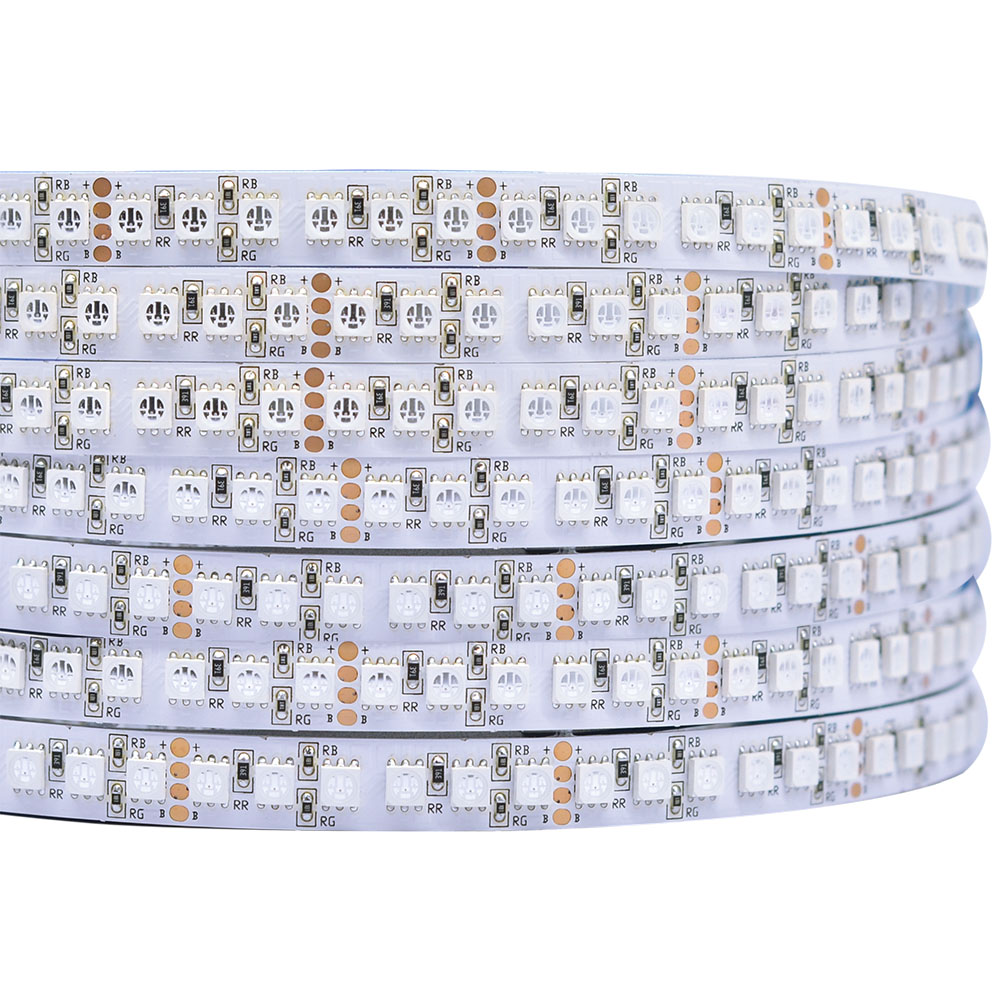

RGB LED Chip 3in1 packaged in the SMD5050 component, multiple RGB colors change
DC24V input voltage, safety and stability, 6 RGB lights can be cut, 50mm cut length

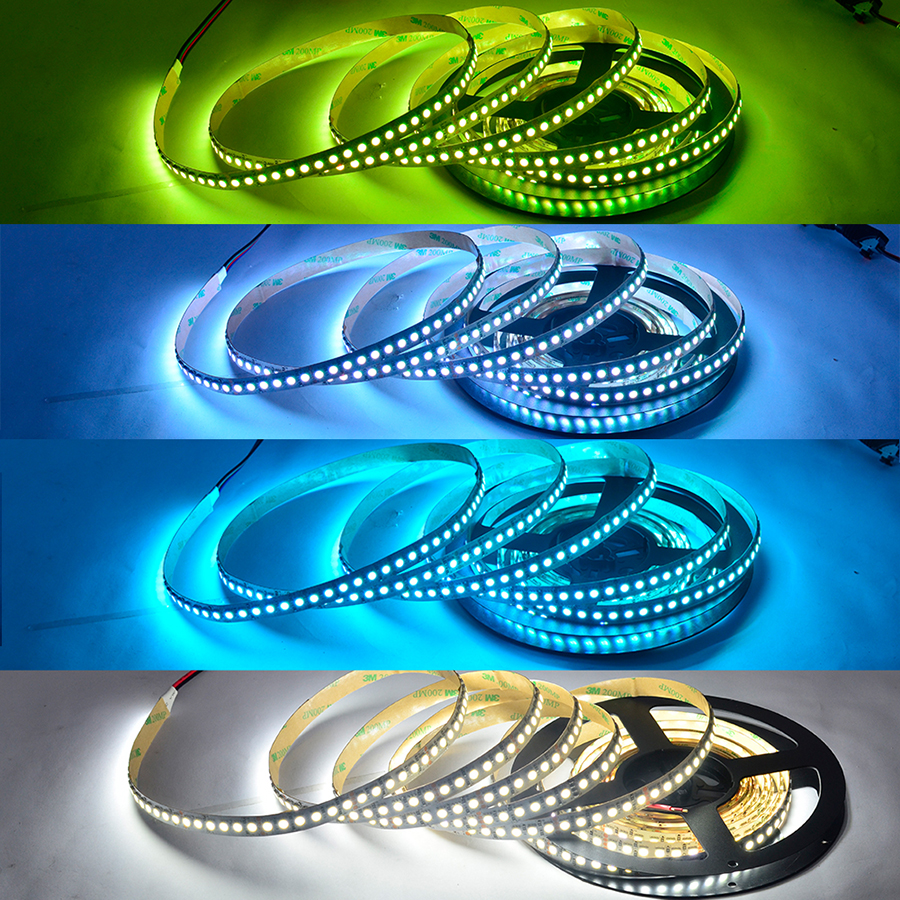

RGB color, 3000K warm whitye color, 4000K natural white color, 6500K daylight white color optional
IP20/IP65/IP67/IP68 waterproof ratings for indoor and outdoor lighting

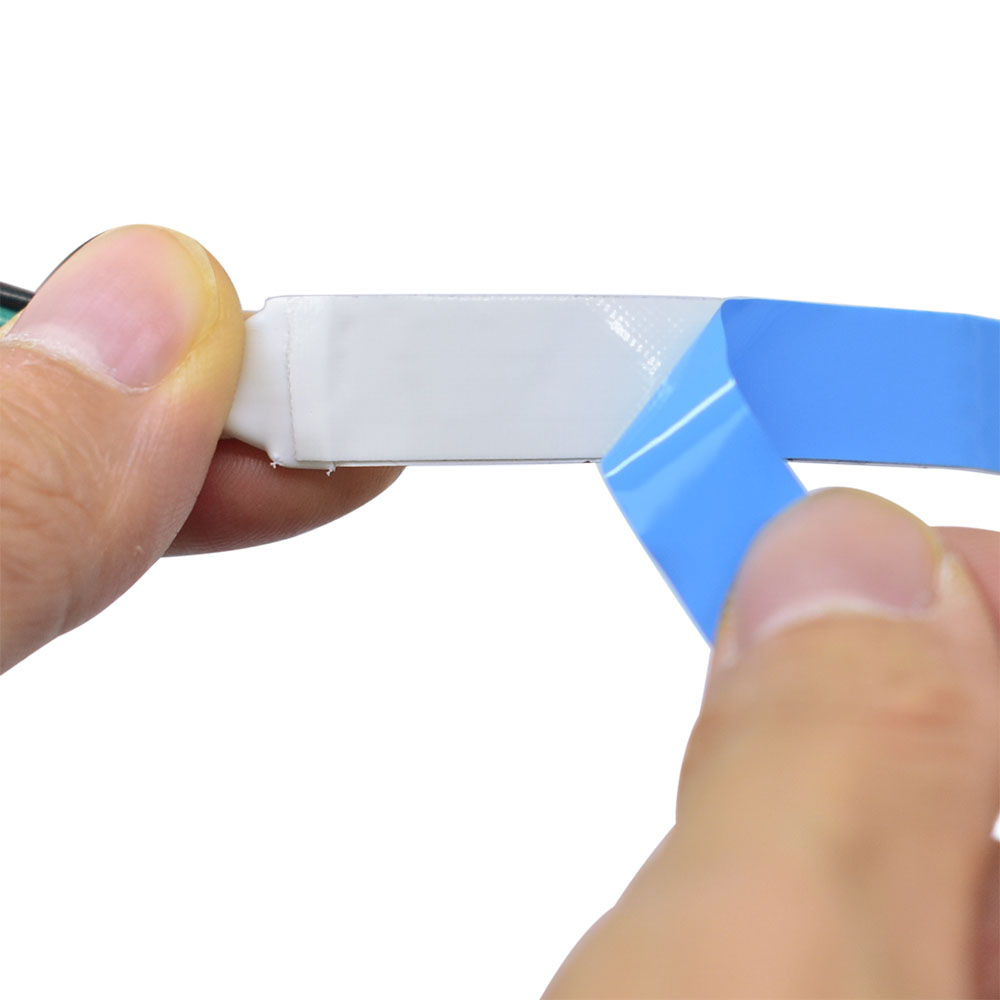

High-quality 3M tape on the back, easy to install
RGB Lighting Kit:
If you choose the LED controller in the kit, we will send you WIFI-372
Standards and Certifications
|LED Strip Type:||SMD5050 RGB 600LEDs/16.4ft|
|LED Chip:||Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||RGB color, 3000K warm whitye color, 4000K natural white color, 6500K daylight white color|
|Dimension:||16.4ft/roll, every 6 PCS LED can be cut|
|LED Quantity:||120 LEDs per 1meter (3.28 ft)|
|Input Voltage(V):||24 VDC|
|Working Power:||120W /16.4ft Max|
|Lumen Per LED:||24~26Lumen 14400lm Max /16.4ft|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Non-waterproof IP20, waterproof IP65 IP67 IP68|
1. RGB led strip wiring diagram:
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
