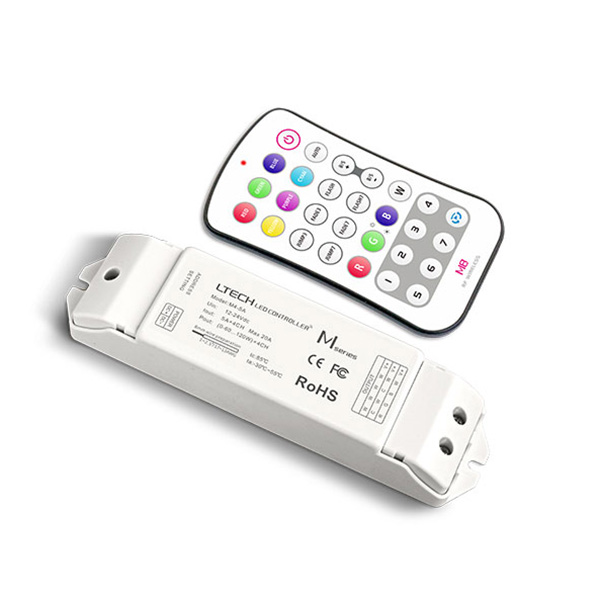

RGBW Controller M8+M4-5A

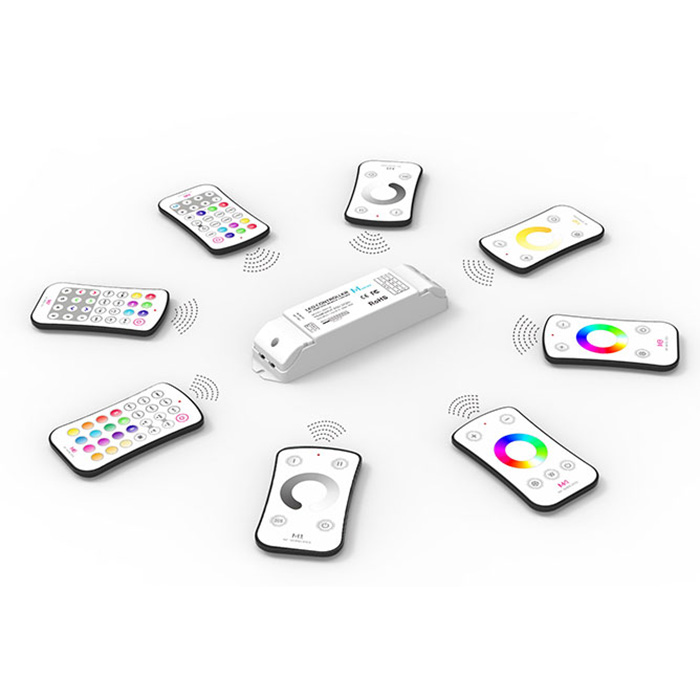

4096 / road grey scale (most of them is 256 in the market), high grayscale performance is more outstanding, the light is more gentle, dynamic changing modes become more rich and colorful.With innovative technology design: One receiver compatible with seven different functions of the remote control (patent technology), that is use one receiver can experience dimming, color temperature and RGB controlled, which can satisfied the different demands of client.

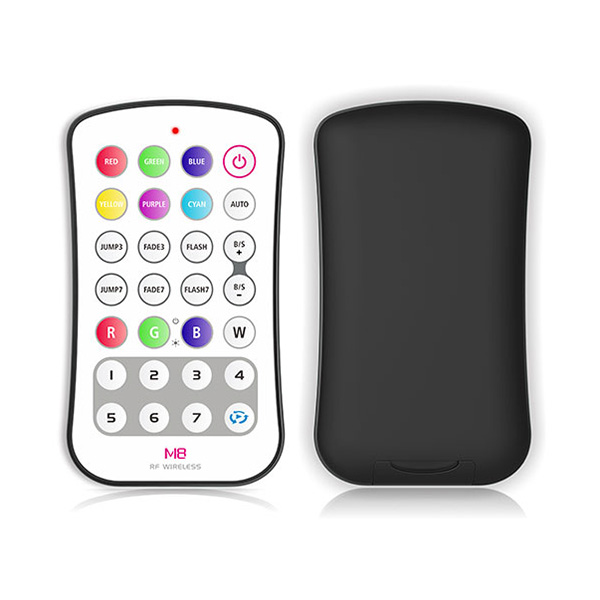

M1, M2, M3, M4, M6, M7, M8 Remote Control
Working voltage :DC3V(Battery CR2032 )
Working Frequency :433.92 MHz
Remote Distance: 40-50m
Working Temp.: -30℃~55℃
Weight (N.W.) :42g
M4-5A CV Receiving controller

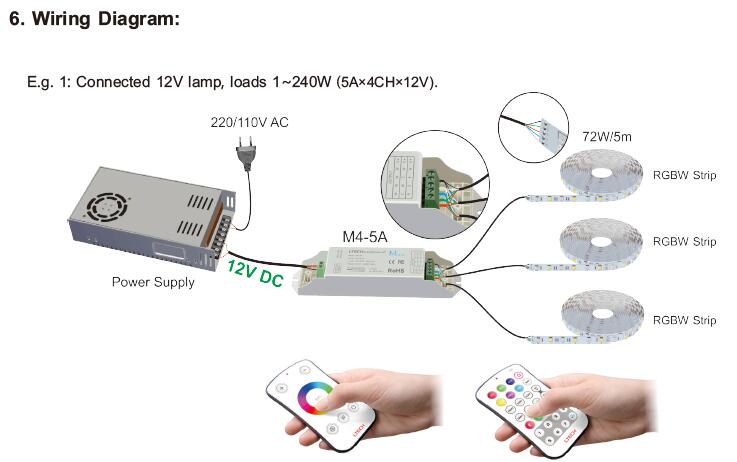

Power input :12~24Vdc
Max Current load :5A ×4CH Max 20A
Max Output power: (0...60W~120W) × 4CH
Compatible remote: M1/M2/M3/M4//M5/M6/M7/M8
Working Temp. :-30℃~55℃
Weight (N.W.) :125g
