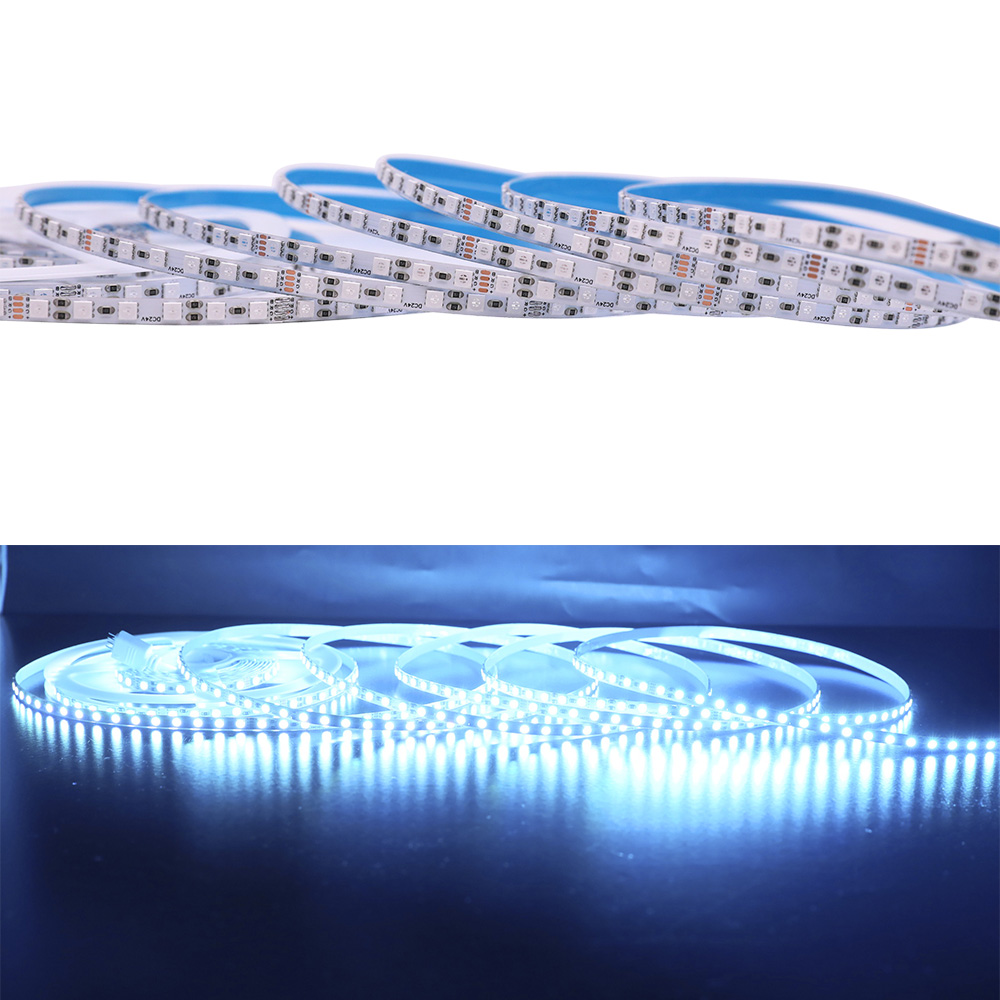

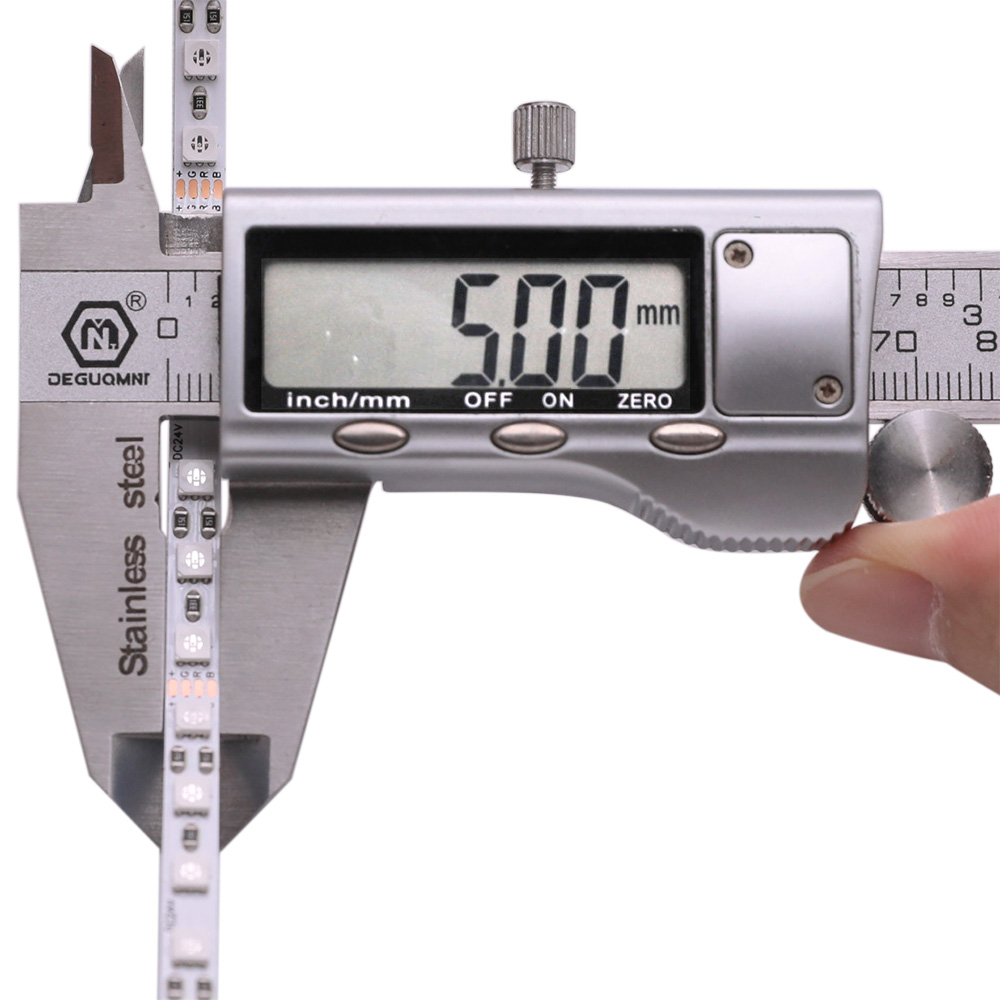

This color changing RGB led strip is 5mm ultra thin, 120 led lights per meter (600 RGB lights for 5m/16.4ft), which can be applied to narrow spaces with high brightness, installed with flexible silicone led diffuser or rigid aluminum channel can get a soft linear light and no light spot effect, and the led strip channel provides physical protection for the bare SMD led strip, IP20 and IP67 waterproof rating optional, suitable for your indoor and outdoor lighting decorations.

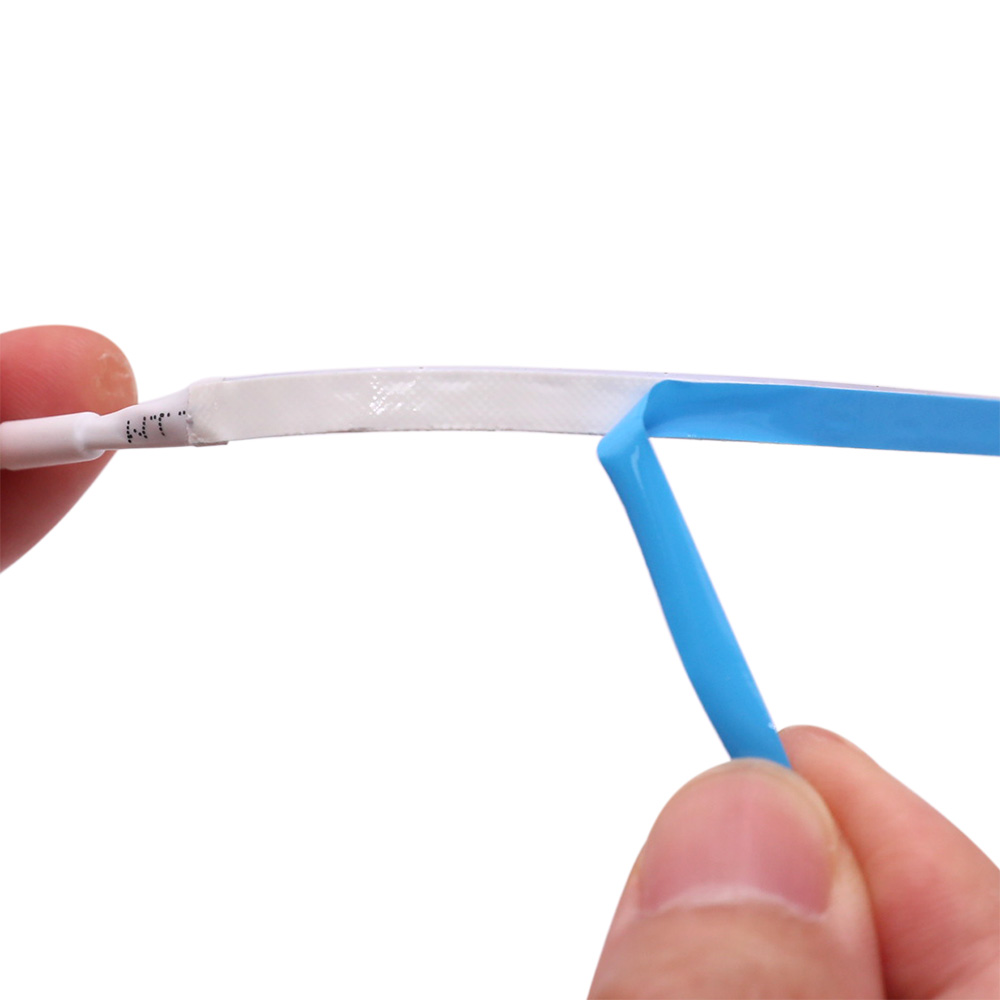

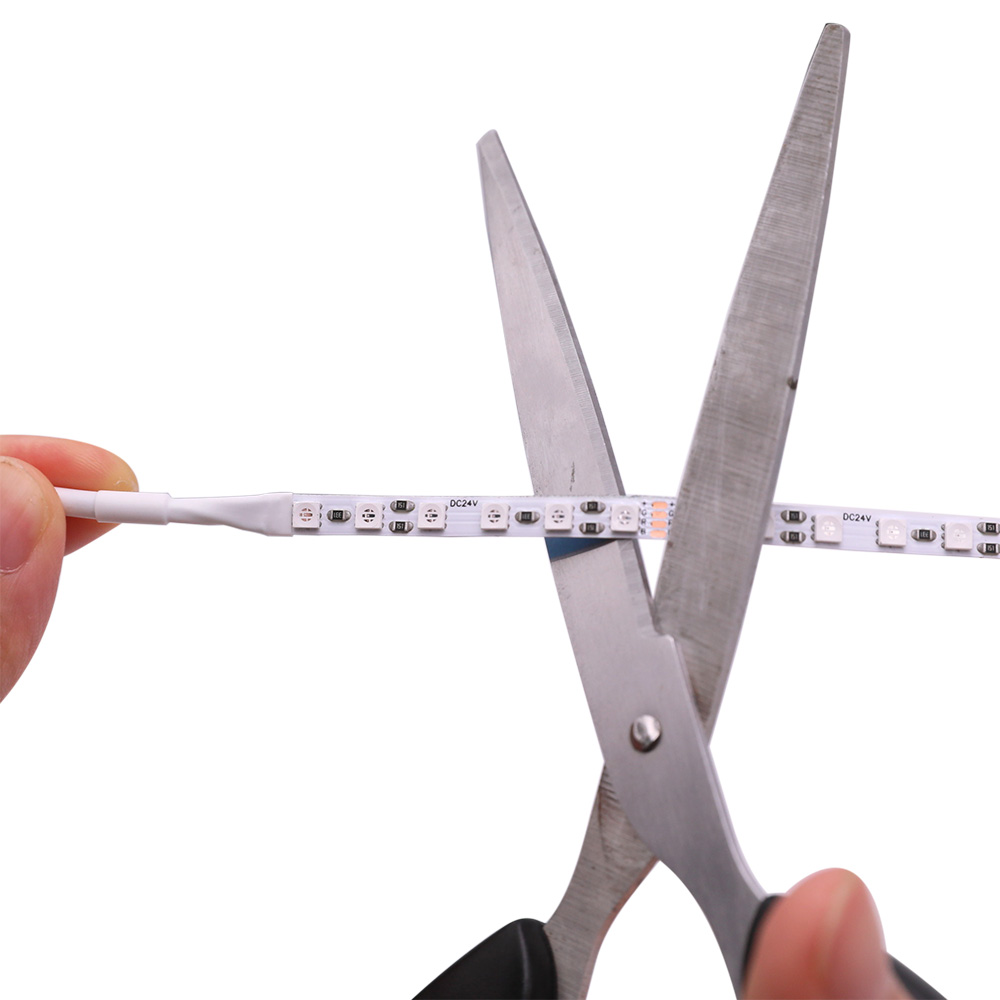

12V or 24V DC power, no voltage drop, 12V RGB led strip can be cut every 3 lights (25mm/0.98" length), 24V RGB led strip can be cut 6 ligths (50mm/1.96" length) per time. This 5mm RGB led strip is controlled by RGB controller, it can appear various light colors in the strip, you can set up the led color according to your preference. The back of the narrow RGB LED strip adopts professional 3M adhesive backing, which is easy to install.
For this 5mm multi color RGB led strip, you need to choose the power of LED power supply more than 86.4W. If you want to use the LED strip light in outdoor environment, you can choose waterproof LED power supply.
|RGB LED Strip Kit||RGB Controller + RF Remote||LED Power Supply|
|12V RGB Light Strip||YL5/WL5||PSPS-12V-96W|
|24V RGB Light Strip||YL5/WL5||PSPS-24V-96W|
Best Guide To Know Silicone LED Diffuser
Ultimate Guide On Aluminum Profile For LED Strip Lighting
Standards and Certifications
|LED Strip Type:||SMD3535|
|LED Chip:||Epistar super brights Chip|
|LED Quantity:||120 LEDs/m|

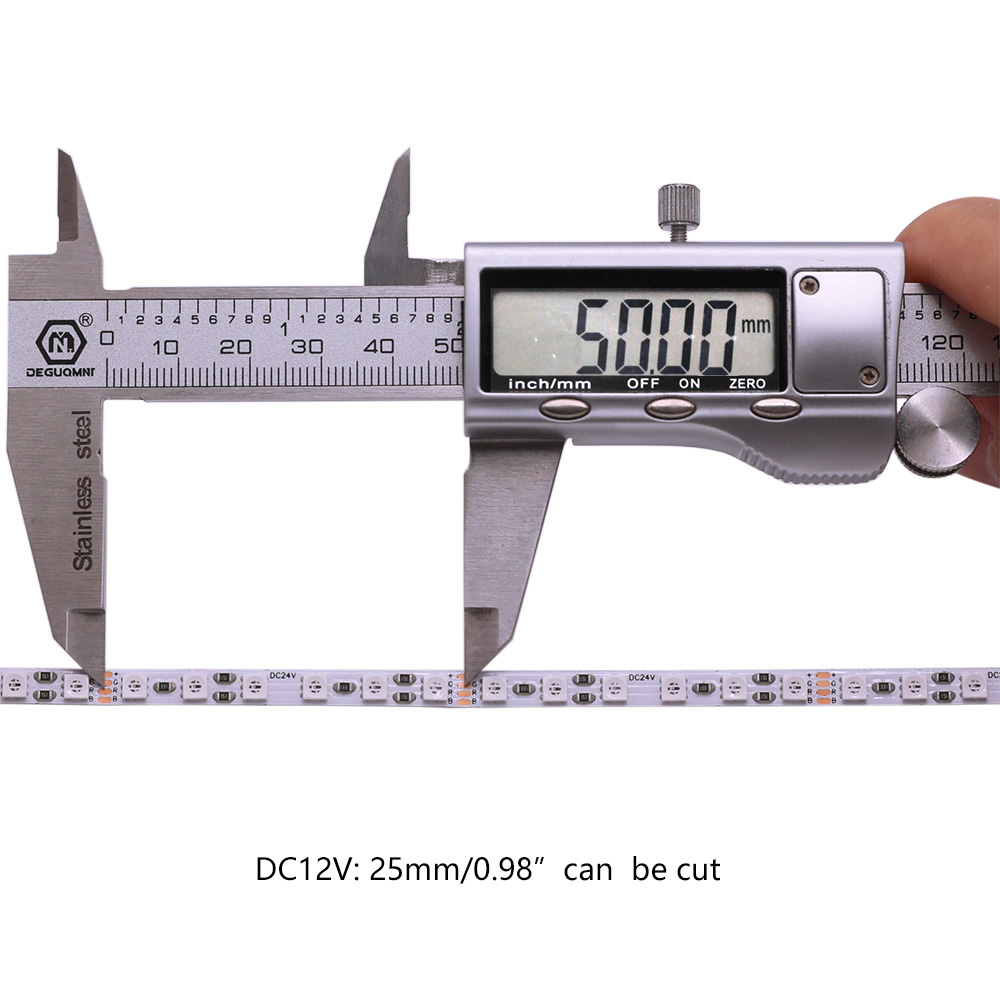

|Cut Length:||12V - 25mm/0.98", 24V - 50mm/1.96"|
|Working Power:||72W/16.4ft Max|
|Beam Pattern:||120 degrees|
|Waterproof Rating:||Non-Waterproof IP20, Waterproof IP67|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
Applications - How To Wire RGB LED Strip Lights?
LED task Lighting
Retail LED lighting
Sign illumination LEDs
Automotive accent lighting
Display case and accent lighting
