8mm 2835 RGB LED Strip Light 168 Per Meter Highest Density

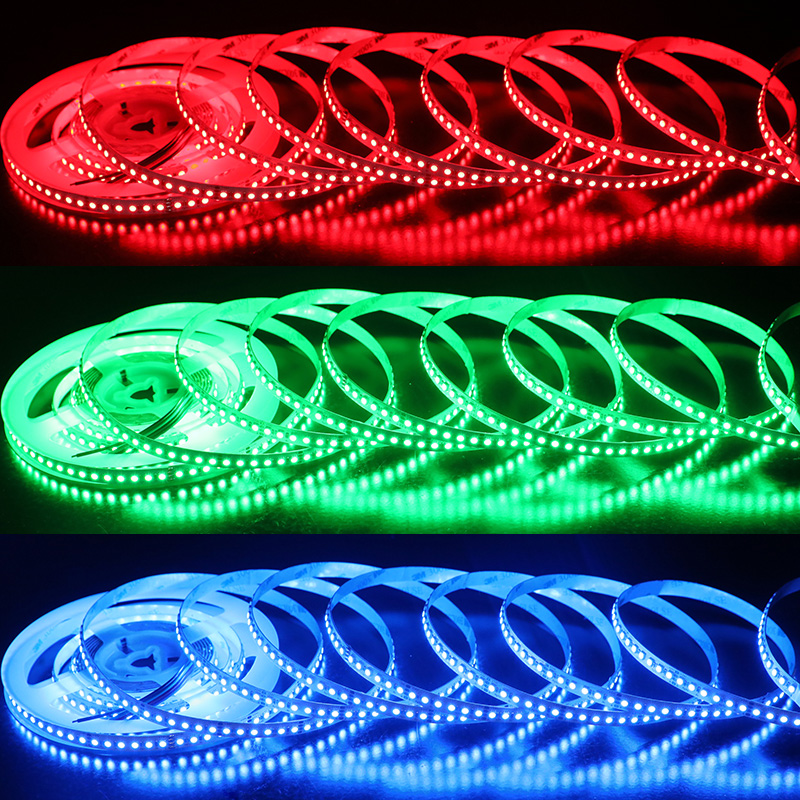

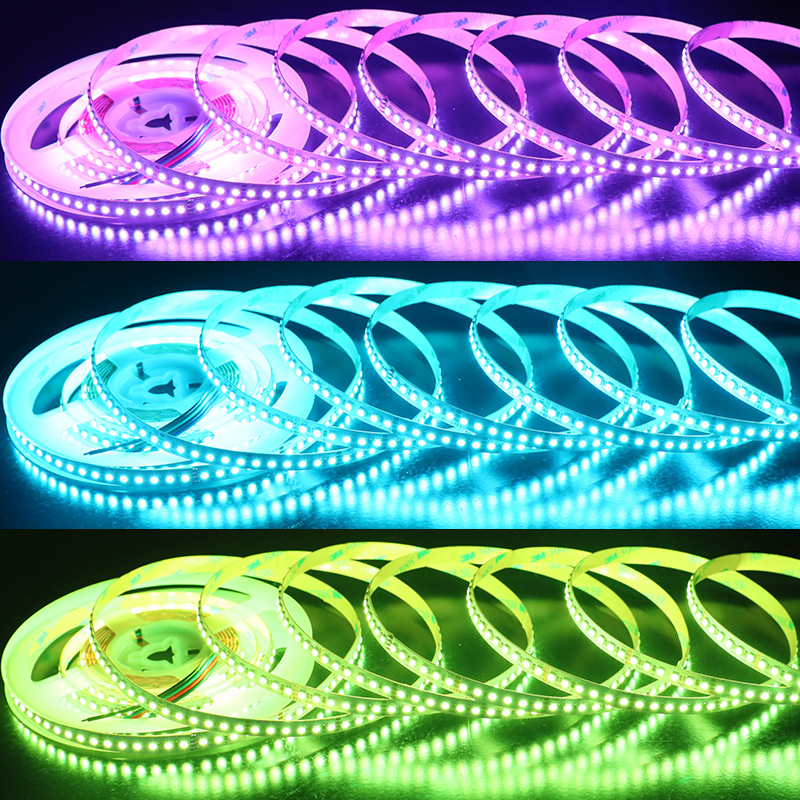

Higher density 2835 RGB led strip than FSLRGB-24V-2835X600, 168 LEDs per meter, every two LEDs are only 6mm apart from each other, bringing more uniform color changing light effect.

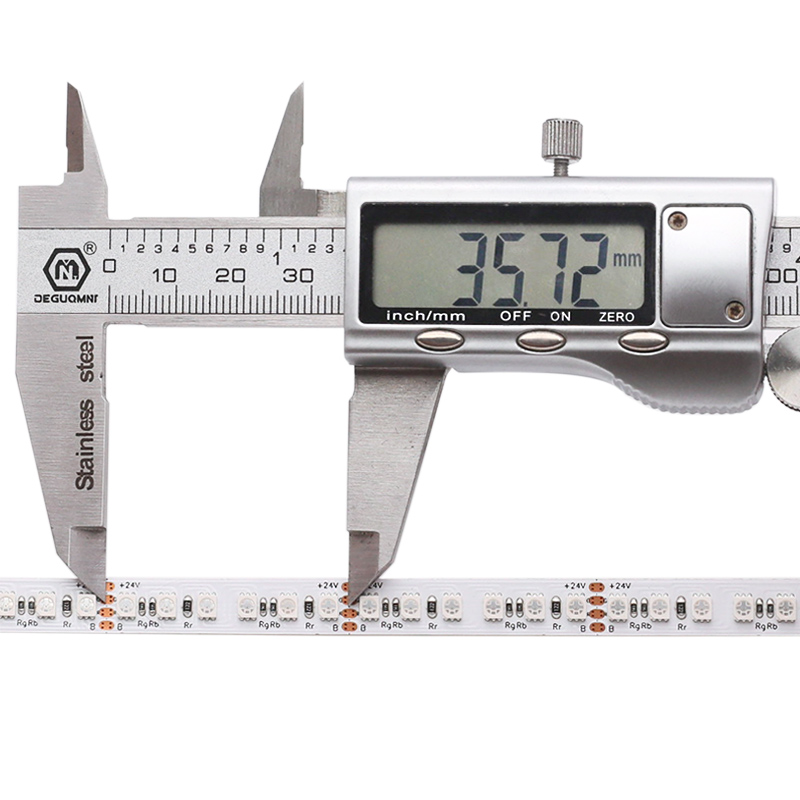

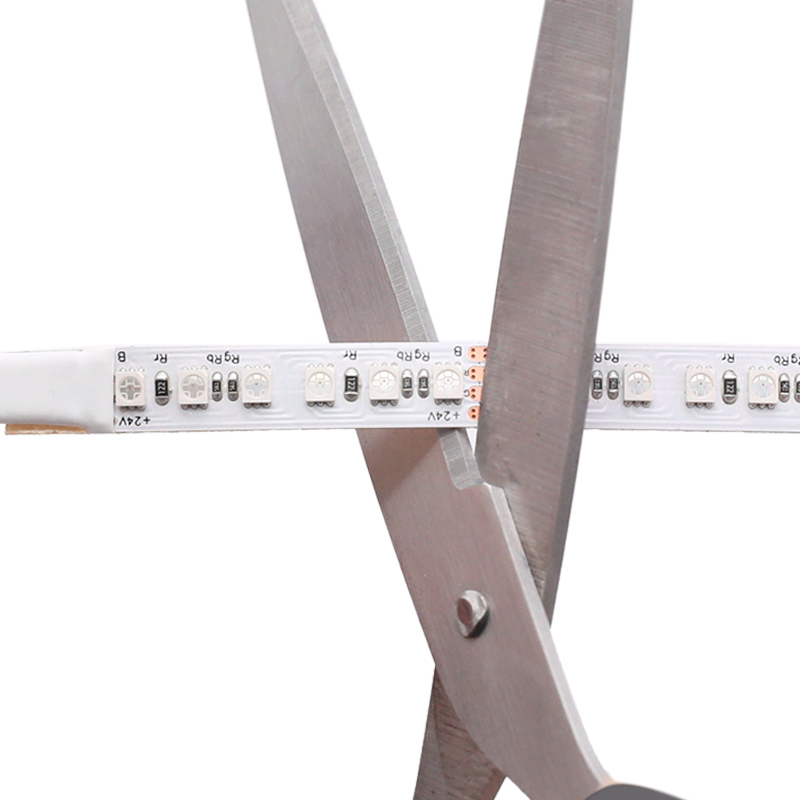

Every 6-LED group cut design, 35.7mm/0.12" cut segment for 24V and 17.8mm/0.06" for 12V, you can cut the 2835 RGB strip precisely according to the demand, flexible to fit different space sizes.
24V and 12V input voltage provides you with a stable lighting environment. This RGB 2835 led strip runs stably at a 5-meter length, no need to worry about brightness loss or performance degradation.

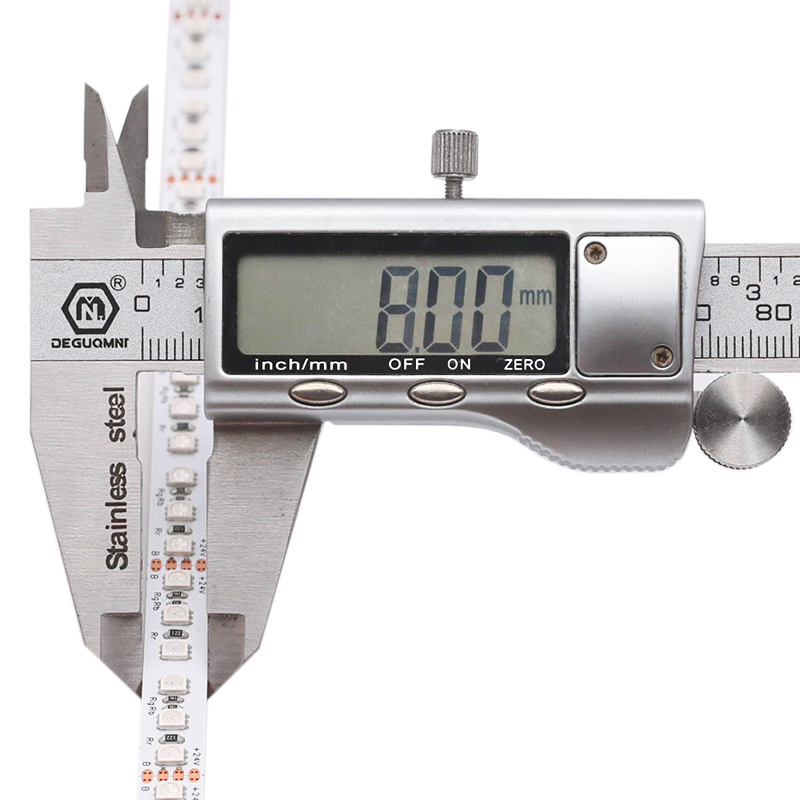

The small size of 8mm PCB width makes this 2835 RGB led strip light perfect for use with neon tubes and aluminum profiles, and takes advantage of the high density LEDs to eliminate hotspots.
Kit: WiFi Tuya controller WIFI-BT-WB5, 24V 4A / 12V 8A power apdater or 100W Meanwell switching led power supply LRS-100-24 / LRS-100-12.
|Strip Type:||168/m 2835 RGB LED Strip|
|LED Chip:||Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Dimensions:||L5000mm(196.8 in ) x W8mm(0.31 in ) x H2.5mm(0.10 in)|
|LED Quantity:||168 LEDs per meter, 51/ft|
24V 6 LEDs
12V 3 LEDs
|Working Power:||17W/m, 85W per roll|
|Input Voltage:||DC24V / DC12V|
|Beam Angle:||120 degree|
|Waterproof Rating:||Non-Waterproof IP20 and Waterproof IP65/IP67/IP68|
SMD 2835 RGB LED Strip Wiring Diagram
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
