Product Information
Achieve flawless curves and sharp angles in your lighting designs with our S-Shape Serpentina LED Strip. This isn't your standard flexible strip; its innovative zig-zag PCB design allows for extreme lateral bending, enabling you to trace complex shapes, letters, and logos without the need for cutting and soldering at corners. At an ultra-narrow 6mm width, it's the professional's choice for intricate channel letter backlighting, curved architectural details, and custom signage where precision is paramount. The standard 60 LEDs/m configuration ensures smooth, even illumination, while multiple color temperature options provide the perfect white light for any project. This serpentina led strip simplifies complex installations and delivers a clean, continuous line of light around any contour.
If your curved lighting project has specific brightness requirements, we recommend choosing the S-type models with higher LED density such as 6mm (72 LEDs/m) or 6mm (120 LEDs/m).
Key Features
Revolutionary S-Shape PCB
Bends and twists laterally on a flat plane to follow any contour, including 90-degree angles, without cutting.
Ultra-Narrow 6mm Width
Perfect for installation in tight spaces, slim aluminum profiles, and shallow channel letters.
Versatile CCT Options
Available in a wide range of white color temperatures from warm 3000K to cool 10000K to match any ambiance.
Efficient SMD2835 LEDs
Provides bright, reliable light at a low power consumption of only 6 watts per meter.
Engineered for Curves

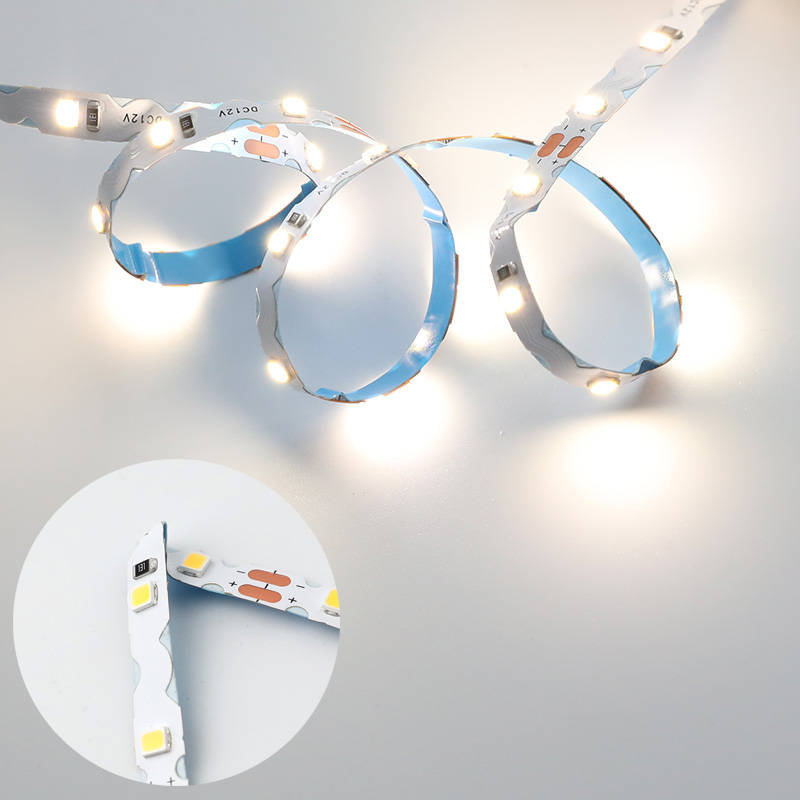

- The unique 'S-Type' or 'Zig-Zag' pattern cut into the PCB is specifically engineered for lateral flexibility, allowing it to be shaped on a flat plane.
- This design enables a tight bend radius for creating sharp, clean 90-degree corners without damaging the circuit or requiring connectors.
- Ideal for backlighting complex shapes such as channel letters, corporate logos, and intricate architectural elements with precision.
- The 6mm slim profile allows for discreet installation in the most compact applications, including our flexible LED channel series for a complete, diffused look.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | FSL-S2835-60W5 |
| Input Voltage | 12V DC / 24V DC |
| Power Consumption | 6 W/meter (1.83 W/foot) |
| LED Type | SMD 2835 |
| LED Density | 60 LEDs/meter (18 LEDs/foot) |
| PCB Size | W6mm*H1.16mm |
| PCB Color | White |
| Available CCTs | 3000K, 4000K, 6500K, 8000-9000K, 10000K |
| Beam Angle | 120° |
| CRI (Color Rendering Index) | Ra > 80 |

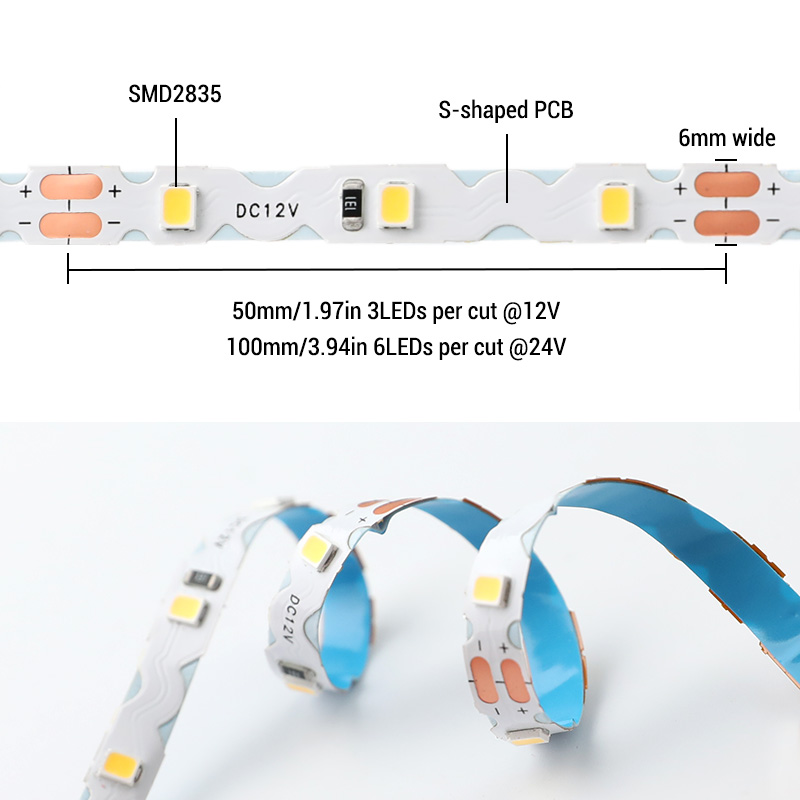

| Cutting Unit (12V) | Every 3 LEDs / 50mm |
| Cutting Unit (24V) | Every 6 LEDs / 100mm |
| Reel Length | 5 meters (16.4 feet) |
| IP Rating | IP20 (Non-Waterproof, for indoor dry locations) |
| Dimmable | Yes (with compatible PWM dimmer) |
| Warranty | 1 Year |
| Operating Temperature | -20°C to +50°C |
Application Scenarios
How to Install & Use This LED Strip
- Ensure the mounting surface is clean, dry, and free of dust or oils.
- Measure your required length and cut the strip only on the designated copper cut marks.
- Solder lead wires or use compatible connectors to attach the strip to your 12V/24V power supply and/or dimmer.
- Briefly connect to power to test the strip and ensure all segments light up correctly before final installation.
- Peel the backing from the adhesive tape and firmly press the strip onto the prepared surface.
- Shape the strip along your desired path. The S-design allows it to bend left and right easily on the mounting plane.
- Do not power the LED strip while it is tightly coiled on the reel, as this can cause overheating.
- Ensure your power supply wattage is at least 20% greater than the total wattage of the connected LED strip.
- This is an IP20 rated strip. It is not protected against moisture and should only be used in dry, indoor locations.
Frequently Asked Questions
Q: What makes this 'Serpentina' or 'S-Shape' strip different from a regular flexible strip?
A: A regular strip bends up and down (vertically). This S-Shape strip is designed to bend left and right (laterally) on a flat surface, allowing it to form curves and sharp angles without being cut.
Q: What power supply do I need for a full 5-meter reel?
A: A full 5m reel consumes 30 Watts (5m x 6W/m). We recommend using a 12V or 24V DC power supply (matching your strip's voltage) with a minimum rating of 36 Watts to provide a 20% safety margin.
Q: What is the narrowest channel this strip can fit into?
A: The PCB is 6mm wide, so it can fit into channels with an internal width just over 6mm. For best results and diffusion, we recommend using it with a compatible aluminum profile, such as those that work with a silicone diffuser.
