12V SK6813 5050 Dual Signal Pixel RGB Zig Zag LED Strip Individually Addressable

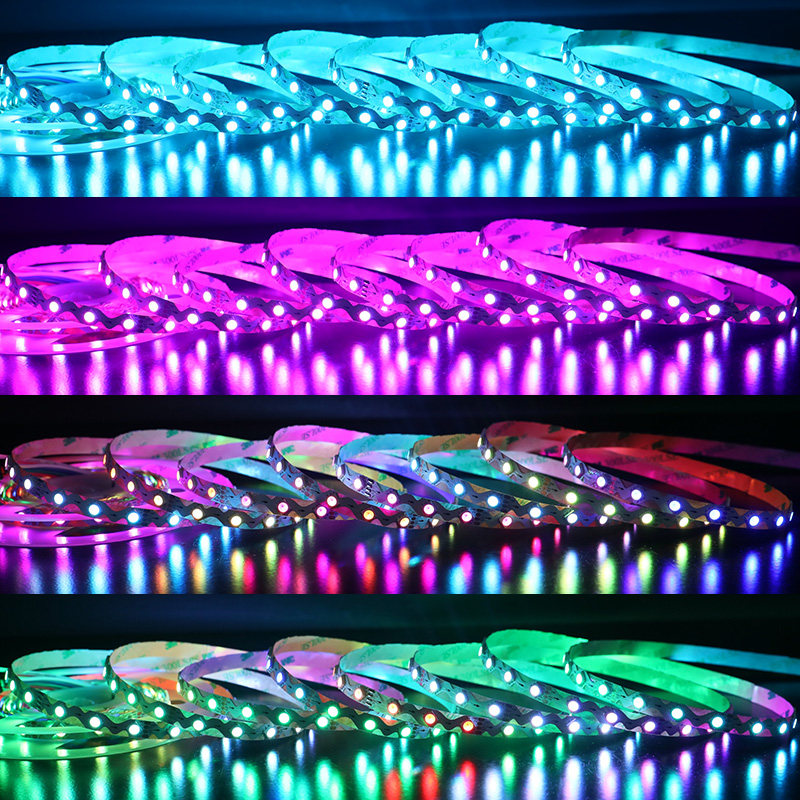

A dual signal transmission pixel RGB zig-zag led strip controlled by SK6813 IC, DC 12 volts larger power input. Each 5050 LED is built in a SK6813 IC chip, so every LED can be programmed individually to display rich colorful effects.
Supplied via 12V power, this digital zig zag led strip has virtually no voltage drop over a length of 5 meters, ensuring constant and stable light brightness and color. 60 LEDs per meter, 60 pixels per meter.
Particularly noteworthy is its dual signal transmission technology that allows the digital cobra led strip to continue transmitting data after a power outage without the need for manual intervention, making sure that your lighting effects are not interrupted.
Kit: Bluetooth music RF pixel led controller SP638E and Meanwell 12V power supply LRS-50-12 or 12V 5A power adapter.
|Item:||12V SK6813 S Type LED Strip|
|LED Type:||SMD 5050|
|Light Color:||Addressable RGB|
|IC Type:||SK6813 breakpoint resume|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|LED Quantity:||60 LEDs/m, 300 LEDs/roll|
|IC Quantity:||300 ICs/roll, 1 IC drives 1 LED|
|Power:||9 W/m, 45 W/roll|
|Beam Pattern:||120 degree|
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
