Product Information

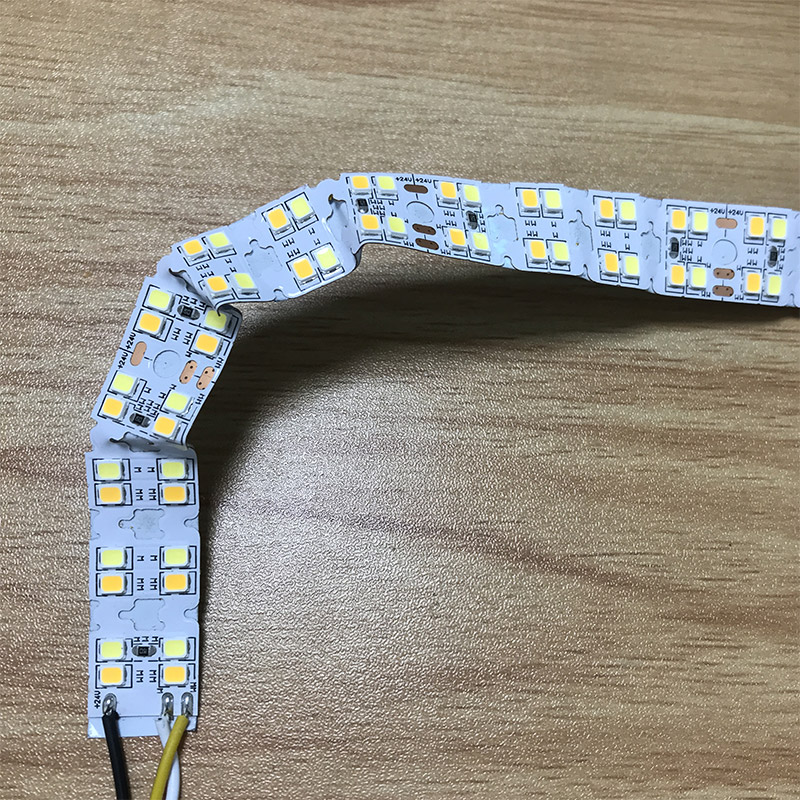

A more flexible CCT led strip light for signage designed with double row color temperature LEDs. The flexible 2OZ PCB can be bent into an S-shape to fit different signage letter channels and fit nicely around corners.

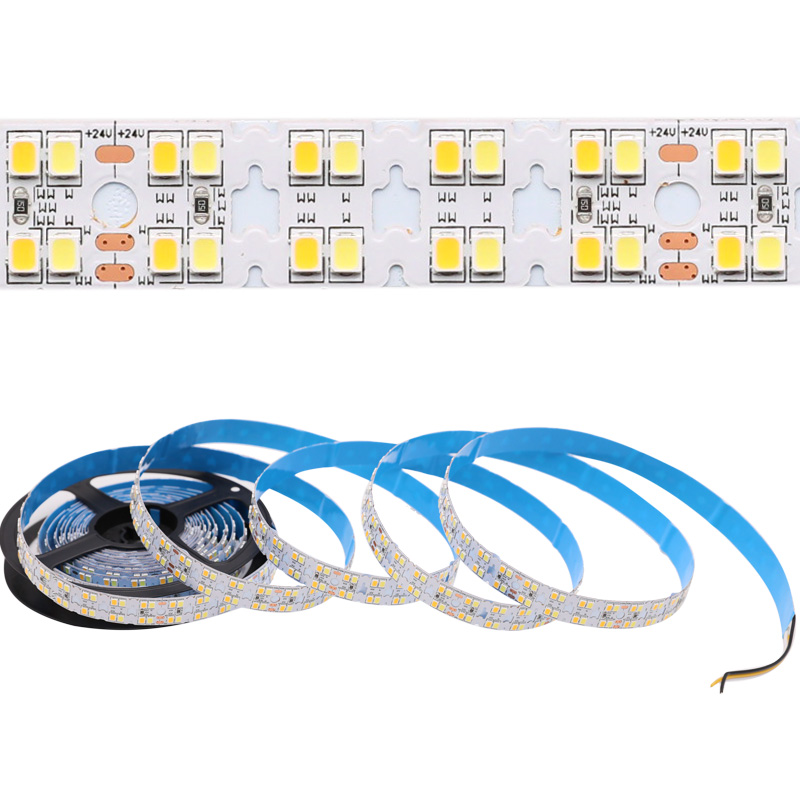

Double rows of warm white LEDs plus daylight white LEDs design makes it brighter than other channel light strips, which can provide higher brightness and even lighting effect for your signage lighting. There are a total of 320 color temperature LEDs in one meter (160 warm white LEDs and 160 daylight LEDs). Powered by low voltage DC24V, the whole roll consumes up to 150 watts.

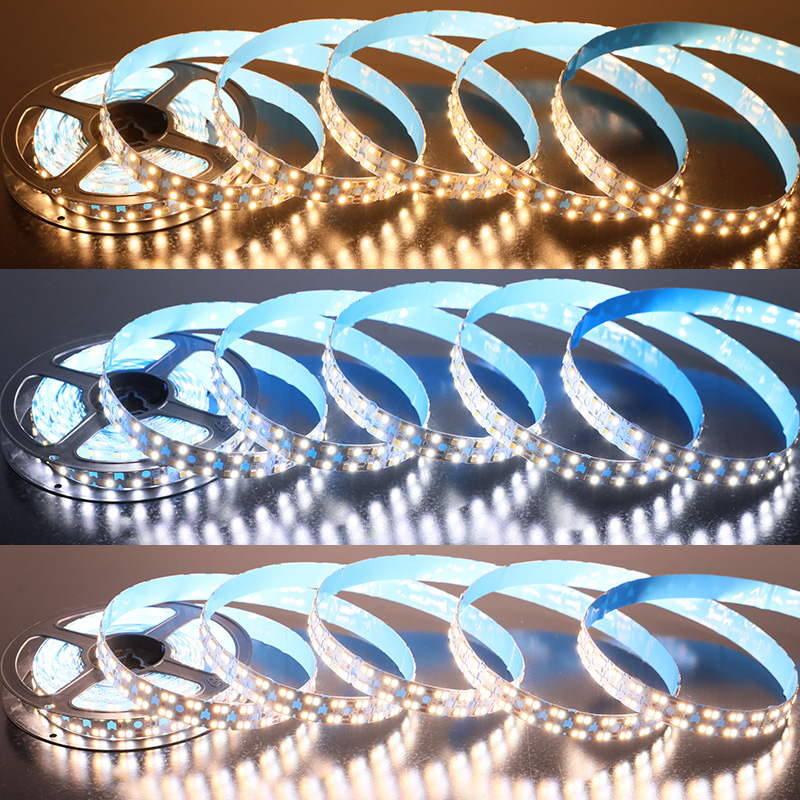

Integrate LEDs with two different color temperatures, this CCT led strip light signage allows a smooth change from warm to bright color (2700K to 6500K), simulating the change of natural light at different times of the day to adapt to circadian variation.
The double-sided adhesive on the back makes it easy to install lighting for commercial signs, billboards, or letter signs.
Product Specifications
| LED Strip Type: | S Double Row CCT Color Temperature Signage LED Strip |
| LED Chip: | SMD2835 |
| Input Voltage: | 24V DC |

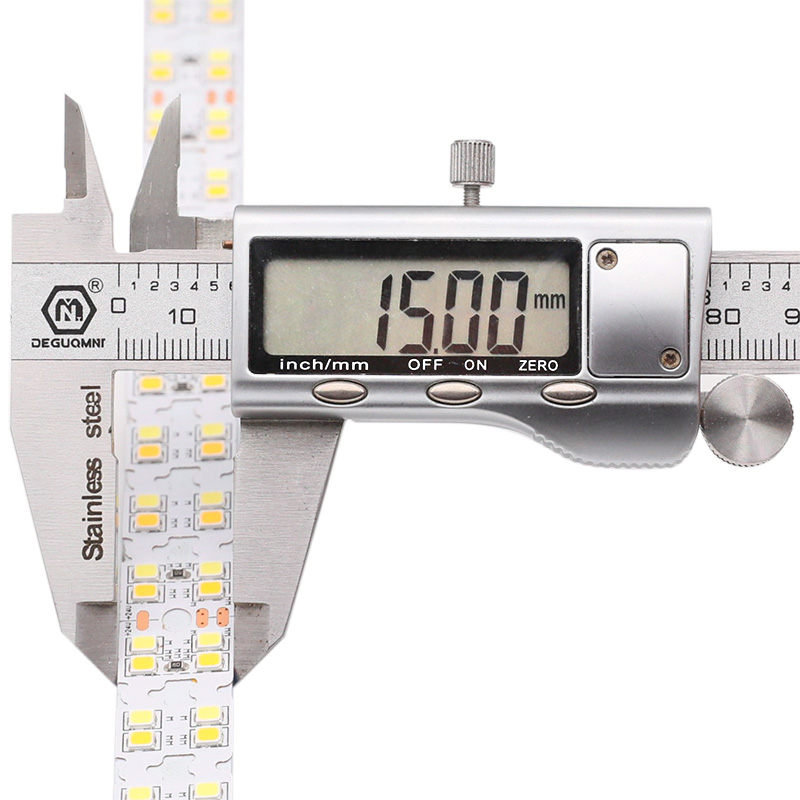

| PCB Width: | 15mm / 0.6" |
| Light Color: | Warm White to Natural White to Daylight (2700K~6500K) |
| Dimension: | 16.4ft/roll |
| LED Quantity: | 320 LEDs per meter, 97/ft |
| Working Power: | 30W/m max, 9.15W/ft, 150W/roll |

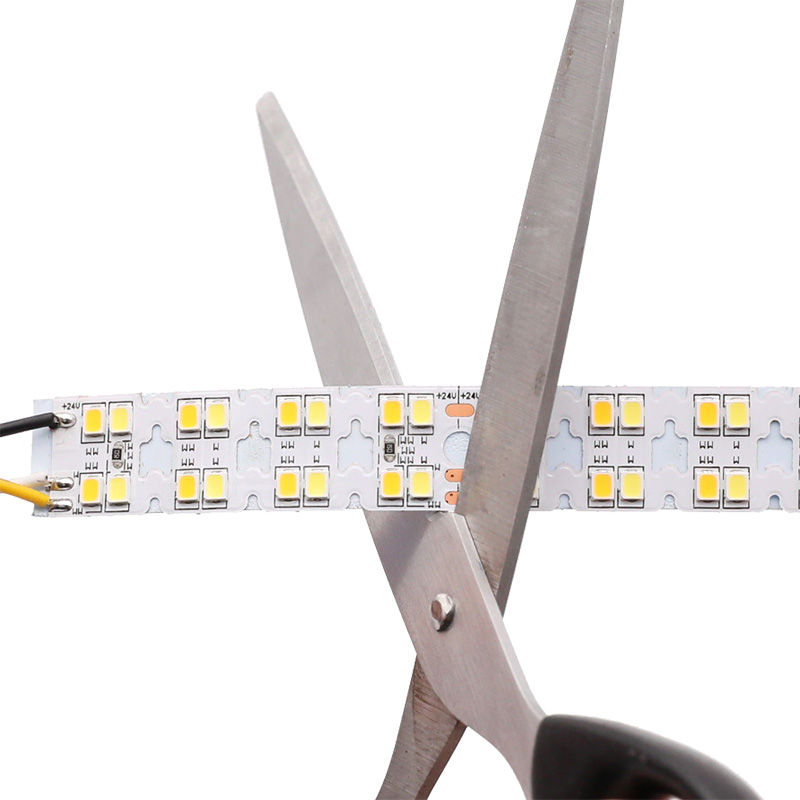

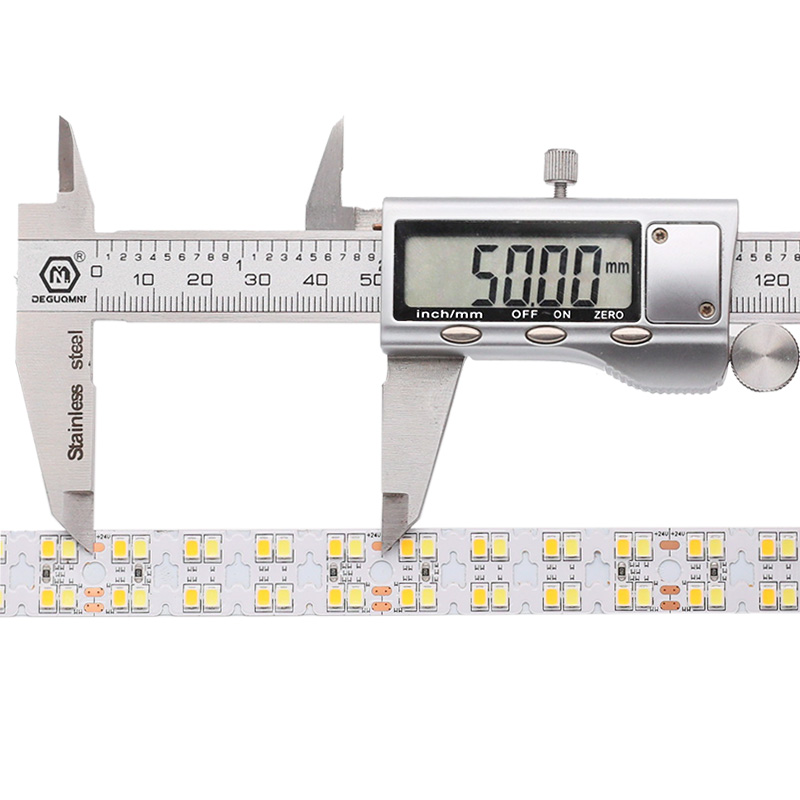

| Cut Unit: | 8 CCT LEDs, 50mm/2" |
| CRI: | 80+, 90+ |
| Beam Pattern: | 120 degrees |
| Waterproof: | Nonwaterproof IP20 |
How to power this S CCT led strip signage:
