Product Information

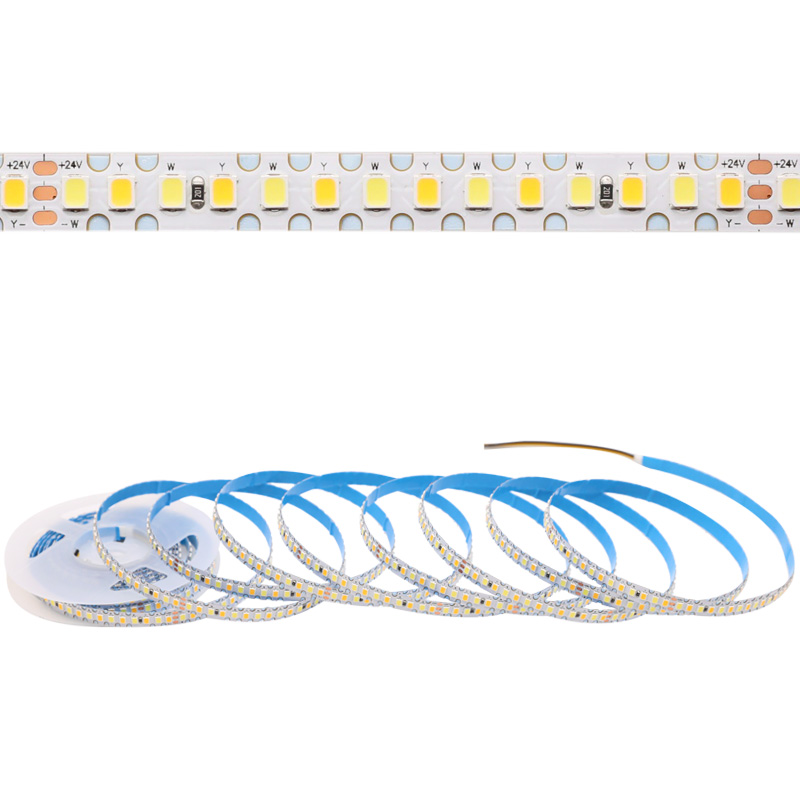

CCT Color Tuning Sawtooth Shape LED Strip Light S with 8mm wide micro-sawtooth printed circuit board, every two LEDs are 5mm apart, very high LED density. Color temperature 2700K CCT LEDs and 6500K CCT LEDs are independent.
When adjusted to 2700K single warm white or 6500K single daylight, 98 LEDs per meter are lit; when adjusted to any color temperature between them, 196 LEDs per meter (all lights on the sawtooth strip) are lit. The ability to adjust the CCT color temperature is done through external tunable white control.
The bending ability of the micro-serrated led strip is slightly weaker than a full S led strip for applications where a little bending is required, but is still stronger than a normal strip light. The benefit is that the micro serrated shape led strip light design can accommodate more LEDs and provide greater brightness and lumens for your place.
-
DC 24-volt power input
-
Micro sawtooth printed circuit board design, 8mm thin strip width
-

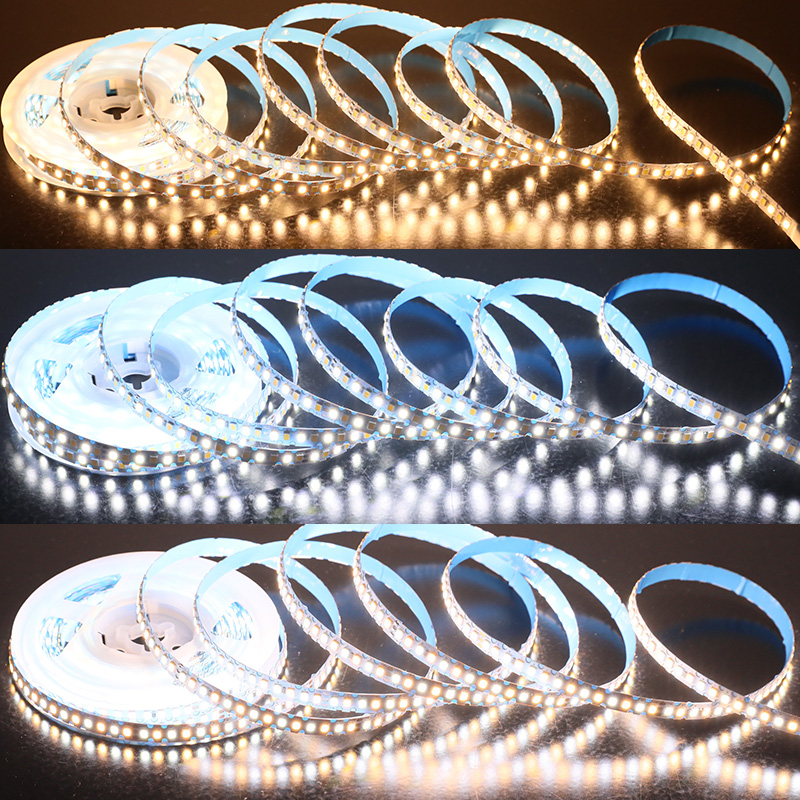

2700K to 6500K CCT color tuning, warm white LEDs and daylight white LEDs evenly distributed on the light strip
-
High LED density of 196 lights per meter (98 warm lights + 98 daylight lights)
-
Flexible bending properties
Product Specifications
| LED Strip Type: | CCT Color Tuning Sawtooth Shape LED Strip Light S |
| LED Chip: | SMD2835 |
| Input Voltage: | 24V DC |

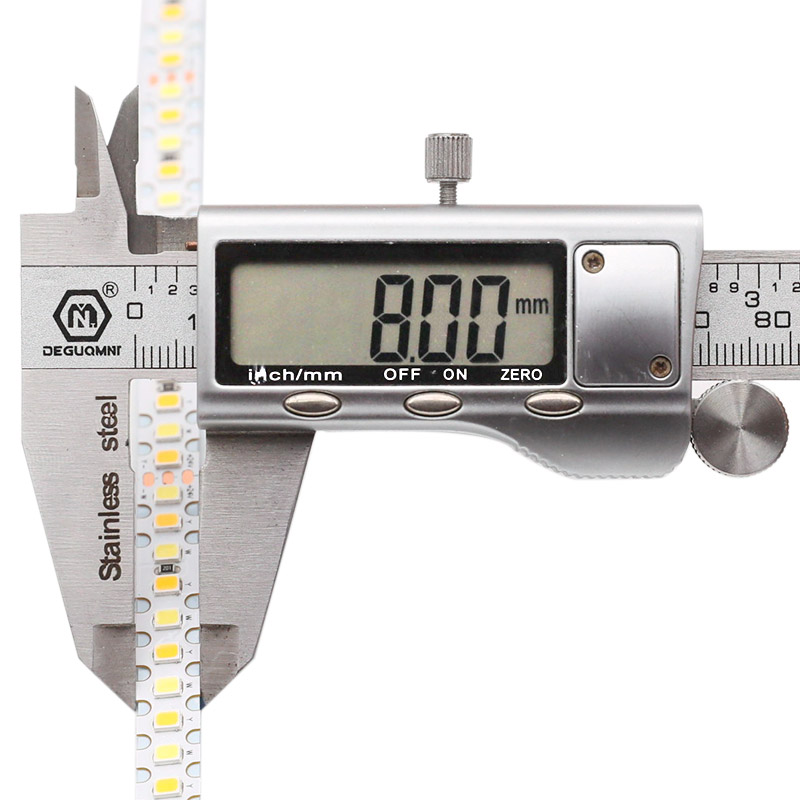

| PCB Width: | 8mm / 0.3" |
| Light Color: | CCT tunable white, 2700K-6500K |
| Dimension: | 16.4ft/roll |
| LED Quantity: | 196 LEDs per meter (98 warm white LEDs + 98 daylight LEDs), 5.1mm/0.2" LED interval |
| Working Power: | 18W/m, 5.5W/ft, 90W/roll |

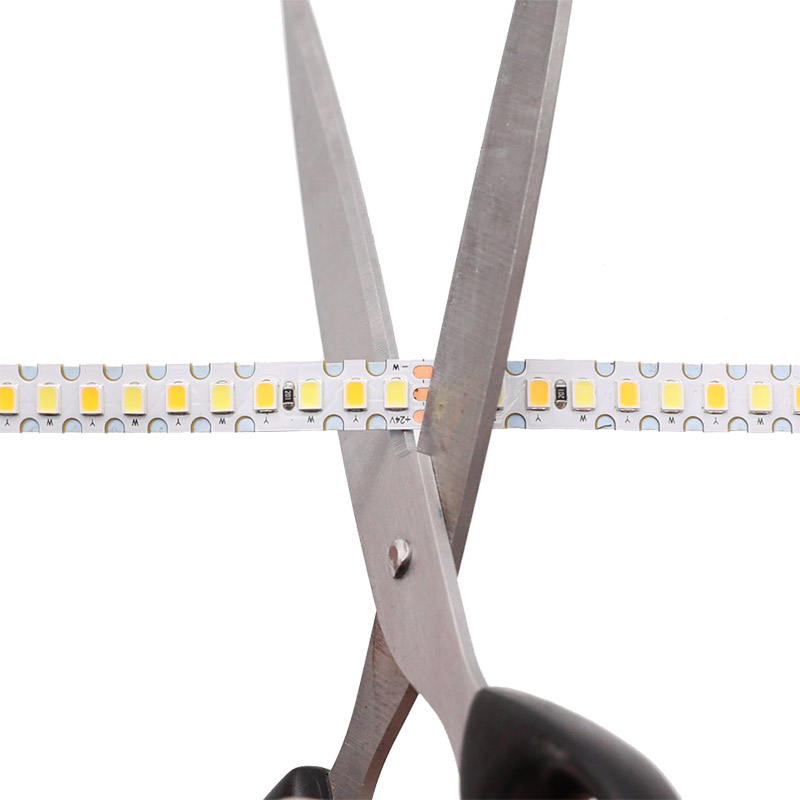

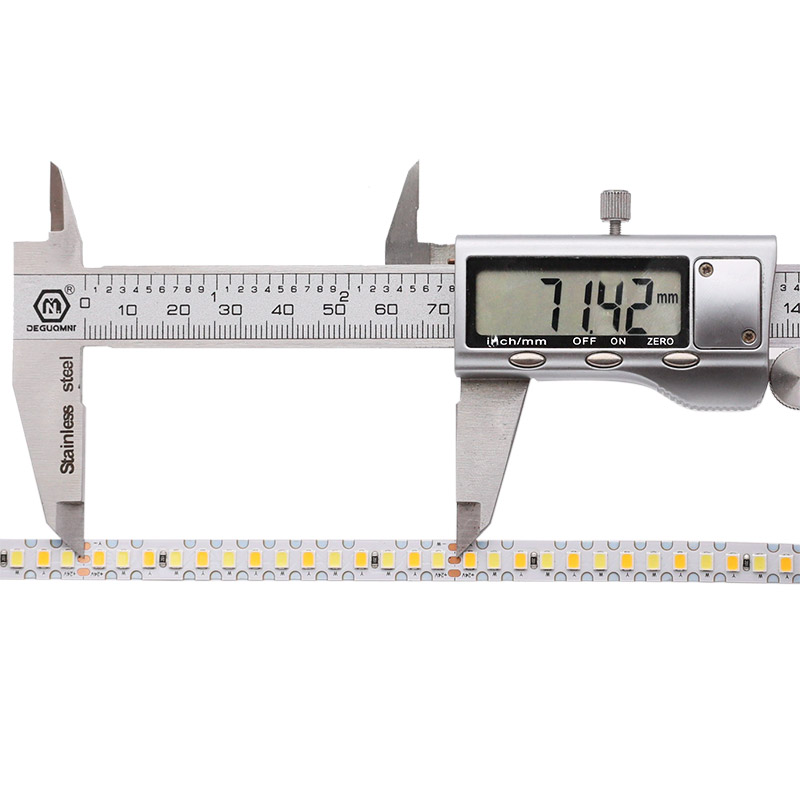

| Cut Unit: | 14 LEDs, 71.42mm/2.8" |
| Lumen: | 5-10lm/LED, 292lm/ft-585lm/ft (full lights on) |
| Beam Pattern: | 120 degrees |
| Lifespan: | 50,000+hours |
| Waterproof Rating: | Non-waterproof IP20 |
CCT LED Strip Light S Wiring Diagram (just for referrence):
