6mm Mini 12V SK6813 Individually Controllable RGB Snake LED Strip

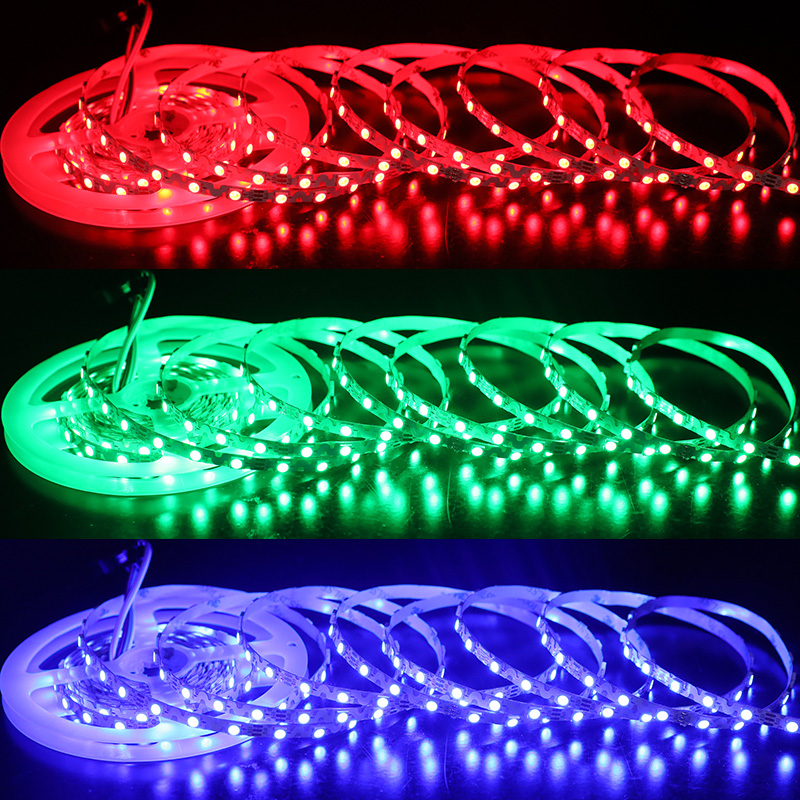

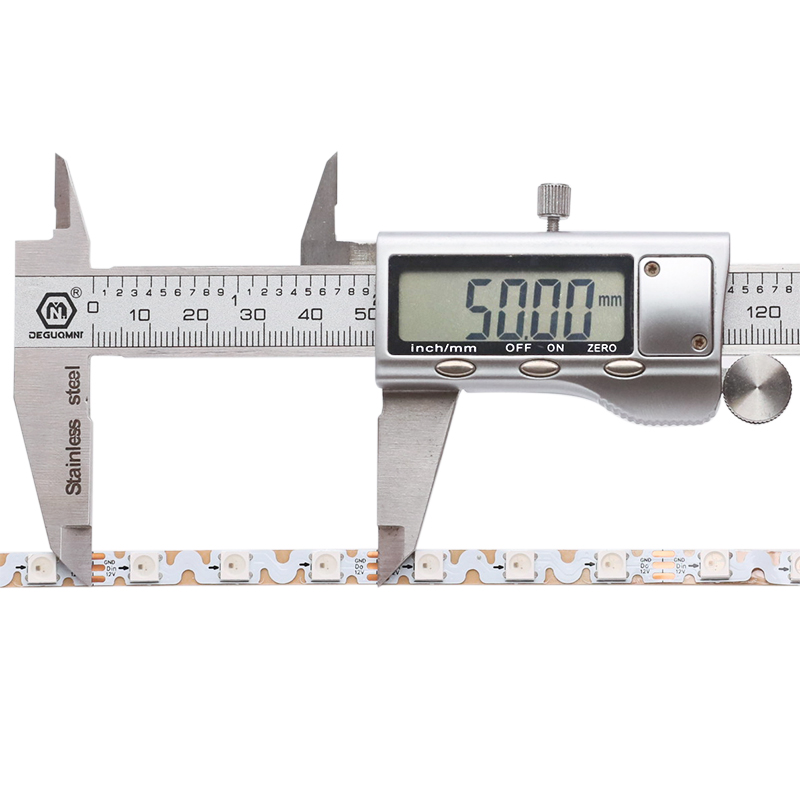

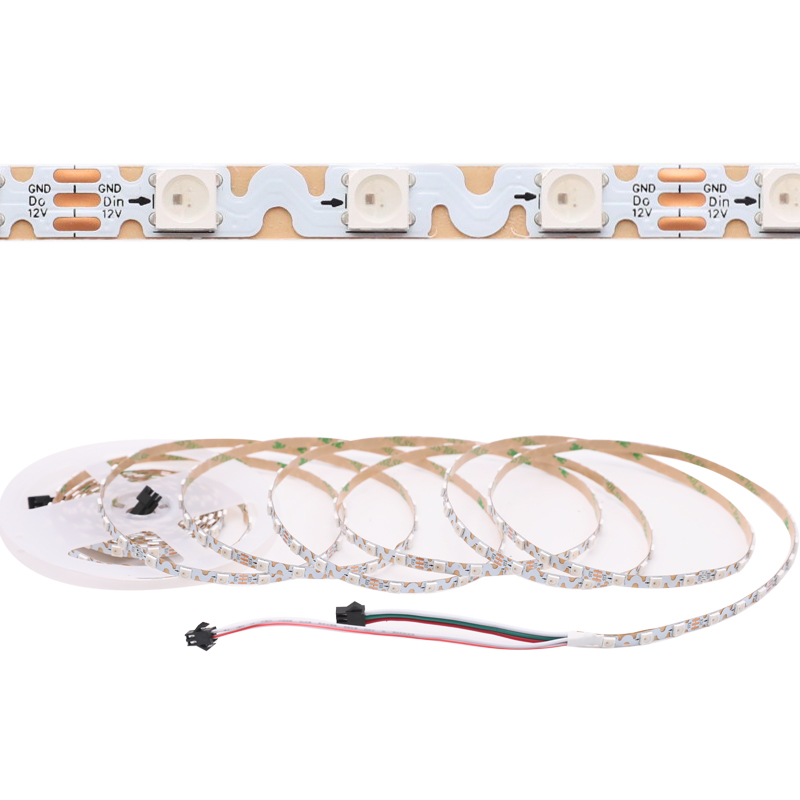

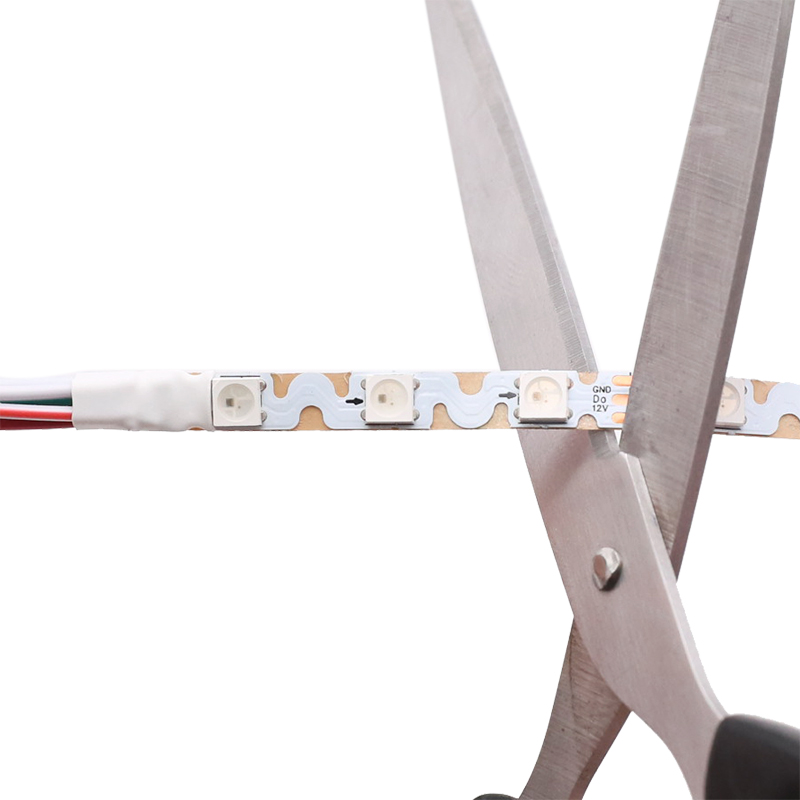

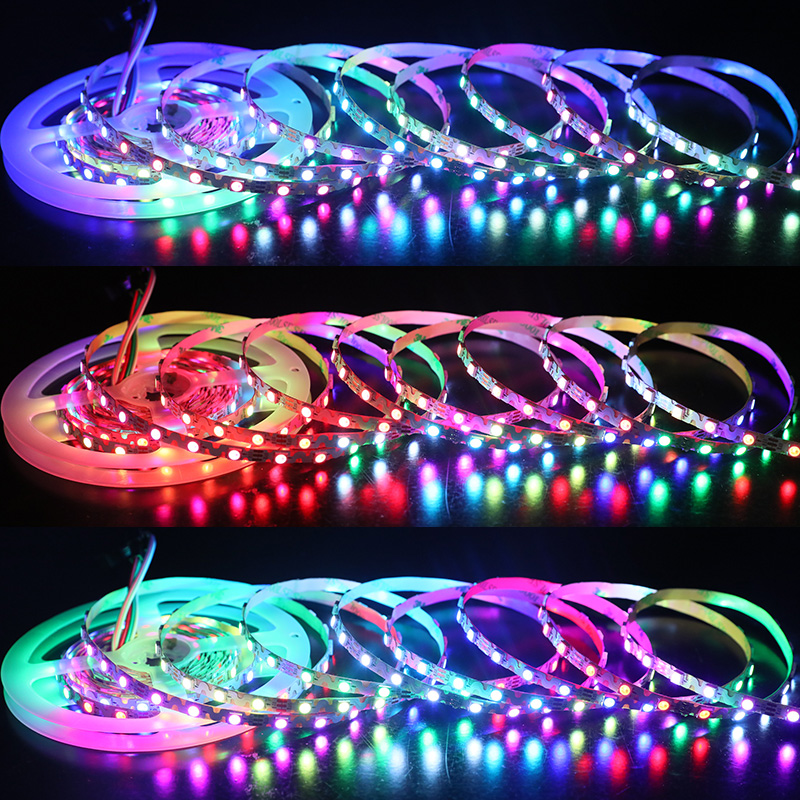

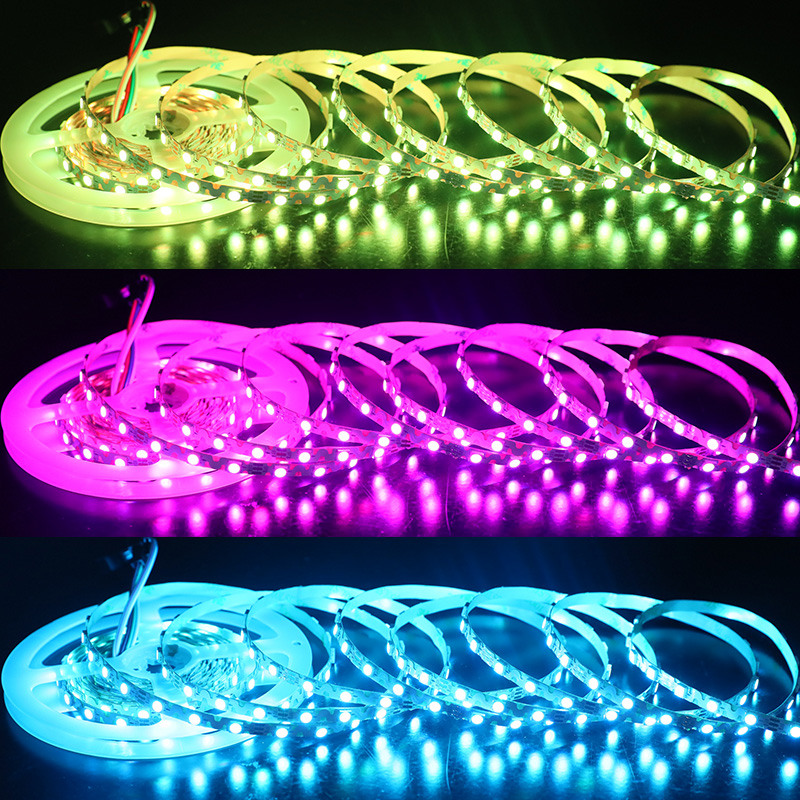

A 6mm wide tiny addressable RGB led strip with a snakelike PCB design, greater flexibility in bending to accommodate uneven installation paths. This compact cobra-shaped led strip with 12V power input, and 3 5050 LEDs cuttable, is still an individually programmable strip light. Each LED is built in an SK6813 IC, and each LED is a pixel, so the micro 12V ZigZag led strip has 300 pixels per reel (5m/16ft).

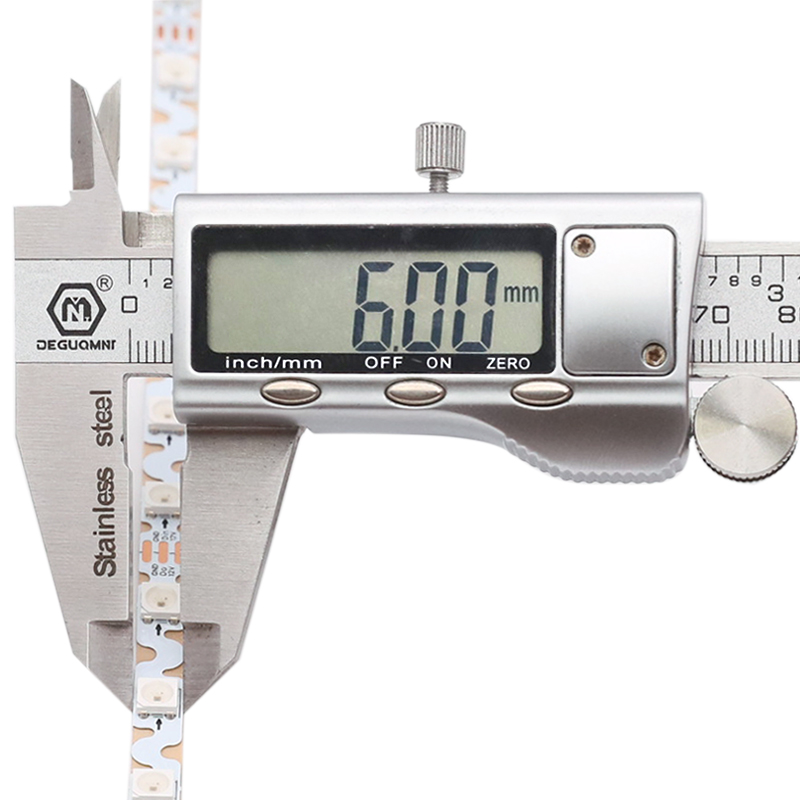

The 6mm narrow width makes this snake pattern led tape suitable for narrow letter channel lighting and other curved lighting. 12-volt power allows for longer running length, with almost no voltage drop in a 5m length.
Kit: Bluetooth led controller SP638E and 12V 5A 60W power adapter or LRS-75-12 Mean Well led power supply.
|Item:||6mm 12V SK6813 Snake LED Strip|
|LED Type:||SMD 5050|
|Light Color:||Addressable RGB|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|LED Quantity:||60 LEDs/m, 300 LEDs/roll|
|IC Quantity:||300 ICs/roll, 1 IC drives 1 LED|
|Power:||10 W/m, 50 W/roll|
|Beam Pattern:||120 degree|
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
