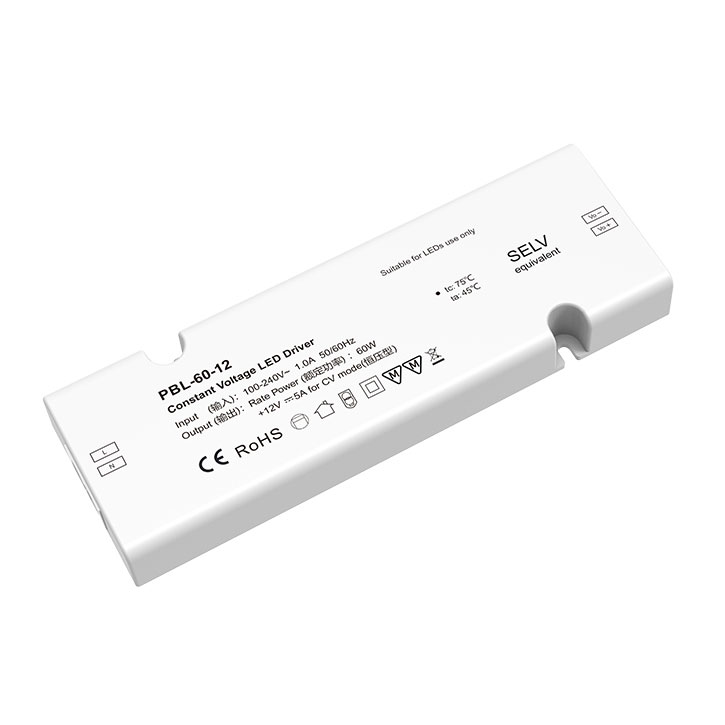

60W 12V 1CH Constant Voltage LED Cabinet Light Driver PBL-60-12

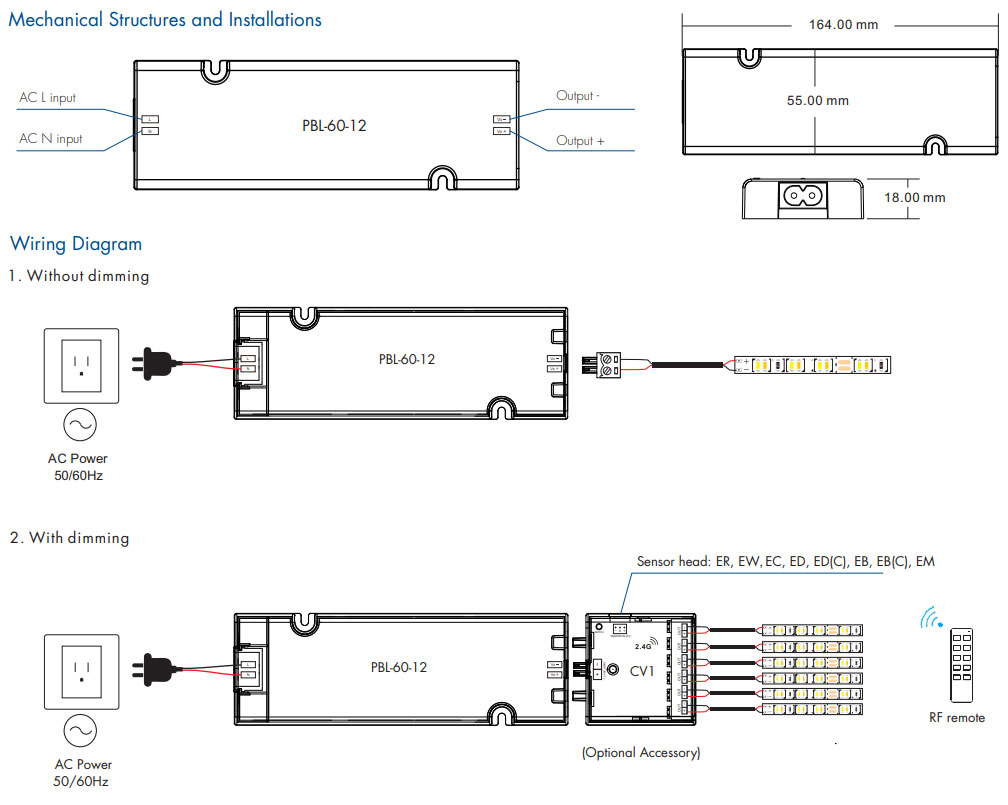

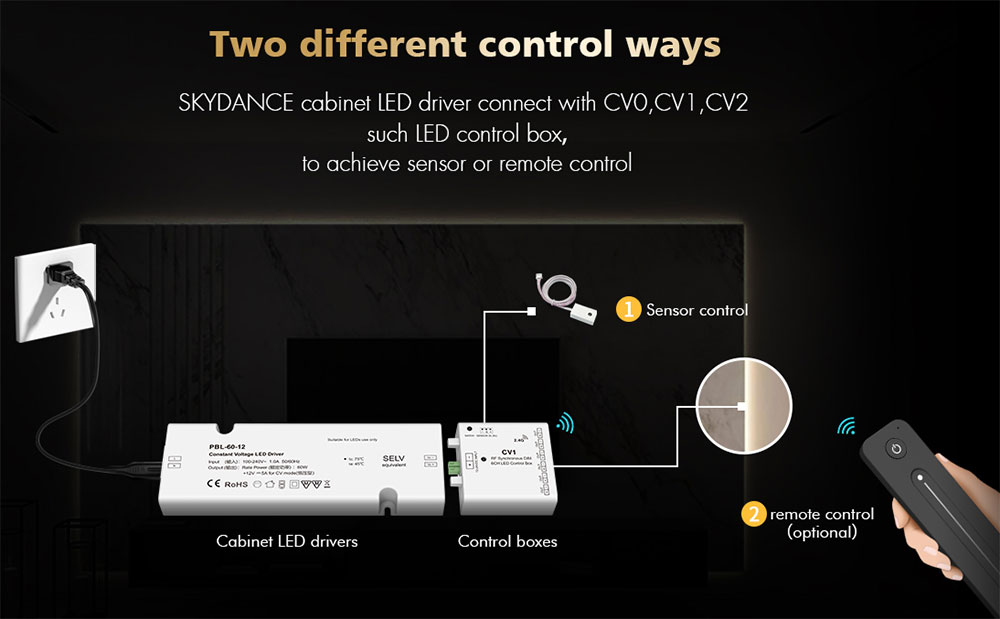

To create a perfect cabinet LED lighting application, you need to consider how to power the LED strip lights and how to place the LED power supply driver. This Constant Voltage LED Cabinet Light Driver with a slim design, can be directly connected to a LED strip, or you can be used with 6CH CV0/CV1/CV2 device to match sensor dimmers to control the LED lights.
● 1CH Constant Voltage LED Driver for Cabinet LED Strip Lights.
● 100-240VAC Input. Max total output power 60W.
● Ultra-thin design, lightweight, and high efficiency.
● Over-load / Short circuit protection.
● Suitable for indoor LED lighting applications.
● 5 Year, 50,000hr warranty.
Standards and Certifications
|Input Voltage Range:||100～240VAC|
|Alternating Current:||1.0A/100VAC, 0.5A/230VAC|
|No Load Power:||0.3W|
|Output Current:||Max. 5.0A|
|Output Power:||Max. 60W|
|Operation temperature:||Ta: -20℃~ +45℃|
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
