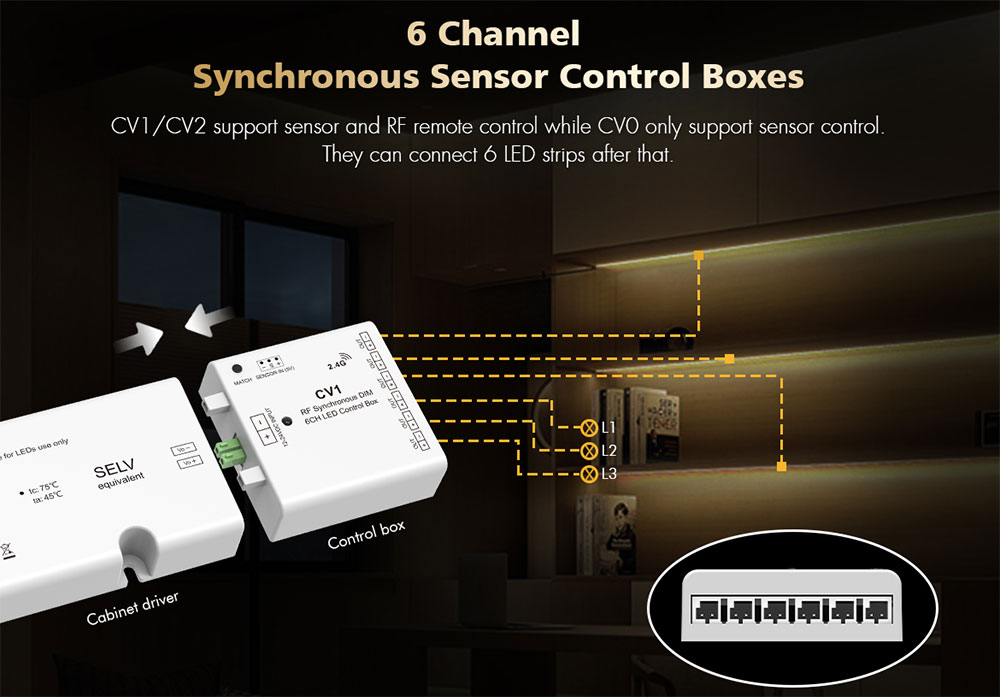

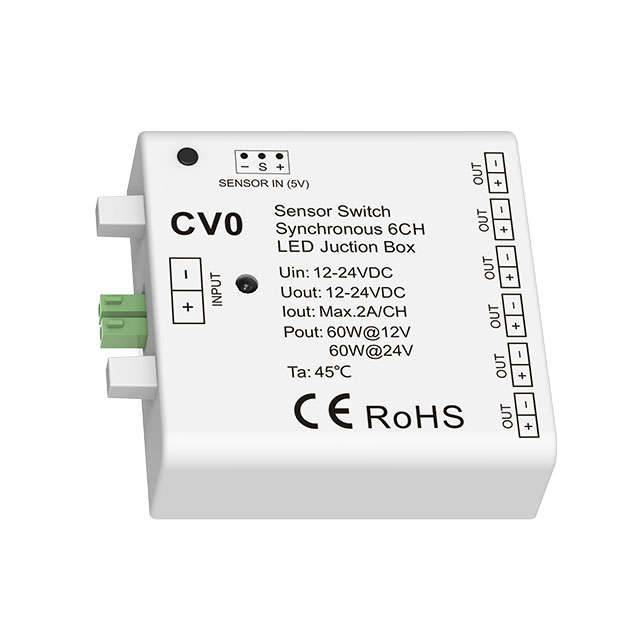

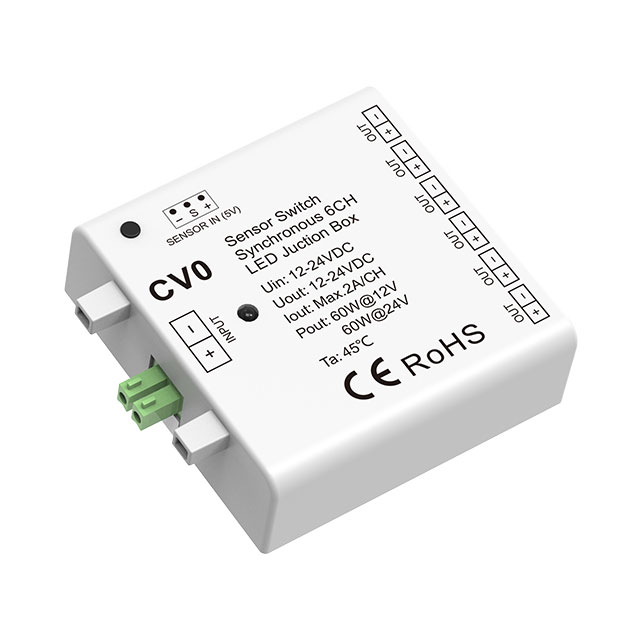

12-24VDC Synchronous 6CH LED Junction Box CV0, Compatible With Sensor Control
This is a 6CH LED Controller that is compatible with multiple sensor switches or dimmers such as ER PIR Motion Sensor, EW Wood Touch Sensor, EC Touch Sensor, ED/ED(C) Door Sensor, EB/EB(C) Hand Sweep Sensor.

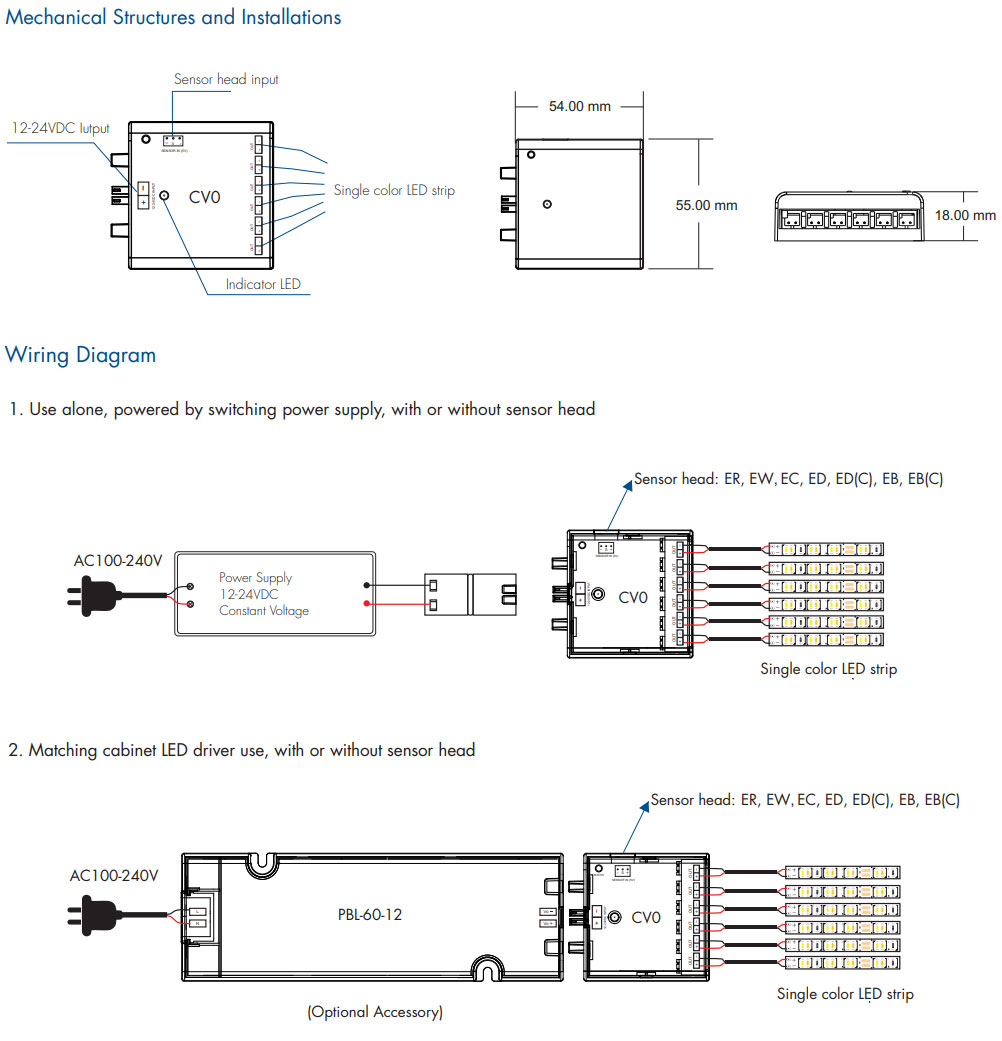

The 6CH LED Junction Box maximum load limit is 60W. With DC12V-24V input, it can be connected to a standard LED power supply, or matched with PBL-60-12 LED Cabinet Light Driver to use together.
● Dimming interface: sensor switch.
● Match with a variety of induction sensors.
● 12-24VDC Input.
● 6-channel synchronous constant voltage output, Max total output power 60W.
● Ultra-thin design, lightweight, and high efficiency.
● Suitable for indoor LED lighting applications.
● 5 Year, 50,000hr warranty.
Standards and Certifications
|Working Temperature:||Ta: 45℃|
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
