COB LED Neon Signs - 05*15mm Thin Strip Neon Lights - 12V/24V
Adapt high efficiency COB LED lights, this neon lights have uniform light effects, no light spot, can last 50,000 hours. (What is a COB light? Is COB LED better? COB light is a linear light, the light has no dark area, and the COB LED emits evenly. ) This neon strip lights wrap the COB LED strip in the flexible silicone channel, which can reach the IP67 outdoor waterproof rating, suitable for narrow places and to make slim neon signs. Indoor lighting and outdoor lighting are availble.
LED neon signs use low voltage 12V or 24V, not dangerous, are safe and stable. When 12V or 24V voltage is injected into the neon sign lights, the neon lighting will be lit, showing 2700k warm white, 3000K soft white, 4000K natural white, 6000K daylight white, red, green, yellow, blue, CCT adjustable white light, and the color changing RGB and RGBW colors. The color change of CCT neon lights and RGB/RGBW multi color neon lights need to be operated by corresponding controllers.
Here you can buy the white neon sign with various color temperatures, red neon sign, green neon sign, blue neon sign, yellow neon sign, and multi-color RGB neon sign, RGBW neon sign.
Food grade silicone material, good flexibility
IP67 waterproof, UV resistance, aging resistance
480 LEDs per meter, high density, high light brightness without light spot
05*15mm neon silicone tube size, slim size
Multiple LED color temperatures and light colors optional
DC12/24V low voltage input, safe to human body
Adhesive tape back, easy installation, you can also purchase the LED mounting brackets to fix the neon signs lights.
|Neon Light Kit||Products|
|LED Strips + Controller + Power Supply:|
|LED Strips + IP67(Controller + Power Supply):|
|IP20 Color Change Light Kit:|
|IP67 Color Change Light Kit (for RGB + RGBW neon lights):|
Standards and Certifications
|LED Product Type:||Neon Signs LED Strp Lights 05*15mm|
|LED Chip:||COB LED|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Colors:||2700K warm white, 3000K soft white, 4000K natural white, 6000K pure white, red, green, blue, yellow, RGB, RGBW|
|LED Quantity:||480 LEDs per 1meter (3.28 ft)|
|Input Voltage(V):||12/24 VDC|
|Working Power:||12W/m, 60W /16.4ft Max → Informations About LED Power Supply|
|Material:||Food grade silicone|
|Waterproof Rating:||Waterproof IP67|
1. Single color COB led neon light signs wiring diagram:
2. CCT adjustable white neon light signs wiring diagram:
3. RGB LED neon lights signs wiring diagram:
4. RGBW neon LED signs wiring diagram:

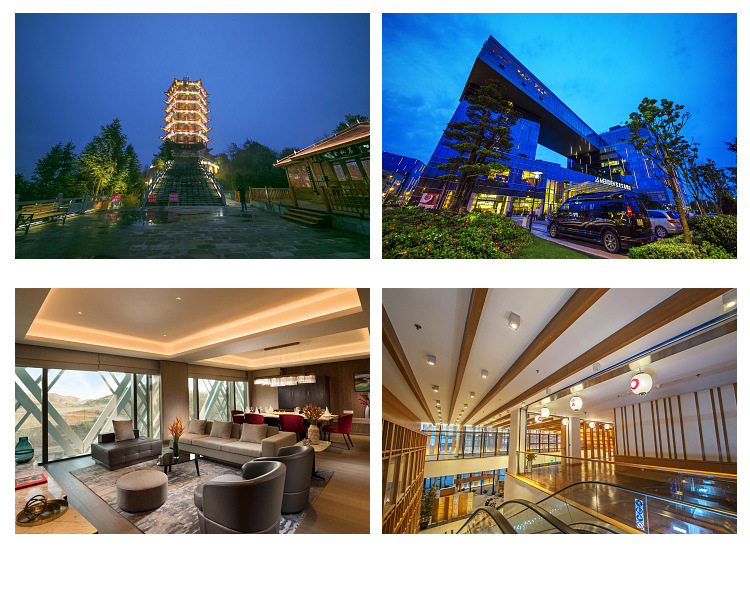

LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
