6mm Slim Bright LED 528Chips/m COB Dotless Strip

Name: 6mm Slim Bright LED 528Chips/m COB Dotless Strip
Brand: SuperLightingLED
SKU: FSLCOB-528W6
Price: 21.98 CAD
Availability: InStock

Model: FSLCOB-528W6 Review stars

0.0 (0 Reviews) Various options in stock

Starting at: Can.$31.04

Qty Discounts Off Price
1-20 Can.$31.04	21-50 Can.$30.11	51-99 Can.$29.18	100+ Can.$27.94
* Discounts may vary based on options below

Select Specifications:

Select Light Color :

Select Operating Voltage:

Select Length:

16.4ft (5 meters)

Select Waterproof Rating:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

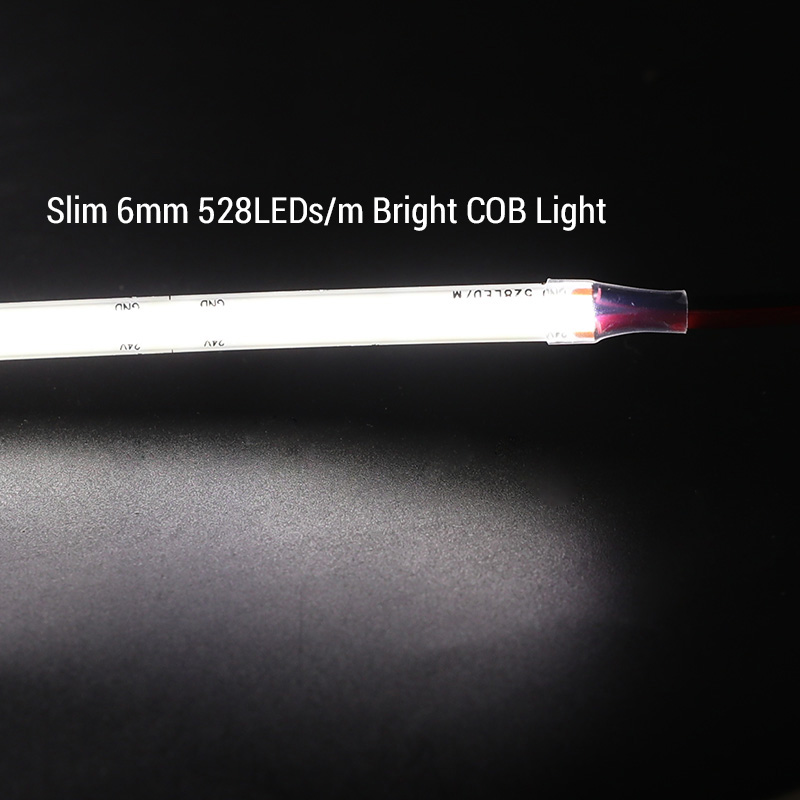

Introducing the FSLCOB-528W6, a high-performance COB LED strip engineered for applications demanding a slim profile without compromising on light quality. Featuring an ultra-narrow 6mm PCB and an exceptionally high density of 528 LEDs per meter, this COB light strip produces a completely uniform, dotless line of light that is perfect for direct-view installations, backlighting, and accenting architectural details. Its advanced flip-chip technology ensures superior brightness and a wide 180° beam angle. Available in both 12V and 24V options and a wide array of colors, this slim bright LED strip is the professional choice for intricate lighting designs in cabinets, showcases, and narrow channels where standard strips cannot fit.

Technical Highlights

The 6mm PCB width is significantly narrower than standard 8mm or 10mm strips, enabling unique design possibilities.
A density of 528 chips per meter creates a perfectly linear light source, eliminating the need for bulky diffusers.
Flip-chip technology improves light output and heat dissipation, contributing to a longer product lifespan.
Choose from nine distinct colors, including multiple white temperatures, primary colors, and specialty shades like pink and golden yellow.
Precise cut points allow for easy customization to fit exact length requirements for any project.
Available in 12V or 24V DC with IP20, IP67, and IP68 ratings to suit any project from indoor accents to outdoor wet locations.

Slim Bright LED COB Dotless Strip | FSLCOB-528W6 | SuperLightingLED

Product Specifications

Parameter	Details
Product Model	FSLCOB-528W6
Input Voltage	DC 12V / DC 24V
Power Consumption	10 W/meter

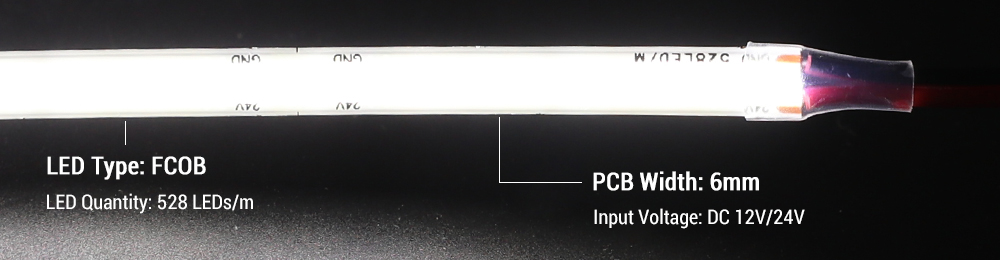

LED Type	FCOB (Chip-on-Board)
LED Density	528 LEDs/meter

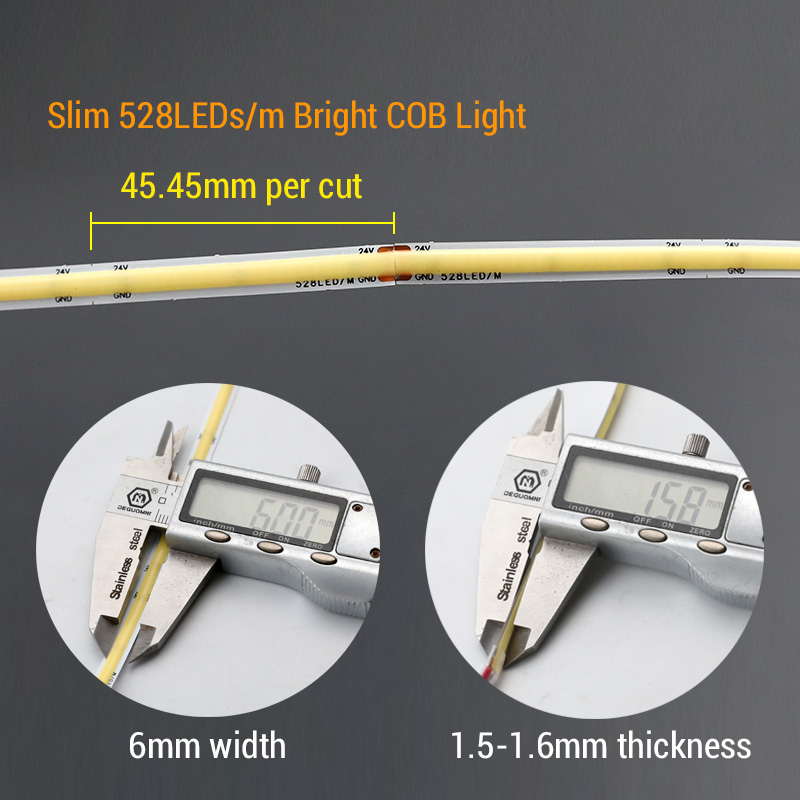

PCB Width	6mm
Strip Thickness	1.5 - 1.6mm (IP20)
Reel Length	5 meters (16.4 feet)
Color Options	Red, Green, Blue, Warm White (3000K), Natural White (4000K), Cool White (6500K), Pink, Ice Blue, Golden Yellow
Color Rendering Index (CRI)	>85 Ra
Beam Angle	180°

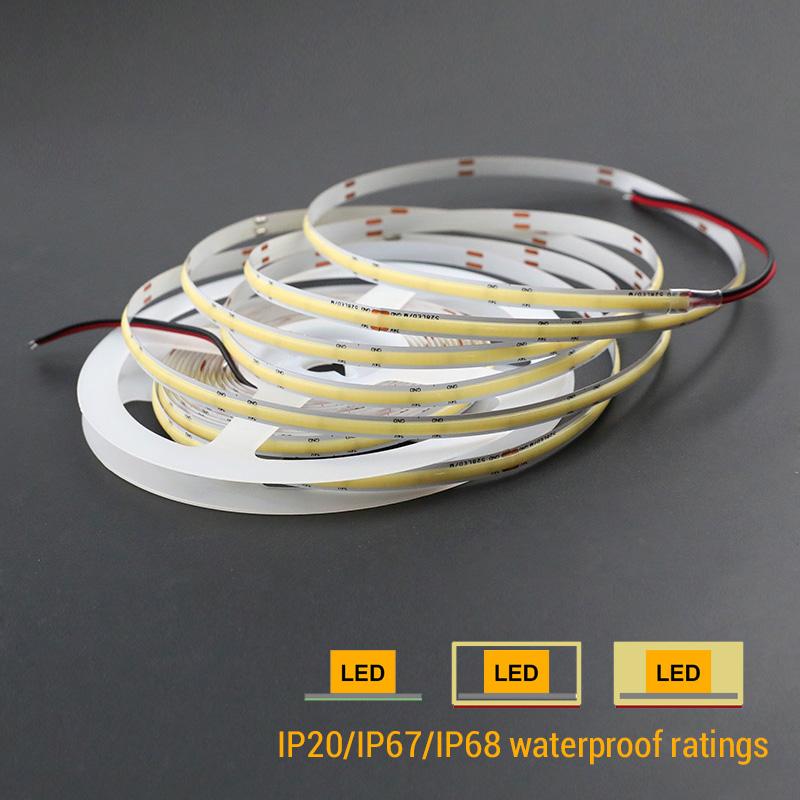

IP Rating Options	IP20 (Non-waterproof), IP67 (Silicone Tube), IP68 (Silicone Injection)
Cut Interval	Every 45.45mm
Adhesive	Double-sided tape
Dimmable	Yes (with compatible PWM dimmer)
Lead Time (excluding shipping)	1-2 workdays (IP20, IP67), 4-5 workdays (IP68)
Operating Temperature	-20°C to +50°C (-4°F to 122°F)
Wiring	Red Wire (V+ / Positive), Black Wire (GND / Negative)

Application Scenarios

Under-Cabinet & Kitchen LightingThe 6mm profile fits perfectly under cabinets and shelves, providing a seamless, dotless line of light for task lighting on countertops. Use this slim bright LED strip in warm white for a cozy kitchen ambiance.

Architectural & Cove LightingCreate stunning linear lighting effects in tight coves, soffits, and architectural reveals. The high density of this cob dotless led strip ensures a flawless glow without any visible dots, even on reflective surfaces.

Retail Display & Showcase LightingHighlight products in jewelry cases, retail shelves, and display units. The high CRI (>85) makes merchandise look vibrant and appealing, while the slim design remains hidden from view.

Backlighting for Signage & PanelsAchieve perfectly even backlighting for custom signs, acrylic panels, or media walls. The 180° beam angle and dotless output of the 6mm COB strip eliminate hotspots for a professional finish.

Frequently Asked Questions

Q: Is this LED strip really dotless?

A: Absolutely. With an extremely high density of 528 LEDs per meter, the light output is completely uniform, creating a smooth, continuous line of light with no visible dots or hotspots.

Q: What power supply do I need for a full 5-meter reel?

A: A full 5-meter reel consumes 50 watts (5m x 10W/m). We recommend using a power supply with at least 20% headroom, so a 12V/60W or 24V/60W driver would be the ideal choice.

Q: Is the IP67 or IP68 version also 6mm wide?

A: The internal PCB is 6mm, but the protective silicone sleeve (IP67) or injection molding (IP68) will add to the overall width and thickness.

Q: Is this strip dimmable?

A: Yes, this 6mm bright COB strip is fully dimmable. You can control its brightness by using a compatible low-voltage PWM LED dimmer connected between the power supply and the strip.

Q: What's the difference between the 12V and 24V versions?

A: The 24V version allows for longer maximum run lengths before experiencing voltage drop compared to the 12V version. Both versions have the same brightness and power consumption per meter.

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for FSLCOB-528W6

PDFFSLCOB-528W6 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

What voltage does this LED strip light run on?

This model is offered in 12VDC · 24VDC. Lower voltage means a shorter run per feed: at 12 V feed power roughly every 5 m, at 24 V roughly every 10 m. Longer runs get power injected at both ends. Connecting to the power supply

Which waterproof rating should I choose?

Available on this model: Underwater IP68 - Adhesive Back · Outdoor Silicone Tube IP67 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Which colour is right?

This model comes in Golden Yellow · Ice Blue · Blue(465-475nm) · Green(515-525nm) · Pink · Red(620-630nm). Warmer whites suit living spaces, cooler whites suit task and display lighting. Screens do not show colour temperature accurately — order a sample if the room matters. Warm white vs cool white
