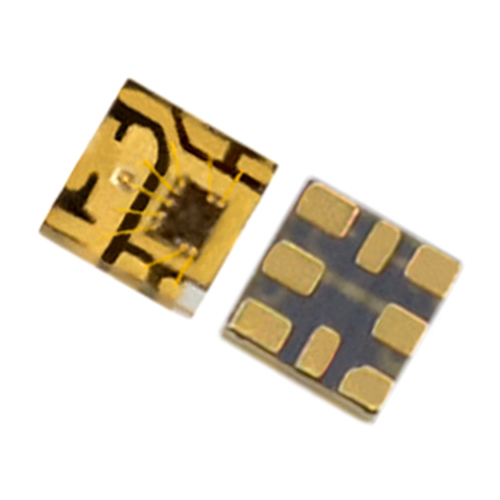

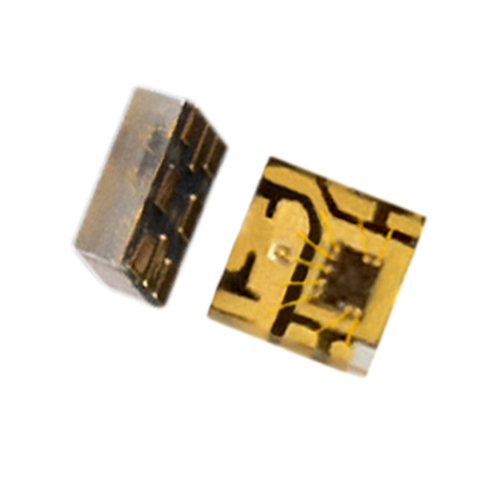

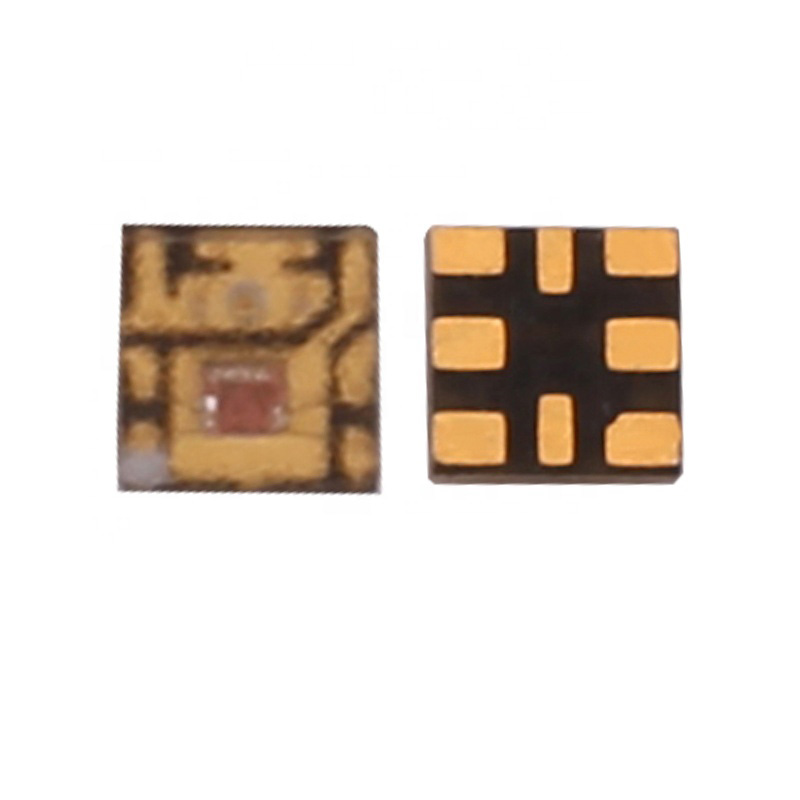

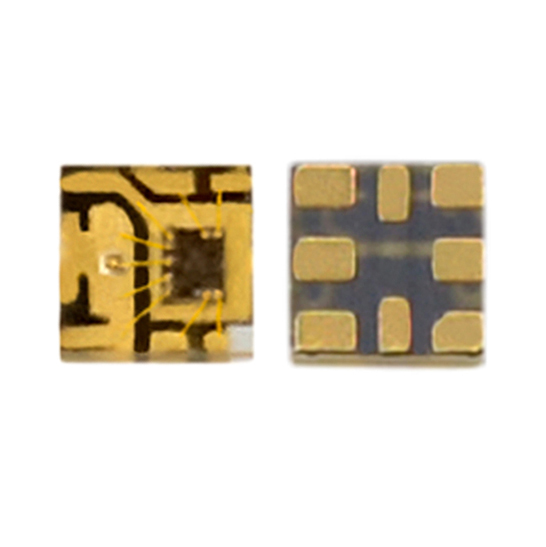

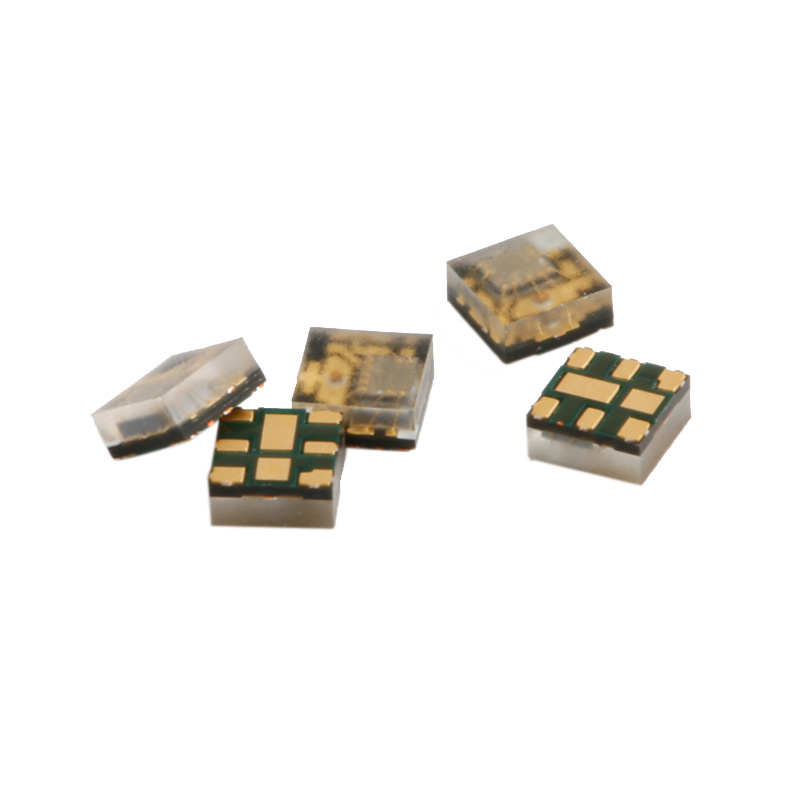

APA102 RGB 2020SMD 8PINS Digital Intelligent Addressable LED Chip, DIY LED Chip, 500PCS By Sale
1. The PWM is built into each LED-chip so once you set the color you can stop talking to the strip and it will continue to PWM all the LEDs for you.
2. APA102 2020SMD LED is a new type of APA102 integrated LED for channels RGB color emitting.
3. It has a very little size with 2.0mm*2.0*0.9mm, which has much more advantage for the smaller than 5050 led with 5.0*5.0mm.
4. These surface-mount LEDs are an easy way to add a lot of very small(but bright!) colorful dots to your project.
5. Cause they are tiny ,so it may be a bit difficult to hand solder, SMT techniques with solder paste and hot air will work best here.
6. Applications:Telecommunication, office automation,home appliances, industrial equipment, Status indicator, Signal and symbol luminaire, Front panel backlighting, Full-color strip, Indoor decorative lighting/curtain display.
Standards and Certifications
LED Chip Model: SMD 2020
LED Resource: APA102 LED
IC Type: APA102 IC (1 IC drives 1 led chip)
Protection Rate: Non-waterproof
Working Temperature: -40°C ~ 70°C
Storage Temperature: -50°C ~ 120°C
Gray Scale: 256
Color Temperature: RGB
