Bluetooth APP Music Controlled Color Chase LED Stair Step Lights Kit, With AC PIR Motion Sensors

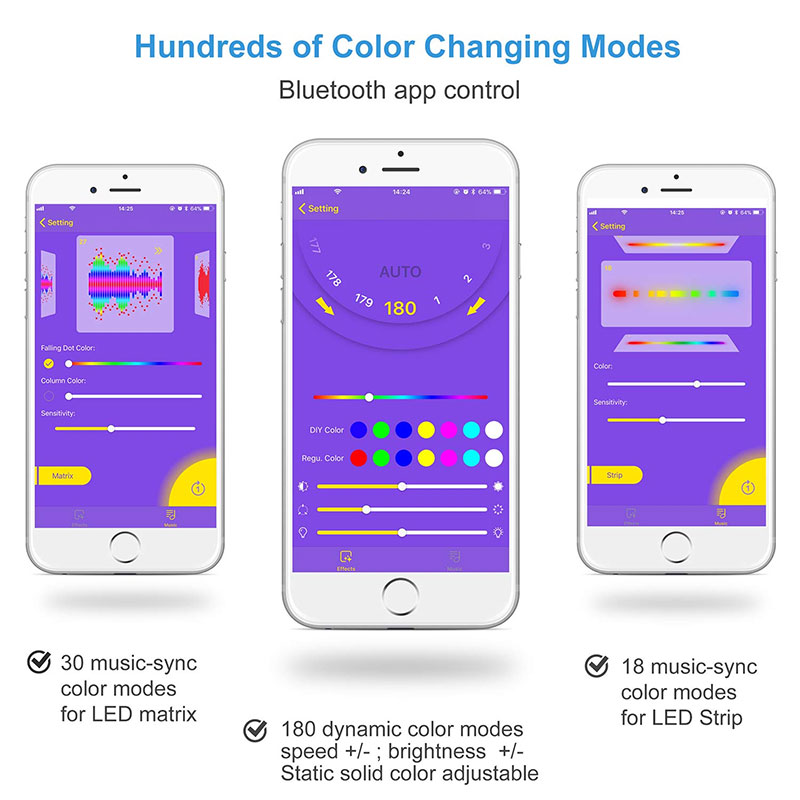

A complete multi-color changing & color chase stair lights kit to light your individual treads, led strip lights for stair treads provide more light to your staircase. It adapts addressable RGB led strips (with fast connectors at both ends of each strip for easy connection) to illuminate stair steps, the lights are controlled by a Bluetooth music controller, allowing you to adjust brightness and spped/ change static colors or dynamic modes/ music rhythm via a mobile software. With both functional and fun.
The use of AC motion sensors at both ends of the stairs makes the stair strip lighting on and off more intelligent. When they sense your movements, the strip stair lights automatically turn on (all lights on or running water/color chasing, not one by one), and you can set the time from when the light comes on to when it goes off.
A new APP controlled intelligent AC switch option has been added to allow the whole stair light system to be time controlled to achieve the purpose of not working during the day and working at night.
We offer different length options to fit the width of your stairs. Measure your stair tread length to choose the suitable strip length to install or customize your desired length (need to note when placing an order).
The motion sensor step strip lights installation depends on the type of stairway you have and your preference, under the treads with LEDs downlighting, attach directly to the stair steps, or with an aluminum channel embedded into the stair treads.
LED strips with aluminum profiles will have aesthetic installation effects. The diffuser cover smooths LED output and the metal channel gives the LED strip optimized heat management, so as to prolong LED life.
Choose the right color for your stair lights:
1) Addressable white:
2) Addressable RGB:
3) Addressable RGB+White:
Standards and Certifications
|Product Type:||Color Chase LED Motion Sensor Stair Lights Kit|
|LED Strip Type:||24V Low-Voltage Addressable LED Strips|
|Controller Type:||SP107E Bluetooth Music SPI Contorller, APP Control / WiFi Alexa Tuya Controller LC1000A-TY01|

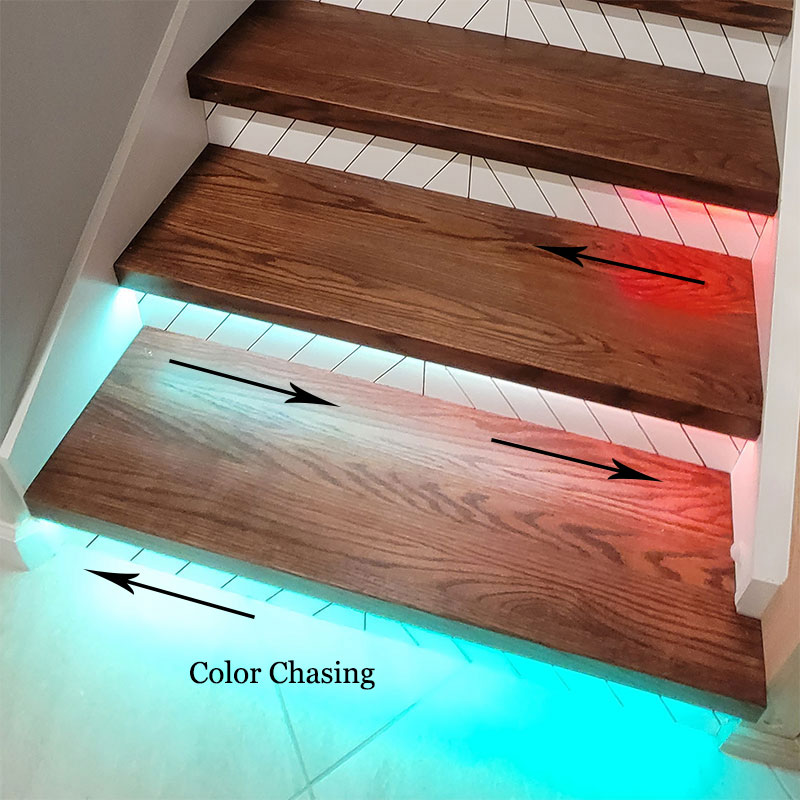

|Stair Light Effect:||All Bright or Color Chasing|
|Light Color:||Addressable Daylight white / Warm White / RGB / RGB+W|
|Step Width (Tread/Strip Length):||0.5m/1.64ft, 0.6m/2ft, 0.8m/2.26ft, 0.9m/3ft, 1m/3.28ft, 1.15m/3.77ft|
|Strip Wire Length:||0.3m/11.8" at both ends of every strips|
|Steps Number:||6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 PCS|
|Aluminum Channel:||16*16mm Corner Channel, 17.4*7.6mm Surface Mount Channel, 24.8*7.5mm Recessed LED Channel|
|Waterproof Rating:||Non-waterproof (IP20), For Indoor Stairs|

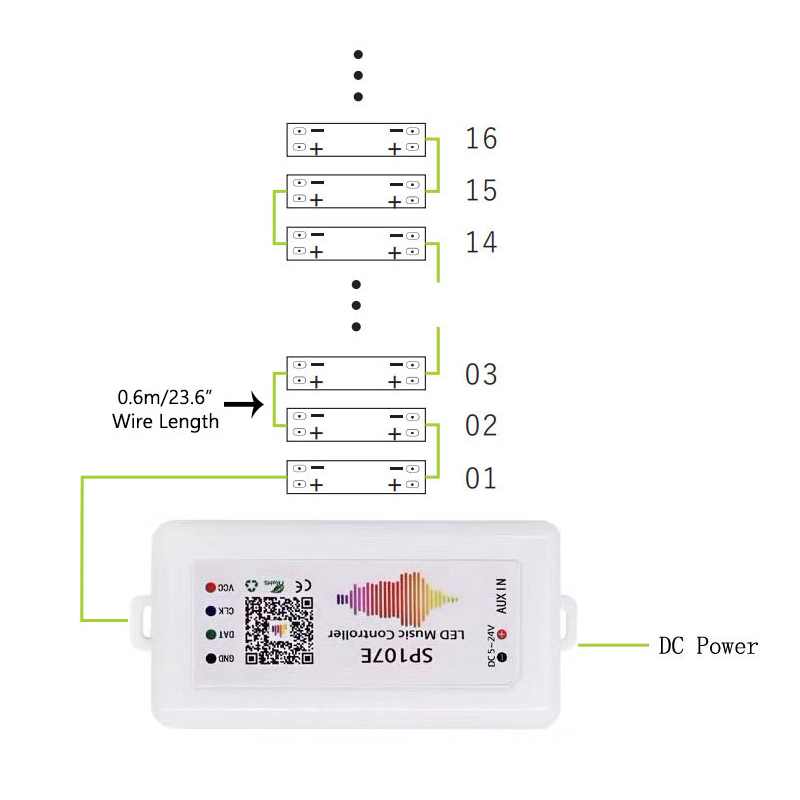

1*SP107E Bluetooth Music LED Controller
2* AC Motion Sensors
N*Addressable LED Strips With or Without Aluminum Channels
1*Meanwell Switching Power Supply
