Special Price: $19.98

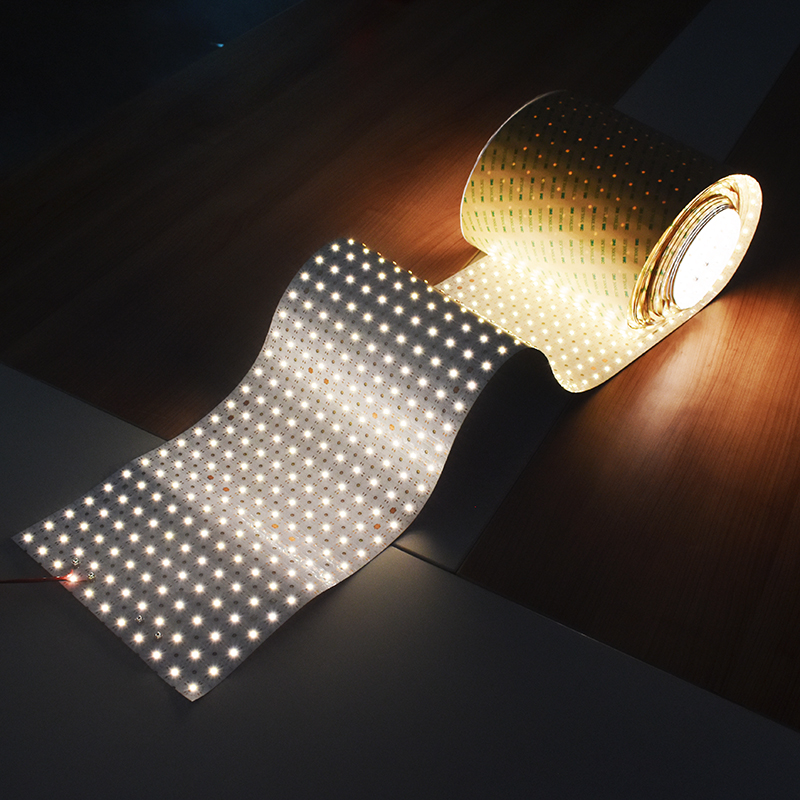

Looking for a large countertop backlighting solution? Try SuperlightingLED UL-listed Custom LED Sheet Series!

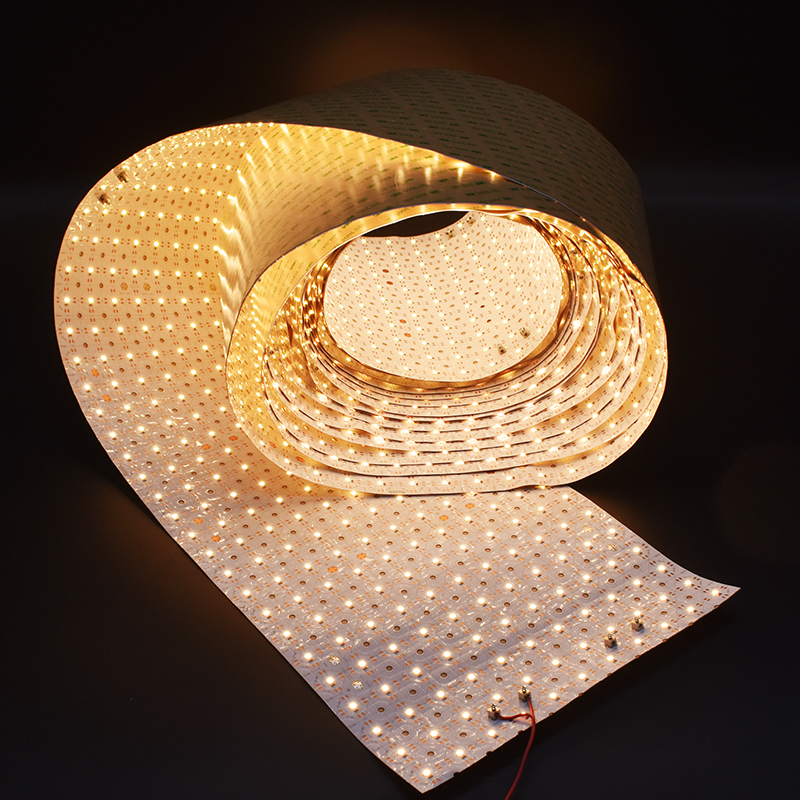

Our LED-backlit sheet can cover large areas with one roll. No more splicing small sheets of light anymore. However, for this big light sheeting, only 3000K warm white, 4000K natural white and 6000K daylight white versions are in stock. Other white light color temperature such as 2700K and 5000K require a minimum order of 100 meters (10 rolls of 10m). If you are interested, please contact us.
Countertop lighting sheet is 9.45 inches/240mm wide, with lengths ranging from 1.64ft/1m to 32.8ft/10m. Please see the table below for specific sizes. These backlight panel sheets operate at 24V and are safe to touch. Concerned about voltage drop? For 5-meter lengths (16.4ft), there is no voltage drop with a single-ended power supply. But for 10-meter lengths (32.8ft), please connect the power supply on both sides to ensure consistent brightness. We mounted 4 screw connectors on the large LED backlight sheet surface for easy power injection.
528 LEDs are arranged per meter to provide bright and even illumination. If you need to dim these LED tiles, please prepare a dimmer. The double-layer FPC material ensures a stable and flicker-free light with a service life of 50,000+ hours, and we offer a 3-year warranty.
Unlike traditional rigid LED panel lighting, this flex LED panel is foldable. Each LED chip can be cut with scissors. But please cut along the black lines, otherwise it will damage the LED light diffuser sheet.
For more convenient installation, the back of each panel LED flexible is pre-applied with a 3M backing. There are also pre-drilled nail holes on the surface. An accessory pack will be shipped with this amazing white LED backlight module large board, including screws, screw shims, connection lines, and anti-collision silicone particles. Need colorful backlighting? We also offer LED light board with colors, but in regular size.
Large LED Backlight Sheet Manual Download
UL Listed LED Light Dimming Sheets Size
| Length | Width | Area (Square Feet) | LED Chip Quantity | Luminous Flux (Lumens) | Suggested Power Supply |
| 1.64 ft / 0.5 m | 9.45 in / 240mm | 1.3 sq ft | 264 | 2024 per sheet | LRS-50-24 |
| 3.28 ft / 1 m | 9.45 in / 240mm | 2.6 sq ft | 528 | 4048 per sheet | LRS-75-24 |
| 6.56 ft / 2 m | 9.45 in / 240mm | 5.2 sq ft | 1056 | 8096 per sheet | LRS-150-24 |
| 9.84 ft / 3 m | 9.45 in / 240mm | 7.9 sq ft | 1584 | 12144 per sheet | SP-240-24 |
| 16.4 ft / 5 m | 9.45 in / 240mm | 13.1 sq ft | 2640 | 24240 per sheet | LRS-450-24 |
| 32.8 ft / 10 m | 9.45 in / 240mm | 25.9 sq ft | 5280 | 40480 per sheet | UHP-750-24 |
Product Specifications
| LED Sheet Type: | 24V White Big Light Panel Large |
| LED Chip: | SMD2835 |
| Input Voltage: | 24V DC |
| Product Size: | Multiple (please see table above) |
|
Light Color: |
Warm White 3000K Natural White 4000K Daylight White 6000K |
| Lumen: | Based on the sheet size (please see table above) |
| LED Quantity: | 528 LEDs per meter |
| Working Power: | 48W per meter |
| Cut Unit: | 1 LED (0.86" x 0.86"/ 21.8mm x 21.8mm) |
| Lifespan: | 50,000+hours |
| Beam Pattern: | 120 degrees |
| IP Rating: | Non-waterproof IP20 |
| CRI: | 90+ |
| Warranty: | 3 years |
|
Safety Certification:
|
UL-listed (UL code is E527951)
|
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
