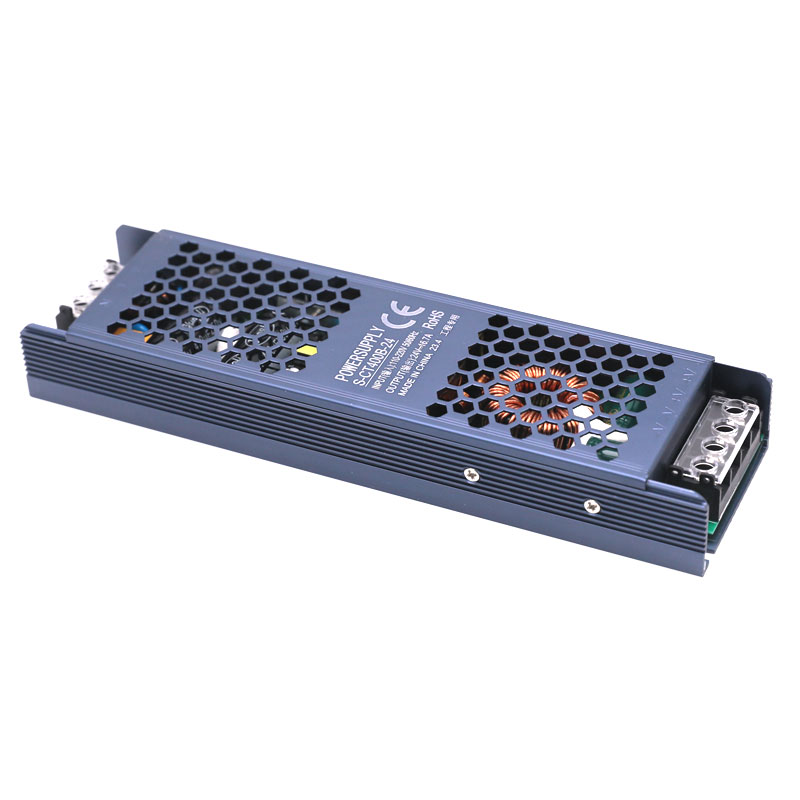

400W Slim Slectable Input Universal Power Supply For LED
400W Slim Slectable Input... $26.99
AC Power Supply Cord -US... $4.99
400W Slim Slectable Input...
AC Power Supply Cord -US...

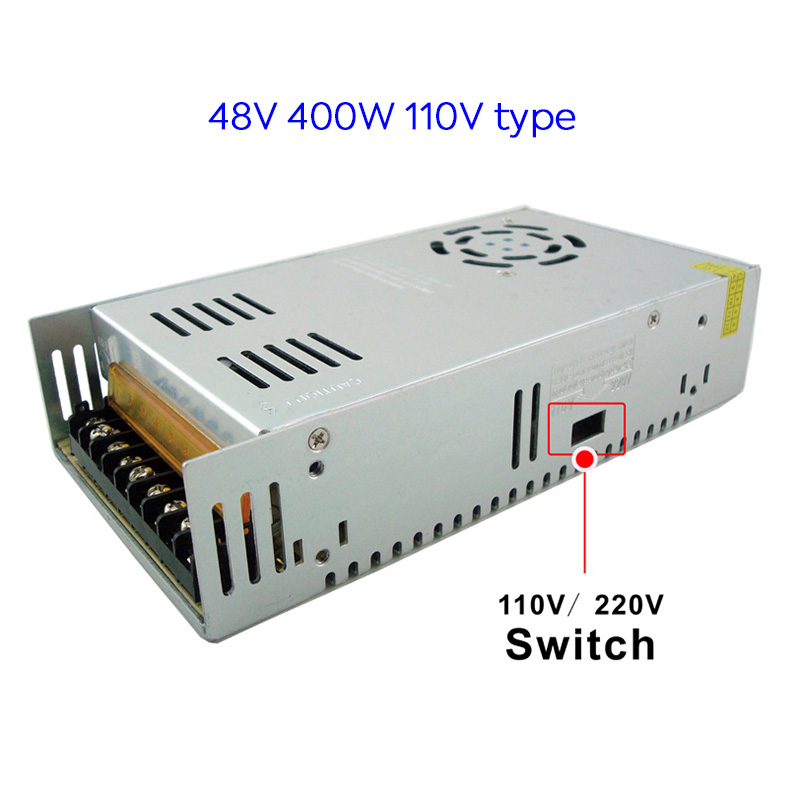

This 400W power supply has a physical switch that allows you to select the appropriate input voltage (120VAC or 220VAC) to power your LED lights. It's critical to ensure it's set to the correct position for your local voltage standard before you plug in and turn on the light device.
We provide four types 400W slim power supplies, DC12V 33.3A, DC24V 16.6A, DC36V 11.1A, DC48V 8.3A.

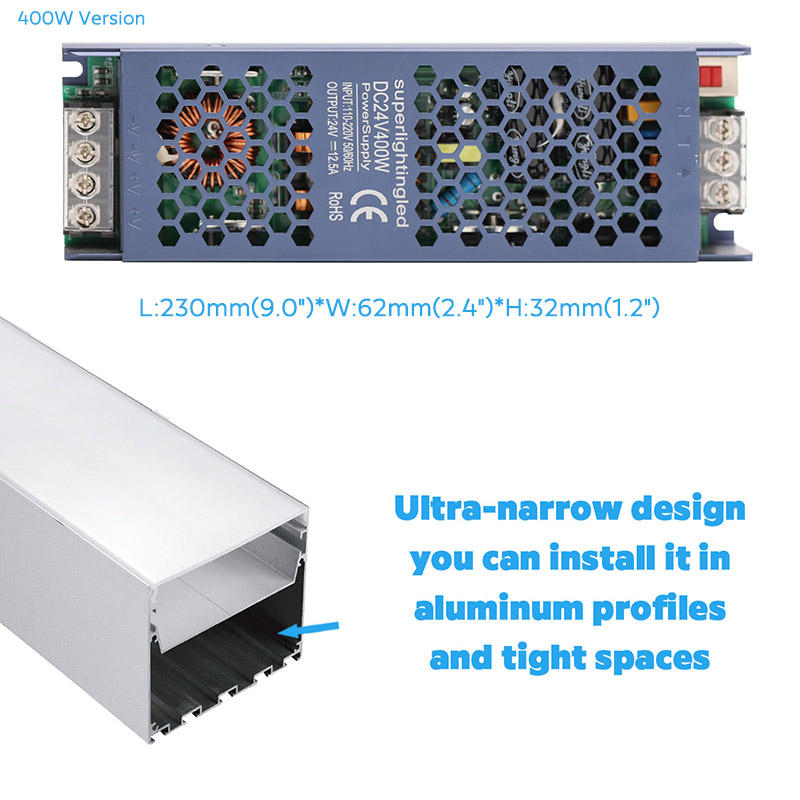

Ultra-thin design, efficient and silent heat dissipation

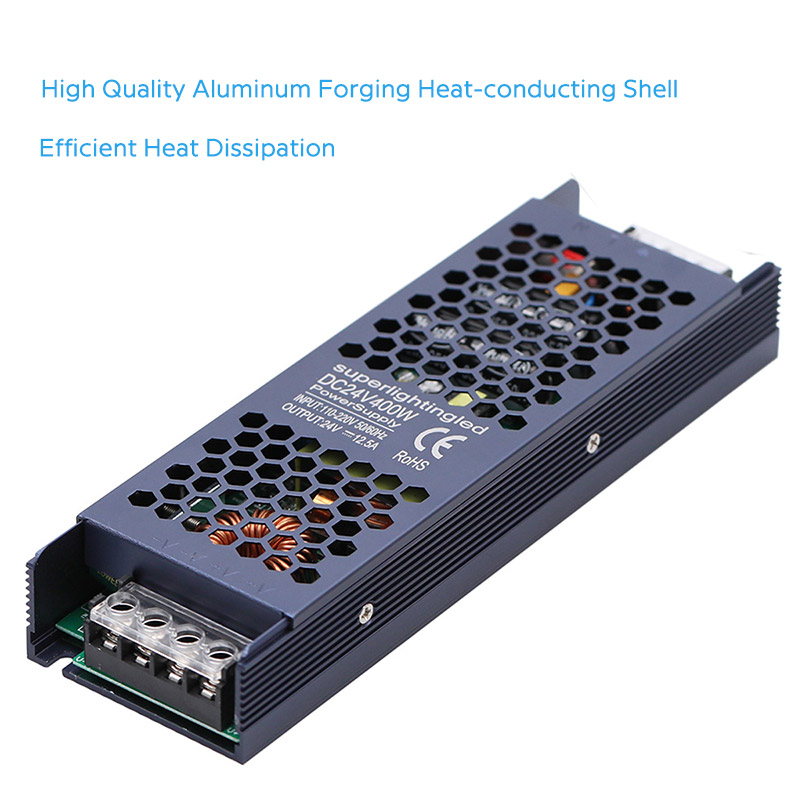

Honeycomb hollow appearance, high quantity aluminum forging heat-conducting shell
Very low current decibel when working

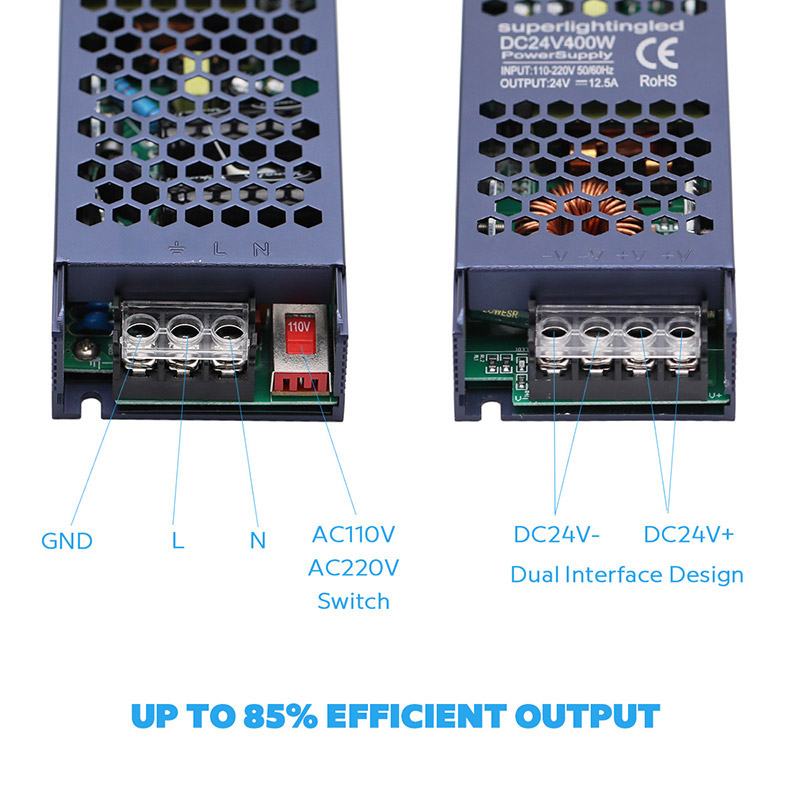

Input: Neutral wire, Live wire, Ground wire
Output: two channels V+ V-
Design for indoor installations
Through CE, RoHS Certification
Short circuit, overload, over temperature protections
Standards and Certifications
|Model:||400W Power Supply For LED Lighting|
|Input Voltage Range:||170-250VAC OR 100-130VAC|
|Output DC Voltage:||DC12V, DC24V, DC36V, DC48V|
|Rated Current:||33.3A, 16.6A, 11.1A, 8.3A|
|Working Hunidity:||20～99%RH non-condensing|
|Storage Temp, Humidity:||-40～+80℃,10～99%RH|

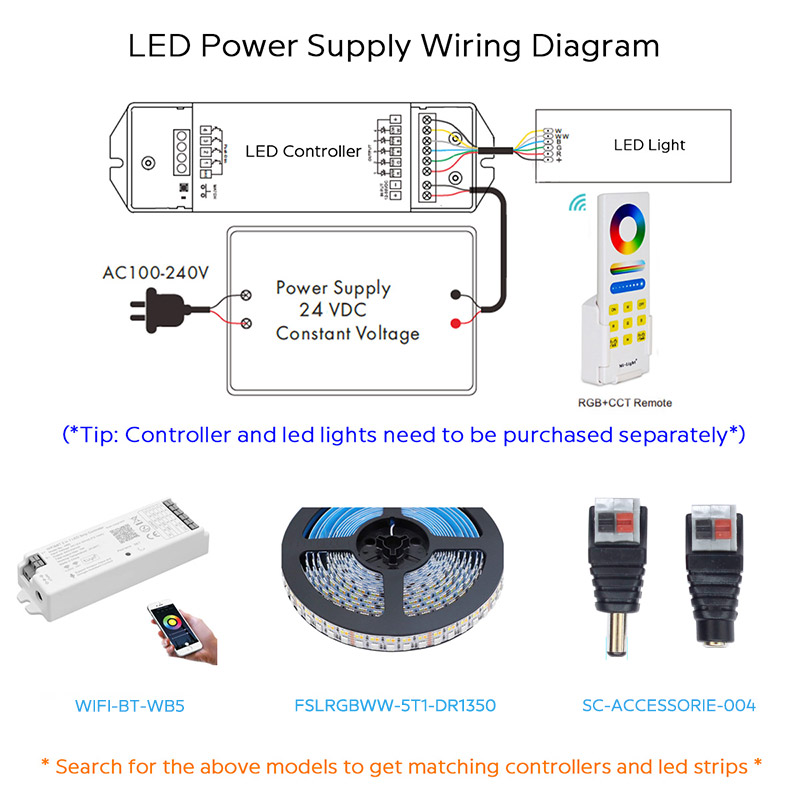

Power supply connection
