Special Price: $249.98

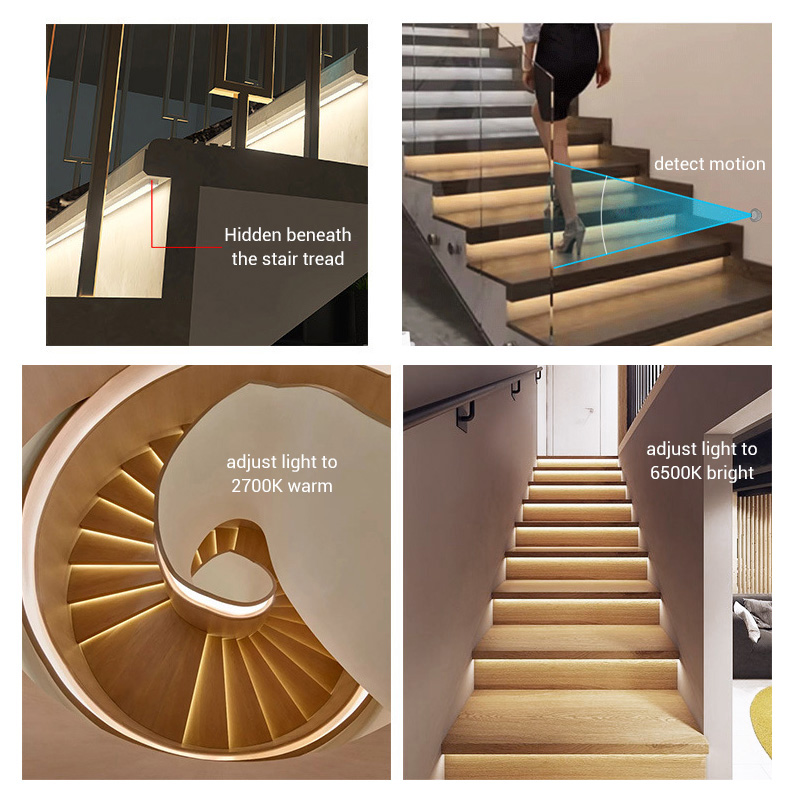

Contemporary staircase lighting requires uniform illumination of each stair step for safety reasons to prevent people from falling due to insufficient light when walking up and down the stairs. To achieve this, we use a small aluminum profile light as the staircase light source, measuring only 10x10 mm, which can be easily hidden under wooden or tiled stair treads. With a length of 1 meter, the light is suitable for staircases with a width of 1m/3.28ft and more, ensuring that each step is fully illuminated.
With an adjustable white temperature of 2700K-6500K, these stair step lights are able to meet the lighting needs of modern homes at different moments, whether it's a cozy warm white light or a bright cool white light, it can be adjusted according to the user's preference to create the ideal home atmosphere.

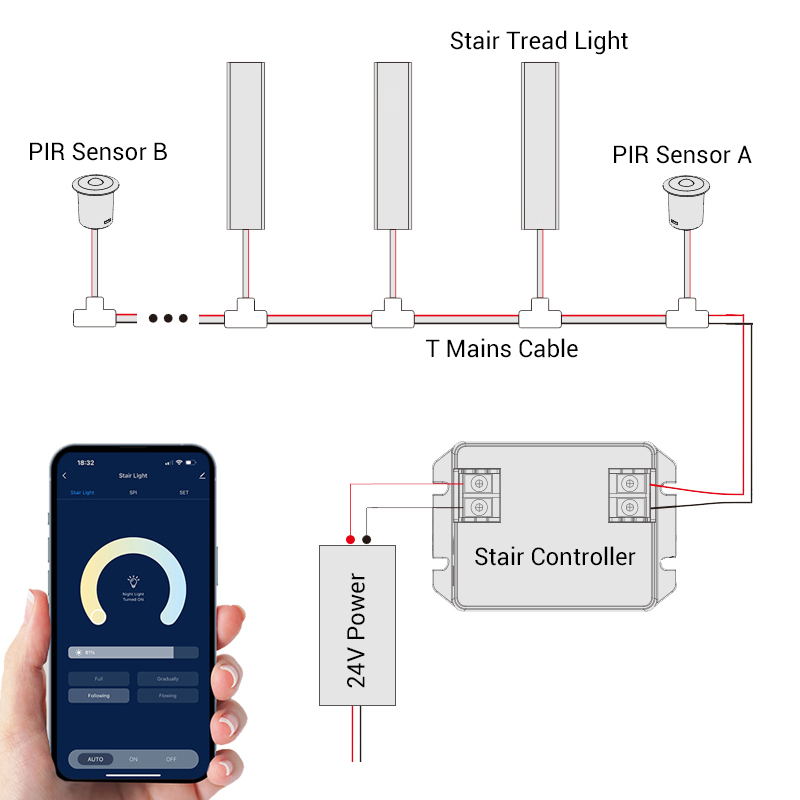

Each stair step light is connected via a T-shaped mains cable with multiple light connections, which not only facilitates installation and maintenance, but also ensures the stability and reliability of the entire home stairway lighting system, with the PIR movement sensor also connected to the mains cable.
The motion detector stair lights trigger the stair tread lighting by passive infrared PIR motion sensor. When someone approaches the stairs, the PIR sensor detects infrared radiation from the human body and automatically illuminates the corresponding tread light, providing instant illumination and ensuring safe walking.
In addition, with the Tuya APP and RF wireless remote control functions, users can control the home stairs lighting anytime and anywhere, which makes it easy to manage the stairway lighting at home or outside. The RF wireless remote control provides another convenient way of controlling the led lighted staircase system, making it more humanized and intelligent. You can also choose another ideal remote here.
Product List:
20 x Aluminum led strip lights staircase 7W
2 x PIR infrared sensor
1 x Mains Cable
1 x Meanwell power supply LRS-200-24
RF wireless remotes are optional.
BS64 Stair Light Master Manual
C3 Handheld Remote Manual
K0 4-Scene Panel Remote Manual
Product Specification
| Product Type: | Tunable White Automatic LED Stair Lighting Kit |
| Light Source: | Dotless aluminum LED strips |
| Controller Type: | BS24 Bluetooth+RF controller |
| CRI (RA>): | 90 |
| LED Color: | 2700K - 6500K adjustable |
| Working Voltage: | DC24V |
| Strip Length (Stair Width): | 1m (3.28ft) |
| Step Quantity: | 20, 40 |
| Strip Size: | 10*10mm |
| Beam Pattern: | 120 degree |
| LED Power: | 7W/pcs, 140W for 20 set, 280W for 40 set |
| Power Supply: | Non-waterproof IP20 |
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
