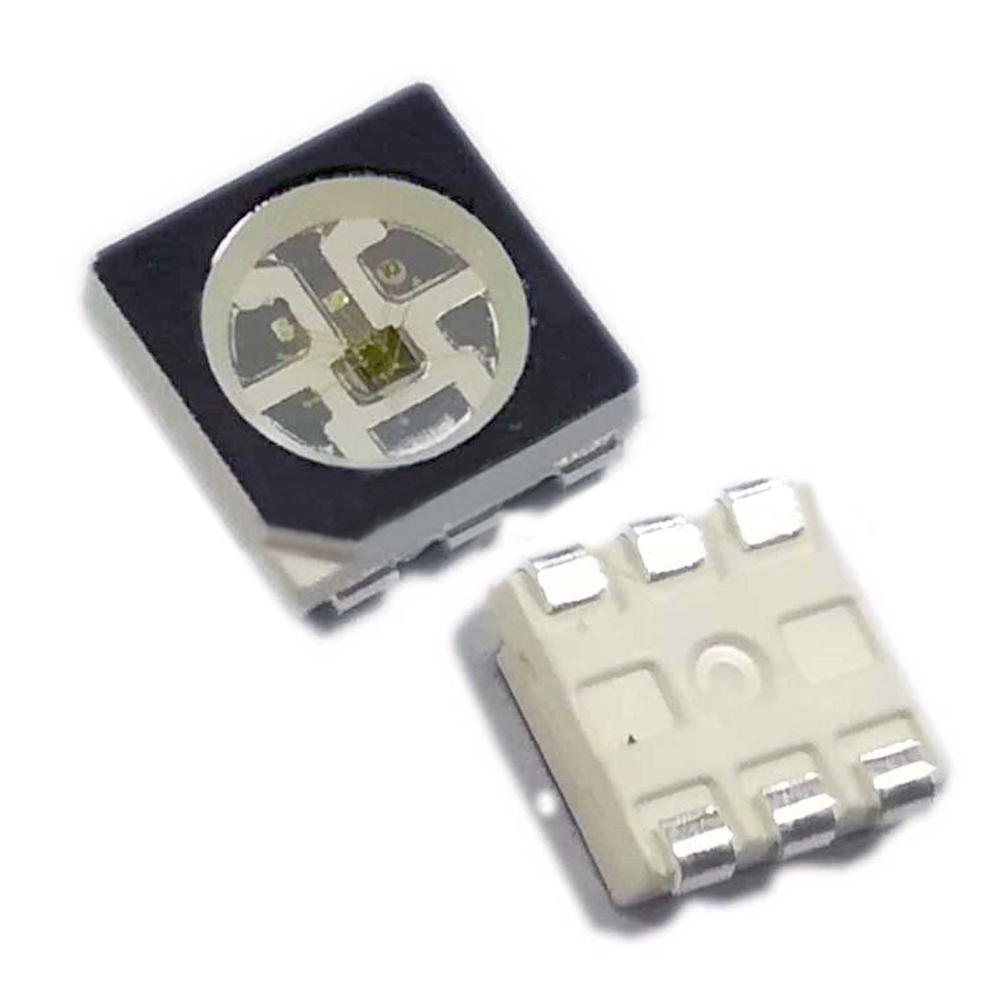

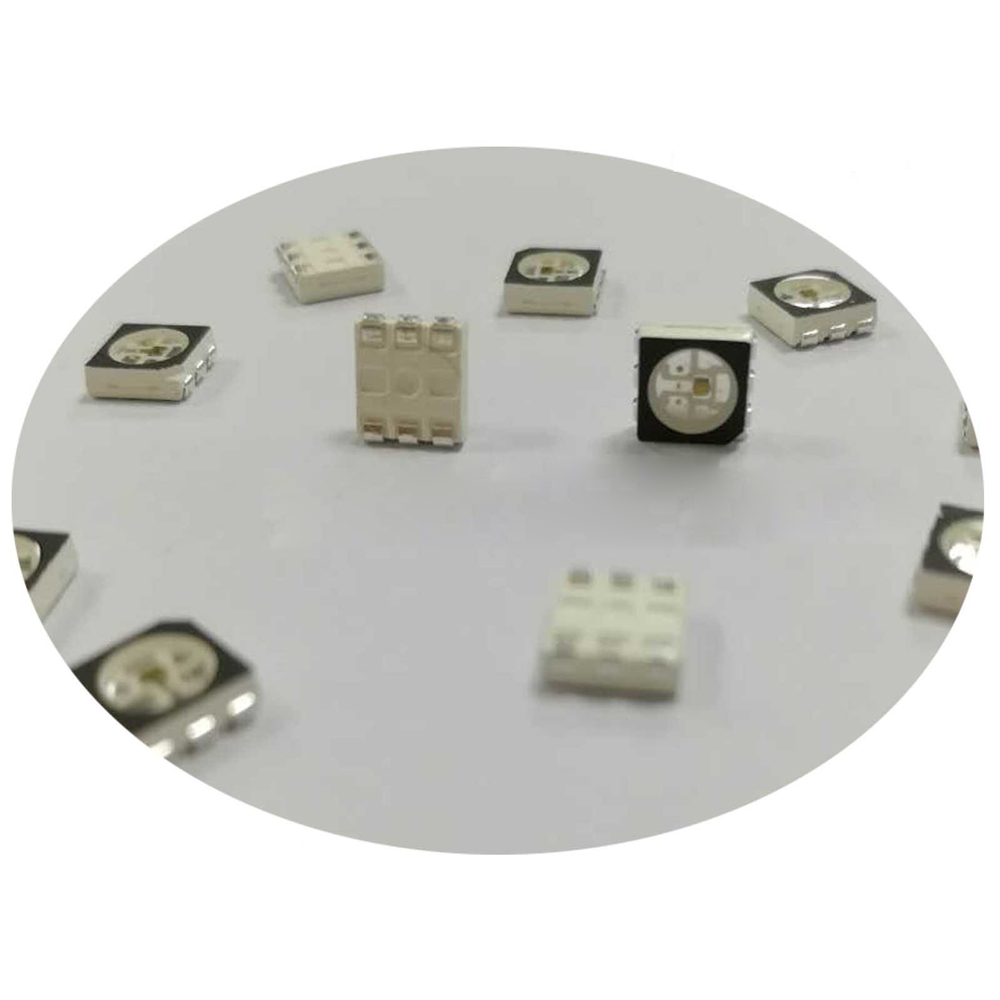

CS8812 RGB 5050SMD Digital Intelligent Addressable LED Chip, DIY LED Chip, 1000PCS By Sale

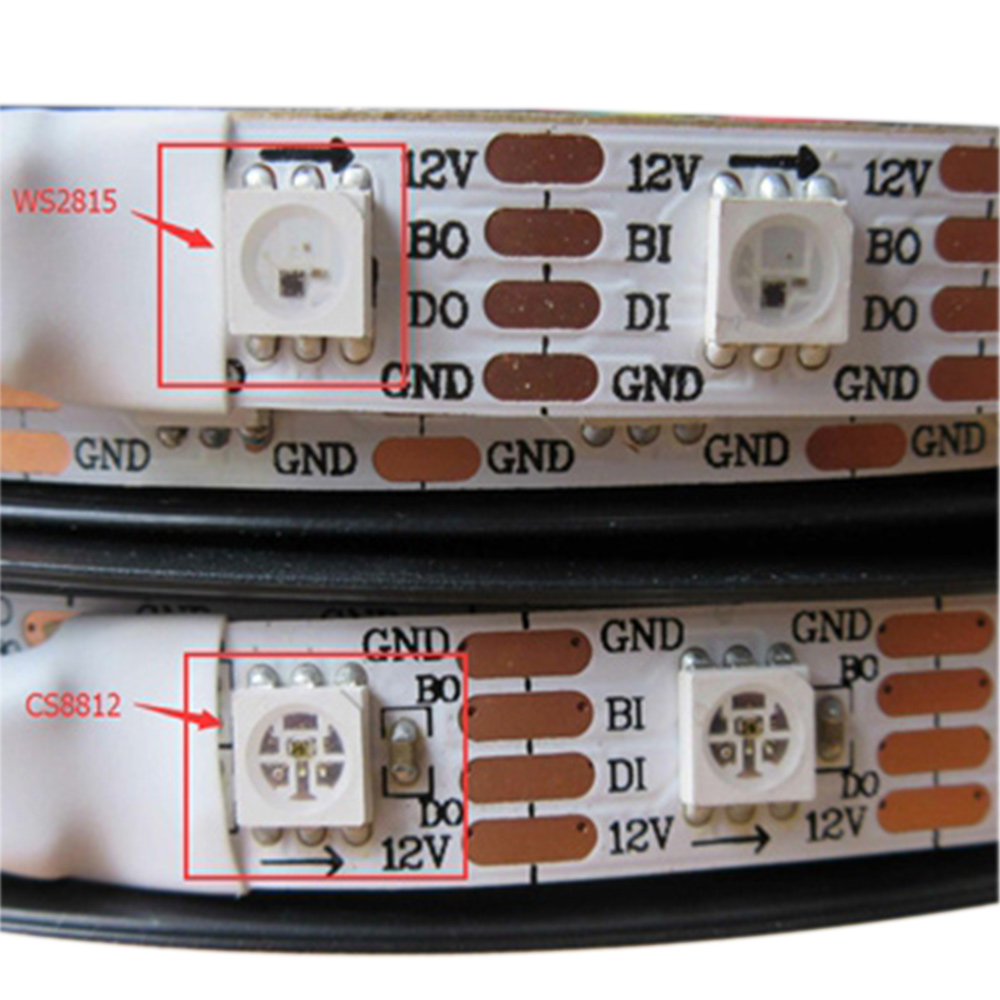

1. CS8812 LED chip can replace WS2815 LED chip, the LED is controled by the IC. There are two versions of CS8812 LED chip, one version has the original program, while the other does not.
2. Data transmission speed up to 800Kbps, the color of the light is very consistent and it has a higher price ratio.
3. Since any two points do not exceed a transmission distance of 5 meters, there is no additional signal amplification circuit.
4. Break-point continuous,and in the case of damage to one single pixel, the next pixel will remain working.
5. DC12V, and three-channel constant current LED driver.
Standards and Certifications
LED Chip Model: SMD 5050 RGB
LED Resource: CS8812 LED
IC Type: CS8812 IC (1 IC drives 1 led chip)
PCB Color: White/Black Available
Protection Rate: Non-waterproof
Input Voltage: DC12V
Working Temperature: -20~50°C
Lifespan: 50000 hours
Beam Angle: 120°
LED Quantity: 1000pcs
