Product Information

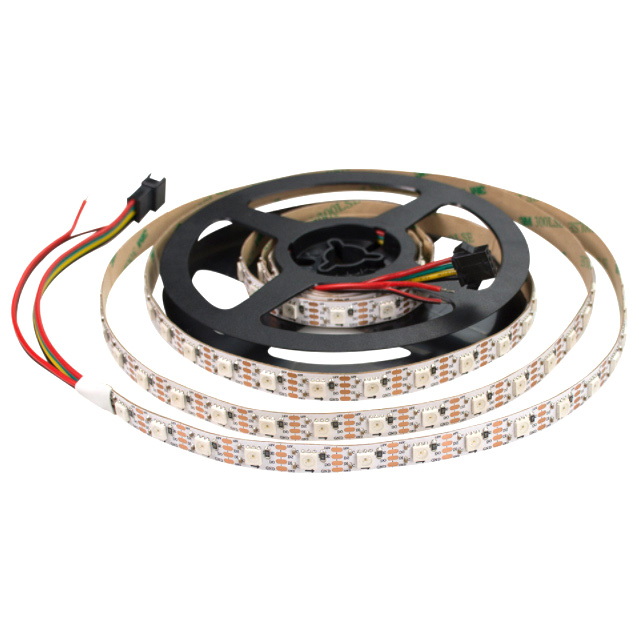

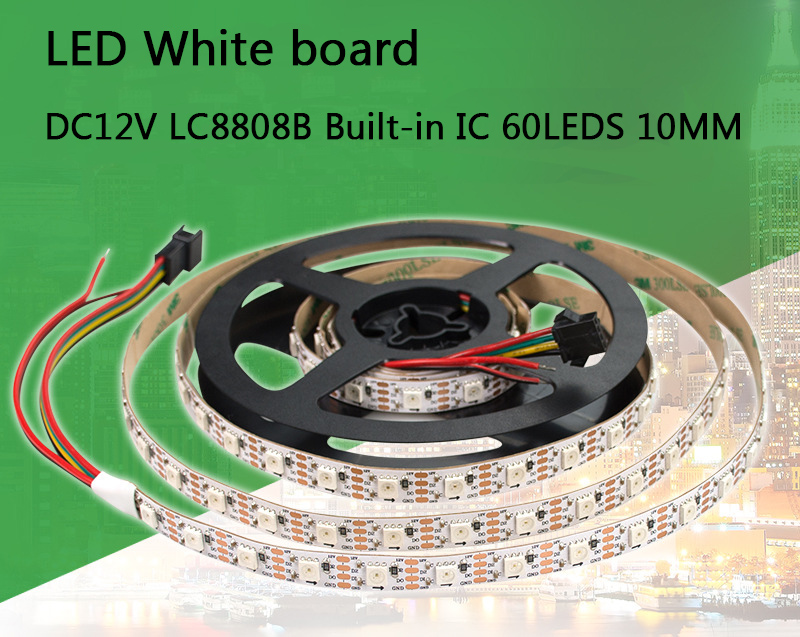

The DC12V LC8808B 300 LEDs Breakpoint-Continue Individually Addressable RGB LED Strip Light delivers seamless pixel illumination across a 16.4ft (5 meters) run without visible voltage drop under single-ended DC12V power injection. Operating with the integrated LC8808B IC (functionally comparable to WS2815), this addressable lighting platform features redundant dual-data lines so a broken pixel does not interrupt downstream communication. With 60 individual LEDs per meter mounted on a 10mm PCB, each diode produces distinct color chasing and digital video effects. Pre-soldered with 4-pin JST-SM connectors and dual-core power injection pigtails on both ends, this custom-built LED strip is available in 4 protective casing choices: Non-Waterproof IP20, Surface Glued IP65, Outdoor Silicone Tube IP67, and Underwater IP68.
Core Engineering Features
Dual Data Breakpoint Resume
Redundant data lines ensure uninterrupted transmission even if an individual LED fails during operation.
Uniform 12V Color Consistency
Full 5-meter continuous runs maintain consistent static white, mixed hues, and solid colors without end-to-end chromatic distortion.
Single Diode Cuttable

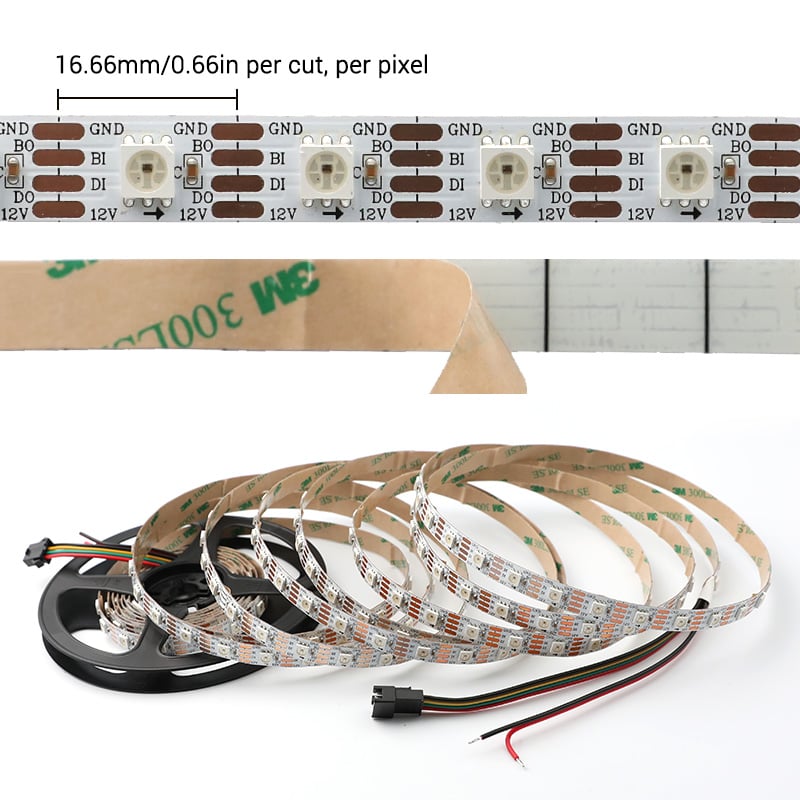

Every single LED can be cut independently at 16.6mm intervals to fit custom physical profiles and architectural channels.

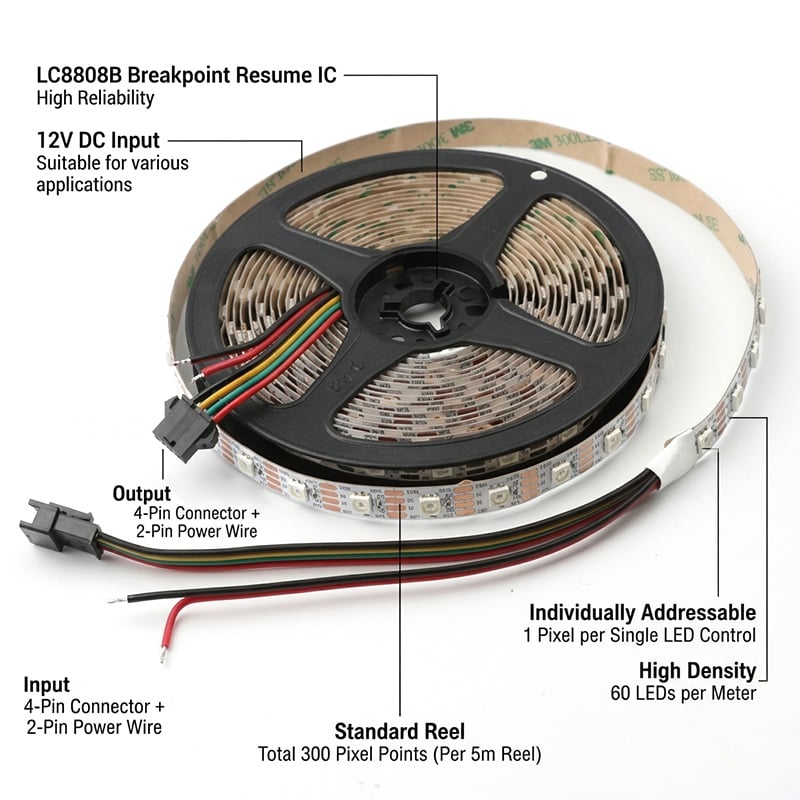

Dual-Ended Factory Wiring
Both ends ship with 4-pin JST-SM male/female signal plugs and 2-wire red and black supplementary DC injection tails.
Multiple Waterproof Ratings
Available in 4 choices including IP20 dry indoor, IP65 glued, IP67 hollow silicone tube, and IP68 submersible silicone encapsulation.
On-Demand Precision Manufacturing
Each unit is assembled on order within 5 to 7 business days to ensure strict component binning and fresh adhesive backings.
Detailed Specifications
| Parameter | Details |
|---|---|
| Product Model | DCFLS-12V-LC8808BX300 |
| Operating Voltage | DC12V |
| LED Type | SMD5050 RGB with Internal IC |
| Integrated Circuit (IC) | LC8808B (Dual Data Signal, similar to WS2815) |
| Control Protocol | Single-Wire Return to Zero Code with Backup Data (SPI) |
| Total LED Quantity | 300 LEDs per 5m reel |
| LED Density | 60 LEDs per meter (18.3 LEDs/ft) |
| Pixel Density | 60 Pixels per meter (Individually Addressable) |
| Total Length | 16.4ft (5 meters) |
| PCB Width | 10mm (0.39in) |
| Cut Interval | Every 1 LED (16.6mm / 0.65in) |
| Power Consumption | 14.4W per meter / 72W per 5m reel (maximum RGB load) |
| Current Draw | 1.2A per meter / 6.0A per 5m reel at DC12V |
| Beam Angle | 120 degrees |
| Waterproof Rating Options | IP20 Non-Waterproof, IP65 Surface Glued, IP67 Silicone Tube, IP68 Underwater Encapsulated |
| Factory Termination | Both ends equipped with 4-pin JST-SM connectors + 2-pin DC power injection wires |
| Adhesive Backing | Peel-and-stick thermal adhesive backing (all IP versions) |
| Production Lead Time | 5 to 7 business days prior to dispatch |
| Warranty | 2 Years |
Target Application Scenarios
How to Install & Use This LED Strip
- Cutting to Length: If custom sizing is required, cut only along the indicated copper solder pads located between every individual LED (every 16.6mm).
- Signal and Power Connection: Connect the 4-pin JST-SM male plug to your SPI pixel controller, matching +12V (Red), Data In (Green), Backup Data (Yellow), and GND (Black).
- Power Supply Wiring: Connect the separate 2-conductor power tails directly to a regulated 12V DC power source. Single-ended power is sufficient for a full 5m roll, but dual-ended feeds are recommended for multi-reel setups.
- Controller Configuration: Set your LED software (such as WLED, FastLED, or Madrix) to WS2812B / WS2815 timing protocol with standard RGB color byte ordering.
⚠ Precautions

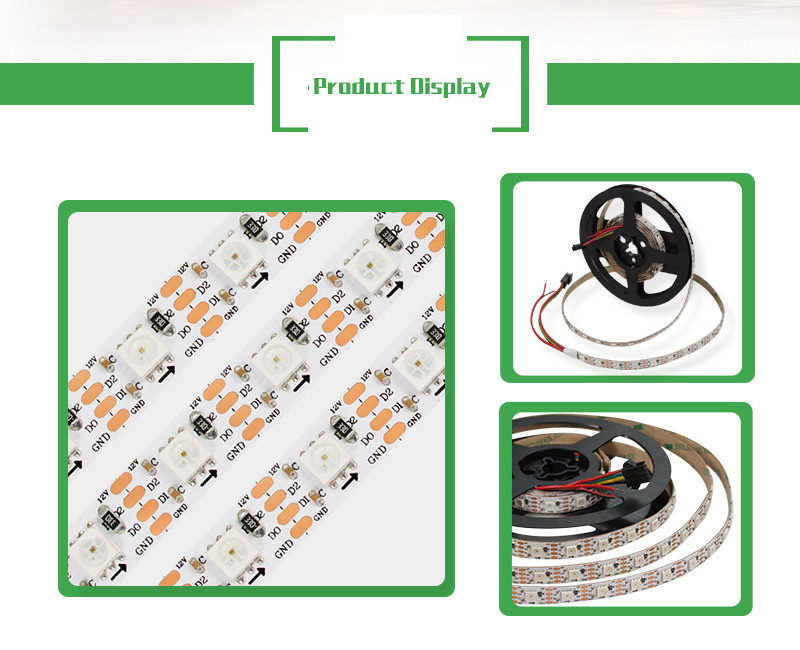

- Observe directional signal arrows printed on the PCB: data flows strictly from DIN (Data In) toward DOUT (Data Out).
- Always unspool the 5-meter LED strip from its plastic wheel before powering on for extended testing to avoid localized heat buildup.
What's in the Box
- ✓1 x 16.4ft (5m) DC12V LC8808B 300 LEDs Individually Addressable RGB LED Strip Light
Frequently Asked Questions
Q: can you cut the addressable rgb led strip lights
A:Yes, you can cut this LC8808B LED strip between every individual LED along the printed copper cut lines spaced at 16.6mm intervals.
Q: how to control rgb led strip
A:Use a compatible SPI digital controller, DMX-to-SPI decoder, or microcontrollers running FastLED or WLED using the WS2815/WS2812B data protocol.
Q: how to program addressable led strip
A:You can program lighting sequences using open-source libraries like FastLED and Adafruit NeoPixel on Arduino or via software suites like xLights, Madrix, and WLED.
Q: how does the breakpoint resume function work if an LED fails
A:The LC8808B IC has primary (DI) and backup (BI) data lines; if an individual LED stops working, the subsequent pixel pulls data from the backup trace so downstream lighting continues uninterrupted.
Q: does this 5-meter strip experience voltage drop with single-ended power
A:No, thanks to the 12V architecture, a full 5-meter reel maintains consistent color and brightness across all 300 LEDs when powered from only one end.
Q: what is the turnaround time for this product
A:This model is built to order based on your selected waterproof rating, with manufacturing taking 5 to 7 business days prior to dispatch.
