DC12V 60LEDs/M Human Body Induction Stair Warm White LED Strip Light Kit, 16.4ft/5m, WS2811 Color Changing Flexible LED Strip

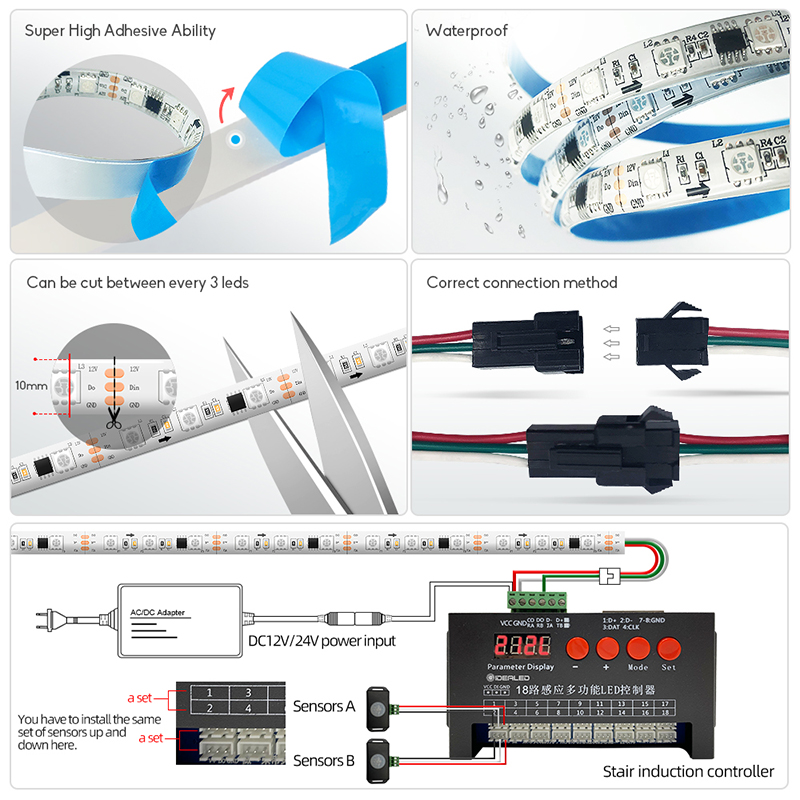

Dream colour led strip light is 1 IC controls 3 LEDs. Each group can be individually controlled, cutting and welding on the cutting line to meet your length requirements. The colour changing led strip light kit uses a low-voltage DC 12V power supply voltage, so it is very safe to use. Both the elderly and children can be used safely without causing safety hazards. The addressable led strip light adopts high-brightness SMD LED as the light-emitting element, so it has the advantages of LED light-emitting element, the light colour is pure, soft, and no glare. It can be used for decoration and lighting. The light-emitting element of the flexible LED light bar is LED. Because the power of a single LED lamp is very low, the heat generation of the light bar is low and the radiation is small. The use of high-quality SMD LEDs reduces power consumption by nearly 100% and saves more than 80% energy than traditional light sources.

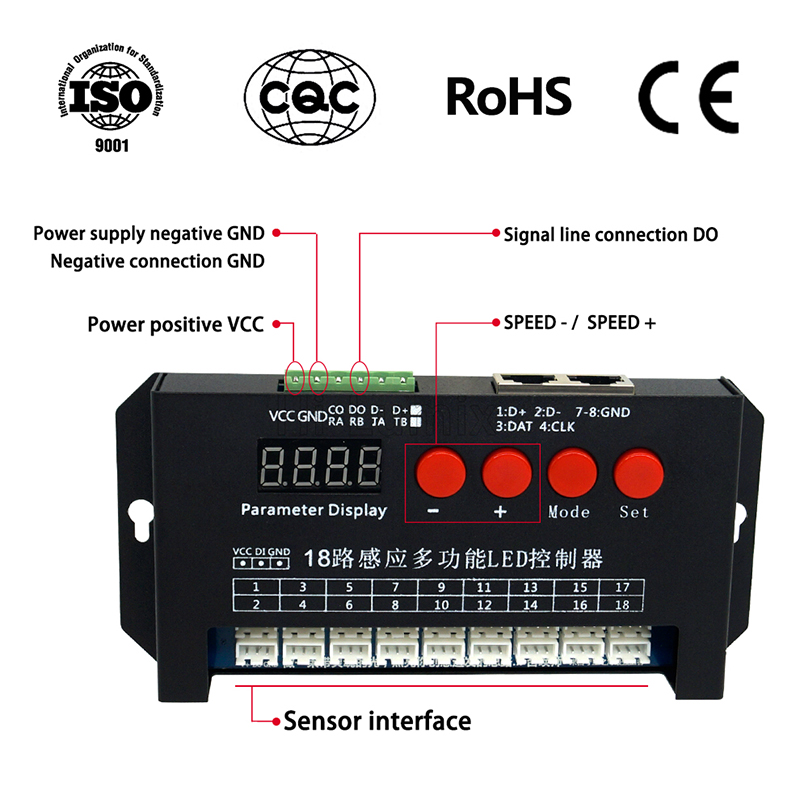

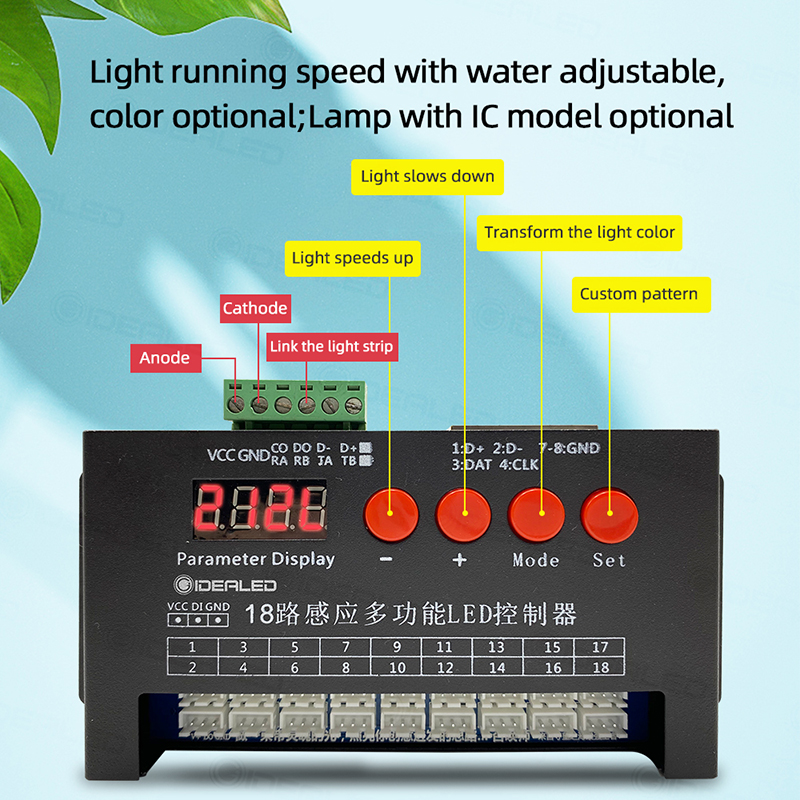

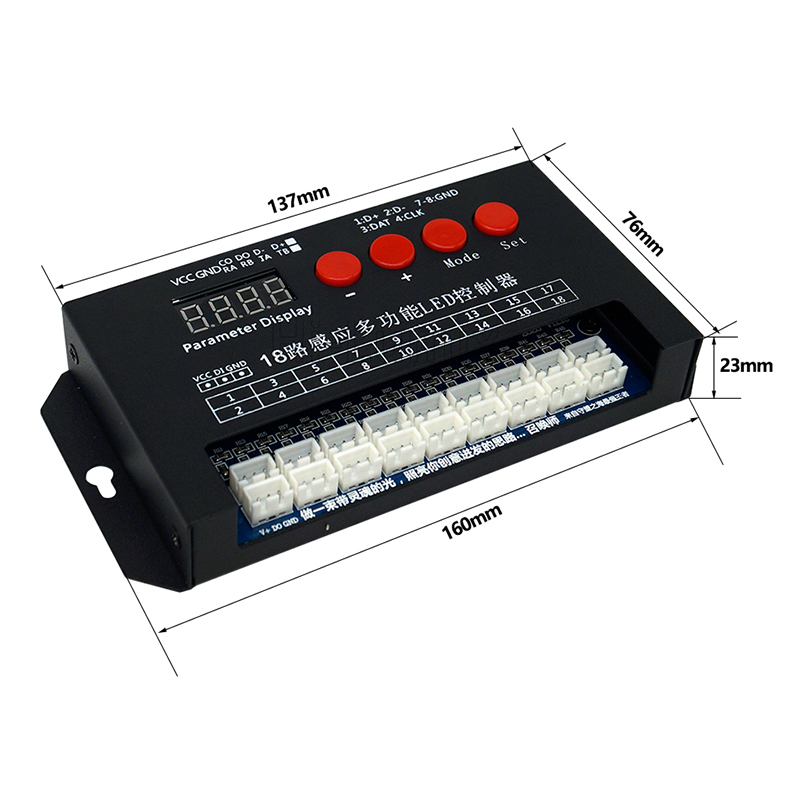

The controller has four buttons and a front digital display. After starting, the digital tube will display XX-L XX representing the effect speed of the 1903 light bar. You can directly press SPEED + or SPEED- to adjust the speed of light flow, it is best to match the speed of people up and down the stairs. There are four buttons on the controller panel, namely SPEED +, SPEED-, MODE, SET. Through the SET button, you can adjust the length of the monochromatic ladder lamp and 1903 IC light bar, the speed of the light bar flow and the lighting effect of the light bar. There are six options for the SET button. Press the SET key to enter LXXX, where L is the number of points that will drive the 1903 light bar. After adjusting the quantity, press the SET key to enter PLXXX. "XX" is the effect, which can also be adjusted by the two buttons of SPEED + SPEED-. There are currently 7 options, 1-7 respectively representing white, red, green, blue, yellow, purple and cyan. After adjustment, press SET to enter HLXX and adjust the speed of the 1903 light bar. It has the same function as speed adjustment, in XX-L mode. Then press SET to enter the setting of the chipless monochromatic light bar, FXXX will become the number of chipless monochromatic stair light bar, up to 400 steps of stairs can be adjusted through SPEED- / SPEED + and then press SET to enter chipless adjustment light effect, display PFXX, press the SET button again to adjust the monochromatic speed of light without chip, display HFXX, calculate the good product with and without chip lights, adjust the speed 2 lights to achieve the staircase synchronization effect, and finally press the SET button to return to the initial display state of XX -L, This is the controller will take you to adjust a series of parameters, next time you will use the new startup parameter settings

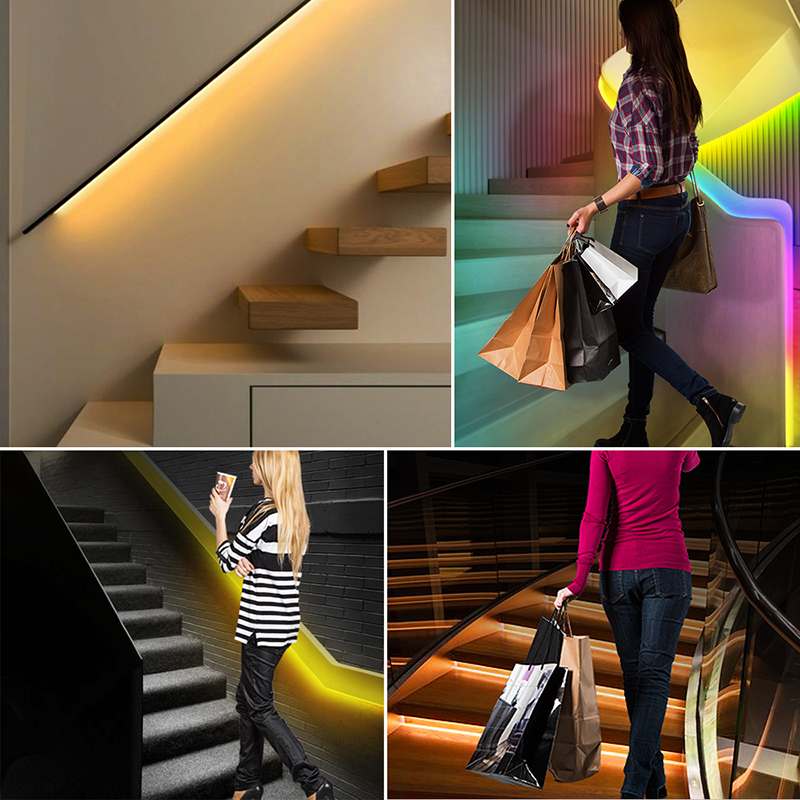

Application: production of the led screen, led wall, advertising board, suitable for hotel, KTV, bar, advertising company, decoration company, urban lighting project, entertainment and leisure place lighting.
LED Type: 5050SMD, with control IC WS2811 (1 IC control 3 lights)
PCB Color: white PCB
LED Quantity: 60leds/m
Power: 7.2w/m,total 36W
Waterproof Rating: IP33-not waterproof, IP65 epoxy waterproof, IP67
PCB Width: 10mm
Working Voltage: DC12V
Working Temperature: -20 to 50°
Beam Angle: 120°

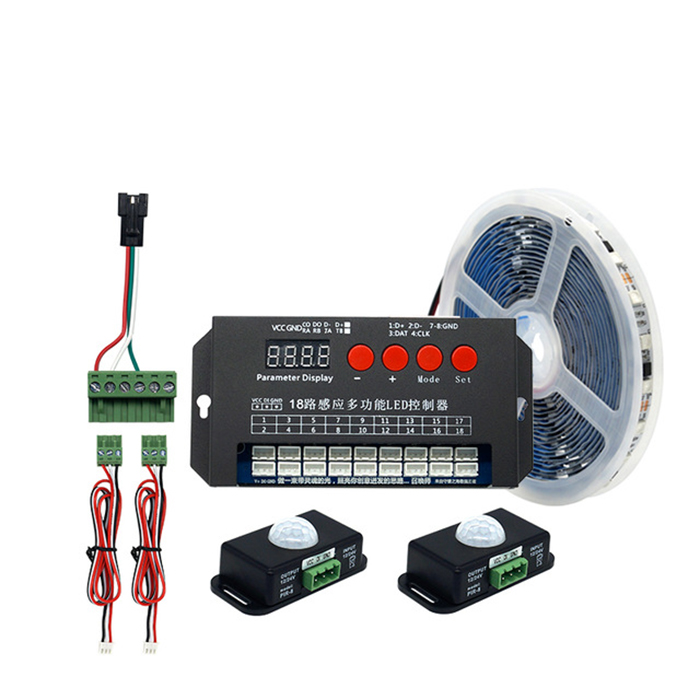

1*16.4ft/5m warm white/daylight white/RGB led strip light(Waterproof rating can optional)

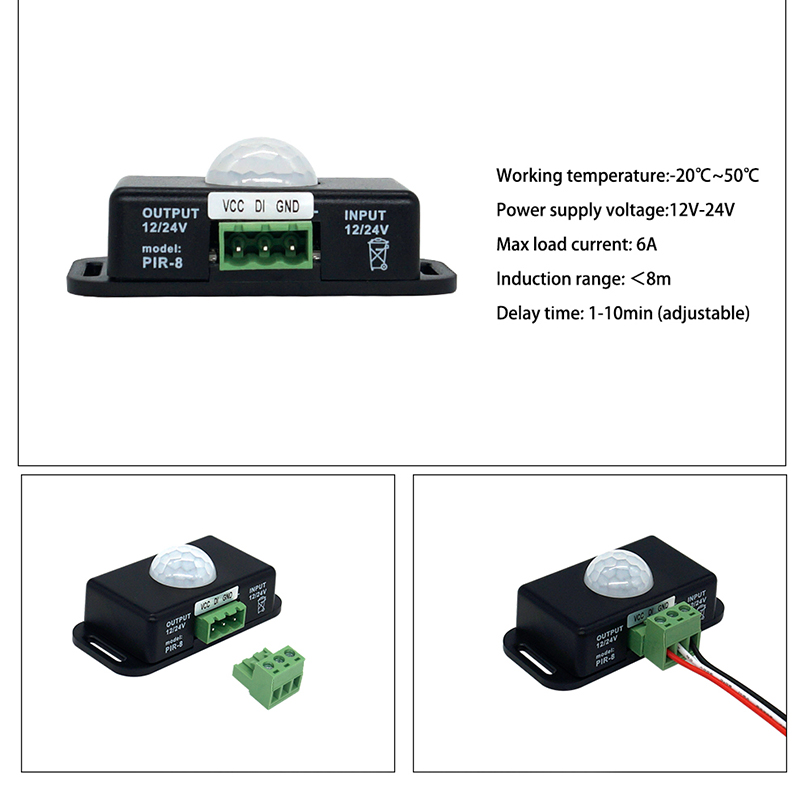

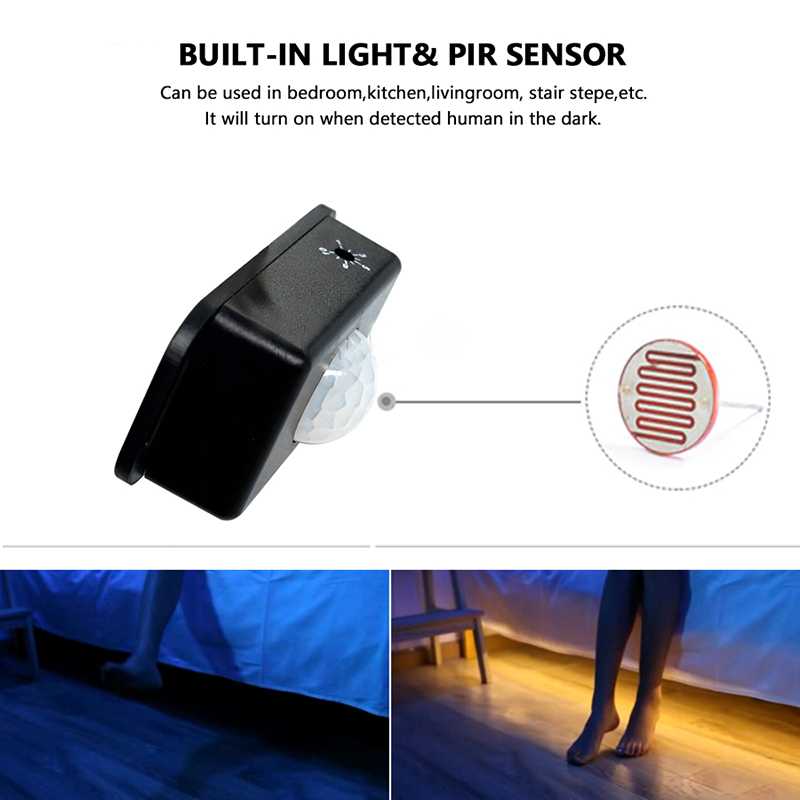

2*PIR motion senor

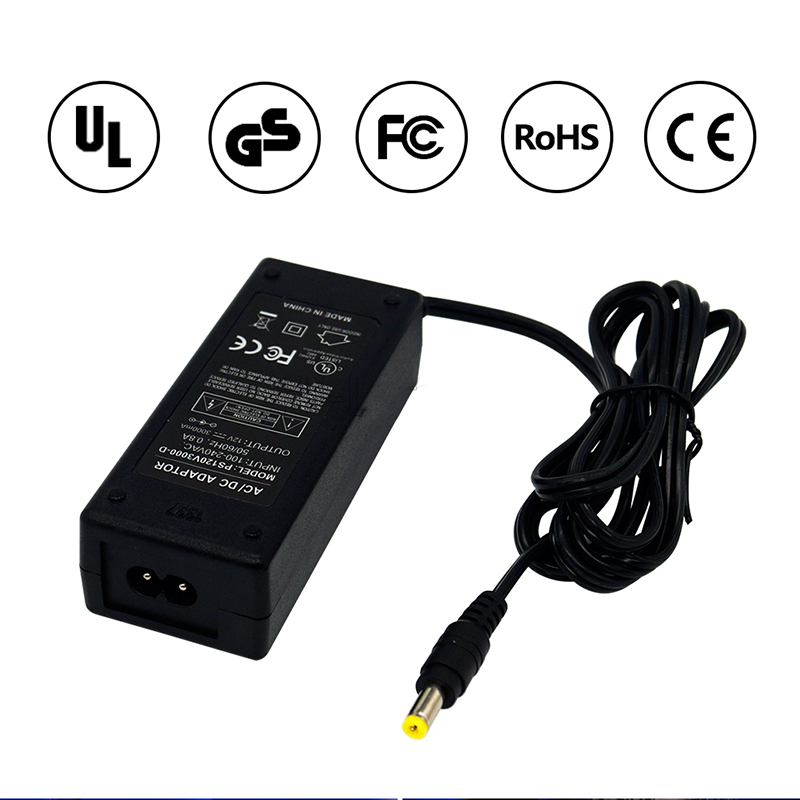

1*6A power supply
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
