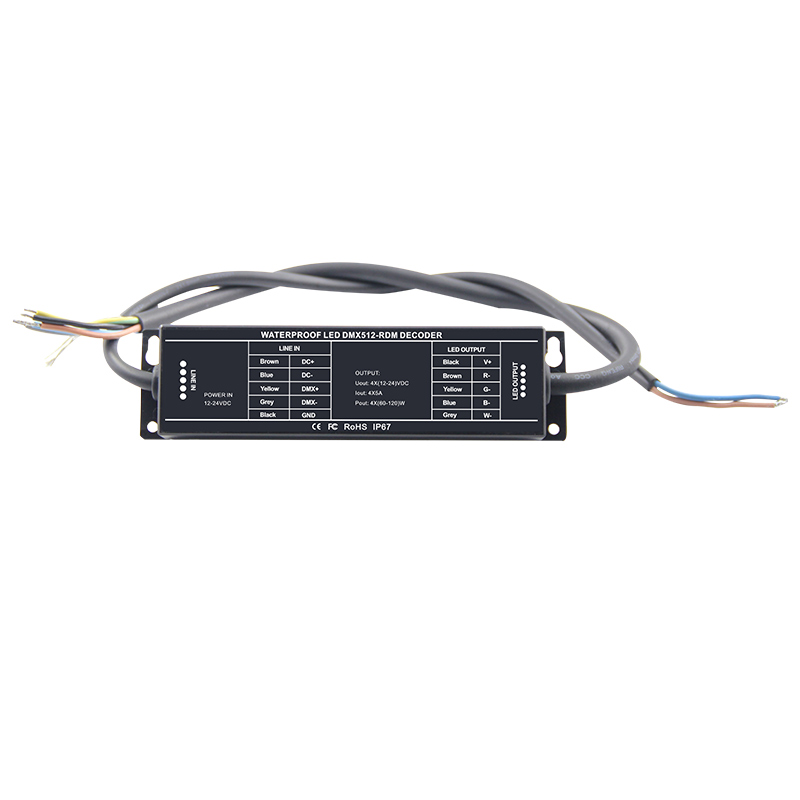

BC-804-WP DC12V-24V Constant Voltage Waterproof LED DMX512-RDM Decoder
Welcome to use the Waterproof Constant Voltage DMX512 Decoder which is developed only for constant voltage LED lamps. It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal. User can choose 1~4 output channels, 4096 gray scales, workable for single color, color temperature, RGB and RGBW led lamp.
1.Automatically adapts input voltage DC12V-24V;
2.Input standard DMX512 signal；
3.4 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft &stable without strobe flash.
4.Wrong wiring protection at DMX port. Over current protection and short circuit protection.
5. Power loss memory function.
Please don’t install this controller in lightening, intense magnetic and high-voltage fields.
1. To reduce the risk of component damage and fire caused by a short circuit, make the sure correct connection
2. Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
3. Check if the voltage and power adapter suit the controller (please select DC12-24V power supply with constant voltage)
4. Don’t connect cables with power on; make sure a correct connection and no short circuit checked with the instrument before power on.
5. Please don’t open controller cover and operate if problems occur. The manual is only suitable for this model; any update is subject to change without prior
Standards and Certifications
Input voltage: DC12V-24V
Max Load Current: RGBW:5A×4CH
Max output power: RGBW:60Wx4CH (12V), RGBW:120W×4CH (24V)
Input signal: DMX512/1990
Output Signal: Constant Voltage PWM×4CH
Decoding channel: 4 channels

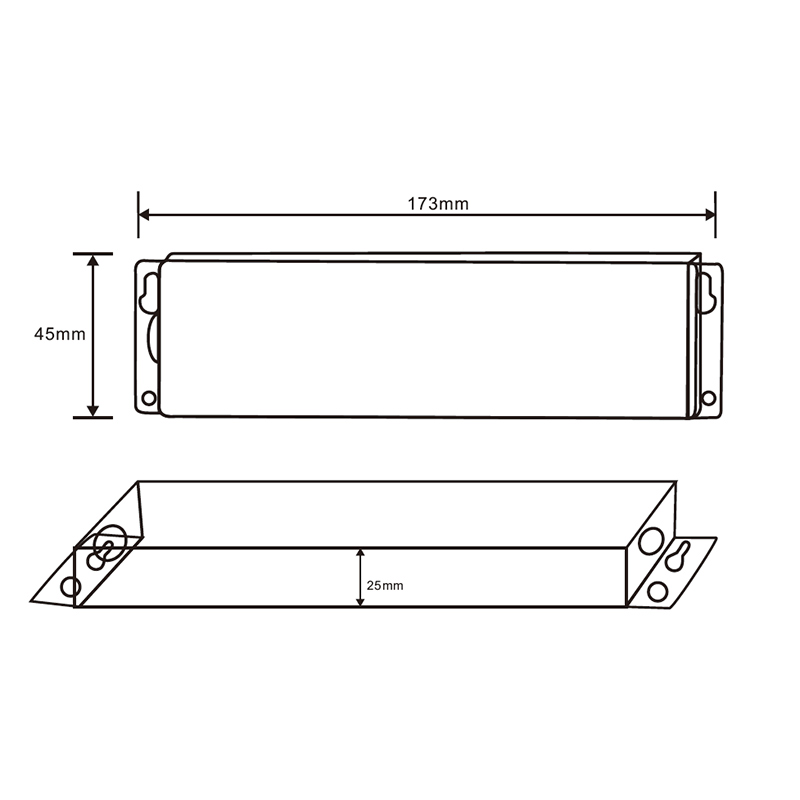

Product Dimension: L173*W45*H25mm
Product size: 35cm
Please don’t install this controller in lightening, intense magnetic, and high-voltage fields.
1.To reduce the risk of component damage and fire caused by a short circuit, make sure the correct connection
2.Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
3.Check if the voltage and power adapter suit the controller
(please select DC12-24V power supply with constant voltage)
4.Donot connect cables with power on; make sure a correct connection and no short circuit checked with the instrument before power on.
5.Please don’t open the controller cover and operate if problems occur.
From the day you purchase our products within 3 years, if being used properly in accordance with the instruction, and quality problems occur, we provide free repair or
replacement services except for the following cases:
1.Any defects caused by wrong operations.
2.Any damages caused by an inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections, and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike, etc force majeure of natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment, or near harmful chemicals.
7.Product has been updated.
