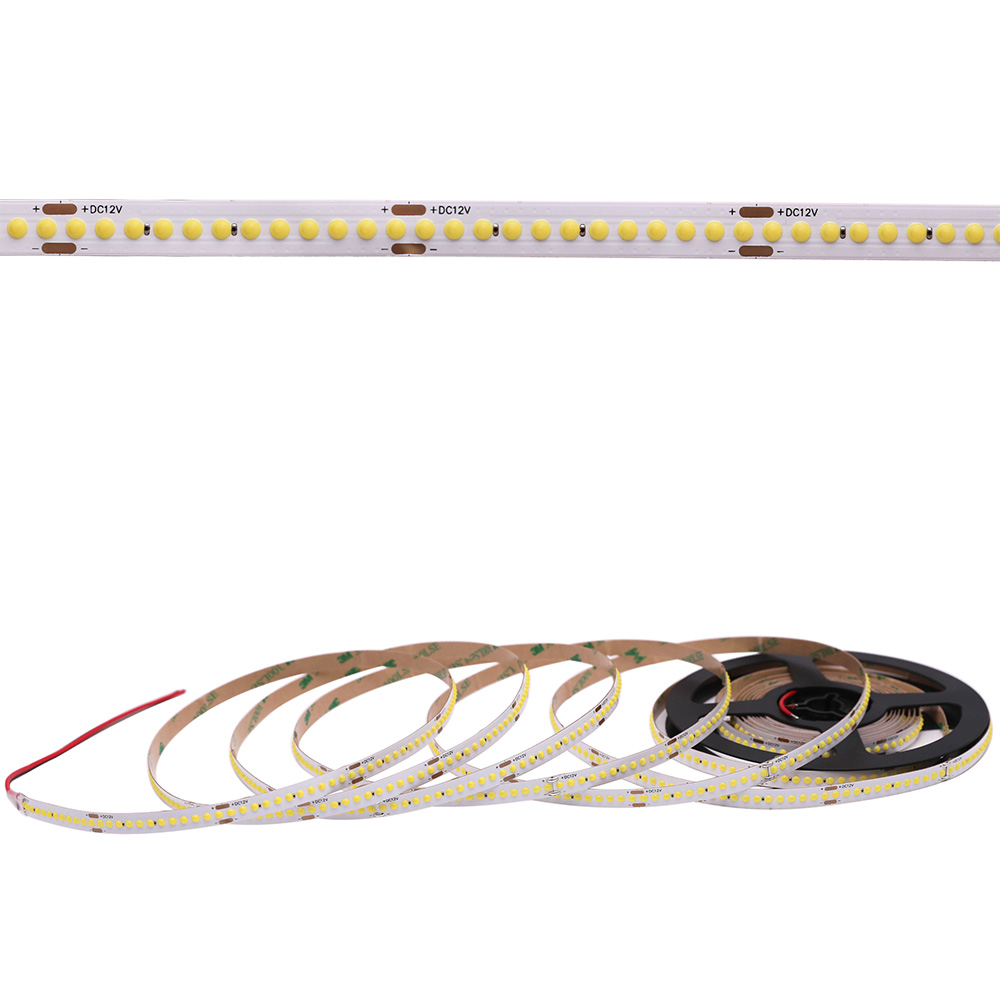

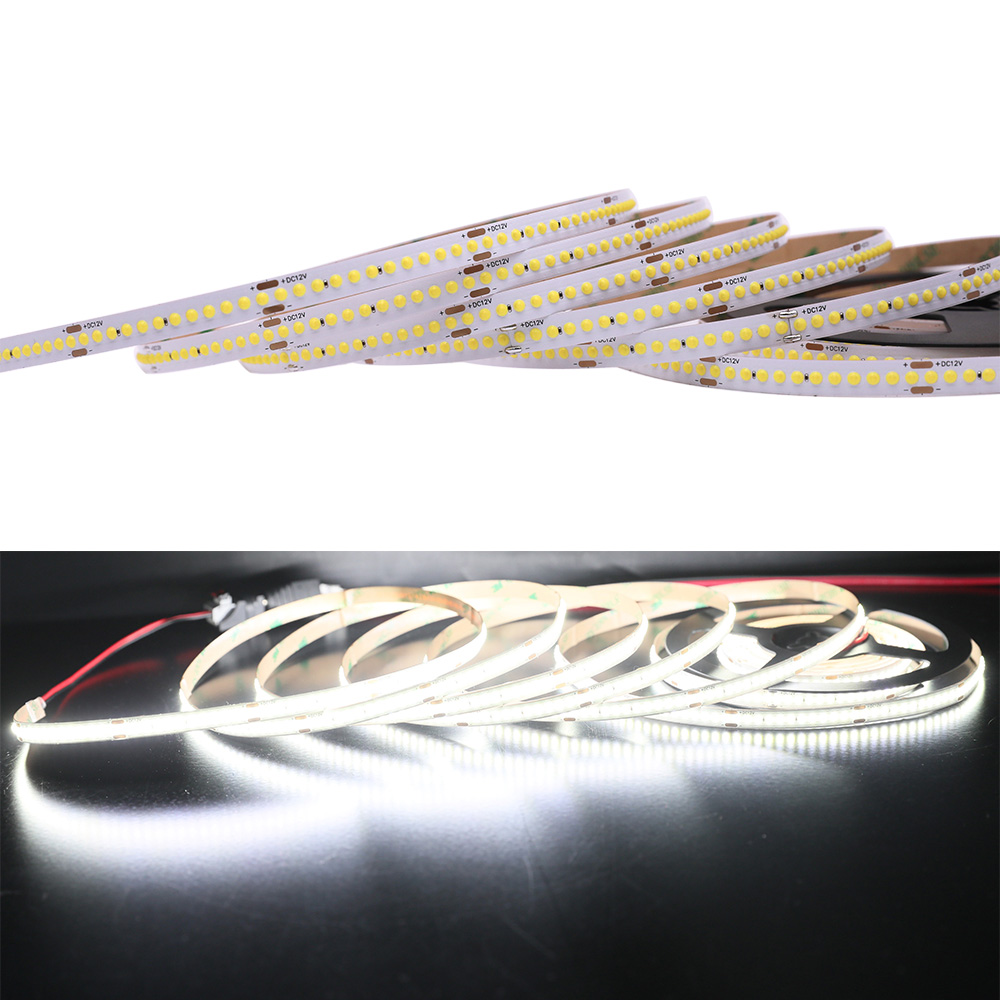

DC12/24V 8mm Wide 90 CRI 16.4Ft 400/800/1200LEDs Optional White Flexible COB LED Strip Light
Related Products
DC12/24V 8mm Wide 90 CRI...
$13.98
1CH*15A 12-48VDC CV...
$14.98
DC12-24V 20A 1CH*20A...
$24.98
48W2A DC24V Plastic Shell...
$11.99
Single Color LED...
$19.98
48W4A DC12V Plastic Shell...
$11.99
Triac 0/1-10V Dimmable...
$39.98-
Special Price: $13.98
Support DC12/24V low voltage input, lower power consumption, save energy, with a wide use for indoor home lighting.
LED quantity is 80/160/240LEDs/m, and single LED is high brightness, low light decay, longer lifespan.

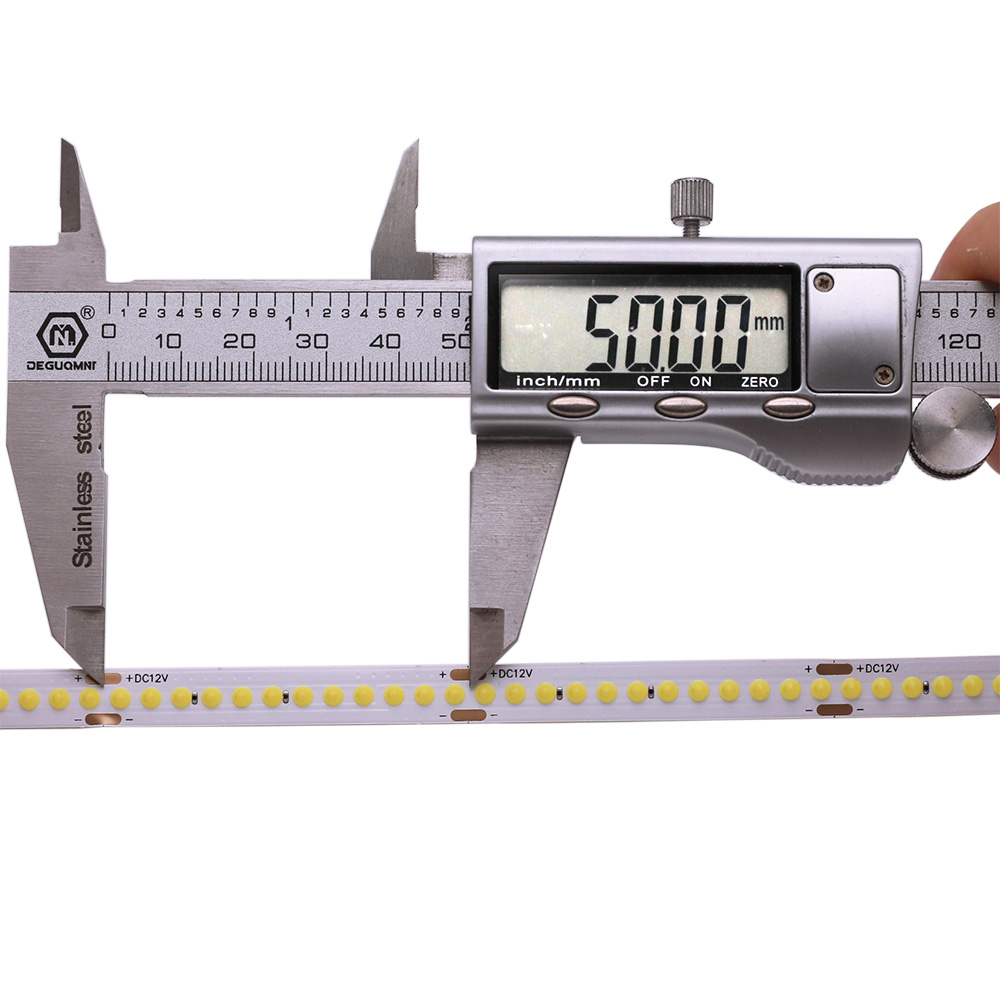

8mm/0.31in wide LED strip light, you can use it for backlight lighting or any narrow space.
Flexible FPC board, with double-side FPC board as the basement, pure gold pure copper wire design, high oxidation resistance, and high-temperature resistance.
90+ CRI LED strip lights, highly restore the color temperature of the environment, you can see the real color.
LEDs are evenly arranged on the PCB, and high-quality 3M tape is used on the back
warm white(2800-3200K); natural white(4000-4500K); daylight white(6000-6500K) optional,
Product Feature and Application:
|
►DC12/24V input voltage ►80/160/240LEDs/m high density ►8mm/0.31in wide for backlight lighting ►Flexible double-side FPC board ►90+ CRI LED strip ►WW/NW/DW optional ►IP20/65/67/68 waterproof optional ►3M tape, easy to install ►Luminous and soft, you can look directly |
|
Standards and Certifications
| LED Strip Type |
80LEDs/m COB LED strip light
160LEDs/m COB LED strip light |
| LED Chip | Epistar Chip |
| Input Voltage | DC12/24V |
| PCB Width | 8mm/0.31 in |
| Working Temperature | -20℃~+45℃ |
| Storage Temperature | -20℃~+60℃ |
| Power | 40W/roll(80LEDs/m); 50W/roll(160LEDs/m); 60W/roll(240LEDs/m) |
| Length | 5m/16.4Ft |
| LED Quantity | 24/49/73LEDs/Ft; 80/160/240LEDs/m optional |
| White Color | Warm white(2800-3200K); Natural white(4000-4500K); Daylight white(6000-6500K) |
| Cut Length | 100mm/3.94in |
| Luminous Color | 110LM/W(WW); 120LM/W(NW); 125LM/W(DW) |
| CRI | 90+ |
| Beam Angle | 120° |
| Lifespan | 50,000+hours |
How to choose LED strip lights kit?
You can choose the controller or power supply or controller plus power option for this COB LED strip. Of course, only the COB LED light is also completely possible. The difference is whether you need to control the LED brightness change of the COB strip and whether you can supply power to the light strip.
In the following table, we list for you which products you will get if you choose the kit. If you have other needs, please check our product categories.
| LED Strip | LED Density | Kit |
| 5m/16.4Ft | 80LEDs/m |
LED Controller: V1 + RT1 LED power supply: 12V 48W power supply or 24V 48W power supply |
| 160LEDs/m |
LED Controller: V1 + RT1 LED power supply: 12V 60W power supply or 24V 60W power supply |
|
| 240LEDs/m |
LED Controller: V1 + RT1 LED power supply: 12V 72W power supply or 24V 72W power supply |
if you have any requirements for other types of the LED Controller, you can visit our Single Color Dimmer Series.
How to choose Waterproof LED power supply?
To avoid the power load, the power of the LED power supply is 1.2 times the power of the LED strip light, for the 40W LED strip light, we recommend that you use the power of the LED power supply is above 48W. Otherwise, it will affect the brightness of the LEDs and the service life of the power supply.
| Waterproof | DC12V | DC24V |
| 80LEDs/m | 12V 50W waterproof power supply | 24V 50W waterproof power supply |
| 160LEDs/m | 12V 60W waterproof power supply | 24V 60W waterproof power supply |
| 240LEDs/m | 12V 80W waterproof power supply | 24V 80W waterproof power supply |
Installation Instruction: How to Install LED Strip Lights?
 |
 |
 |

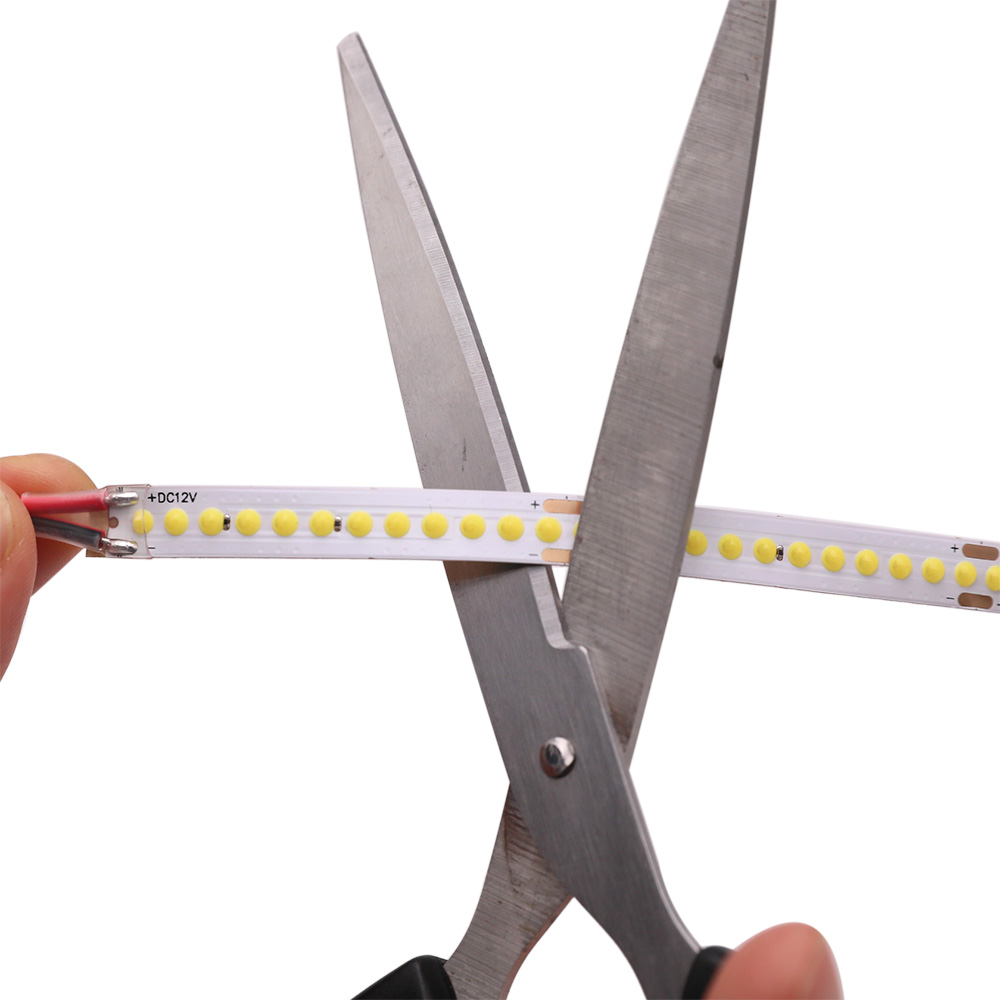

 You can cut the strip every few inches, allowing you to freely design your project, without worrying about space requirements to many different surfaces. |

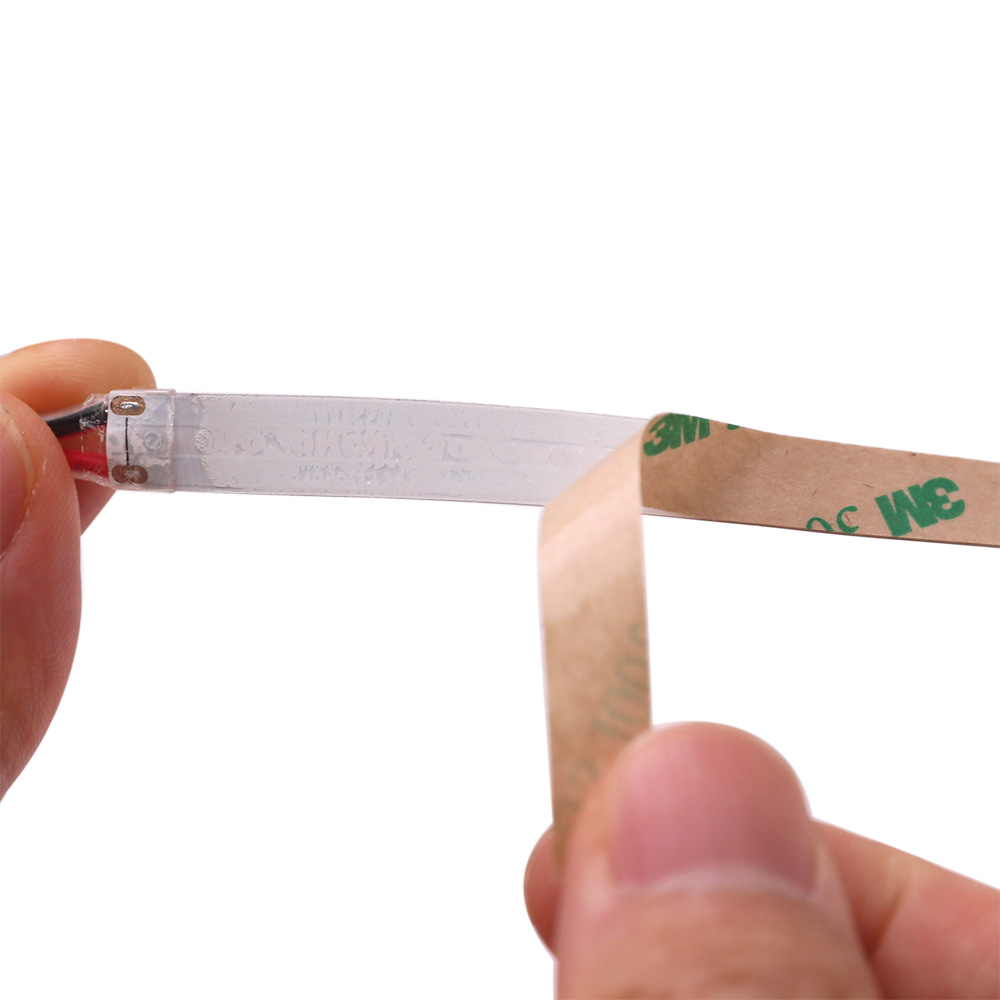

The back of the strip is fitted with a strong 3M tape, allowing you to peel and stick lights |
IP67/IP68 waterproof type which will needs LED mounting brackets |
Wiring Diagram: How to wire the single color LED strip light
Color Temperature and CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose. Consider the look and feel you want your project to have.
• Warm white 3000K LED light is similar to the color of sunset, giving people a warm and comfortable feeling, suitable for installation in the living room, bedroom and other places.
• Natural white 4000K LED light is suitable for task lighting like kitchens or offices and is closer to white than 3000K. Requires more precision for lighting objects, 4000K light strips are more suitable for you than 3000K.
• Daylight white 6000K LED light shows more details and create a clear and transparent environment, suitable for working and task lighting.
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
