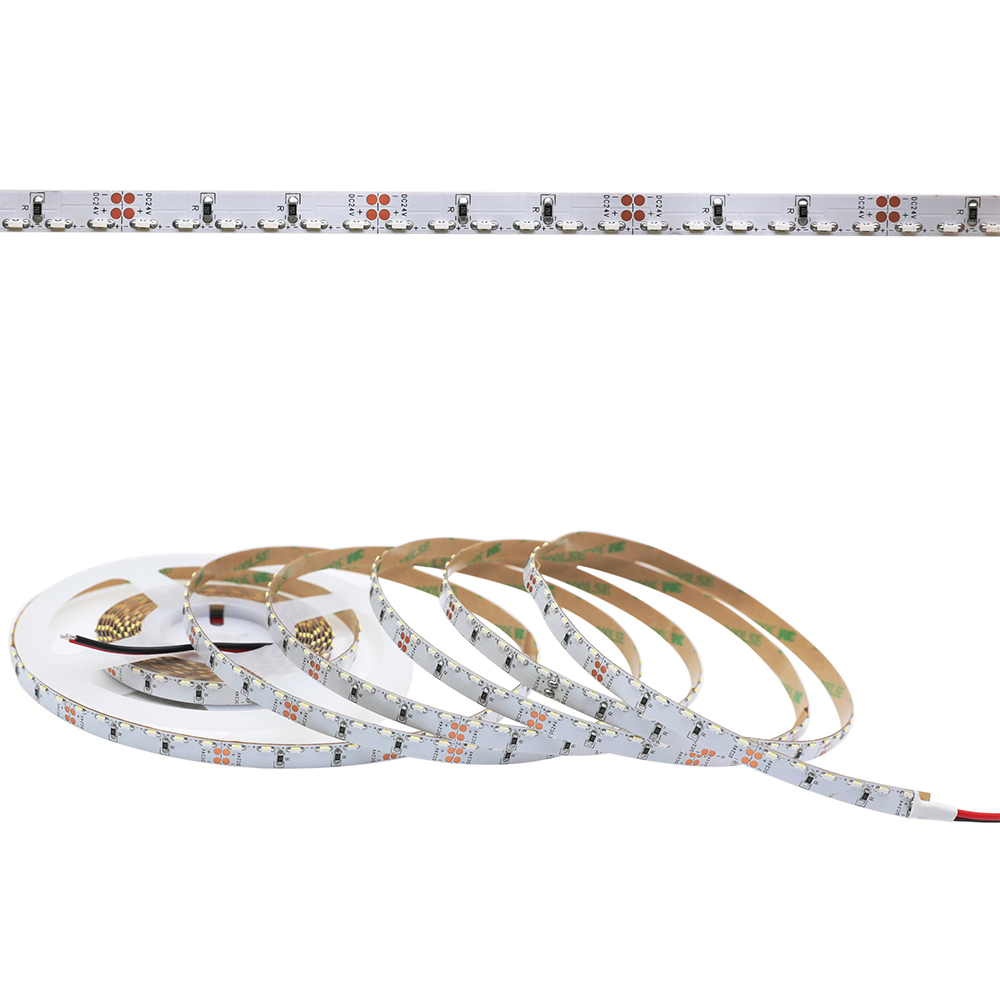

Side Emitting Series DC12/24V 335SMD 600LEDs Optioanl Flexible LED Light Strip -16.4ft Per Reel
Side-emitting single color super bright 335 SMD(SMD: Surface Mounted Devices) Non-Waterproof Flexible LED Tape strips, High-end chip, 120LEDs/m 5mm/0.20in; 60LEDs/m 8mm/0.31in optional, 16.4ft(5 meters) Per Reel By Sale.

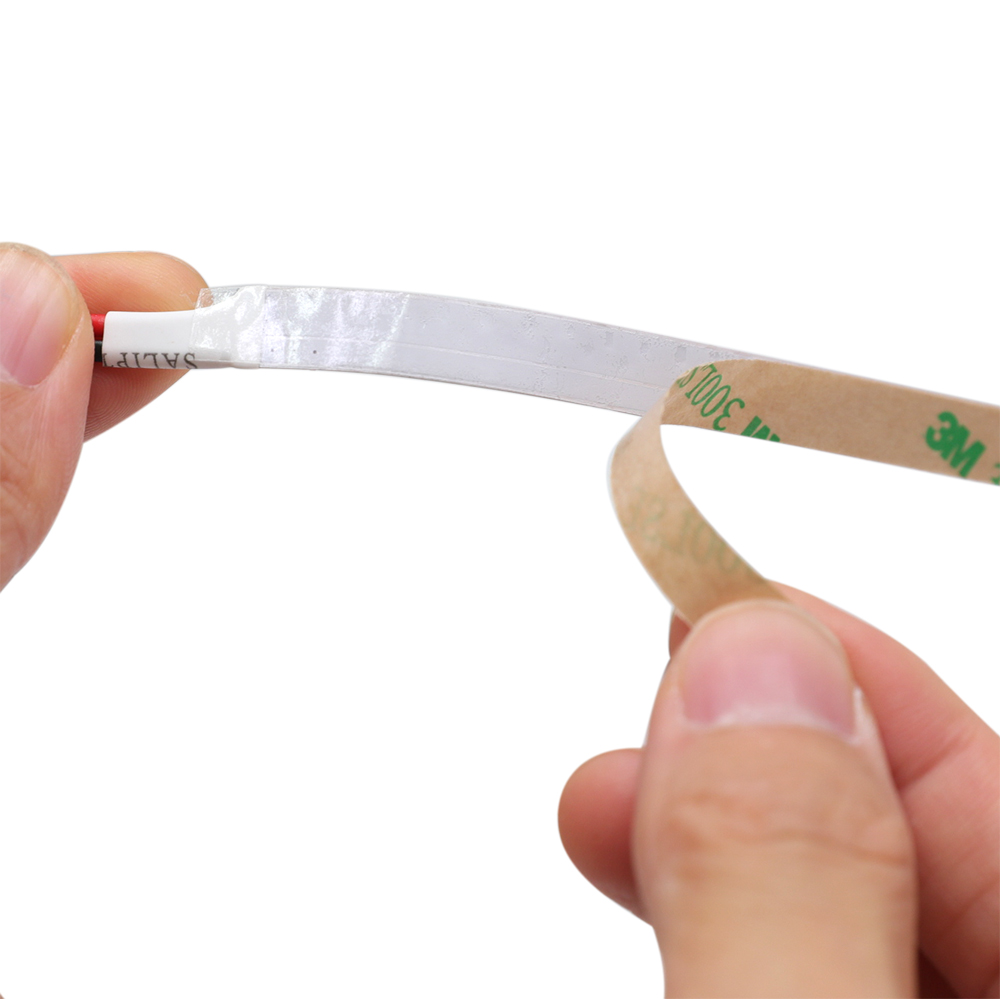

Our brightest Flexible LED Solid Color light Strips soft and easy bent for installation. Available in 5 meters (197 in) Non-Waterproof flexible light strips with adhesive backing and can be stuck just about anywhere (except IP67/IP68 type which will come with mounting brackets). can be cut into 1/3/6-LED segments, so you could cut a different length for your project and request. The LED strips Suitable for the average home lighting as well as lighting professionals. 5/12/24V DC operation. Dimmable - See compatible LED dimmers.
Standards and Certifications
LED Strip Type: SMD 335 600PCS/16.4ft
LED Chip: Epistar Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

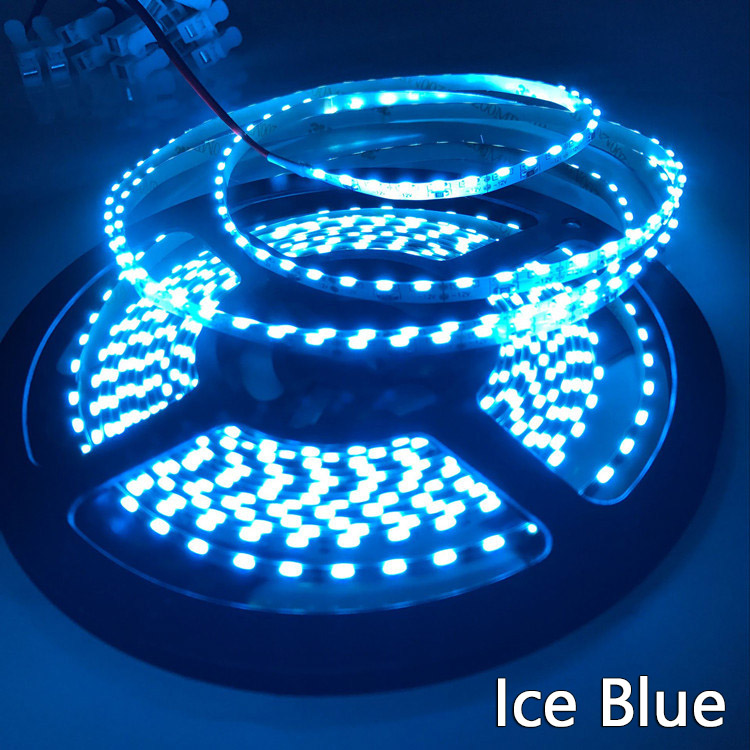

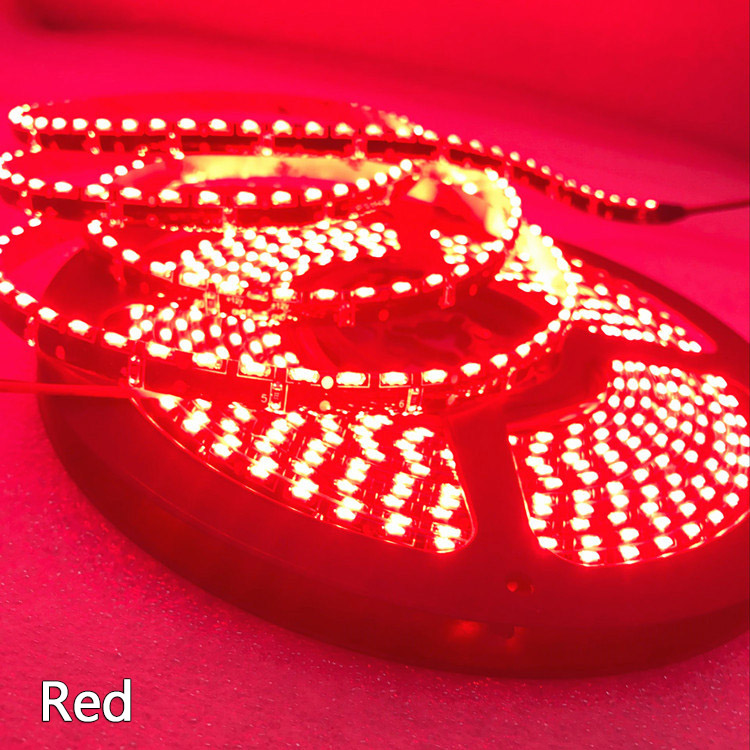

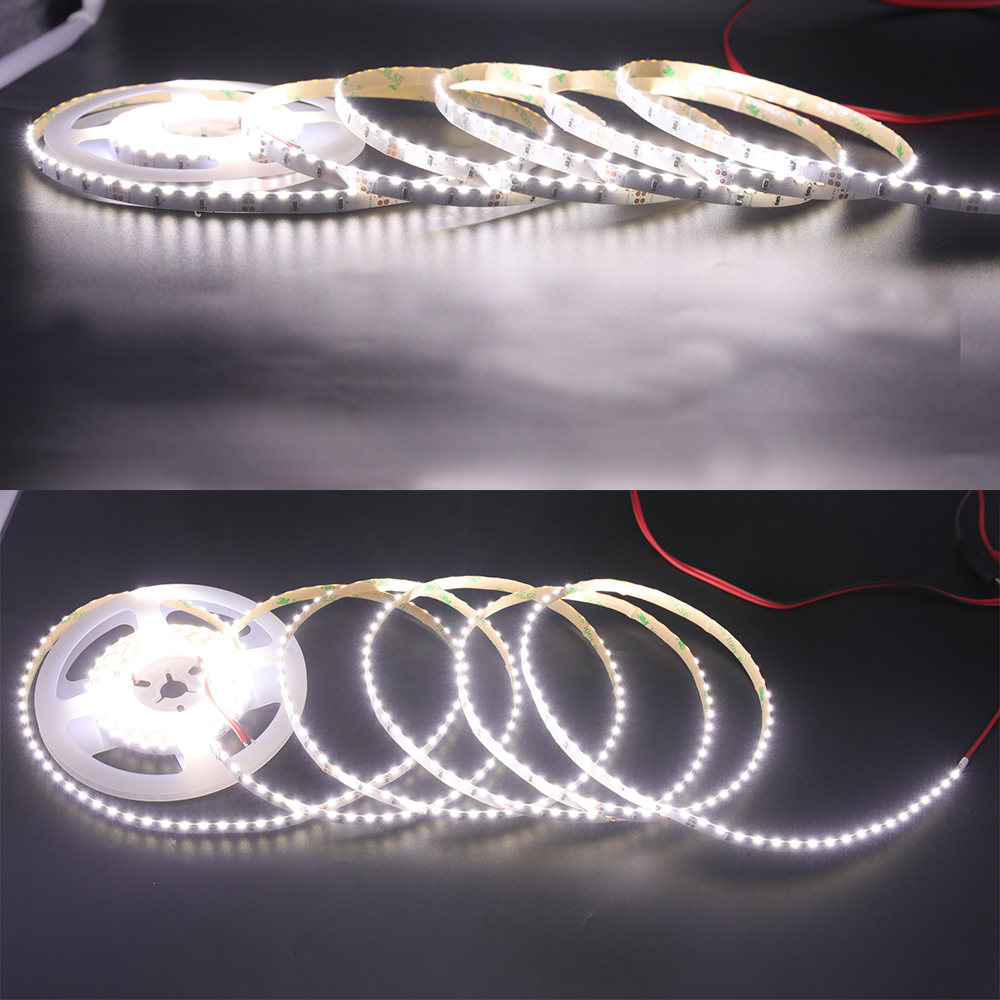

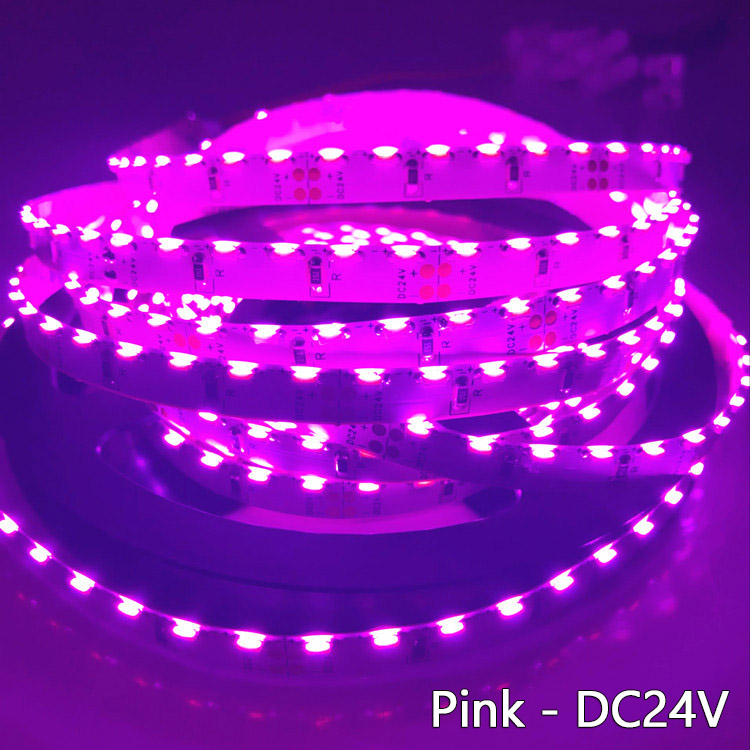

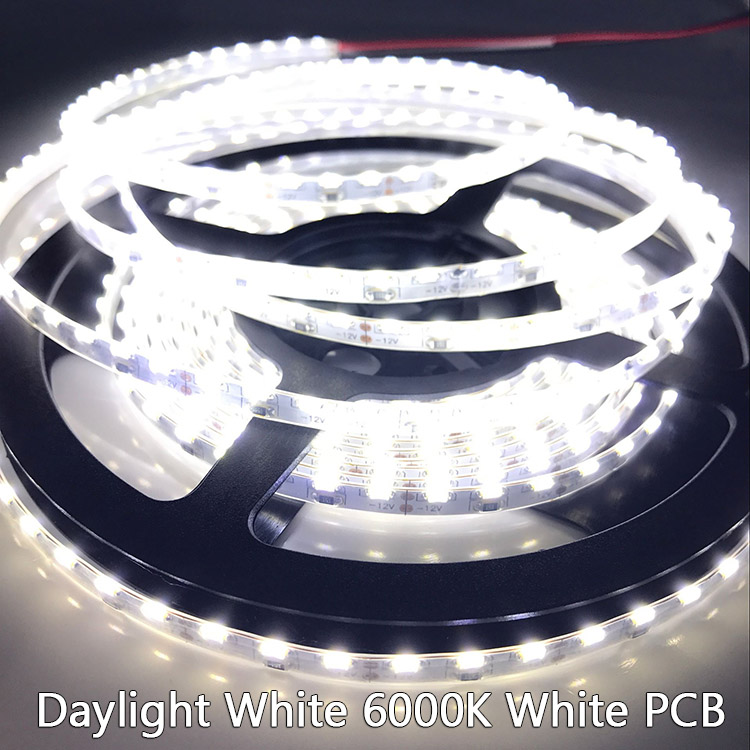

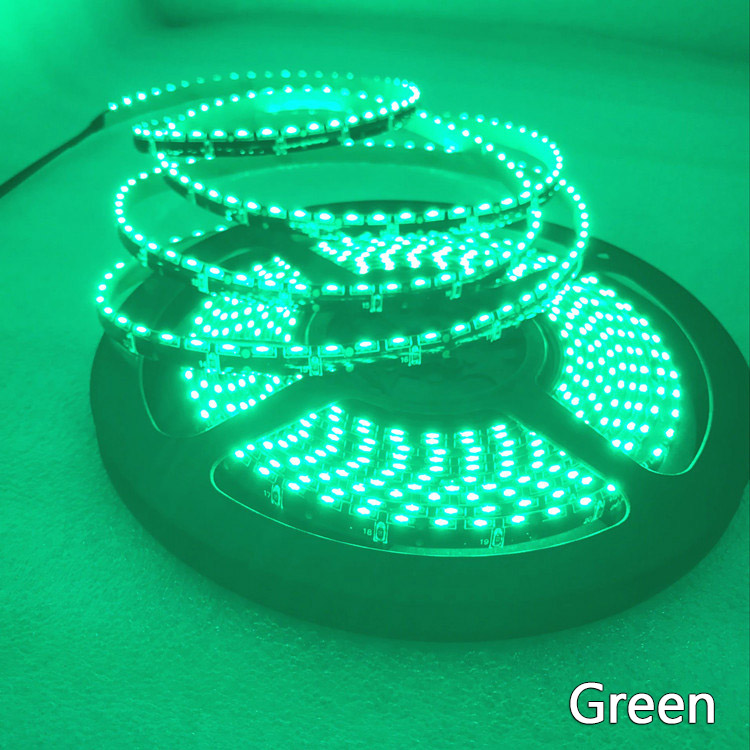

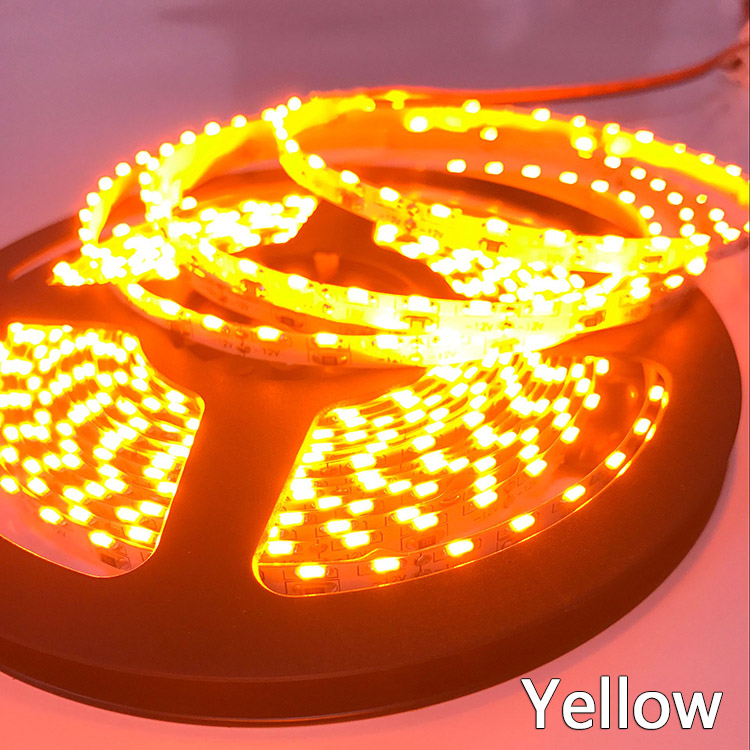

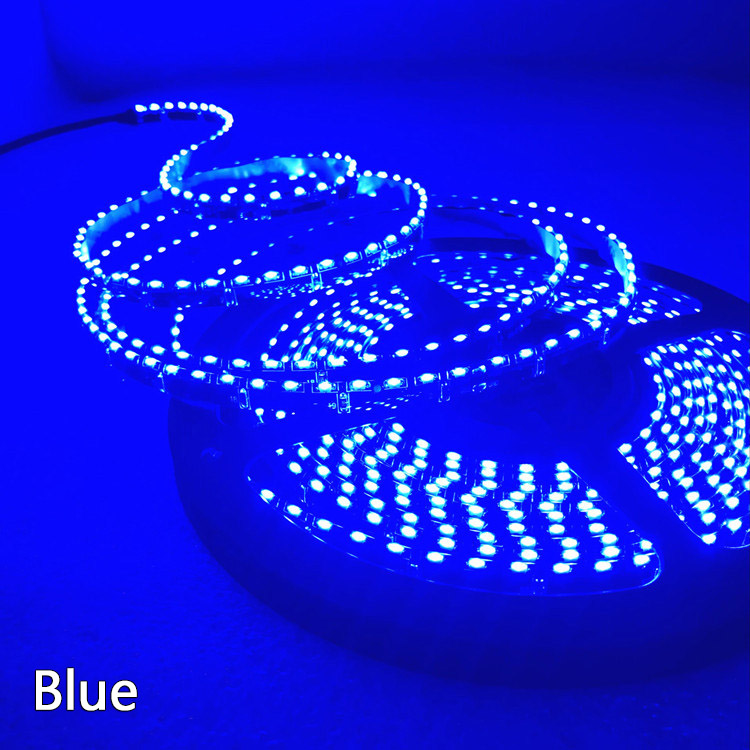

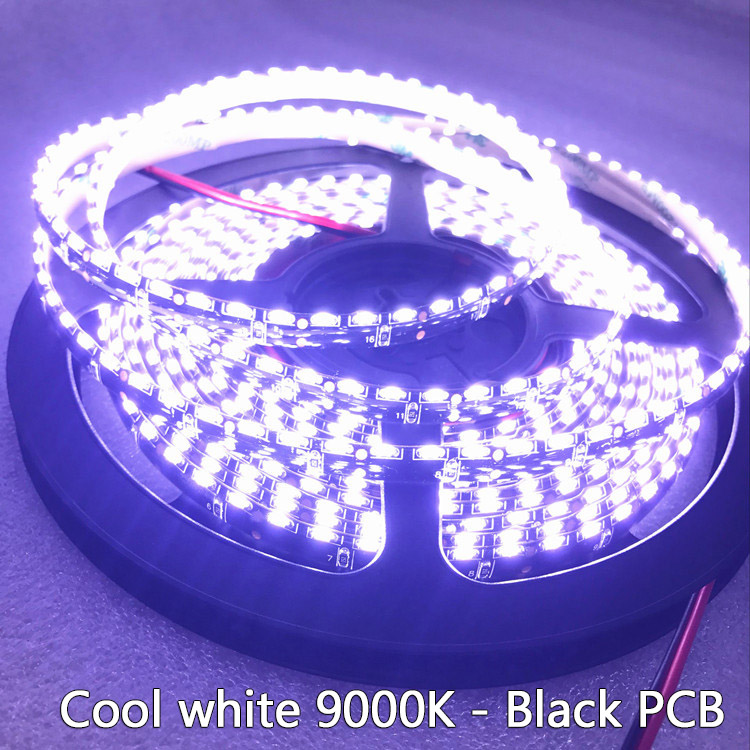

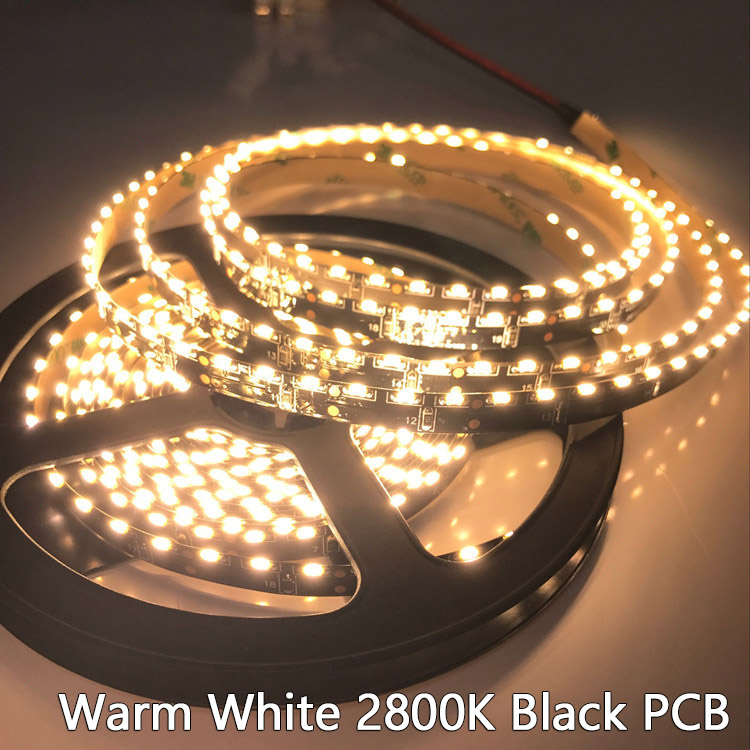

Light Color: Warm White, Daylight White,Cool White, Red, Green, Blue, Amber (optional)

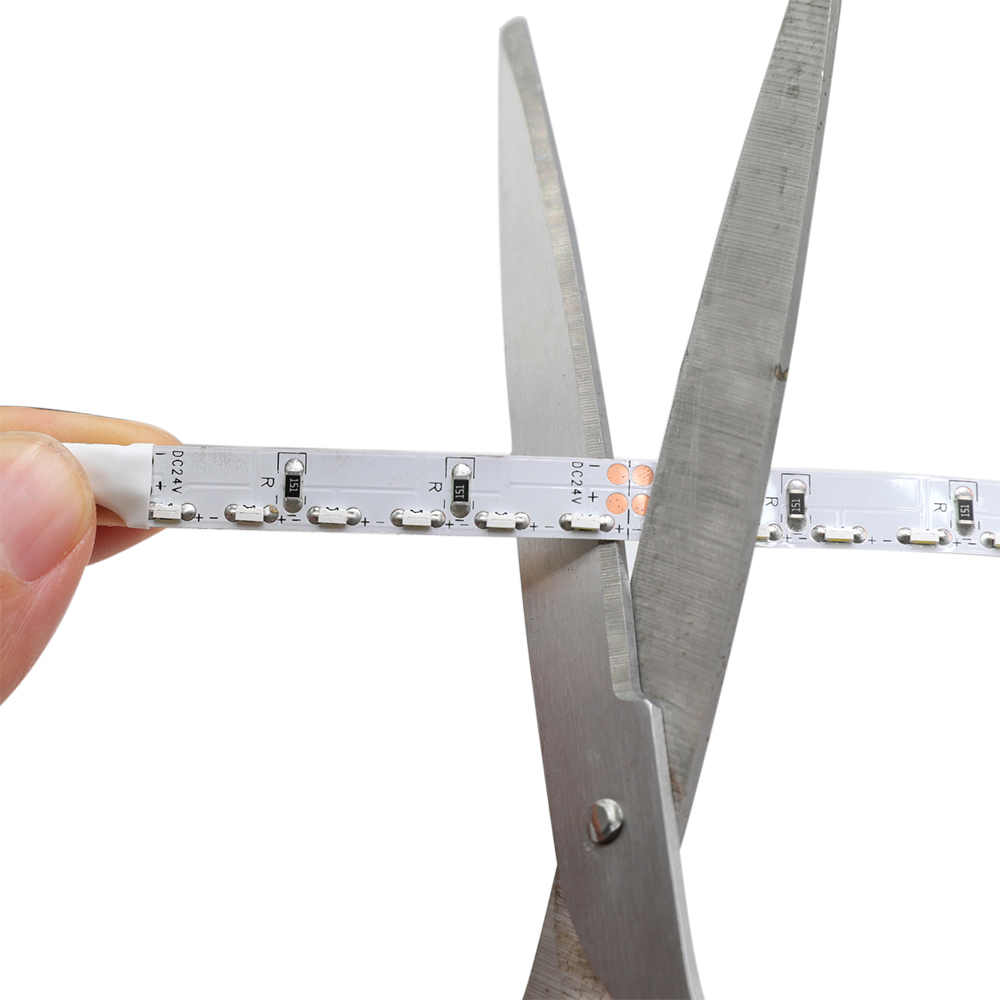

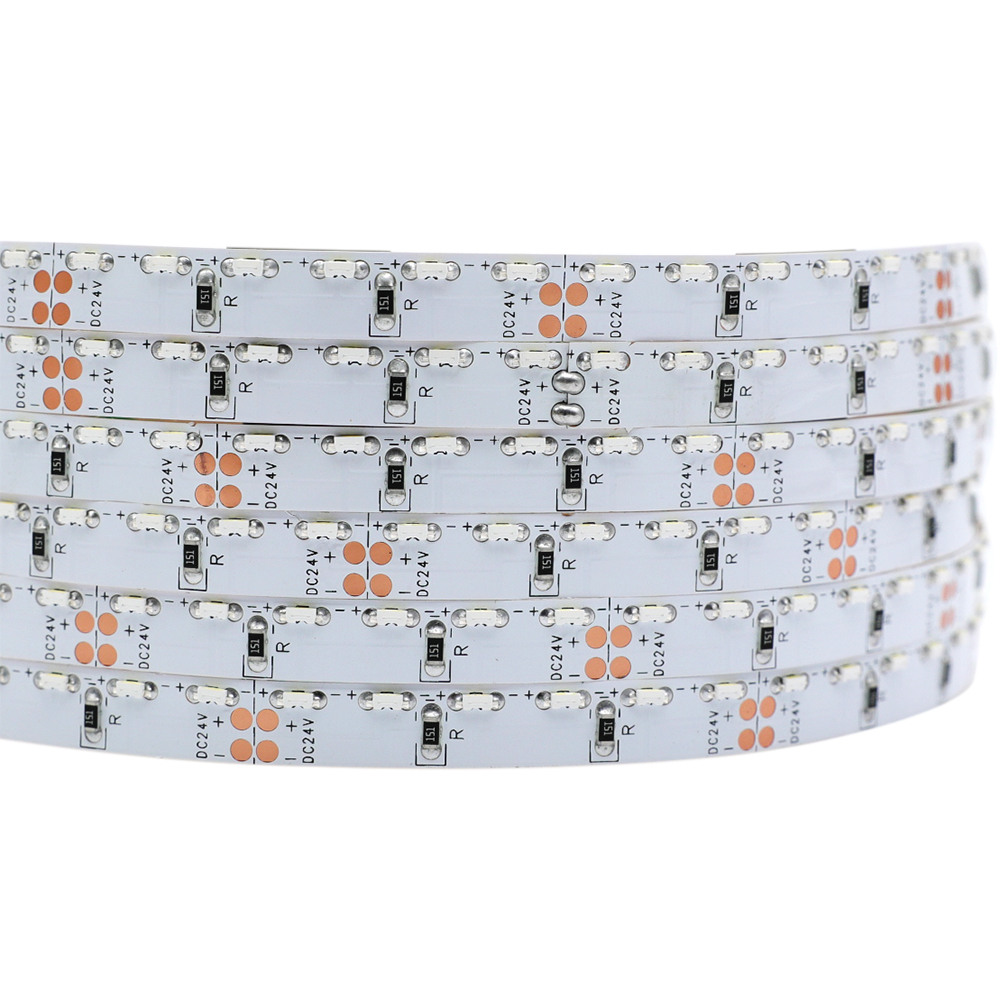

Dimension: 16.4ft/roll, DC5V every 1 LED can be cut, DC12V every 3 LED can be cut, DC24V every 6 LED can be cut,

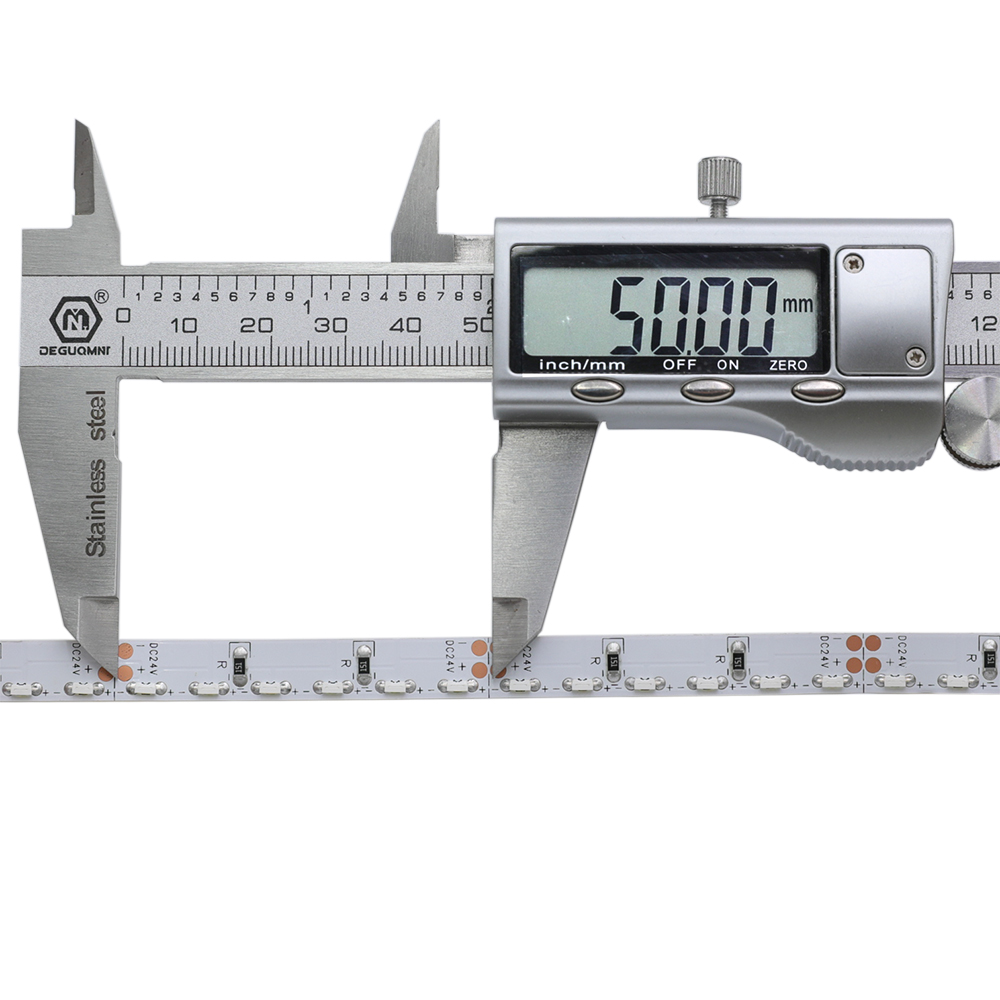

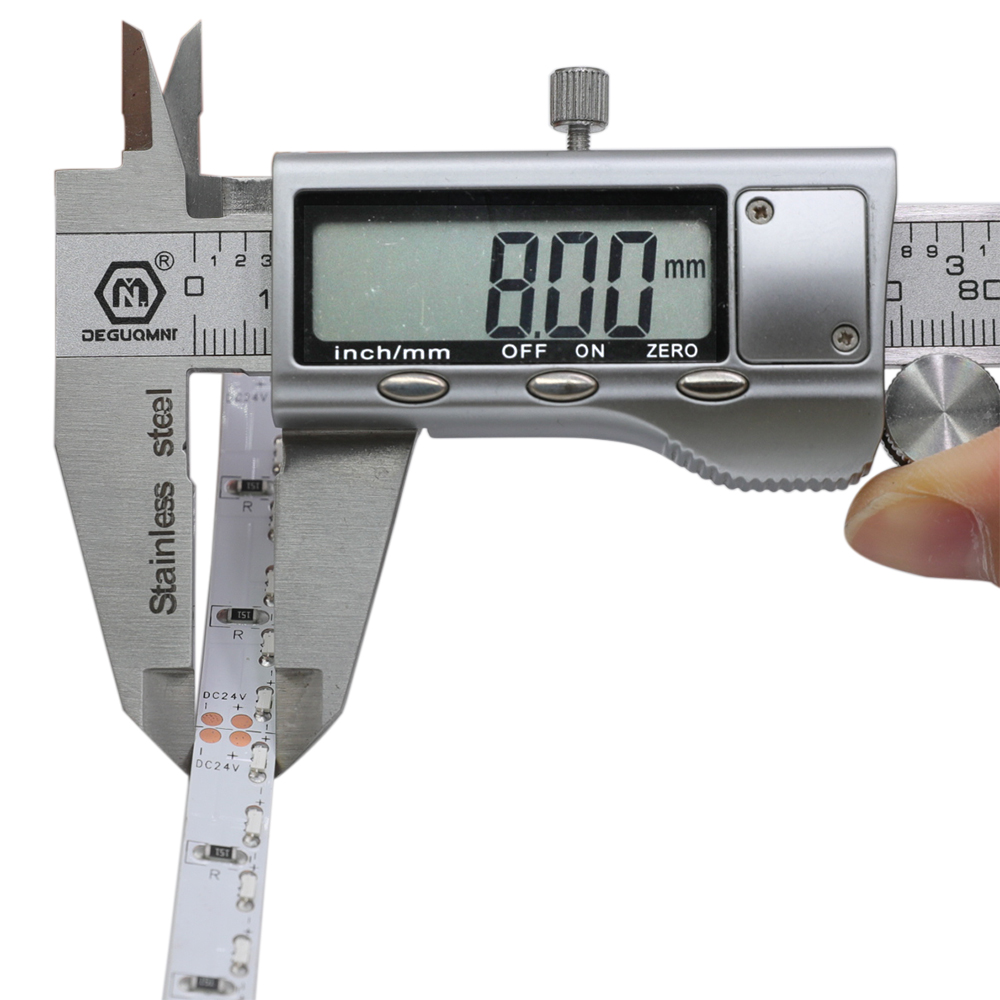

LED Quantity: 120LEDs/m 5mm/0.20in; or 8mm/0.31in
Warantty: 3 years

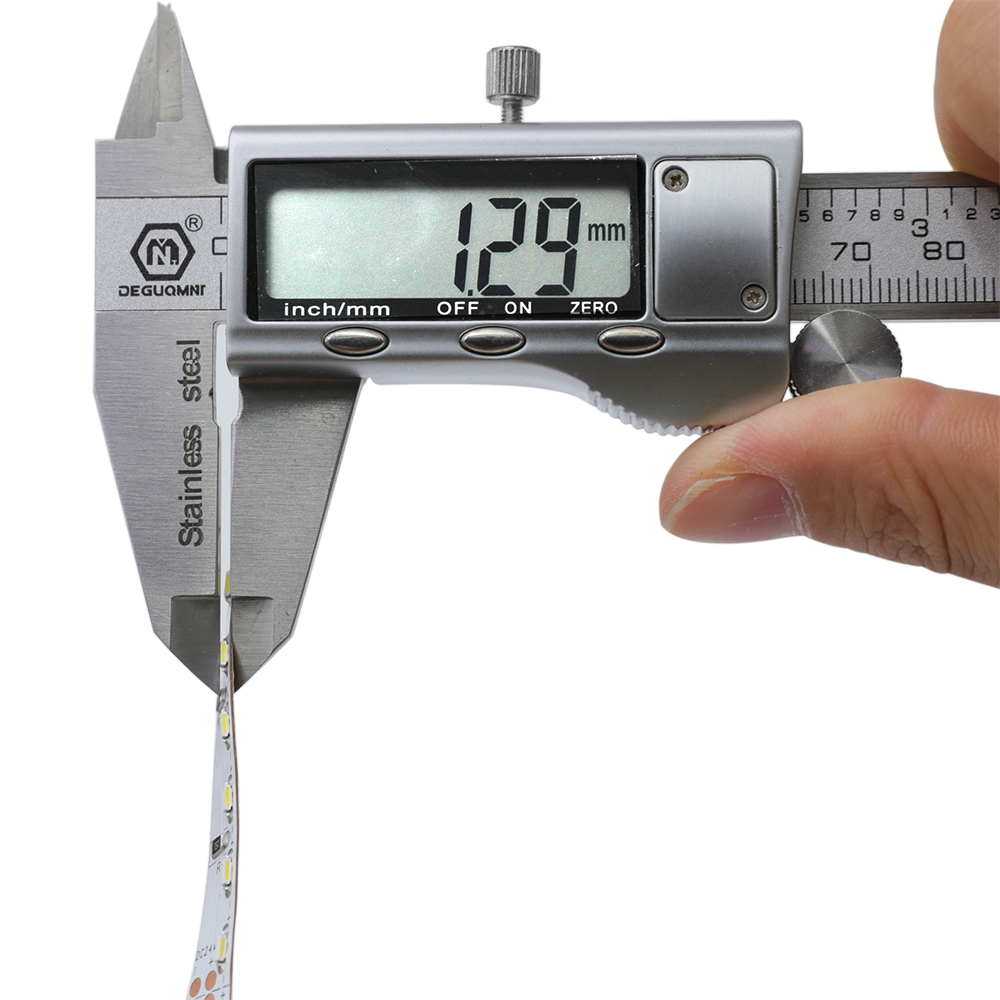

Dimensions: L500cm(196.8 in ) x W0.8cm(0.31 in ) x H0.20cm(0.08 in )
Input Voltage(V): 5/12/24VDC
Working Power: 4A 48W /16.4ft Max
Lamp Luminous Flux(lm): 6~7lm/LEDs 4200lm/16.4ft
Color Temperature CCT(White): Warm White(2800-3200k), Daylight White(5300-6700k), Cool White(7500-8500k)
Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Beam Pattern: 120 degree
Water Proof: Non-Waterproof
CRI (Ra>): 90
Cove LED lighting
Retail LED lighting
Display case LED lighting
Accent LED lights
Under cabinet lighting
Waterproof Level Description
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
