DC12V 16.4ft/5m SMD 5050 RGB Horse Race LED Light Kit,180LEDs/M, Flexible and Color Changing LED Light Strip

Name: DC12V 16.4ft/5m SMD 5050 RGB Horse Race LED Light Kit,180LEDs/M, Flexible and Color Changing LED Light Strip
Brand: SuperLightingLED
SKU: CCSLKIT-SMD-12V-1903X900
Price: 139.99 CAD
Availability: OutOfStock

Model: CCSLKIT-SMD-12V-1903X900 Review stars

0.0 (0 Reviews) Various options in stock

Starting at: Can.$225.95 Can.$197.6913% off

Qty Discounts Off Price
1-4 Can.$197.69	5-9 Can.$193.74	10-14 Can.$187.81	15+ Can.$179.90
* Discounts may vary based on options below

Select Specifications:

Select Plug Type:

Select Length:

Select Waterproof Rating:

Non-Waterproof IP20 - Adhesive Back (-300g)

Sold Out

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

Product description

DC12V SMD 5050 133 Mode Symphony Full-Color RGB LED Light Strip Kit has many changes, probably there are 94 different changes in the built-in controller, flashing, chasing, jumping, clockwise running, counterclockwise running, monochrome running, color-changing running, single chase from scratch to Tail, running water, simulated lightning, etc. The control principle of this flexible light bar is: a circuit (3 LEDs) has an IC, which can control the circuit in the FPCB through the controller to control the IC, thereby controlling the LED light bar, The change effect of this light bar is not limited to the current built-in effect of the controller, you can write your own program with SD card writing function according to customer needs!

Specification

1903 180LED-M Set:

1.Model Number:1903 IC 5050 Digital RGB Strip

2. LED Type: 1903 Control IC, RGB Color Runing Changea LED Strip 5050

3. LED Quantity: 180LEDs/m, 5m/roll

4. Power: 24W ± 10% / meter

5. Color: RGB Runing Changeable

6.Luminous color: can be adjusted to white, red, yellow, blue, green, etc. by the controller.

7. Waterproof method and waterproof grade: not waterproof (IP20) / waterproof (IP65)/waterproof (IP67)

8.FPCB color: white, yellow, black (other than the white need to be customized)

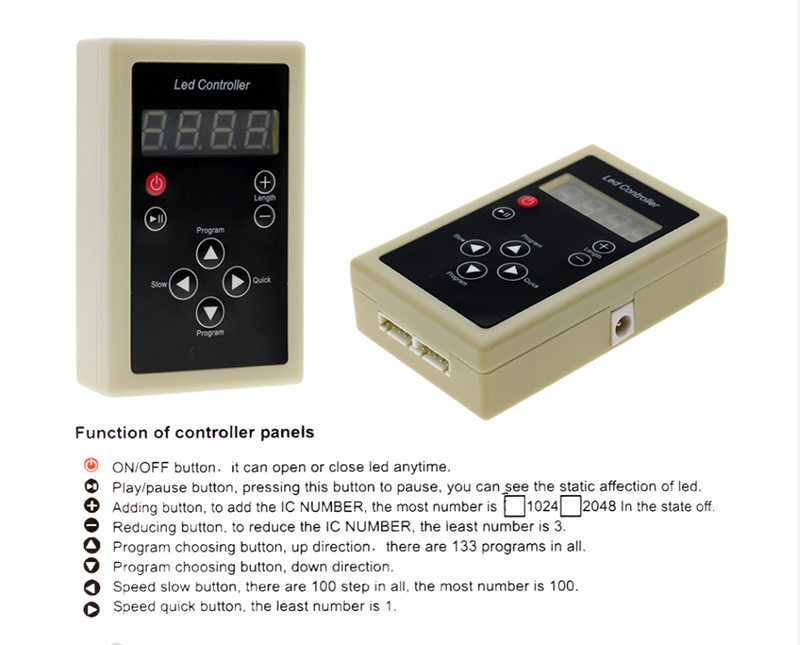

9.Controller: 133 Program RF Magic Controller

10. Power Adapter: Input: AC90-240V Output: DC12V 8A

Product list

1* 16.4ft/32.8ft led strip light

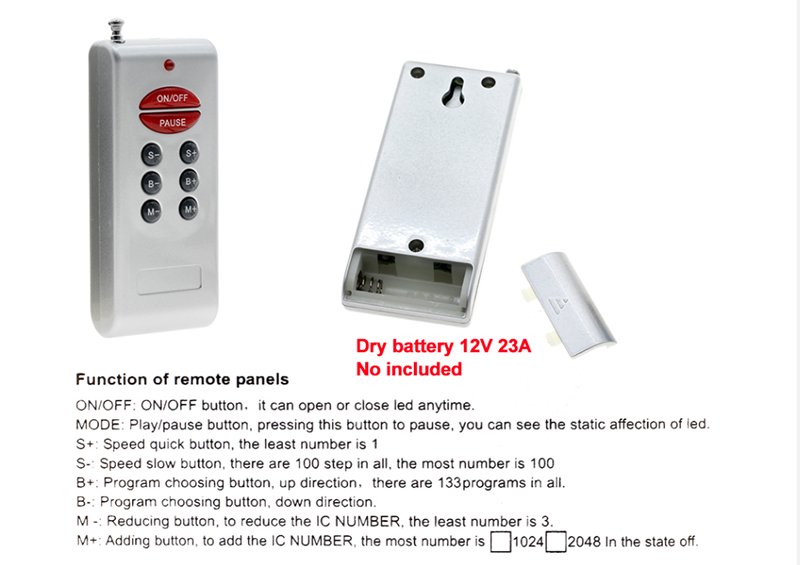

1*Controller(no incoude battery, The battery Model is 23A 12V)

1*Power suply

How to use:

SMD 5050 RGB Horse Race LED Light Kit,180LEDsM, Flexible and Color Changing LED Light Strip

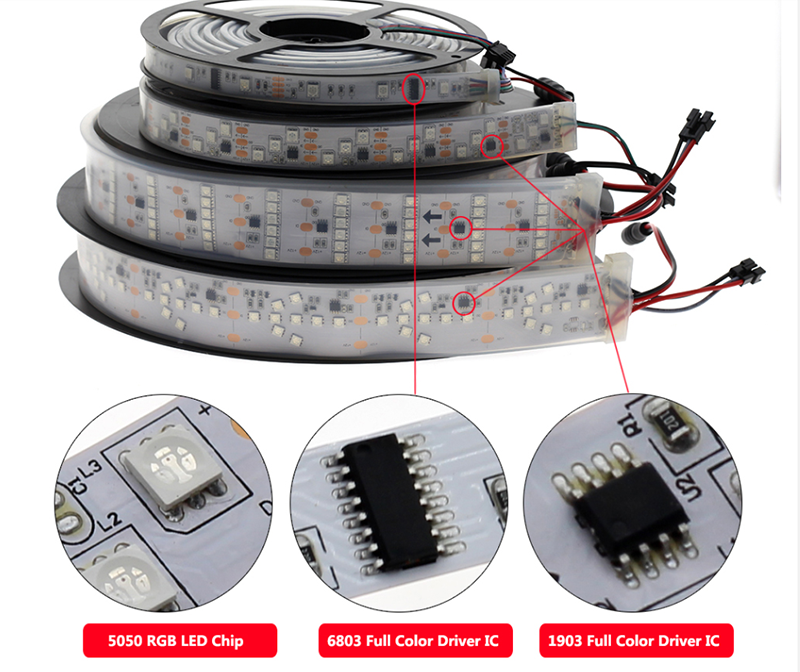

SMD 5050 RGB Horse Race LED Light Kit,180LEDsM, Flexible and Color Changing LED Light Strip - photo 3

SMD 5050 RGB Horse Race LED Light Kit,180LEDsM, Flexible and Color Changing LED Light Strip - photo 4

SMD 5050 RGB Horse Race LED Light Kit With 133 Program RF Controller Holiday Decoracion Fairy

SMD 5050 RGB Horse Race LED Light Kit,180LEDsM, Flexible and Color Changing LED Light Strip - photo 5

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for CCSLKIT-SMD-12V-1903X900

PDFCCSLKIT-SMD-12V-1903X900 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?

Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights

Do I need power injection?

5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light

Which waterproof rating should I choose?

Available on this model: Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
