DC12V 5050SMD 16.4ft/5M 5 IN 1 60LEDs/M RGBCCT Flexible LED Strip Light

Model: FSLRGBCCT-12V-5050-300X12
DC12V 5050SMD 16.4ft/5M 5 IN 1 60LEDs/M RGBCCT Flexible LED Strip Light
  • DC12V 5050SMD 16.4ft/5M 5 IN 1 60LEDs/M RGBCCT Flexible LED Strip Light
  • DC12V 5050SMD 16.4ft/5M 5 IN 1 60LEDs/M RGBCCT Flexible LED Strip Light
  • DC12V 5050SMD 16.4ft/5M 5 IN 1 60LEDs/M RGBCCT Flexible LED Strip Light
  • DC12V 5050SMD 16.4ft/5M 5 IN 1 60LEDs/M RGBCCT Flexible LED Strip Light
  • DC12V 5050SMD 16.4ft/5M 5 IN 1 60LEDs/M RGBCCT Flexible LED Strip Light
  • DC12V 5050SMD 16.4ft/5M 5 IN 1 60LEDs/M RGBCCT Flexible LED Strip Light
  • DC12V 5050SMD 16.4ft/5M 5 IN 1 60LEDs/M RGBCCT Flexible LED Strip Light
  • DC12V 5050SMD 16.4ft/5M 5 IN 1 60LEDs/M RGBCCT Flexible LED Strip Light

Select Specifications:

Starting at: $39.98 $29.9825% off

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-4
$29.98
5-19
$29.38
20-59
$28.18
60-99
$27.28
100+
$25.48
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

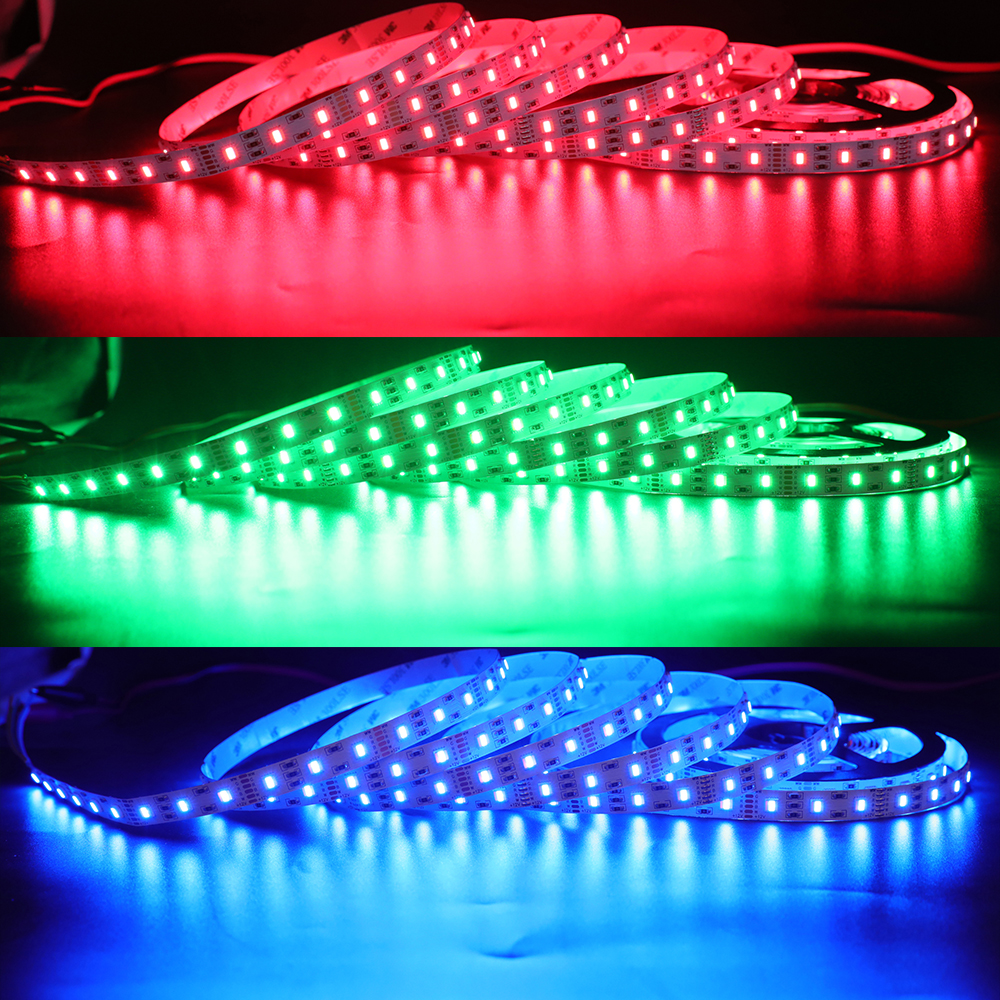

    RGBCCT LED with varieties of change modes optional. Use as RGB or as color temperature adjustment. Five colors can be lit at the same time.

    RGBCCT LED combines RGBW and white LED chips, providing more lighting color options. Pure white color temperature ranges from 2700K to 6500K. Warm white is used for indoor bathroom lighting, and cold white is used for bedroom lighting.

    RGBCCT LED combines red, green, blue, warm white, and daylight white chip in a LED chip(5 in 1 chip). High quality, large angle, stable performance, and ambient lighting color can be customized. Tested in an environment with a temperature of 25°C, a humidity of 65%, and a current of 20mA: the average light decay of white light for 2500 hours does not exceed 4%, and the average color temperature drift does not exceed 3%.

    RGBCCT light strips and controllers have a better combination effect. Each light strip can be matched with the controller and power supply.

    if you have some requrements of smartphone APP control and work with Amazon Alexa and Google Assistant, you can choose WIFI-372

    if you have some requirements of other types of LED power supply, you can visit our DC12V waterproof LED power supply.

    you can also visit our LED aluminum channelFor 12mm led strip light, you can choose HL-BAPL002 or HL-BAPL002L or HL-BAPL003

    Note: When you choose the power supply adapter, take care of the power of the strip light (120W), to avoid load, the power of the power supply adapter should higher than the power of the LED strip light.



    Product features:

    High-quality and high-brightness SMD 5050 LED

    Low energy consumption, low heat, no glare, and impact resistance LED chip

    DC12V low voltage power supply, safe and environmentally friendly

    IP65 splash, wind and sand protection; IP67 rainy protection;  IP68 (swimming pools)

    High flexibility and arbitrary bending feature

    High-density single row 60 LEDs/m

    Three lights can be cut, length can be customized

    Long life span, up to 50,000 hours

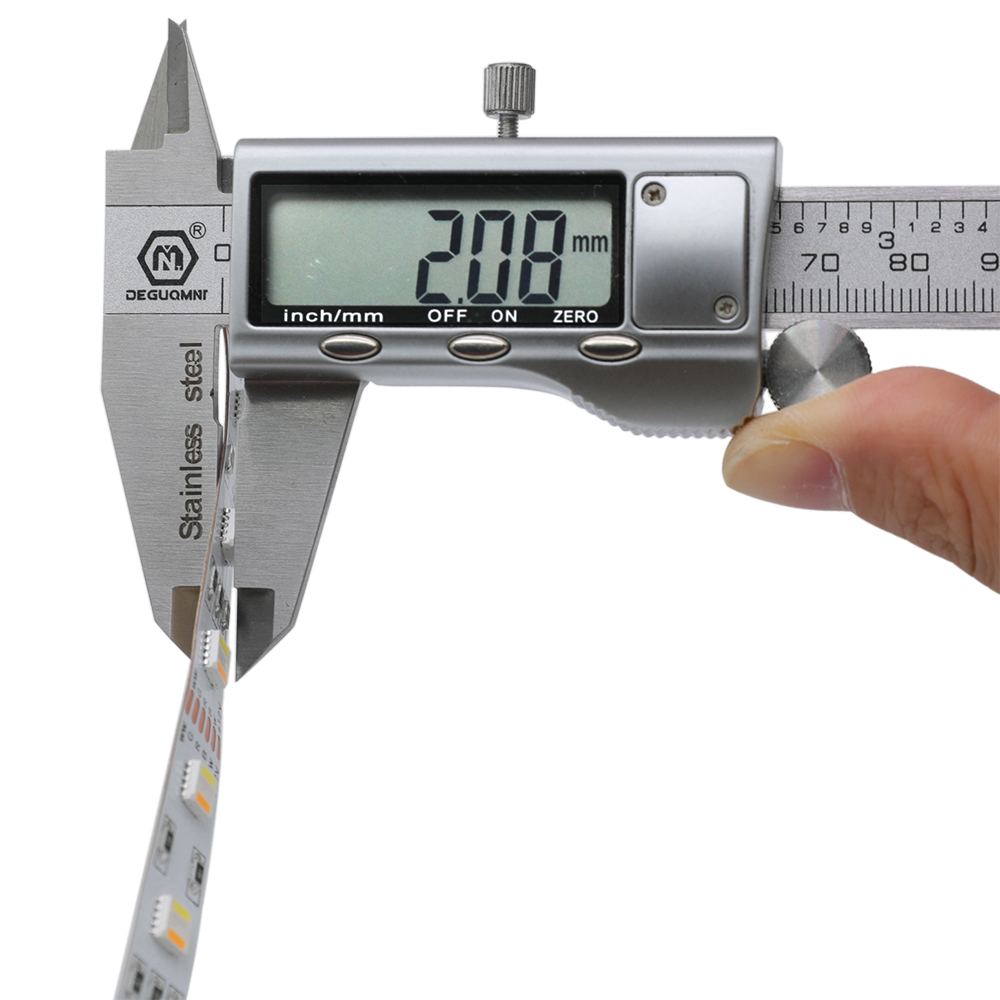

    The PCB is thin and can install in a narrow space




    Standards and Certifications





    Product Specification

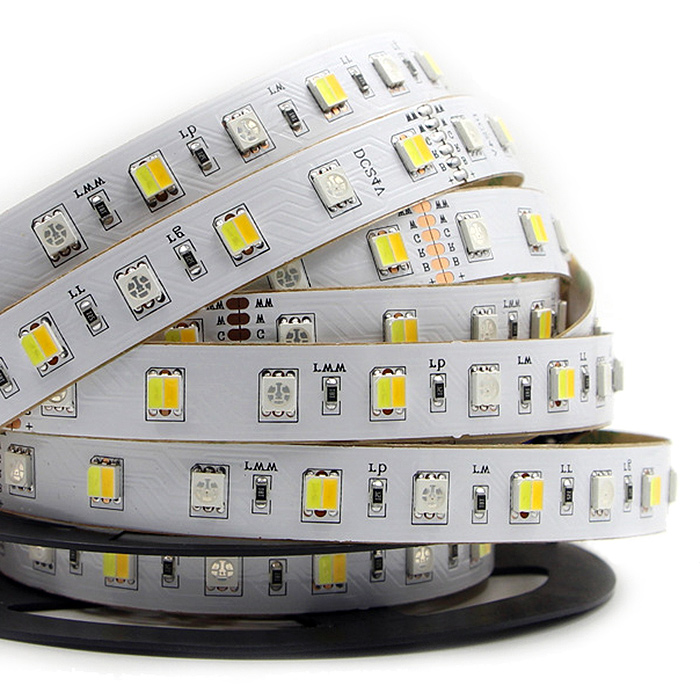

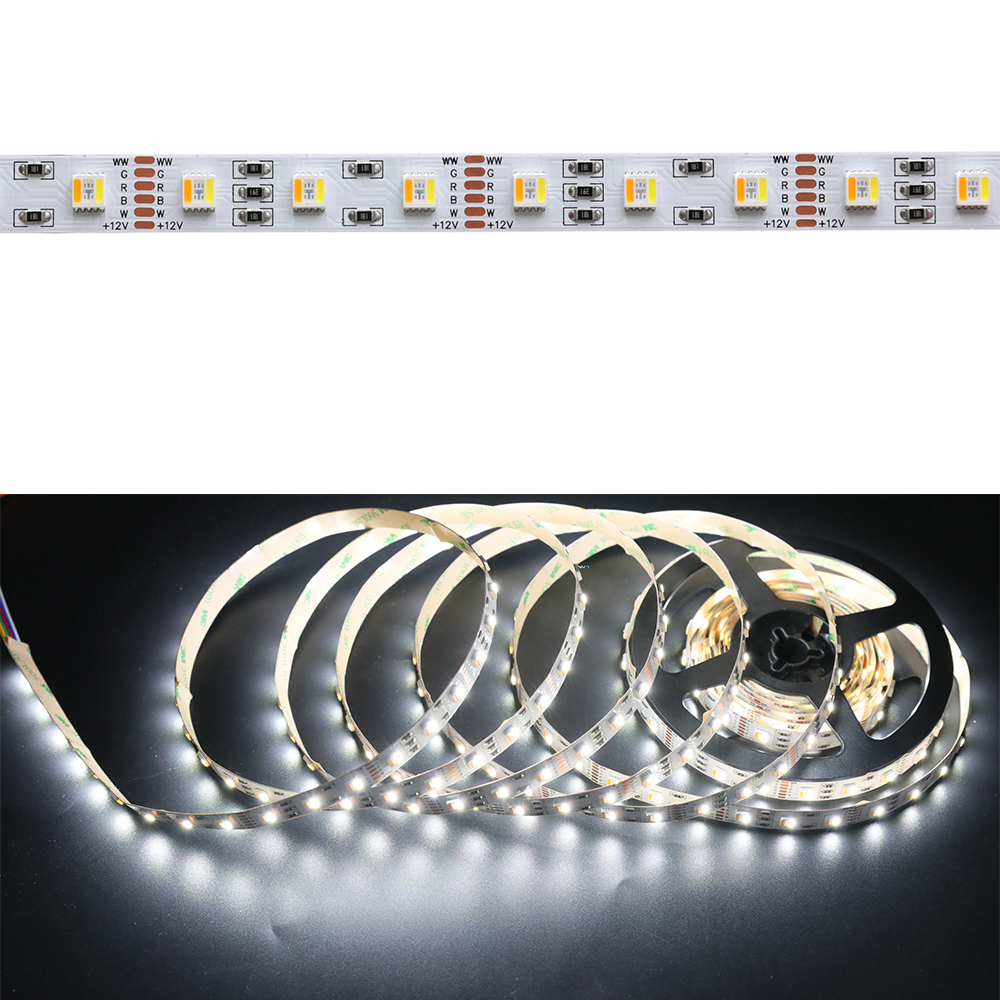

    LED Strip Type:   SMD 5050 RGBWW 300LEDs/16.4ft

    LED Chip:   Epistar super brights Chip (SMD5050 5 IN 1 LED chip)

    Working Temperature:   -4°F (-20°C) ~ 122°F (50°C)

    Storage Temperature:   -40°F (-40°C) ~ 176°F (80°C)

    Dimension:   16.4ft/roll, every 3 LEDs can be cut

    LED Quantity:   300LEDs /16.4ft

    Lifespan:   50,000+hours

    Warantty:   3 Years

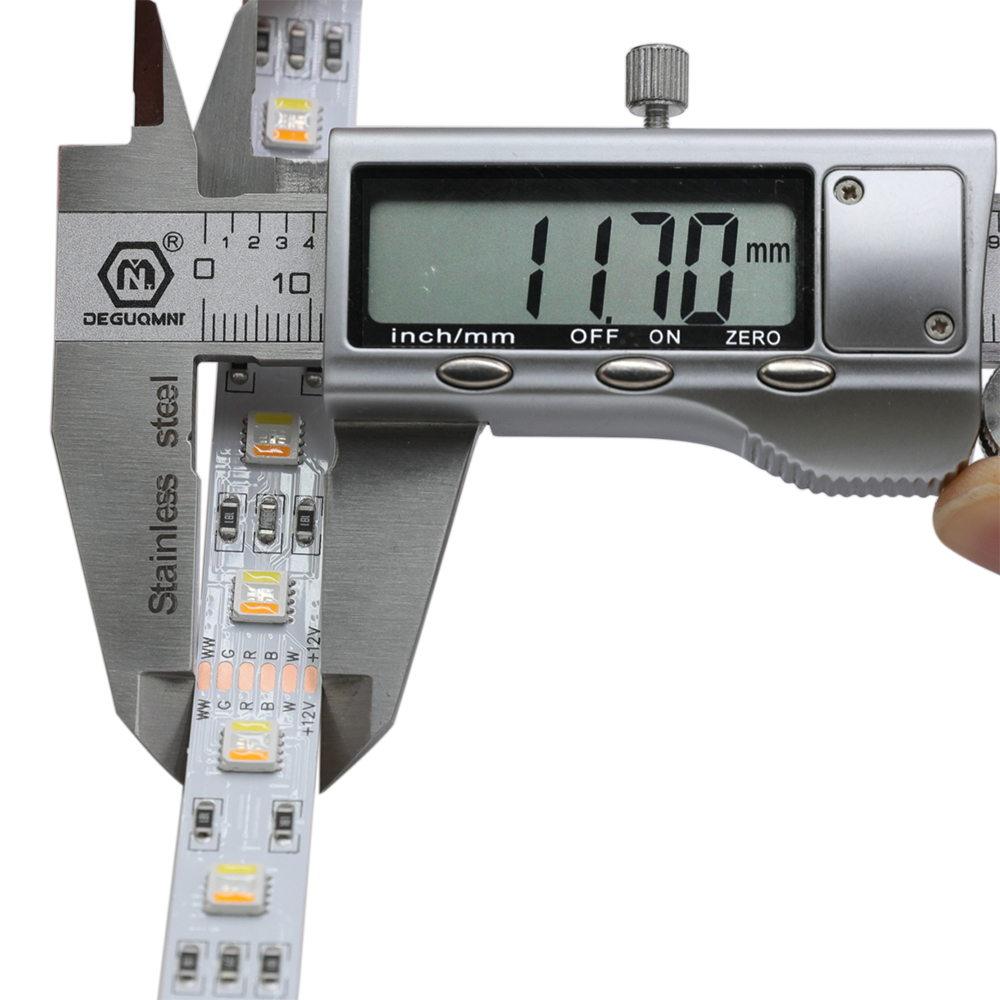

    PCB Width:   12mm/0.47in

    Input Voltage(V):   12VDC

    Working Power:   19.2W/m, 96W/roll

    CRI:   80

    Color Temperature CCT(White):   Warm White(2800-3200k), Daylight White(5200-6800k)

    Beam Pattern:   120 Degrees

    Water Proof:   Non-Waterproof; Waterproof IP65; Waterproof IP67; Waterproof IP68 Optional



    Package List:

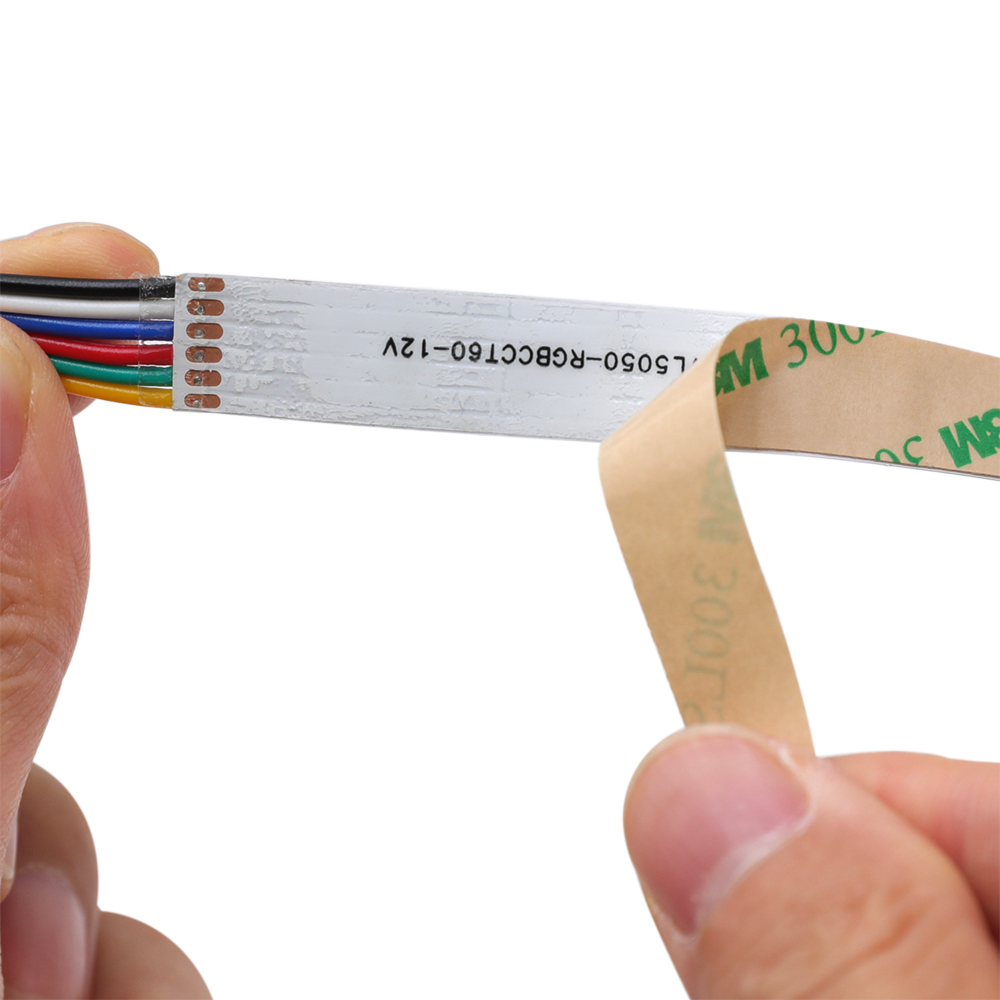

    1*5m/16.4ft RGBCCT LED strip light



    Note:

    if you choose LED strip light, we will send you 1* 5m/16.4ft FSLRGBCCT-12V-5050-300X12

    if you choose LED strip light + Controller + Power supply, we will send you 1* 5m/16.4ft FSLRGBCCT-12V-5050-300X12 + 1* V5-M+RT5 + LRS-150-12



    The difference between DC12V and DC24V LED strip light:

    DC12V and DC24V are consistent in power and LED quantity. In addition to the difference in voltage, the biggest difference is:

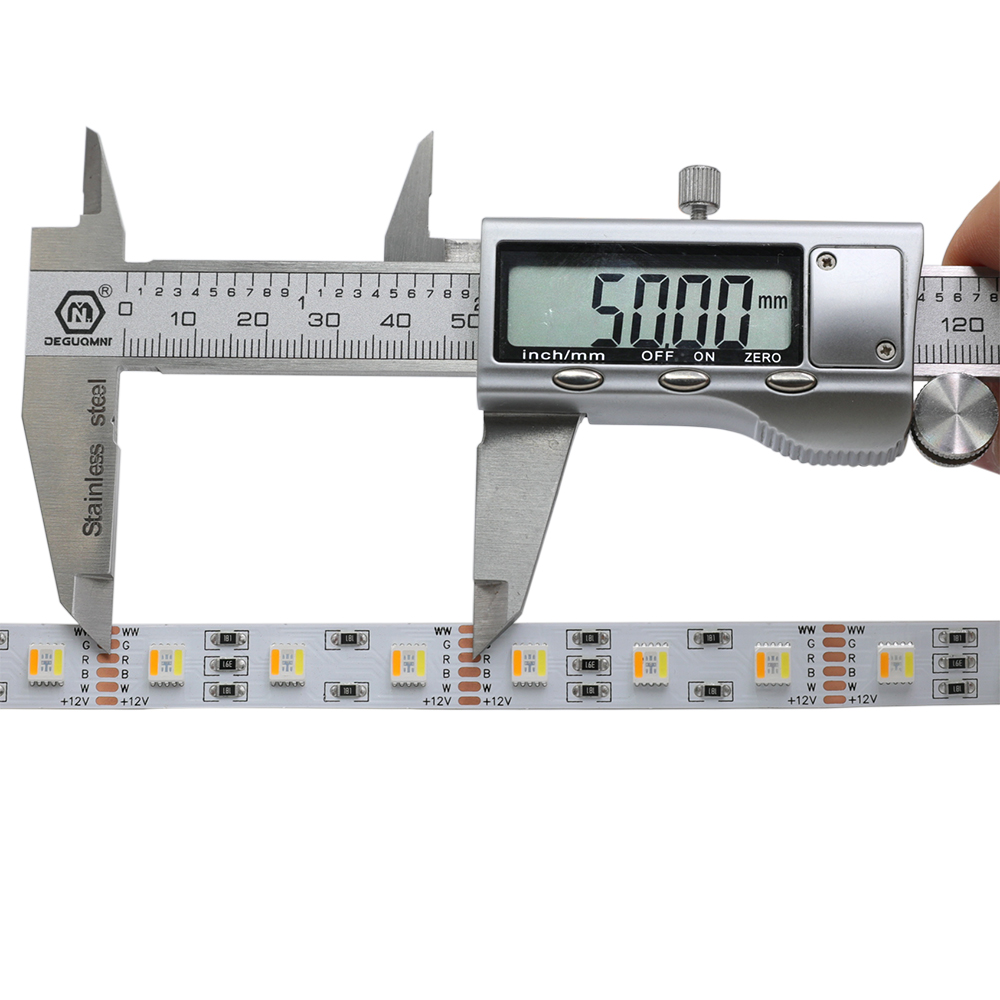

    DC12V integrates 3LEDs between the two PCB cut lines, each 50mm/1.97in can be cut (3LEDs cuttable)

    DC24V integrates 6LEDs between the two PCB cut lines, each 100mm/3.94in can be cut (6LEDs cuttable)



    The difference about the type of RGBCCT LED strip light:

    In addition to the LED density and input voltage, the product is mainly divided into the above five types in appearance about our company product:

    5 IN 1 RGBCCT LED

    RGB + CCT

    Warm White + RGB + Daylight White

    RGBW + Warm White

    RGB + Warm White + Daylight White (Dual Row)

    We also have an addressable RGBCCT led strip light



    Color Temperature And CRI

    Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.

    Consider the look and feel you want your project to have.

    What other color lights will be present? What material and color are the materials you wish to light?



    Waterproof Level Description

     IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

     IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;

     IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);

     IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);

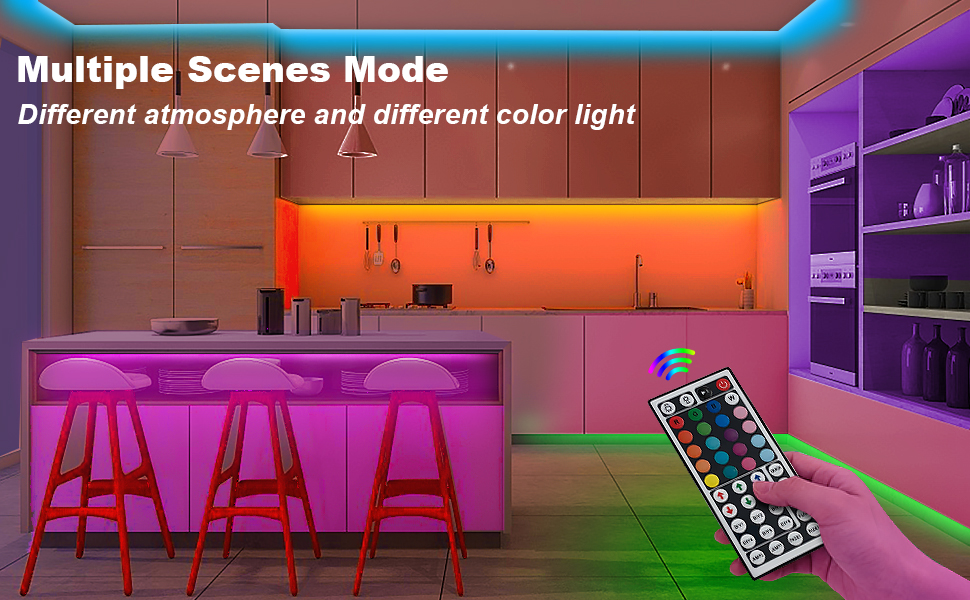

    Applications

    Backlighting

    LED Task Lighting

    Retail LED lighting

    Sign illumination LEDs

    Automotive accent lighting

    Display case and accent lighting

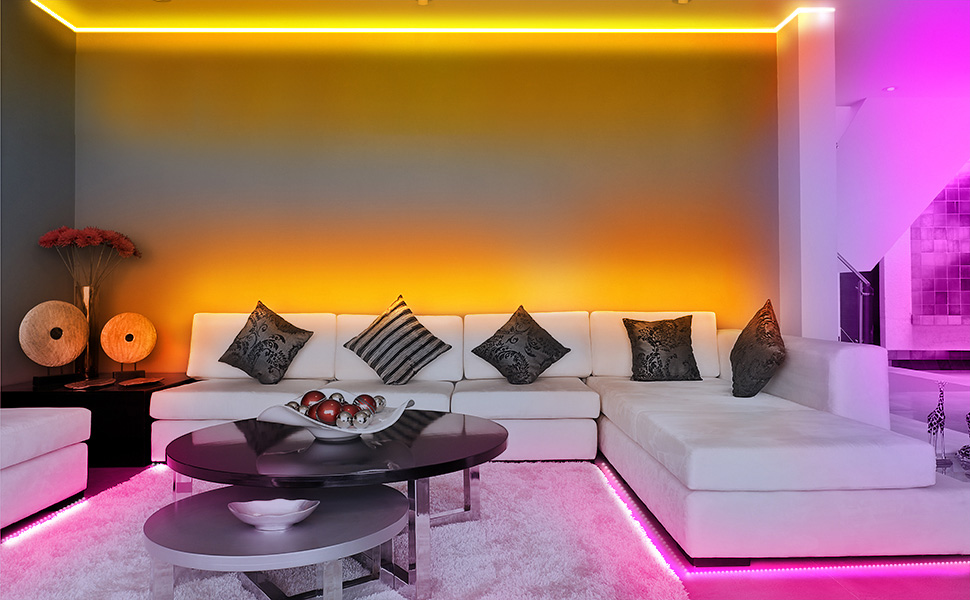

    Lighting effect
