Product Information

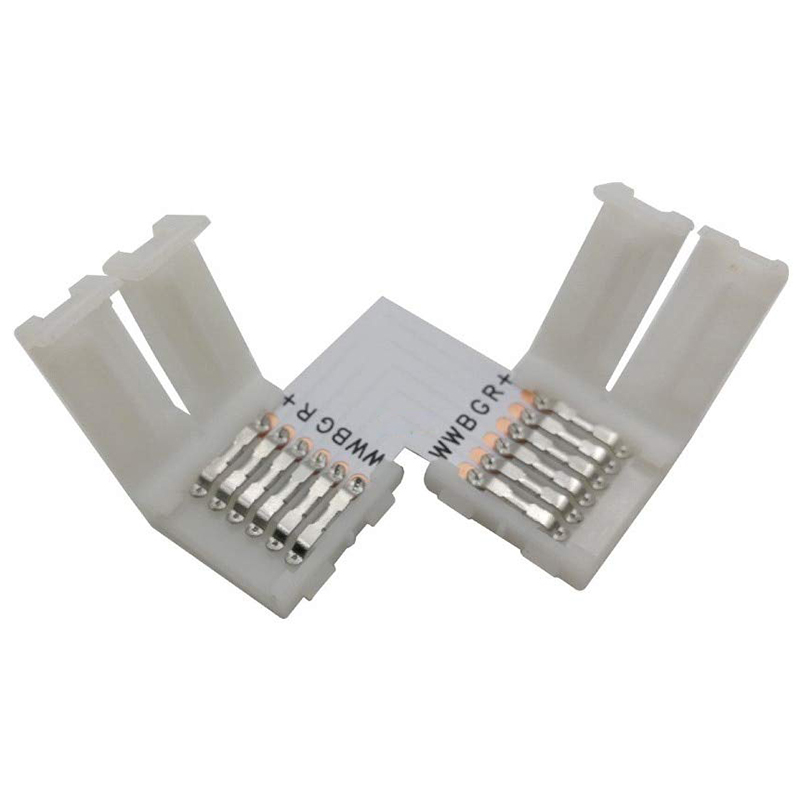

Create flawless, professional-grade lighting installations with the L-Shape 6-Pin Solderless LED Strip Corner Connector. This essential accessory is engineered to solve one of the most common challenges in LED lighting: making sharp, clean 90-degree turns without damaging the strip or resorting to soldering. Designed specifically for 12mm wide, 6-conductor RGB+CCT LED strip lights, this clip-on connector provides a secure and reliable connection for all six channels. The solderless design makes it incredibly easy to use, perfect for DIY projects like under-cabinet lighting, cove accents, and custom display cases. Achieve seamless corner illumination and a polished finish every time with this handy and robust L-shape connector.
Key Features
Perfect 90° Corners
The rigid L-shape design allows you to create crisp, perfect right-angle turns, maintaining a professional and tidy appearance for your lighting project.
Solderless Clip-On Design
Featuring an intuitive clip-on mechanism, this solderless led strip connector allows for quick, secure connections without any special tools or soldering skills.
Reliable 6-Pin Connection
Engineered for 6-pin RGB+CCT LED strips, it ensures all channels—Red, Green, Blue, Warm White, and Cold White—are properly connected for full lighting functionality.
Precise Compatibility
This clip connector is specifically designed for 12mm wide, non-waterproof (IP20) 6-pin RGB+CCT LED strips, guaranteeing a perfect fit and stable performance.
Technical Highlights
- Durable polycarbonate construction for a secure, long-lasting grip.
- High-conductivity copper pins ensure minimal voltage drop and consistent light output across the connection.
- Compact form factor allows for installation in tight spaces and low-profile aluminum channels.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | L Shape 6 Pins Connector 12mm Right Angle Corner Solderless Connector |
| Model | RGB/CCT-ACCESSORIE-5 |
| Type | L-Shape / 90° Right Angle Connector |
| Connection Method | Solderless, Clip-on |
| Number of Pins | 6 |
| Compatible Strip Width | 12mm |
| Compatible Strip Type | 6-Pin RGB+CCT (RGBWW/RGBCW) |
| Compatible IP Rating | IP20 (Non-Waterproof) |
| Housing Material | PC Plastic |
| Contact Material | Copper |
| Application | Under-cabinet / corner lighting |
Application Scenarios
How to Use This Solderless Corner Connector
- Ensure power is disconnected before starting.
- Confirm you are using a 12mm wide, 6-pin IP20 RGB+CCT LED strip.
- Cut the LED strip cleanly along a designated copper cut line.
- Open the white hinged cover on one side of the L-shape connector.
- Gently slide the end of the LED strip under the metal contact pins, ensuring the copper pads on the strip align with the pins.
- Close the cover firmly until it snaps shut, securing the strip in place.
- Repeat the process for the second piece of LED strip on the other side of the connector.
- Reconnect power and test the connection to ensure all colors function correctly.
- This connector is designed for IP20 non-waterproof strips. If using with an IP65 silicone-coated strip, you must carefully remove the silicone from the contact area before insertion.
- Double-check that the polarity markings on your LED strips align correctly through the connector to avoid malfunction.
- Do not force the clasp shut. If it doesn't close easily, ensure the strip is fully inserted and properly aligned.
- For complex layouts, understanding how to wire RGBWW LED strips can be beneficial.
What's in the Box
- ✓1 x L-Shape 6-Pin Solderless Connector for 12mm LED Strips
Frequently Asked Questions
Q: Do I need any tools to install this led strip clip connector?
A:No, this is a completely solderless and tool-free connector. It uses a simple but secure clip-on mechanism to connect your LED strips.
Q: Will this work with a 4-pin RGB or 5-pin RGBW strip?
A:No, this connector is specifically designed with 6 pins for 12mm wide RGB+CCT (also called RGBWW) LED strips. Using it with other types will result in an incorrect or incomplete connection.
Q: Is this L-shape connector waterproof?
A:This connector is not waterproof and is intended for use in dry, indoor locations with IP20 non-waterproof LED strips.
Q: How do I ensure a strong and reliable connection?
A:Make sure your cut is clean and straight along the cut line. Slide the strip all the way in so the copper pads are directly underneath the connector's pins before snapping the cover closed.
