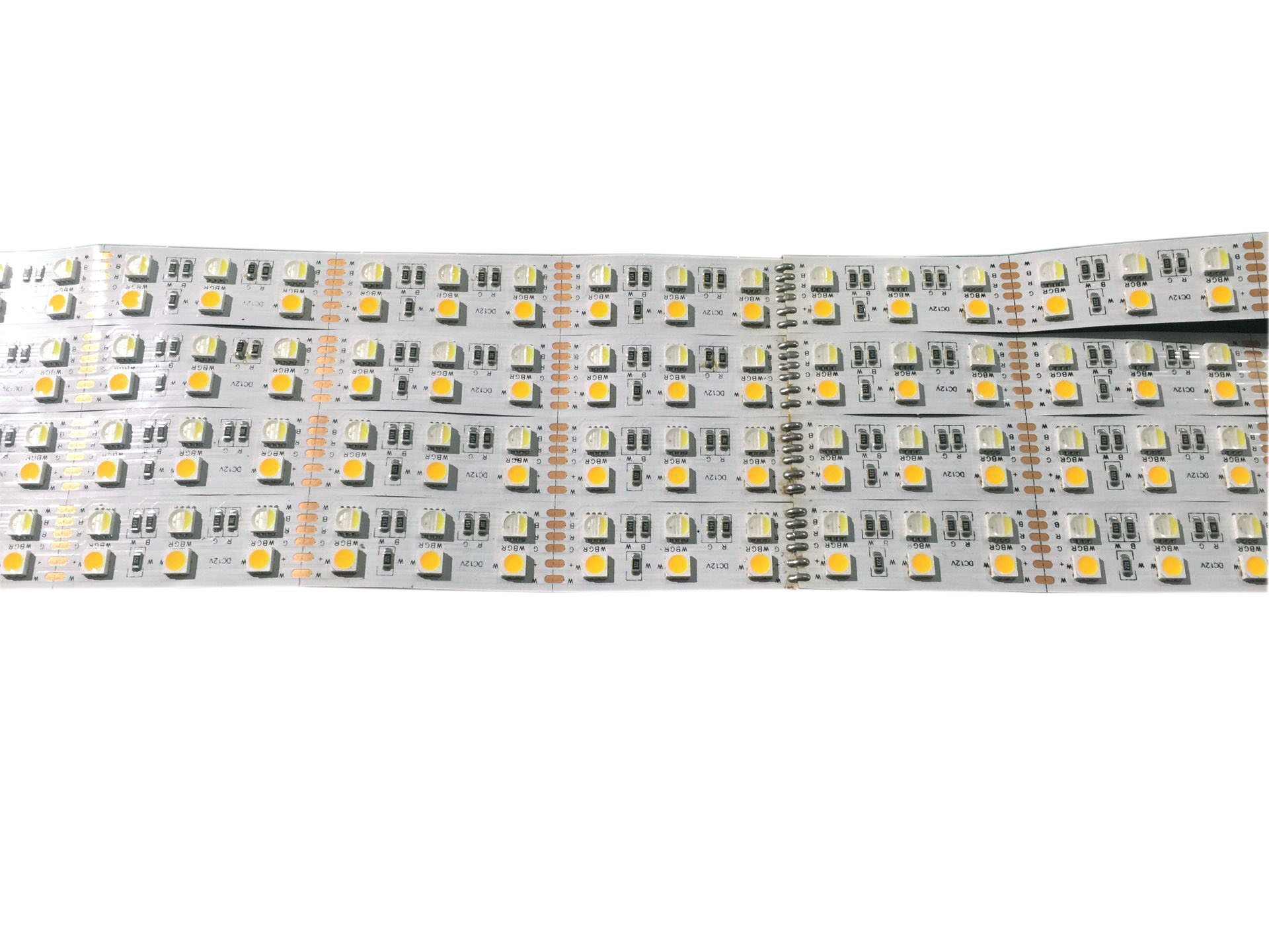

RGBW+CCT Multi Color LED Lights - 12V Color Change LED Strip - 16mm 120LEDs/m High Density
This RGBCCT color changing led strip lights integrate 5050 RGBW LEDs and 5050 3000K warm white LEDs to form RGBCCT lights. They have purer white light with a wider color temperature range (2700K-6500K, warm white to cool white) than multi color RGB led strip lights and RGBW led strips, more color options, compatible with mood lighting and task lighting. You can freely change the LED light colors by using wireless control method via an RGB CCT controller, use low-voltage 24V DC power supply to drive.
5050 RGBW LED + 5050 Warm White LED, RGBCCT light
Use of low-voltage DC12V power supply, secure when used
6 lights cut unit, 50mm cut length
IP20/IP65/IP67/IP68 waterproof levels for indoor and outdoor lighting
Standards and Certifications
|LED Strip Type:||SMD 5050 RGBW+CCT 600LEDs/16.4ft|
|LED Chip:||Epistar Chip (5050 LED)|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||RGB+CCT (2700K-6500K color temperature)|
|Dimension:||16.4ft/roll, every 6 PCS LED can be cut|
|LED Quantity:||120 LEDs per 1meter (3.28 ft)|
|Input Voltage(V):||12 VDC|
|Working Power:||28.8W/m , 8.8W/feet, 144W /16.4ft Max → Informations About LED Power Supply|
|Lumen Per LED:||16-18lm/leds 10800lm Max /16.4ft 659 lm/ft 75lm/watt|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Non-waterproof IP20, waterproof IP67|
1. RGBCCT led strip wiring diagram:
3. Installing led strip lights: - How To Install LED Strip Lights?
LED Task Lighting
Retail LED lighting
Sign illumination LEDs
Automotive accent lighting
Display case and accent lighting
