DC12/24V Single Row 600LEDs SMD5050 Optional Superbright 10mm Width Waterproof Flexible LED Strip Light 16.4ft Per Reel By Sale

Name: DC12/24V Single Row 600LEDs SMD5050 Optional Superbright 10mm Width Waterproof Flexible LED Strip Light 16.4ft
Brand: SuperLightingLED
SKU: FSLSR-12V-5050X600X10
Price: 11.98 GBP
Availability: InStock

Model: FSLSR-12V-5050X600X10 Review stars

0.0 (0 Reviews) Various options in stock

Starting at: £18.95 £9.0952% off

Qty Discounts Off Price
1-4 £9.09	5-9 £8.91	10-14 £8.64	15+ £8.27
* Discounts may vary based on options below

Select Specifications:

Select Light Color :

Select Brightness:

Select Operating Voltage:

Select Length:

16.4ft (5 meters)

Select Waterproof Rating:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

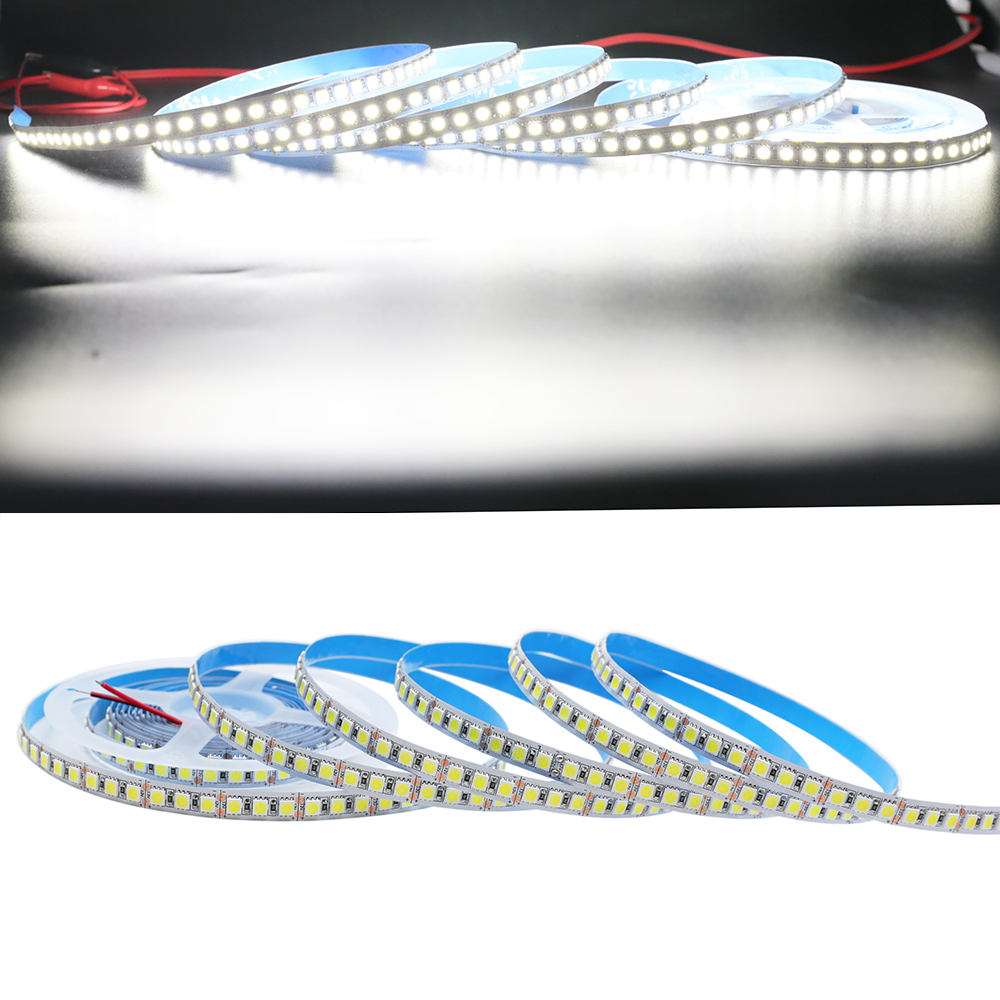

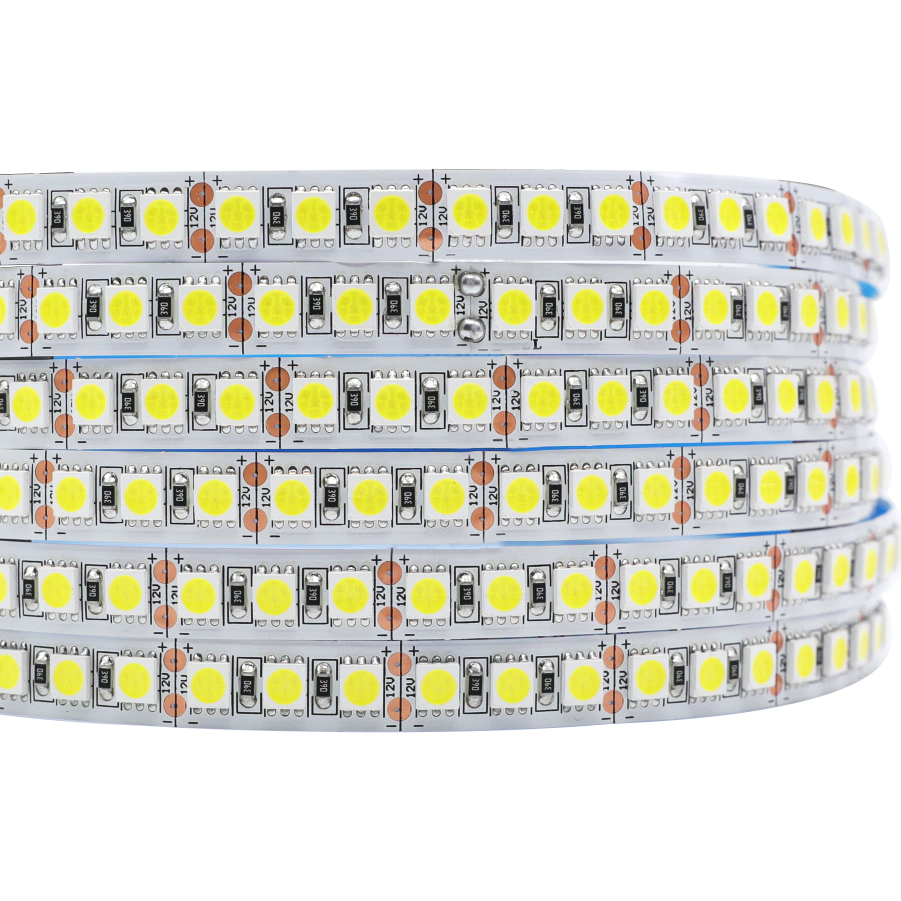

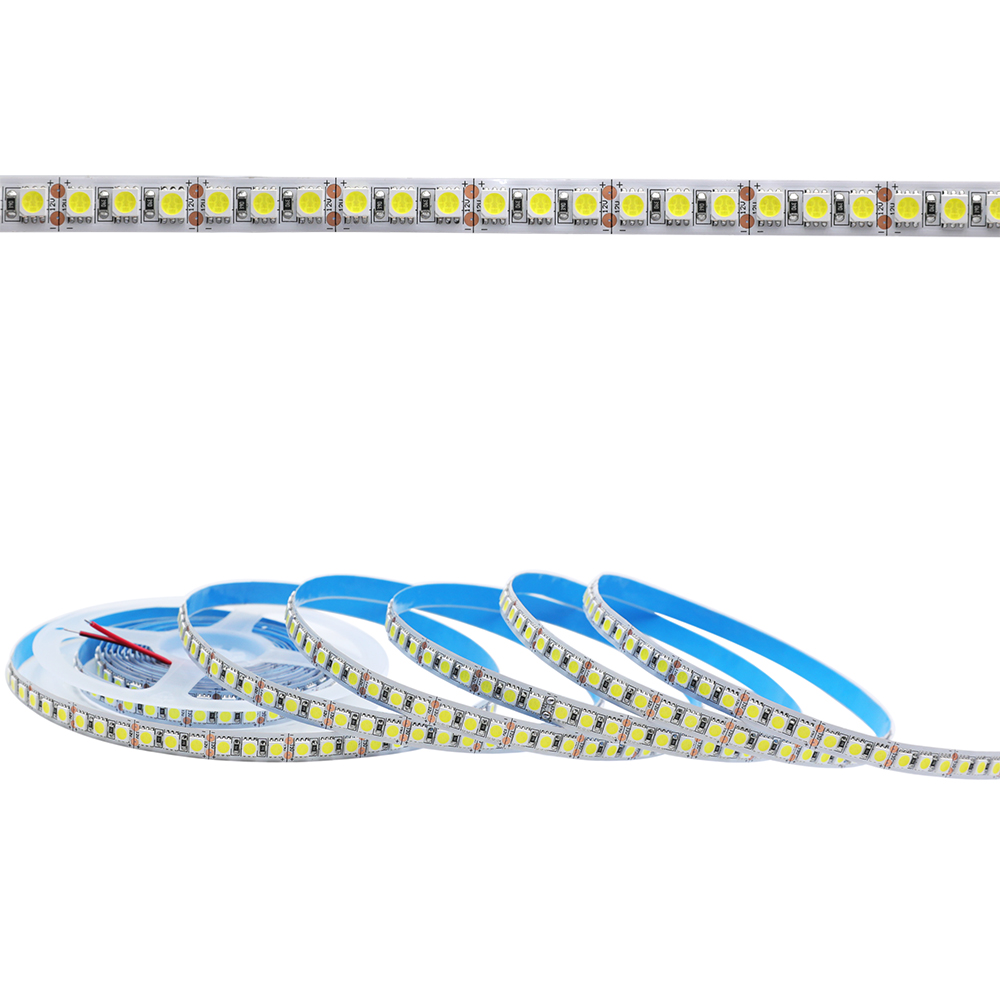

Superbright 600LEDs SMD5050 led strip light with 10mm width, DC12V and DC24V two voltages optional. The DC24V 120LEDs/m 5050 white led strip can run 10 meters (2 rolls in series) with a little voltage drops.

12/24V low voltage, high lighting efficiency, safety, and stability. Among them, the low voltage can guarantee the service life of the light strip, up to 50,000 hours.

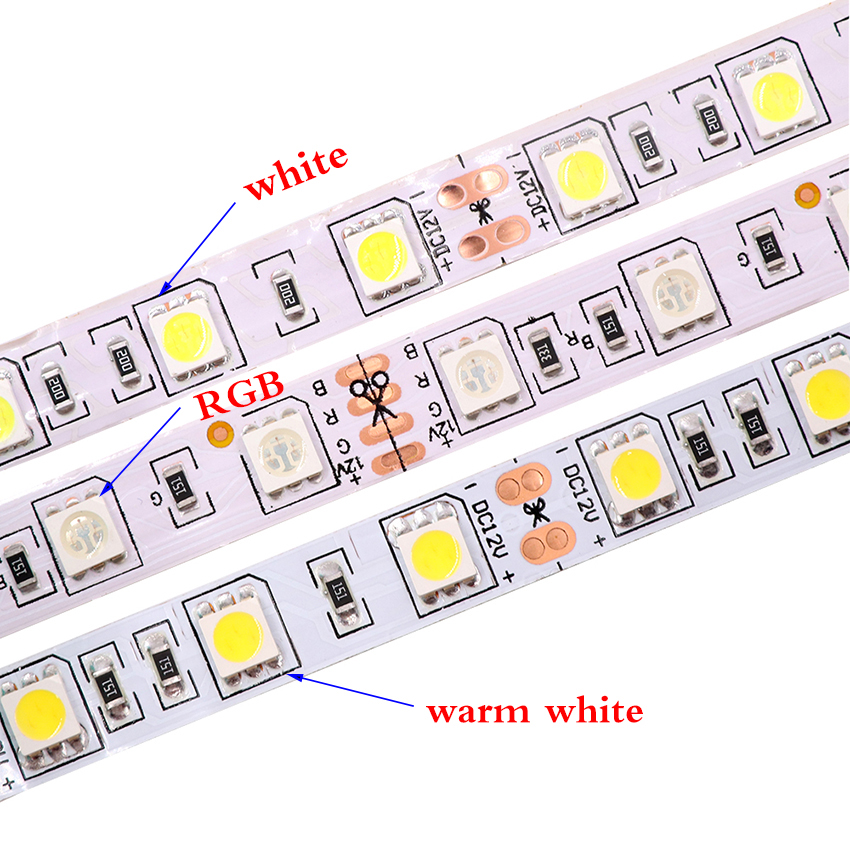

We provide 3000K, 4000K, 6000K, red, blue, green color options for you to choose from. While ensuring quality, we try our best to provide you with more light strips that meet your needs.

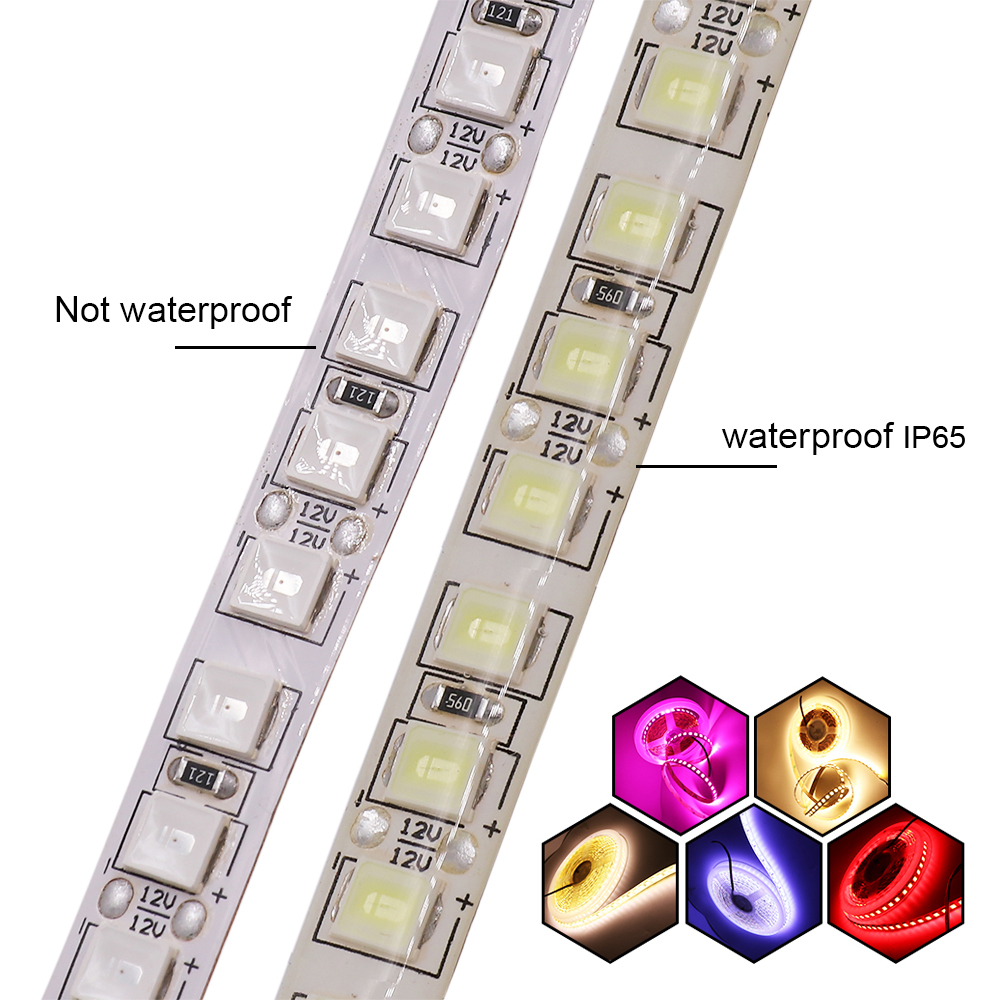

Can customize IP67 waterproof light strip for you, rainproof and waterproof, you can use it in an outdoor environment.

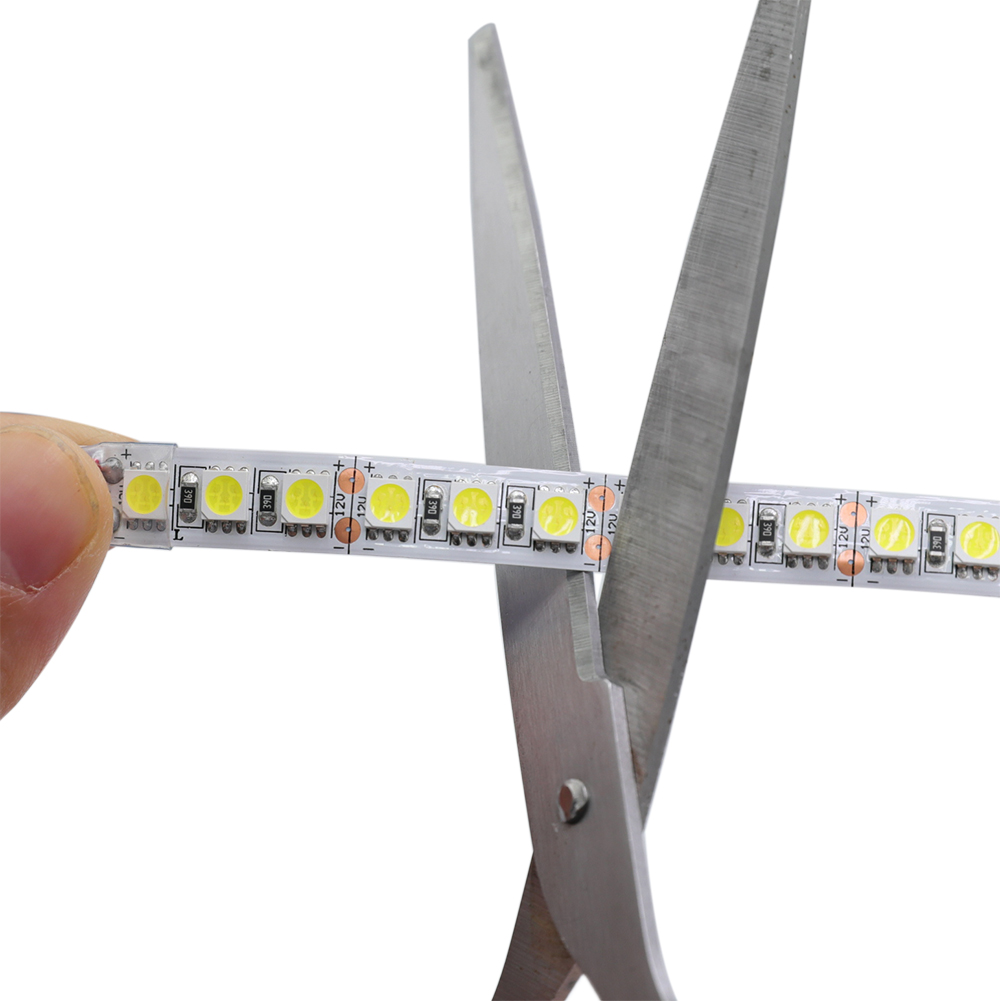

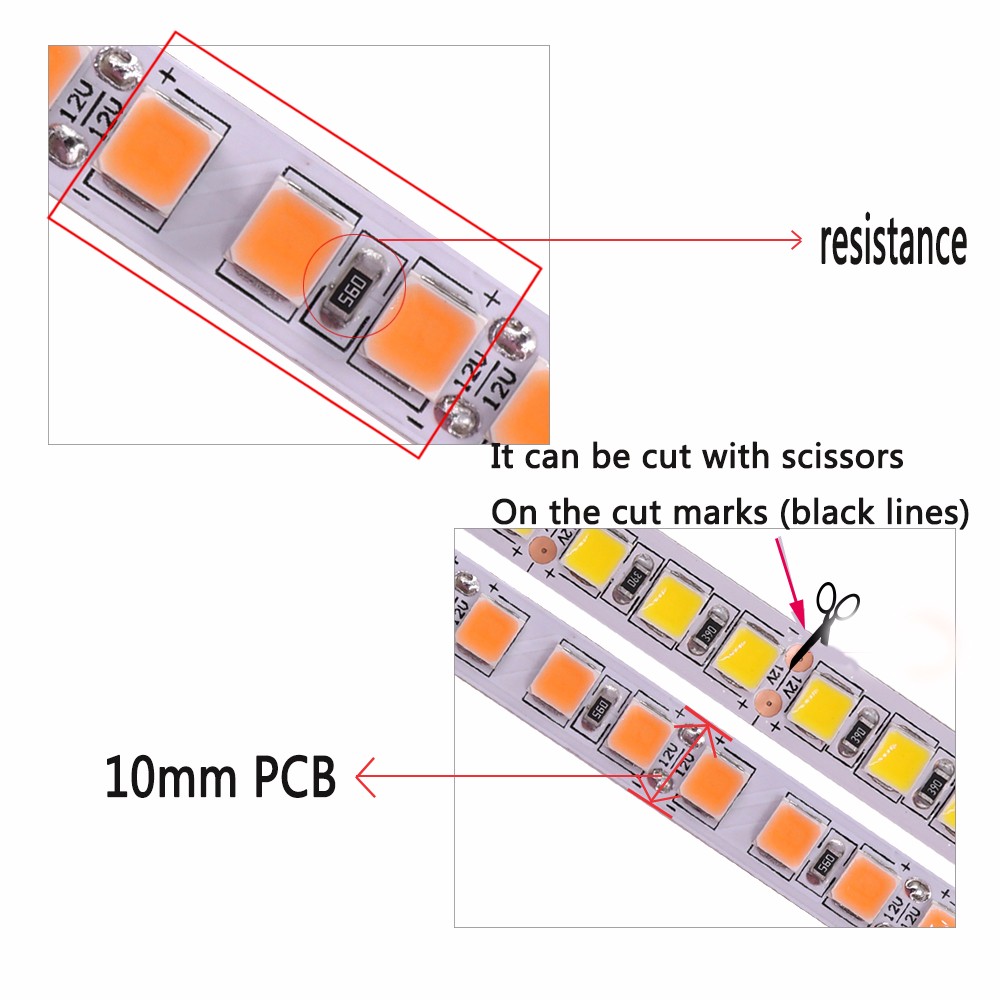

Our led quantities are 600LEDs of which every 3LEDs (DC12V) or 6LEDs (DC24V) can be cut, you can customize the length at the cutting point according to your own project requirements.

Product Specification

LED Strip Type: SuperLightingLED SMD Strip Lights

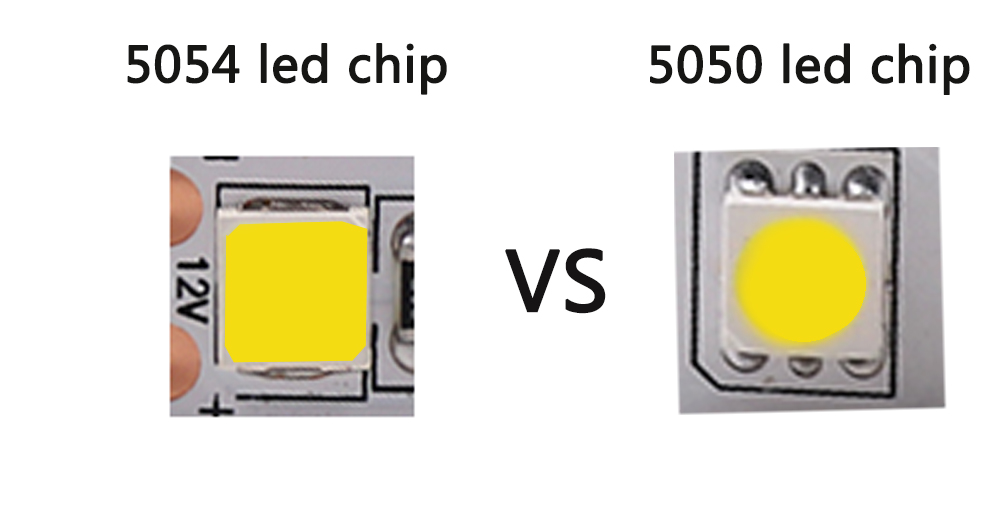

LED Chip: SMD5050

Input Voltage(V): 12/24V DC

LED Quantity: 120 LEDs/m

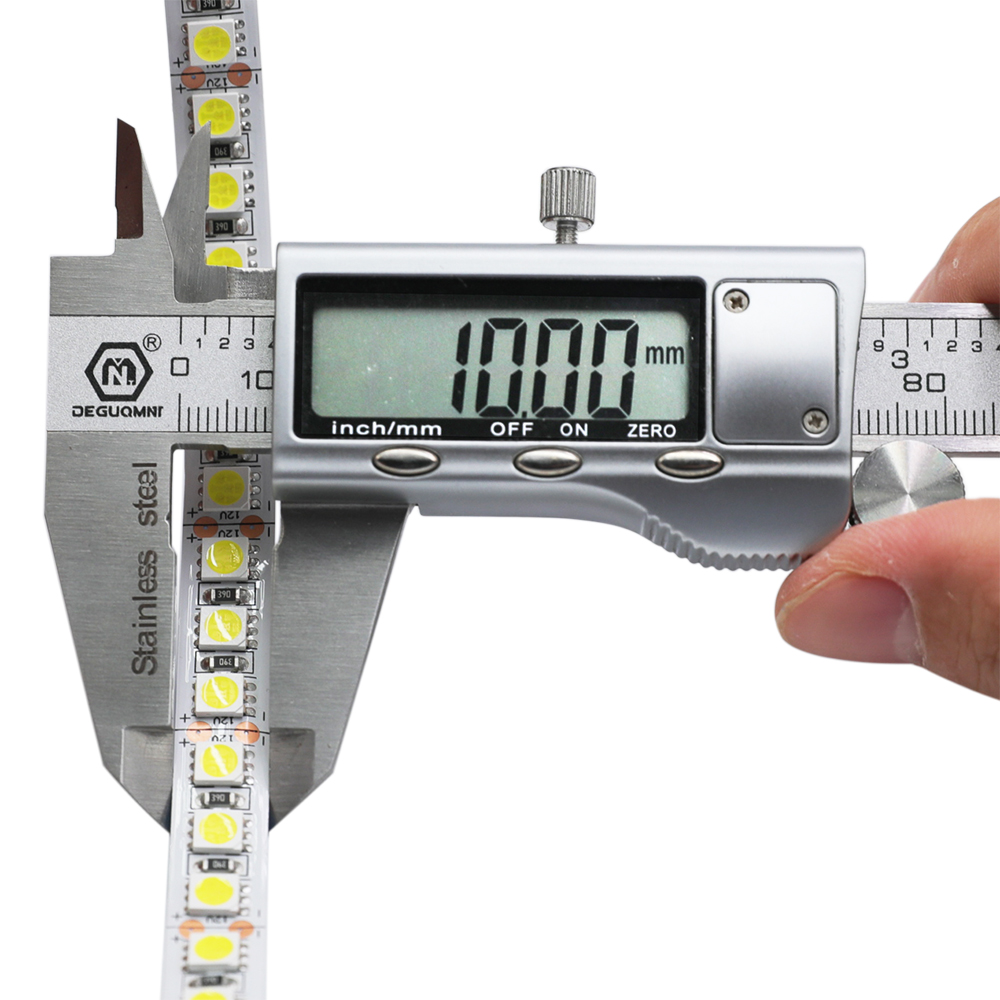

PCB Width: 10mm/0.39in

Working Power: 18w/m, 90w/Roll for high brightness. 14w/m, 70w/Roll for normal brightnss.

Light Color: 3000K / 4000K / 6000K / Red / Green / Blue / Pink

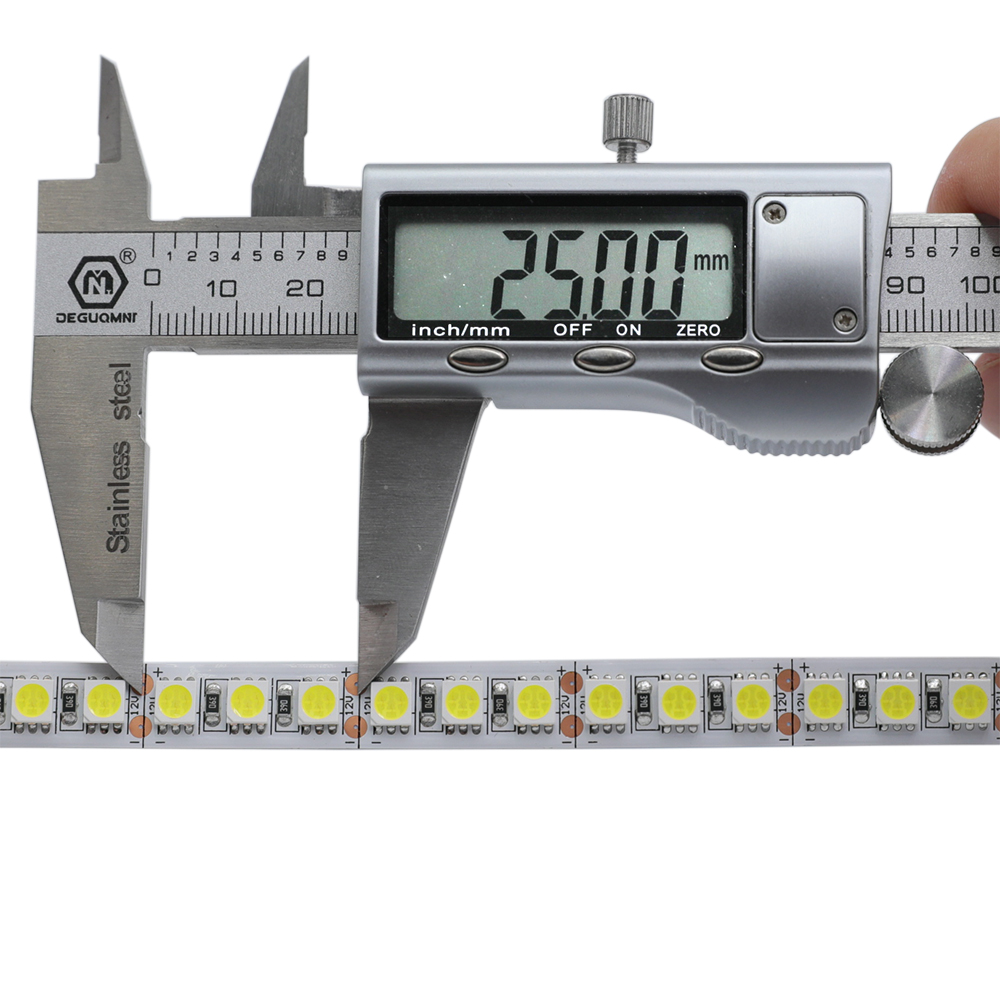

Dimension: 16.4ft/roll, every 3/6 PCS LED can be cut

Beam Pattern: 120 degree

Water Proof: Non-Waterproof IP20/ Waterproof IP67

CRI (Ra>): 80

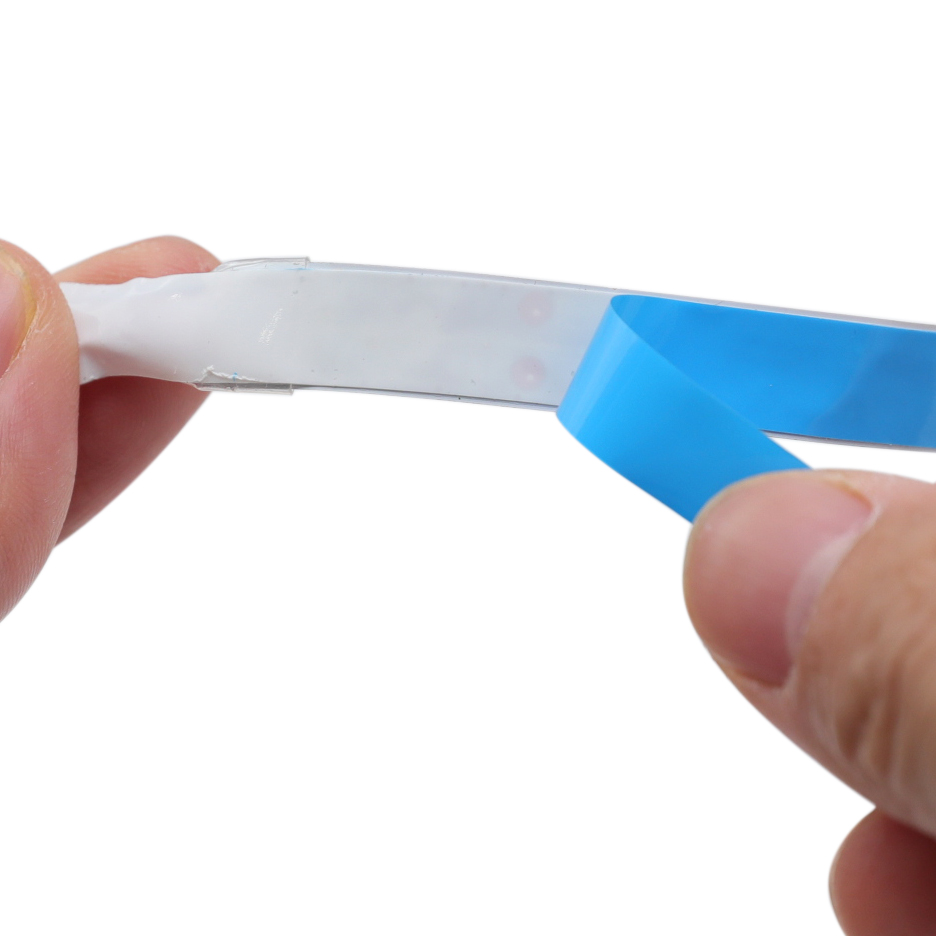

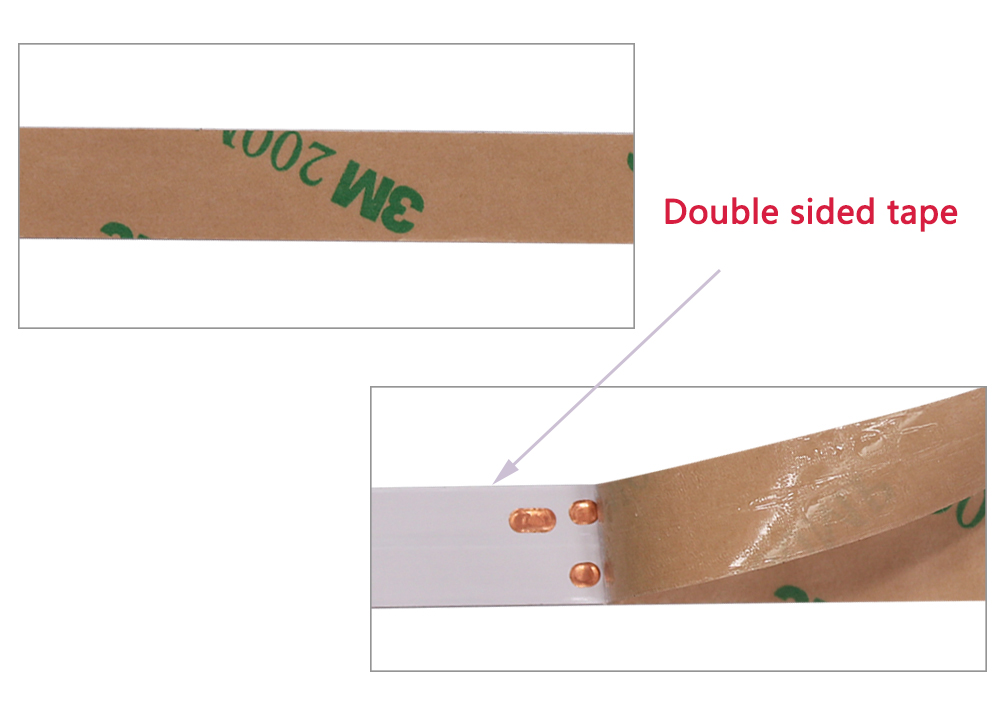

Installation: Adhesive backing

Outlet Cable: 2-pin power wires

Lead Time (excluding shipping): 1-2 workdays

Package List

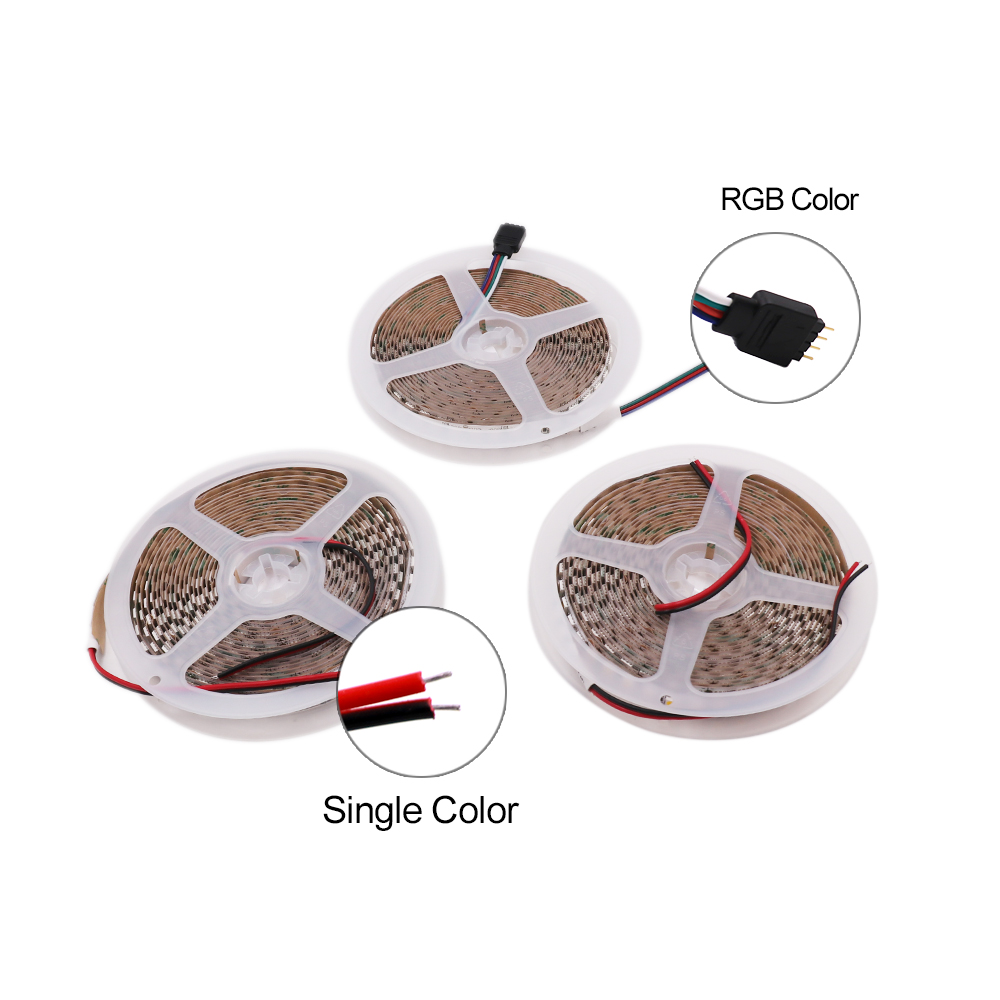

1 * 5m/16.4ft 5050 high-density 120/m led strip light

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for FSLSR-12V-5050X600X10

PDFFSLSR-12V-5050X600X10 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

What voltage does this LED strip light run on?

This model is offered in 24VDC · 12VDC. Lower voltage means a shorter run per feed: at 12 V feed power roughly every 5 m, at 24 V roughly every 10 m. Longer runs get power injected at both ends. Connecting to the power supply

Which waterproof rating should I choose?

Available on this model: Outdoor Silicone Tube IP67 - Adhesive Back · Outdoor Silicone Tube IP67 - With Brackets · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Which colour is right?

This model comes in Green · Blue · Red · Pink · Warm White(3000K) · Natural White(4000K). Warmer whites suit living spaces, cooler whites suit task and display lighting. Screens do not show colour temperature accurately — order a sample if the room matters. Warm white vs cool white
