Create clean, reliable connections for your 12mm 6-pin RGBCCT LED strips without touching a soldering iron. The SMD-RGBCCT-6P connector series is engineered to provide a fast and secure solution for extending strip runs or connecting them to a power source. What makes this connector unique is its specialized design to accommodate different LED densities. We offer distinct versions tailored for both low-density (approx. 60-72 LEDs/m) and ultra-high-density (84-120 LEDs/m) SMD RGBCW led tape lights, ensuring a perfect fit on the solder pads without obstructing any light output. Available in Strip-to-Strip and Strip-to-Wire configurations, these piercing-style connectors simplify complex lighting projects, from intricate under-cabinet layouts to long-run cove lighting, guaranteeing a professional and durable result.
Key Features
Dual-Density Compatibility
Features two distinct designs to perfectly fit both low-density (~60-72 LEDs/m) and high-density (84-120 LEDs/m) 12mm RGBCCT strips.
Solderless Connection
A secure piercing contact mechanism creates a strong electrical bond without the need for soldering, saving time and effort.
Versatile Connection Options
Available as a Strip-to-Strip connector for seamless extensions or a Strip-to-Wire connector for linking to a power supply or controller.
Unobtrusive 'No Block' Design
The compact form factor ensures the connector does not cover any LEDs, maintaining perfectly uniform light distribution.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | SMD-RGBCCT-6P |
| Connector Type | Solderless, Pierce-style |
| Pin Count | 6-Pin |
| Compatible PCB Width | 12mm (0.47") |
| Compatible Strip Type | SMD RGBCCT / RGBCW LED Strips |

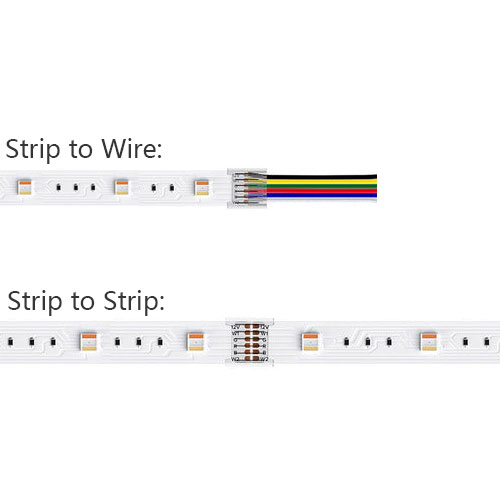

| Available Styles | Strip-to-Strip, Strip-to-Wire (with or without 10cm wire) |
| Compatible Wire Gauge | 20-24AWG |
| IP Rating | IP20 (For indoor, dry locations only) |

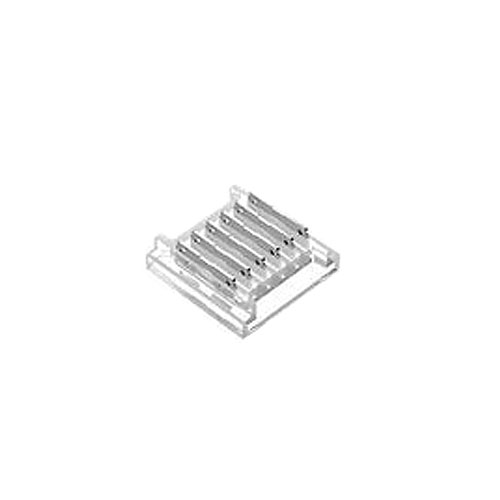

| Dimensions (Low-Density Version) | Top Size: 6.2mm*13.8mm, Base Size: 10mm*13.8mm |
| Dimensions (High-Density Version) | Top Size: 8.9mm*13.8mm, Base Size: 12mm*13.8mm |
| Housing Material | Polycarbonate |
| Contact Material | Copper |
Application Scenarios
How to Use This Solderless Connector
- Ensure the power is completely disconnected before installation.
- Choose the correct connector version for your strip: 'Low-Density' for strips around 60-72 LEDs/m, or 'High-Density' for strips from 84-120 LEDs/m.
- Cut your LED strip light cleanly along the marked copper cut line.
- Carefully slide the end of the LED strip into the connector, ensuring the 6 copper pads on the strip slide underneath the 6 metal contact prongs inside the connector.
- Verify the polarity markings on the strip align correctly.

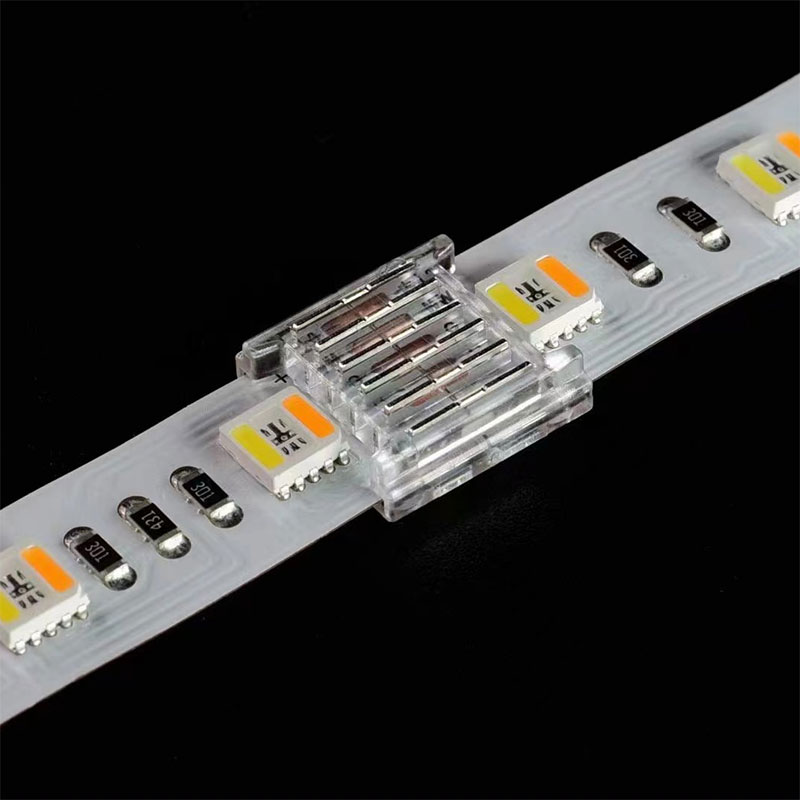

- Firmly press the transparent cover down until it clicks securely into place. This action pierces the strip's contact pads, creating a solid connection.
- For Strip-to-Wire connectors, ensure the wires are inserted into their corresponding channels before closing the clamp.
- The connection is complete, providing a seamless extension with no blocked LEDs.
- This connector is for IP20 non-waterproof LED strips only.
- Confirm your strip is 12mm wide and has a 6-pin RGBCCT configuration before purchasing.
- Using the incorrect density version may result in a poor fit or unreliable connection.
What's in the Box
- ✓1 x 6-Pin SMD RGBCCT LED Light Strip Connector (in your selected style)
Frequently Asked Questions
Q: What is the difference between the high-density and low-density connectors?
A:They are physically sized differently. The high-density version has a narrower top to fit the tighter spacing on strips with 84-120 LEDs/m, ensuring a secure connection without covering any light-emitting diodes. Always match the connector to your strip's density.
Q: What is the difference between a 'Strip to Strip' and 'Strip to Wire' connector?
A:A 'Strip to Strip' connector joins two pieces of LED strip together to create a longer, continuous run. A 'Strip to Wire' connector attaches a piece of LED strip to loose wires, which you can then connect to your RGBCCT controller or power supply.
Q: What wire size works with the strip-to-wire version?
A:The strip-to-wire connectors are designed for use with 20-24 AWG (American Wire Gauge) stranded or solid-core wire.
