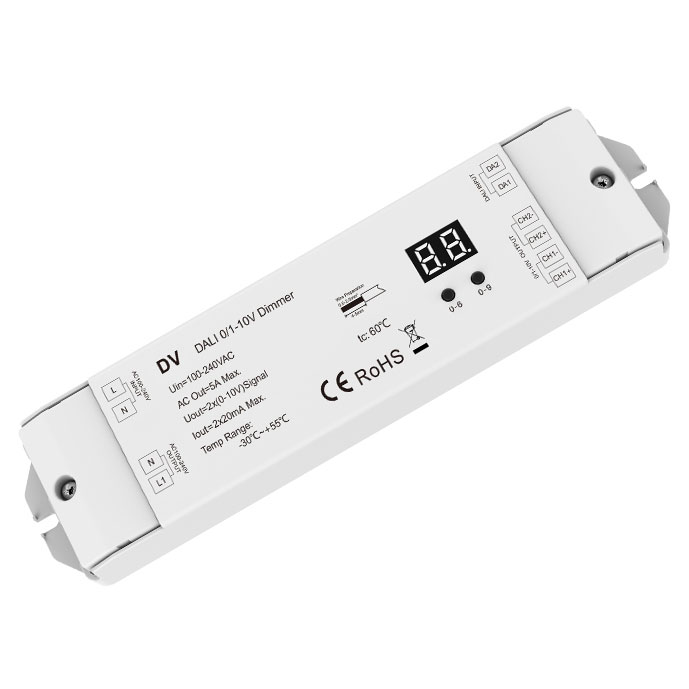

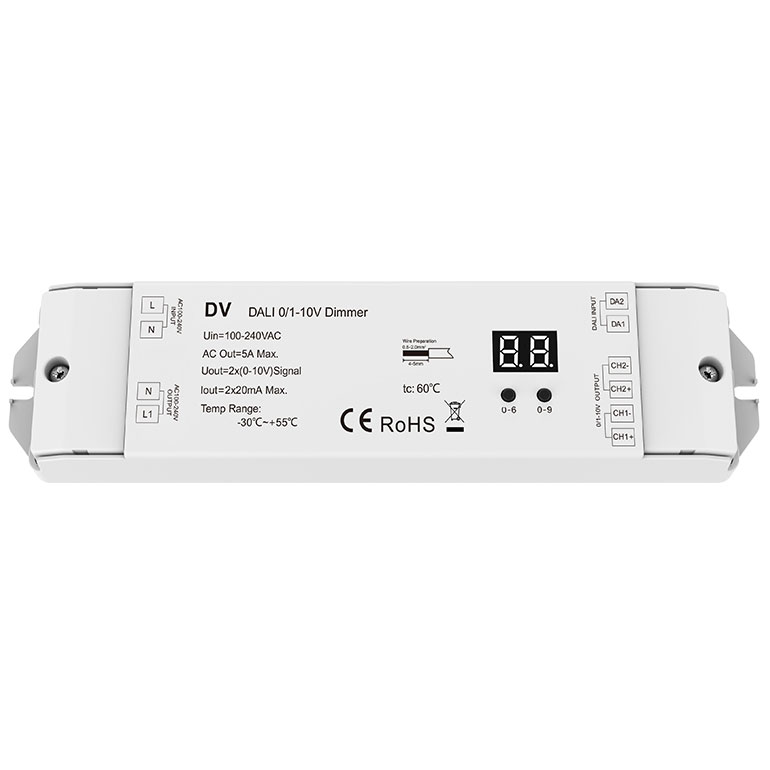

DALI 0/1-10V Dimmer DV. AC input/2 DALI address/2 channel 0/1-10V signal output.
● 2 DALI addresses, 2 channel 0/1-10V output.
● High voltage AC input, one high voltage AC relay output.
● 0-10V or 1-10V output selectable.
● In accordance with DALI standard protocol IEC 62386-101, IEC 62386-102, IEC 62386-206 and in compliance with DALI products from other international incorporation.
● DALI address can be manually assigned and shown on the digital display or automatically assigned by the DALI master.
Standards and Certifications
|Output signal:||2 x (1/1-10)VDC|
|Dimming range:||0 -100%|
|Operation temperature:||Ta: -30℃ ~ +55℃|
|Case temperature (Max.):||Ta: +60℃|

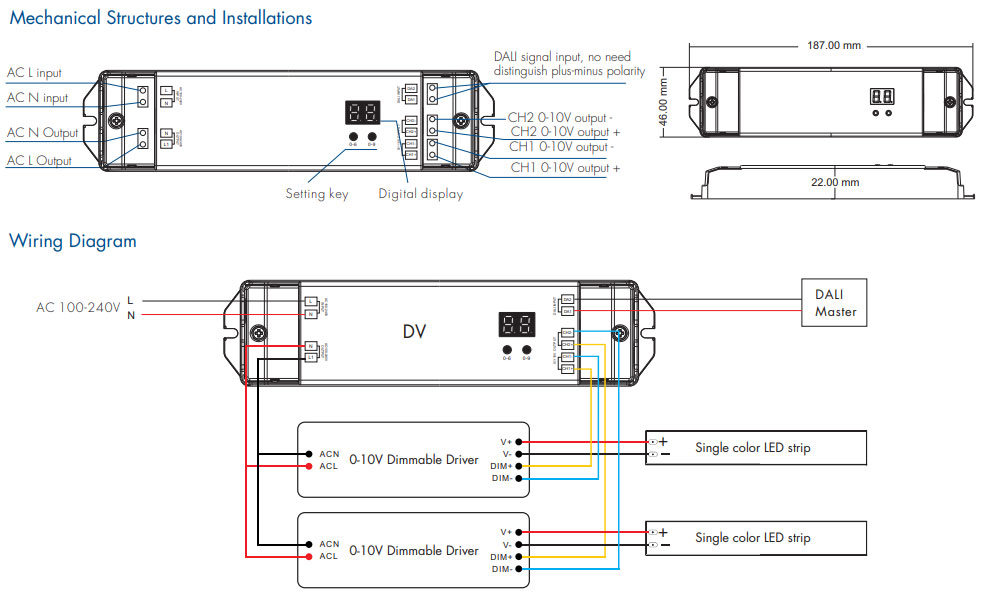

We recommend the number of LED drivers connected to the 0/1-10V dimmer (each channel) does not exceed 20 pieces, The maximum length of the wires from the dimmer to the LED driver should be no more than 30 meters.
