DC12V Diameter 3cm 2835/5050SMD Single color Pixel Module Outdoor Waterproof IP67 Point Light Led Pixel Light
1. Highlight 2835/5050 chip: high brightness, low light decay, stable quality.
2. Environmental protection PC housing: UV resistant, anti-aging, pressure resistant, non-yellowing.
3. Full filling glue waterproof perfusion: waterproof and dustproof, high temperature resistant, safe and durable.

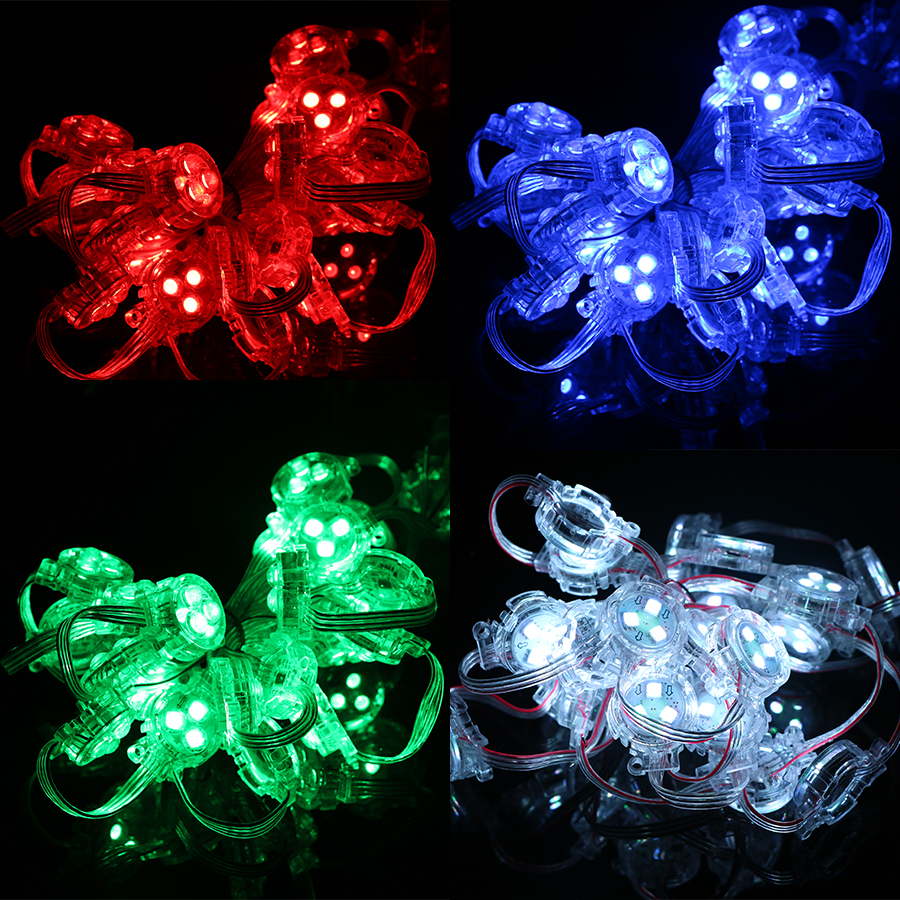

4. Luminous effect is divided into single color and full color, single color has Warm White/Daylight White/Yellow/Blue/Green/Red, full color is seven color gradual change, jump, full-color scanning, chasing, running water, stacking, horse lamp effect, can also use multiple point light source to form dazzle color screen, background screen, pattern, animation, and other effects.
Standards and Certifications
Item: 30mm Point Light LED Pixel Light
Type: Pixel Module Point Light
Size of chip: 5050/2835 SMD
Input voltage: DC12V
Rated power: 0.72 W/pcs
Light Color: Warm White/Daylight White/Yellow/Blue/Green/Red
Pixels diameter: 30mm

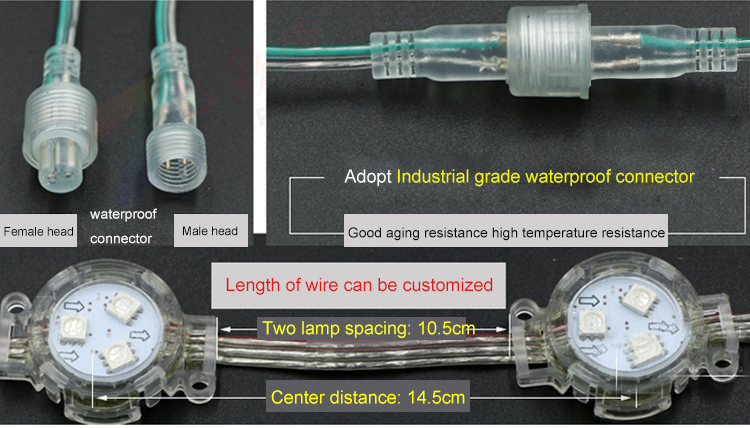

Center distance: 14.5cm

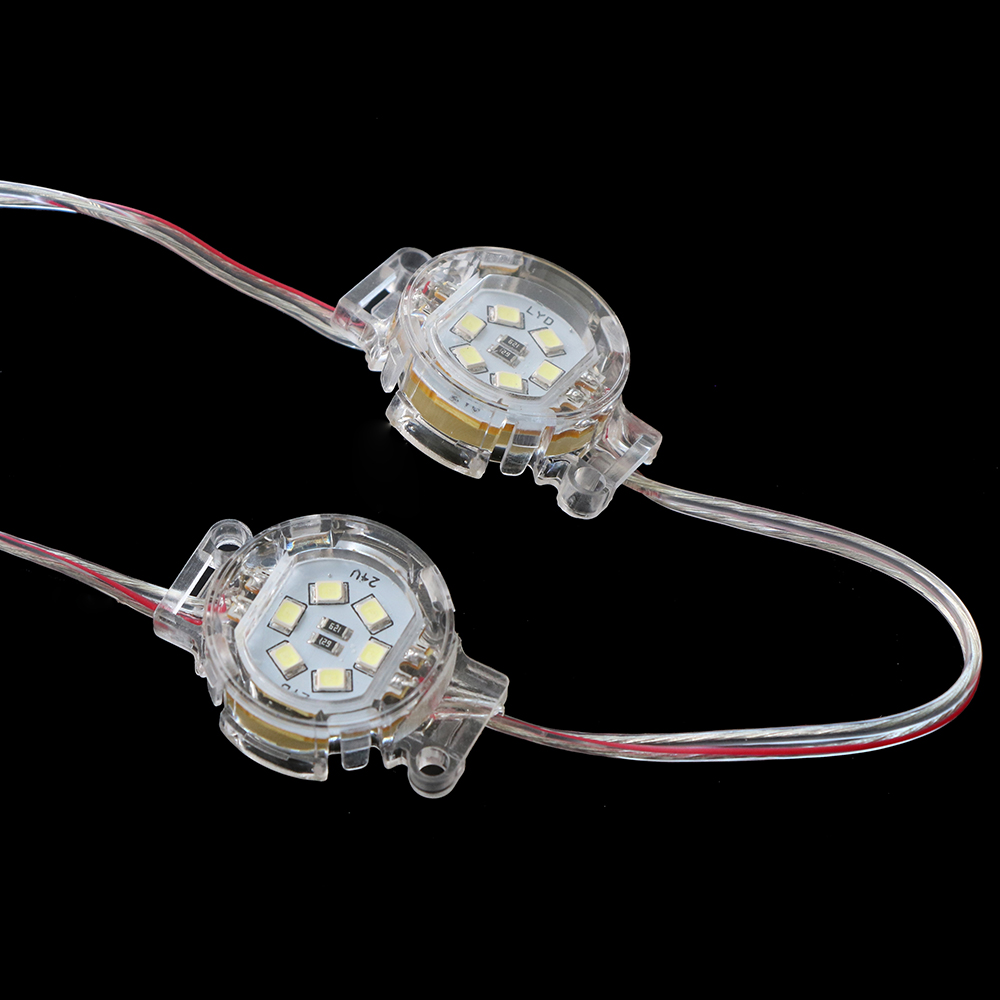

Two lamp spacing: 10.5cm
LED quality: 7 pcs/m, 30 pcs/string
Brightness: high brightness
Grey level: 256
Lighting angle: 120

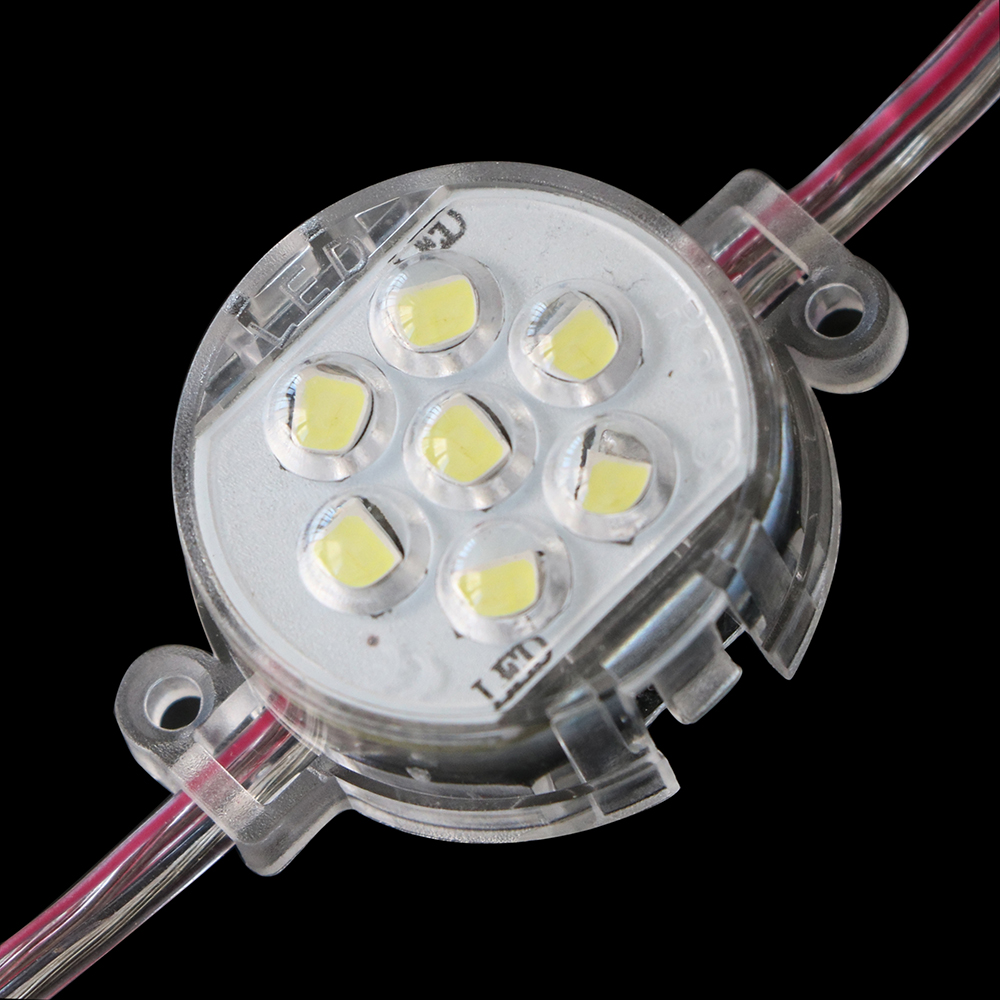

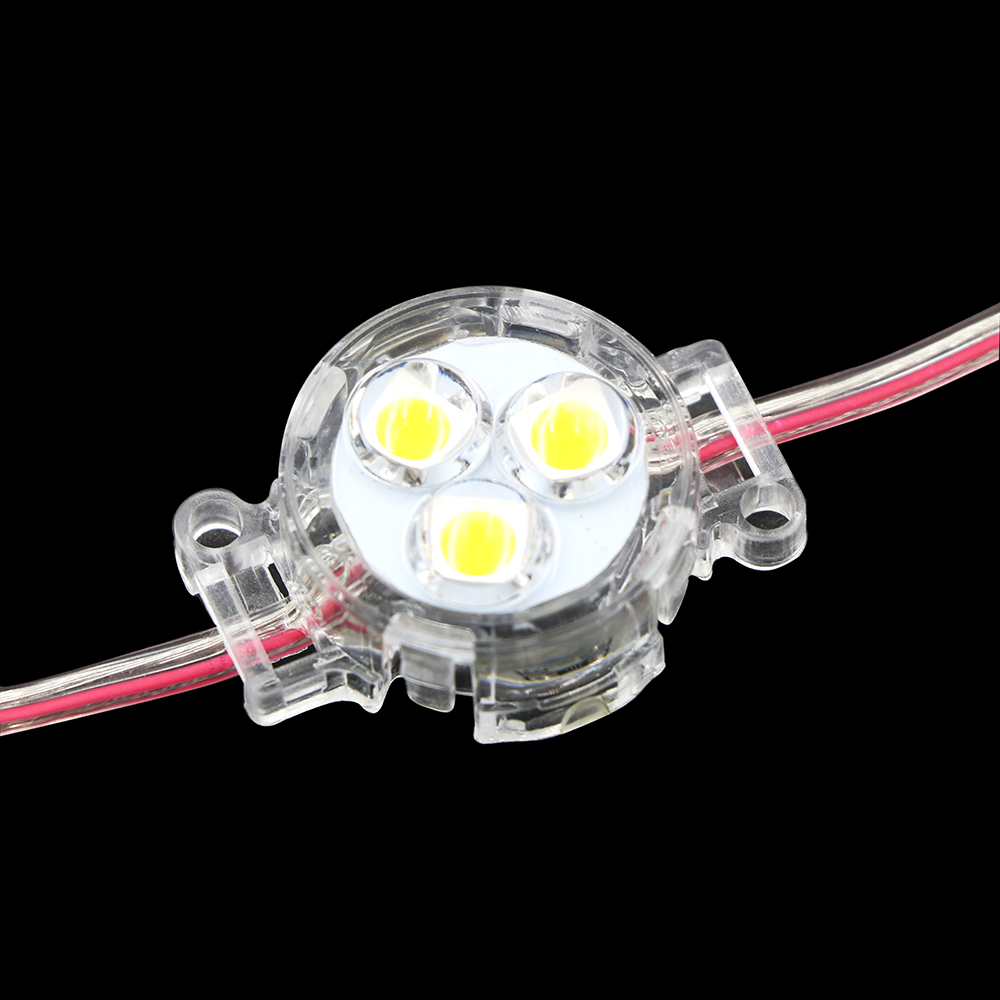

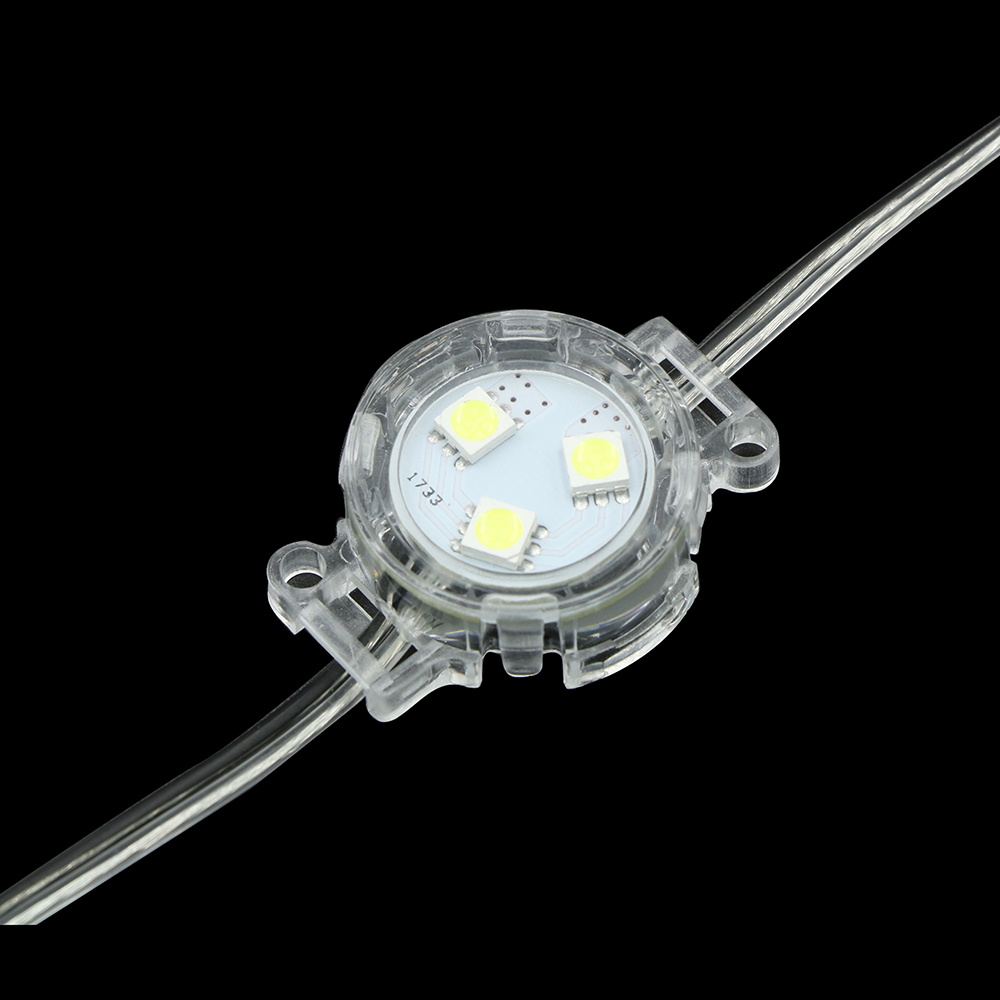

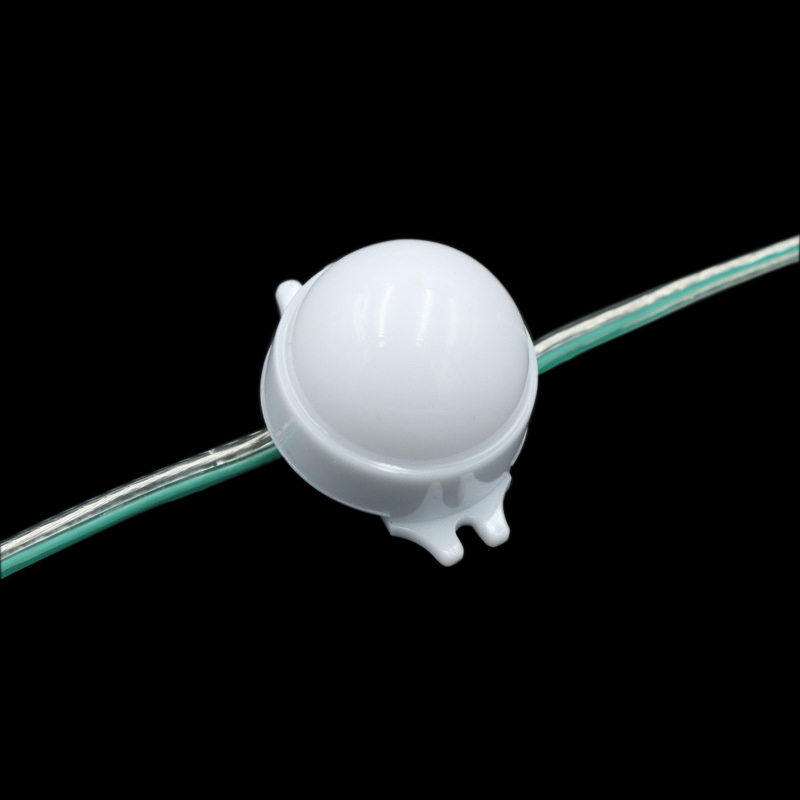

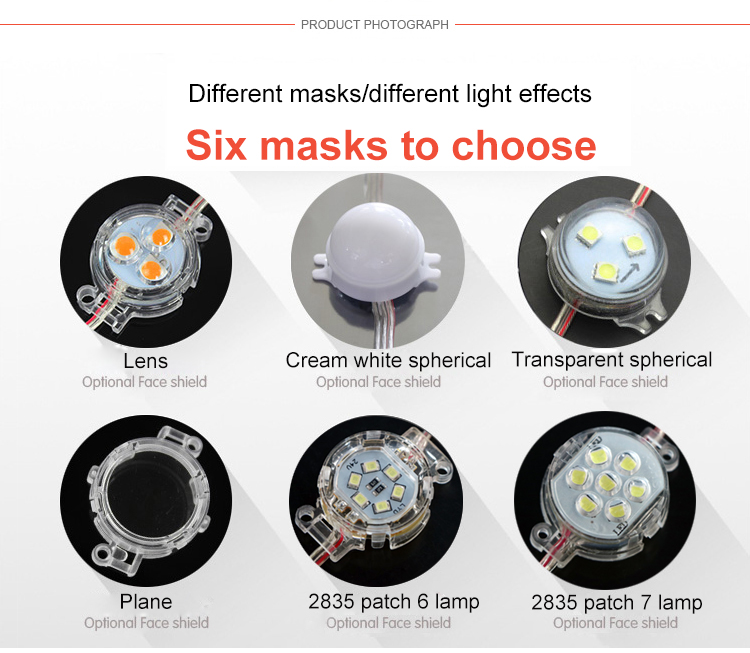

Color of masks: Lens/plane/ Cream white spherical /Transparent spherical /2835 patch 7 lamp /2835 patch 6 lamp
Luminous flux: 18-20LM
Material: Environmental PC shell
Power wiring diagram
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
three-dimensional light-emitting word
Channel letters lighting
Light boxes lighting
Landscape layout lighting
Stage decoration lighting
Cove LED lighting
Edge lit signs
Off grid lighting
