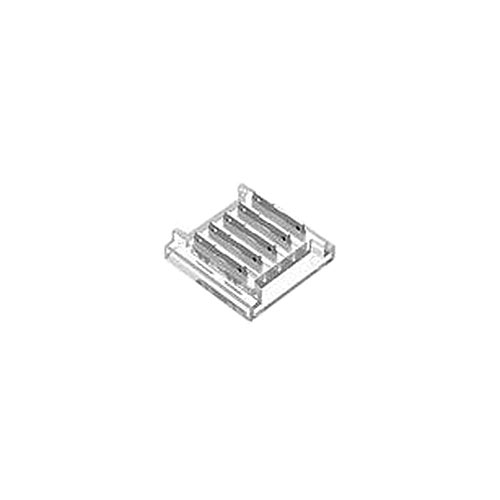

Product Information
Key Features
Solderless Clamp-Down Design
Features sharp piercing pins that create a secure, reliable connection by penetrating the strip's PCB or wire insulation with a simple squeeze of pliers.
High-Density Strip Compatible

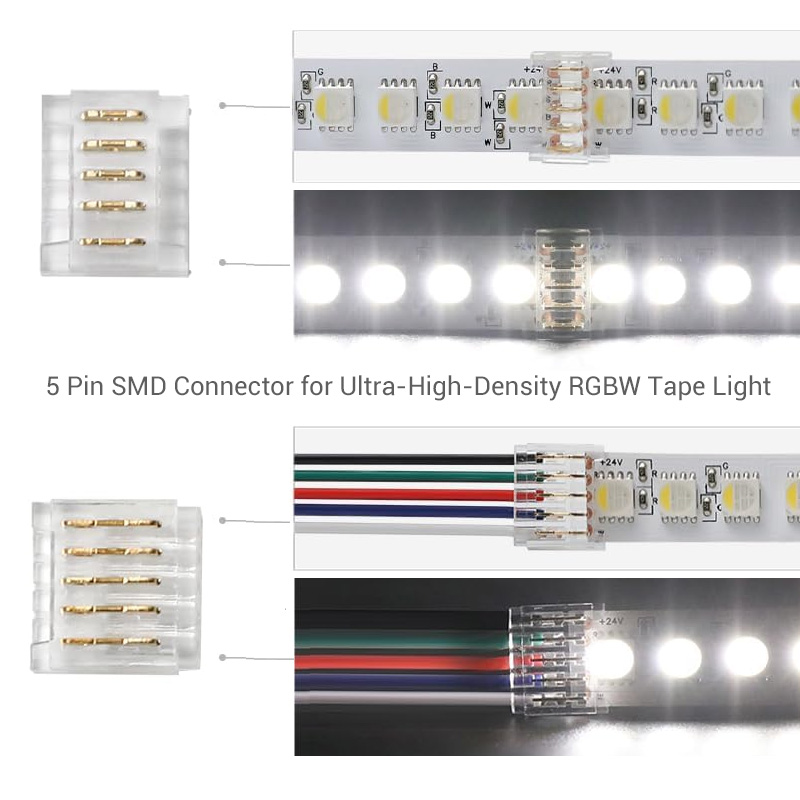

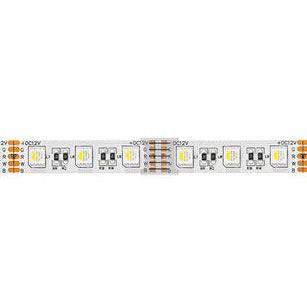

The compact, 'no block' design ensures the connector does not obstruct any LEDs, making it perfect for ultra-high-density strips from 84 up to 120 LEDs per meter.
Versatile Options
Choose from 10mm or 12mm PCB widths and select Strip-to-Strip for joining segments or Strip-to-Wire for connecting to a power supply or controller.
Broad Application
Fully compatible with a wide range of 5-pin RGBW strips, from standard low-density (60 LEDs/m) to high-performance versions.
Technical Highlights
- Designed for IP20 non-waterproof RGBW LED strips.
- Clear housing allows for visual confirmation of proper strip alignment.
Product Specifications

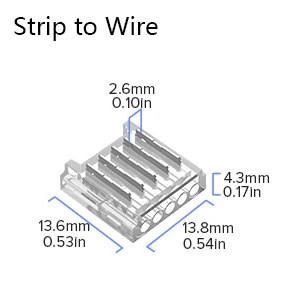

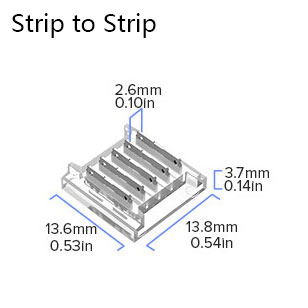

| Parameter | Details |
|---|---|
| Product Model | RGBW-SMD-STS |
| Pins | 5 |
| Connection Method | Solderless, Clamp-Down (Pliers Required) |
| Connector Type | Strip-to-Strip, Strip-to-Wire, Strip-to-Wire with 10cm Wire |
| Compatible PCB Width | 10mm (0.39in), 12mm (0.47in) |
| Compatible LED Strip | 5-Pin RGBW SMD LED Strips (IP20 Non-Waterproof) |
| Compatible LED Density | Low Density (60-72 LEDs/m) & High Density (84-120 LEDs/m) |
Application Scenarios
How to Use This Connector
- Ensure your LED strip is compatible (5-Pin, 10mm or 12mm width, IP20) and cut it cleanly along the designated cut line.
- Carefully slide the end of the LED strip into the connector, ensuring the five copper pads on the strip align perfectly with the five metal pins inside the connector.
- For Strip-to-Wire types, insert the 5 individual wires into their respective channels.
- Using a pair of pliers (such as slip-joint or channel-lock pliers), apply firm, even pressure directly on top of the connector cover. The pins will pierce through the PCB or wire insulation to make contact.
- Tug gently on the strip and wire to confirm a secure connection has been made before powering on.
- These connectors are intended for use with IP20 non-waterproof LED strips only.
- Always double-check the polarity alignment (+, R, G, B, W) before closing and clamping the connector.
- Do not apply excessive force with the pliers, as this may damage the connector or the LED strip.
- This is a one-time use connector; once clamped, the piercing connection is permanent.
What's in the Box
- ✓1x 5-Pin SMD LED Strip RGBW Connector (in your selected type and width)
Frequently Asked Questions
Q: What tools do I need to use this connector?
A:You will need a pair of standard pliers to press the connector shut. This action drives the pins through the strip's circuit board to establish a secure connection.
Q: Will this work with my high-density strip (120 LEDs/m)?
A:Absolutely. The ultra-high-density version of this connector is specifically designed with a compact profile that does not block LEDs, making it ideal for high-density RGBW strips up to 120 LEDs per meter.
Q: How do I choose between the 10mm and 12mm versions?
A:Measure the width of your LED strip's PCB (the bare board, not including any coating). Choose the connector size that matches your strip's PCB width to ensure a proper fit.
Q: What is the difference between Strip-to-Strip and Strip-to-Wire connectors?
A:A 'Strip-to-Strip' connector is used to join two separate lengths of LED strip together to create a longer, continuous run. A 'Strip-to-Wire' connector is used to connect the end of an LED strip to a 5-pin wire, which then connects to your power supply or controller.
