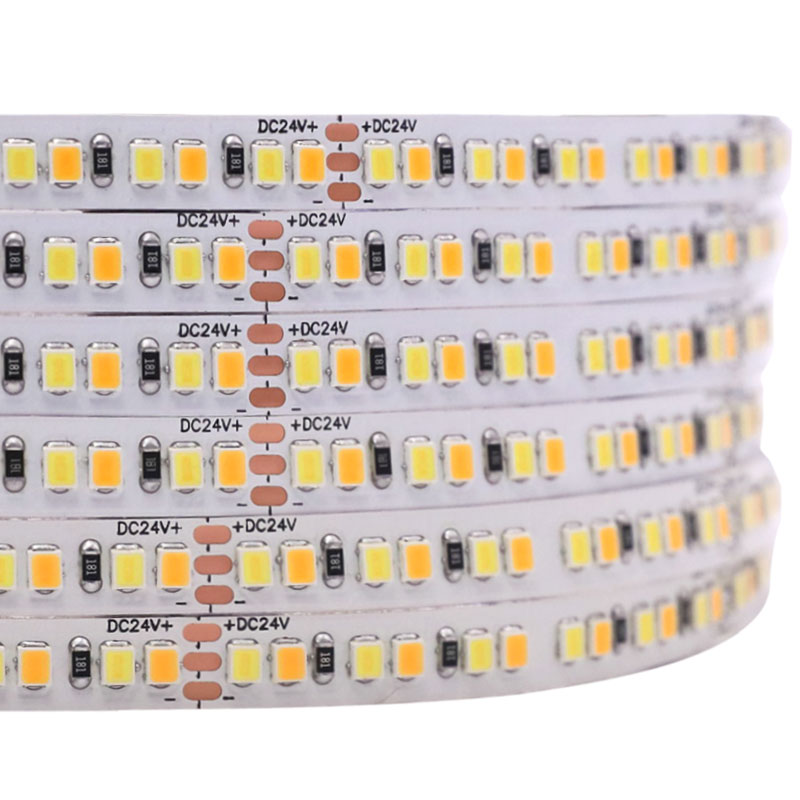

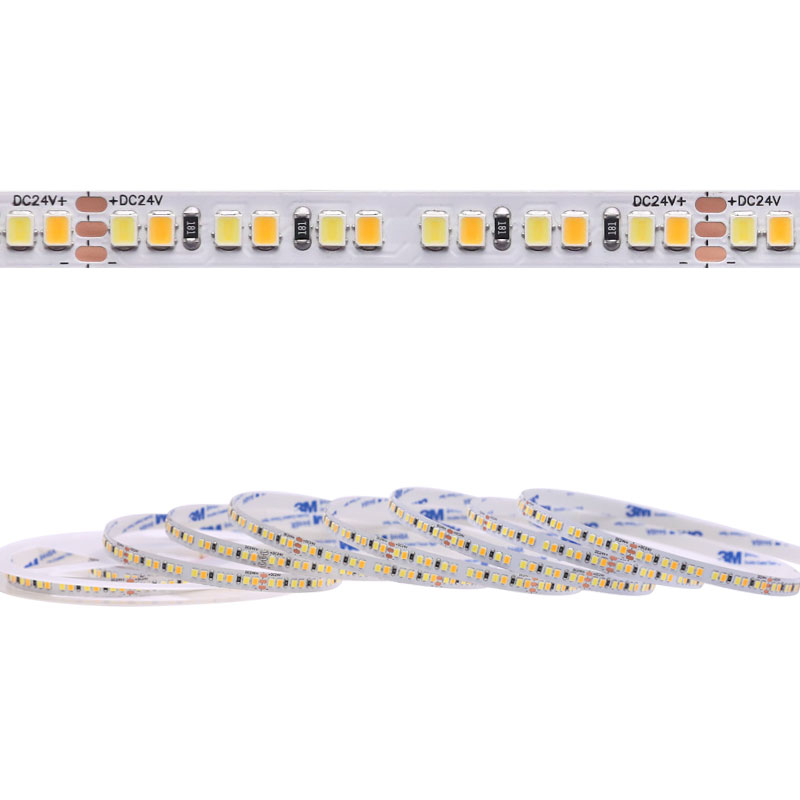

DC24V 8mm 2835 CCT Warm White + Daylight White Dimmable LED Light Strips

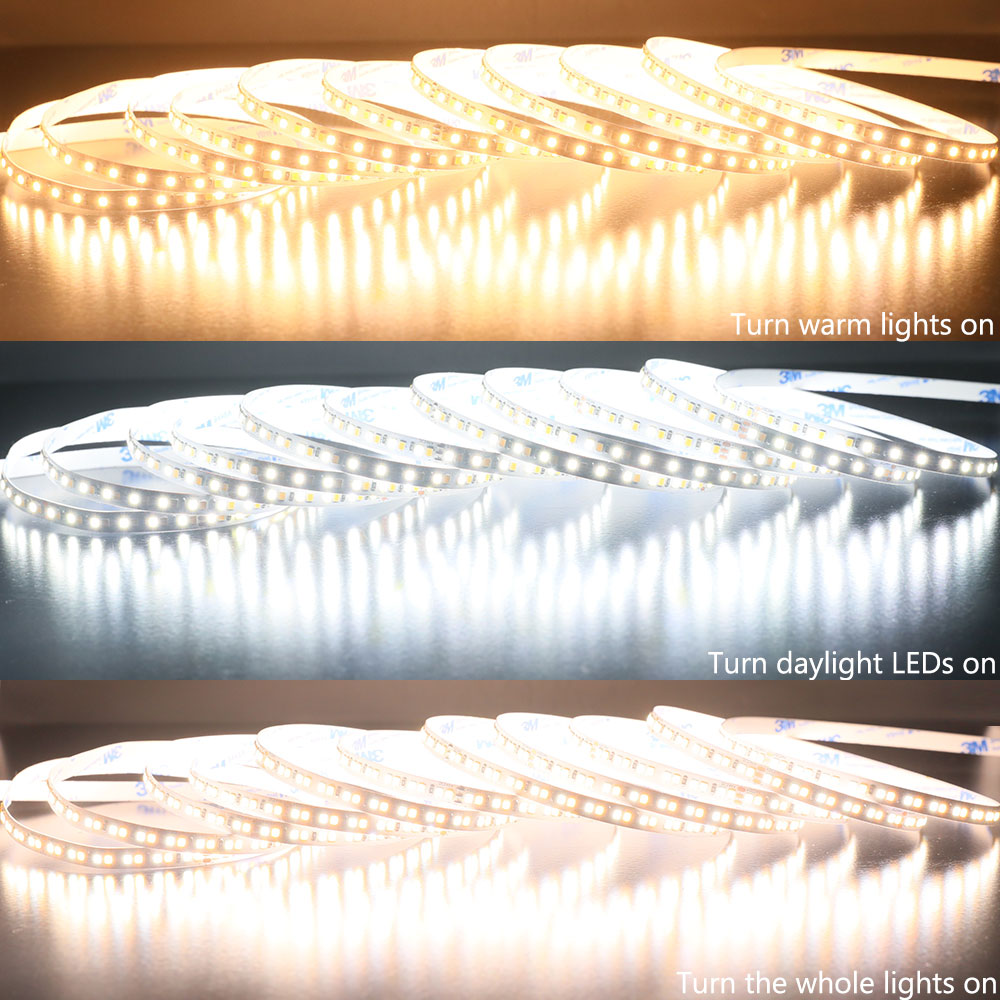

High density CCT dimmable led strip light with 192 lights per meter (96 warm white LEDs + 96 daylight white LEDs), warm white led lights and daylight white led lights are independent of each other, you can control the color temperature of all the lights or just turn on the warm white light or pure white light to suit your different activity needs. Warm white for rest and relaxation, and pure white for tasks, adapt to various applications like ceilings, under cabinets, under bed, background wall, etc. And it is perfect to make led neon lights with silicone led diffuser, no light spot and soft linear light.

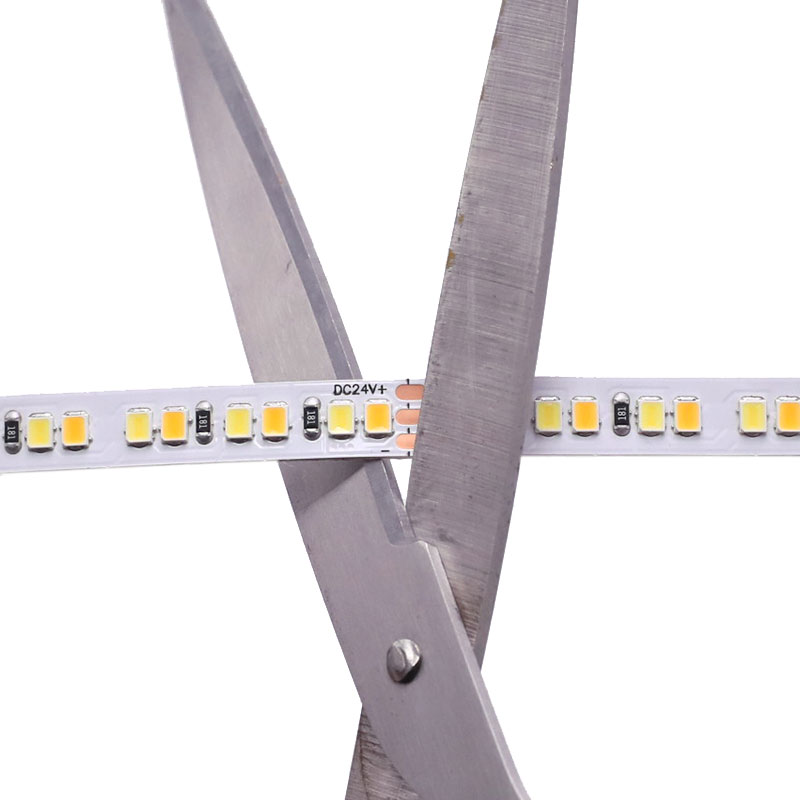

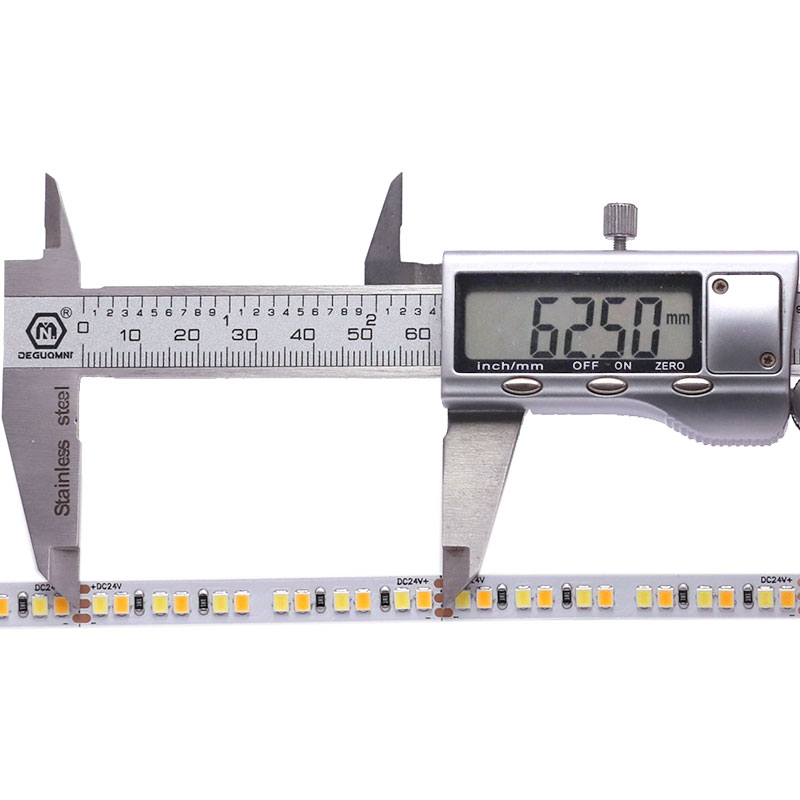

This dimmable led strip uses 2835 SMD LEDs, high efficiency, each 20.8mm/0.81" (4 lights) can be cut, you can cut the strip to your desired length with more accurate precision. This CCT tunable led strip light is powered by DC24V low voltage, matched with 24V led dimmer and 24V DC led power supply to use. If you choose the kit "LED Strip + Controller + Power supply", you will receive a CCT dimmable led strip, a CCT dimmer WB5, and a power adapter.
What does CCT mean in lighting?
CCT means correlated color temperature. Usually, the warm white light and pure white light are specifically expressed by Kelvin color temperature. The white light color temperature of CCT tunable white LED strip can be adjusted with white CCT dimmers from 3000K to 6500K(warm white/soft white to natural white to daylight white to cool white).
What is IP rating?
IP20 and IP65 for indoor use, and IP67 and IP68 for outdoor use. The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
Standards and Certifications
LED Strip Type: SMD 2835
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White+Daylight White
Dimension: 16.4ft/roll, every 4 PCS LED can be cut
LED Quantity: 192LEDs/m, 960LEDs/16.4 ft
Warantty: 3 years

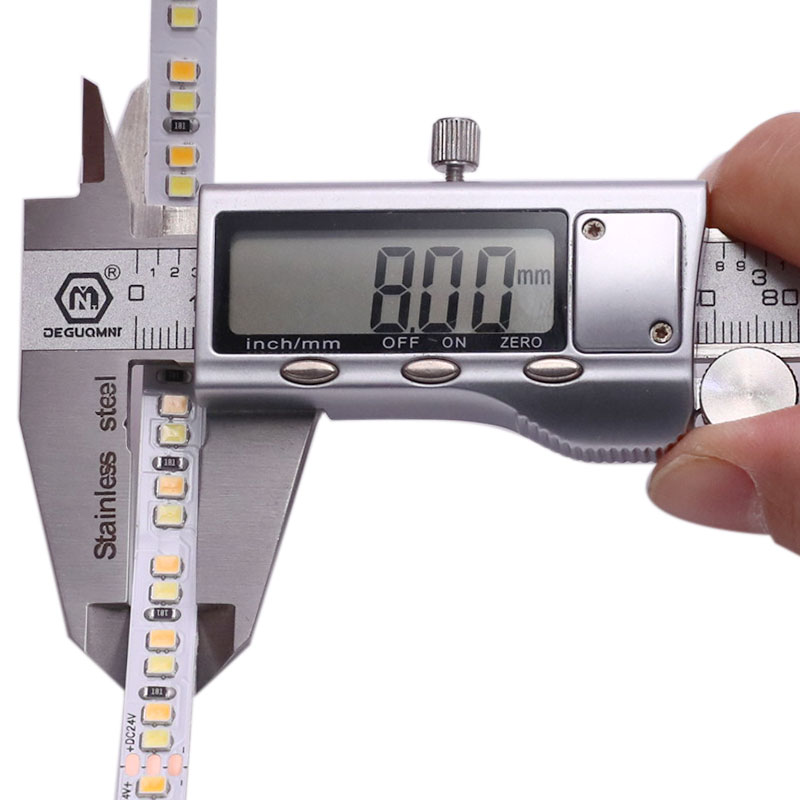

Dimensions: L500cm(196.8 in ) x W0.8cm(0.31in ) x H0.25cm(0.10 in )
Input Voltage(V): 24V DC
Working Power: 14W/m, 70W/16.4ft Max
Lamp Luminous Flux(lm): 7~8lm/LEDs 1525lm/16.4ft 93lm/ft 31.8lm/w
Color Temperature CCT(White): Warm White(2800-3500k), Natural white(4000-4500k) Daylight White(5000-6500k)
Beam Pattern: 120 degree
Water Proof: Non-waterproof; Waterproof IP65; Waterproof IP67; Waterproof IP68 Optional
