Touch Panel Dual Color LED Constant Voltage Controller T2

Model: SK-T2 Review stars 0.0 (0 Reviews) Various options in stock
Price$23.98
Qty Discounts Off Price
1-9
$23.98
10-99
$23.50
100-199
$22.78
200+
$21.82
* Discounts may vary based on options below
Select Specifications:
Select Input Voltage:
Qty: -+
❓ Ask a question about this item — an engineer replies within 12 hours
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Lights Guide

Product Information

The Skydance T2 wall-mounted touch controller regulates tunable white dual white CCT dimmable LED strips across a wide DC 12V to 48V operating range. Built with a tempered glass front plate and a central capacitive color wheel, this direct-wired controller delivers 2 channels of constant-voltage output rated at up to 5A per channel at 12-24V or 3A per channel at 36-48V. Unlike standalone handheld remotes, the T2 acts as both an in-wall driver interface and a 2.4GHz wireless receiver, syncing with an optional secondary RF CCT remote control up to 30 meters away. Onboard DIP switches allow manual selection of 2KHz or 8KHz PWM frequencies alongside dual mixing curves (50% or 100% full natural white power). Available in standard white and black finishes, the T2 mounts into standard 86-size European wall boxes.

arrow
Capacitive touch slider wheel allowing smooth CCT tuning between warm and cool white
arrow
2.4GHz wireless remote synchronization supporting operational distances up to 30 meters

Key Features

Direct Load Terminal Output

Drives dual-channel constant-voltage tunable white circuits directly without an auxiliary receiver box, handling up to 10.5A total input.

Dual Color Touch Wheel

Features a continuous glass wheel for stepless color temperature adjustments between warm white and cool white, supplemented by dedicated 10-level brightness keys.

2KHz and 8KHz PWM Selection

Internal DIP switch allows switching to 8KHz high-frequency output to prevent camera flicker in video studios, conference spaces, and broadcast installations.

4 Programmable Scene Presets

Stores up to 4 custom brightness and color balance scenes with one-touch recall and includes an integrated scene locking function to prevent unauthorized overwrites.

2.4GHz RF Receiver Integration

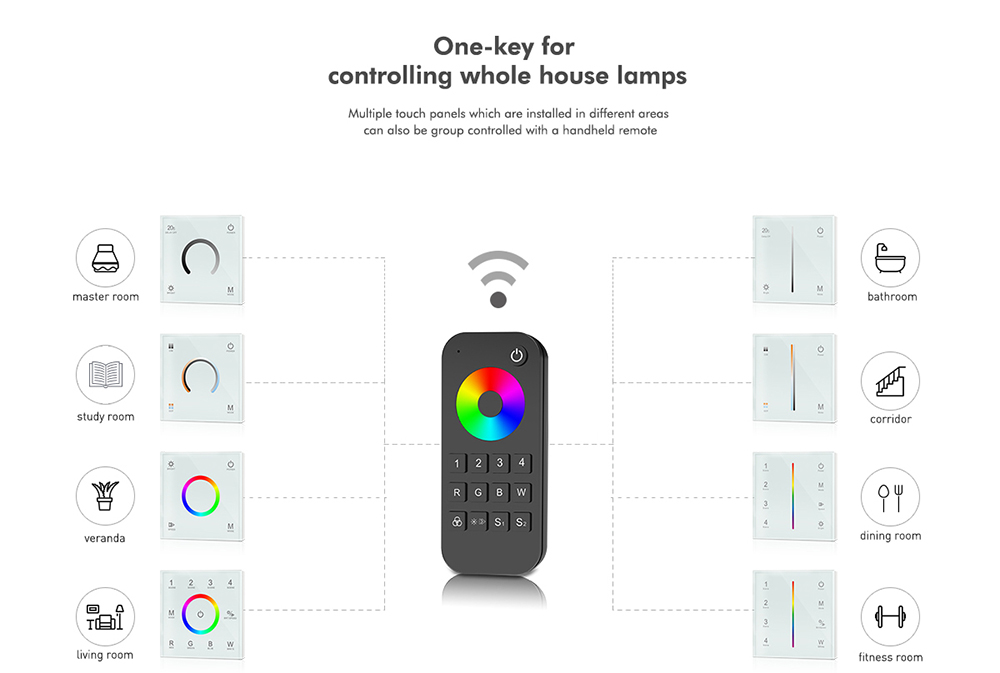

Pairs wirelessly with optional Skydance handheld remotes or wireless multi-zone transmitters across unobstructed distances up to 30 meters.

Selectable Natural White Modes

Configurable via DIP switch 2 to deliver either balanced 50% warm white + 50% cool white or maximum brightness 100% warm white + 100% cool white in natural white mode.

Technical Highlights

  • Wide DC 12V to 48V operating range accommodates residential 12V/24V tape and long-run 48V LED strip circuits.
  • Delivers 120W at 12V (2x5A), 240W at 24V (2x5A), and up to 288W at 48V (2x3A) directly from screw terminal blocks.
  • Smooth stepless capacitive touch response with subtle LED status indicators for real-time visual feedback.

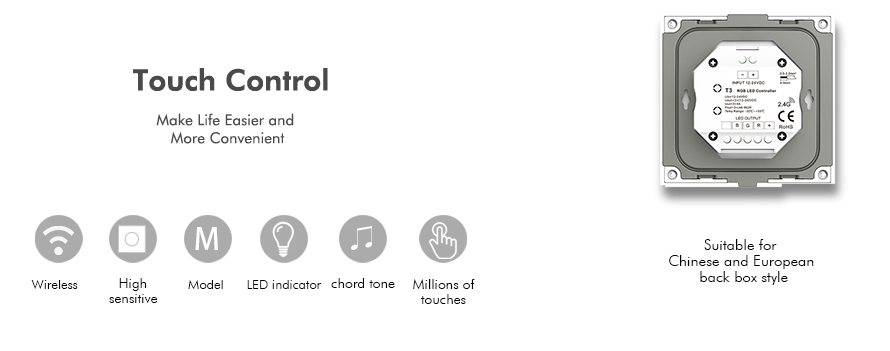

  • Supports standard 86-type European flush mount junction boxes with 60mm screw pitch spacing.
  • Built-in over-temperature and electrical protection conforming to EN 62368-1 safety standards and CE/RED directives.
  • Zero mechanical wear with solid tempered glass front panel resistant to scratches, dust, and daily commercial use.
arrow

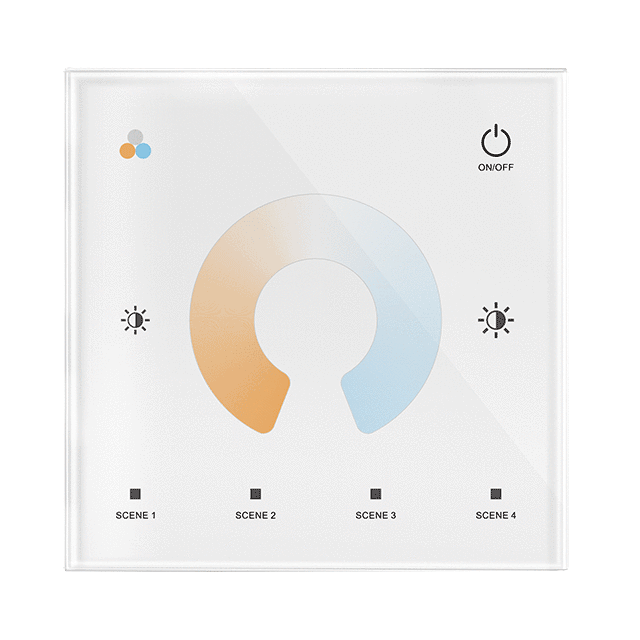

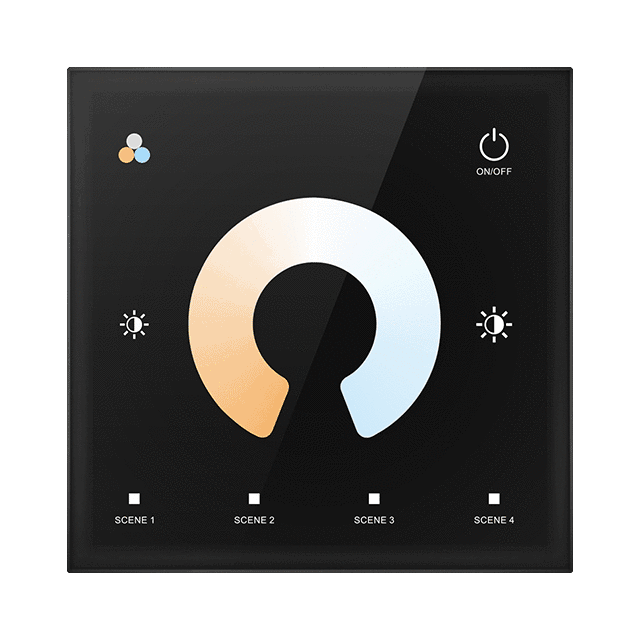

Tempered glass touch panel with color temperature adjustment wheel and backlit indicators

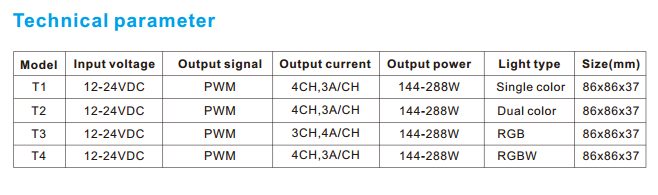

Product Specifications

ParameterDetails
Model NumberSK-T2
Input VoltageDC 12V - 48V
Input Current10.5A max
Output Voltage2 x (DC 12V - 48V)
Output Current2 Channels, 5A/CH @ 12-24VDC; 3A/CH @ 36-48VDC
Output Power120W (12V), 240W (24V), 288W (48V)
Output TypeConstant Voltage PWM
PWM FrequencySelectable 2KHz or 8KHz via DIP switch
Supported Light TypeDual Color CCT (Tunable White)
Dimming Range0 - 100% (10 preset stepping levels on keys)
RF Frequency2.4GHz (ETSI EN 300 328 V2.2.2)
Wireless Control RangeUp to 30m line-of-sight
Scene Storage4 Programmable Scenes (Lockable)
Operating Temperature-30°C to +55°C (Ta)
Maximum Case Temperature+85°C (Tc)
Safety StandardsEN 62368-1:2020+A11:2020
EMC StandardsETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4
CertificationsCE, EMC, RED, RoHS
Panel Dimensions86 mm x 86 mm x 33 mm
Panel Bezel Thickness11.5 mm
Net Weight / Gross Weight0.180 kg / 0.230 kg
arrow

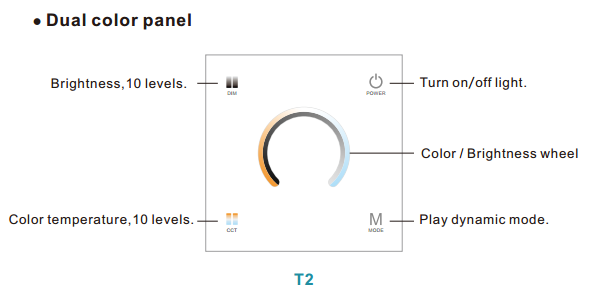

Touch interface layout showing quick CCT switching buttons and 4 programmable scene keys

Application Scenarios

Residential Circadian Bedroom & Living Lighting Integrate the T2 as a clean touch of white dimmer switch on living room or bedroom walls to cycle dual white CCT dimmable LED strips from crisp 6000K morning illumination down to cozy 2700K evening tones without app latency.
Video Studios & Broadcast Conference Rooms Utilize the 8KHz PWM setting to eliminate high-speed camera rolling shutter flicker. Production crews can balance cool key lights with warm fill fixtures while maintaining uniform video exposure.
Hospitality & Restaurant Architectural Coves Mount in staff utility areas or dining entryways to automate mood settings. Staff can lock preset scenes 1 through 4 to ensure consistent, shift-based lighting transitions throughout breakfast, lunch, and dinner.
Commercial Office & Co-Working Fitouts Standardize control panel led lights across meeting rooms. Direct connection to a centralized 24V power supply ensures clean wiring runs to linear tunable white extrusions with zero wireless interference.

How to Control & Use This Controller

  1. 1. Disconnect line power before installation. Prepare standard 0.5-2.0mm² wiring stripped 4-5mm.

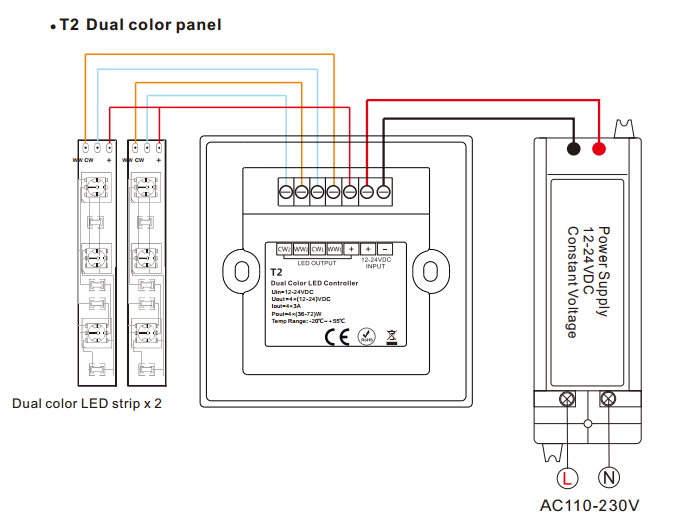

  2. 2. Connect the positive and negative leads from an external DC 12-48V constant voltage driver to the INPUT V+ and V- terminals.
  3. 3. Connect the common positive of the tunable white LED strip to terminal V+, cool white negative to CW, and warm white negative to WW.
  4. 4. Configure DIP Switch 1 for desired PWM frequency (Position 1: 2KHz default; Position 2: 8KHz for camera flicker-free setups).
  5. 5. Configure DIP Switch 2 for natural white mixing mode (Position 1: NW=50%WW+50%CW; Position 2: NW=100%WW+100%CW).

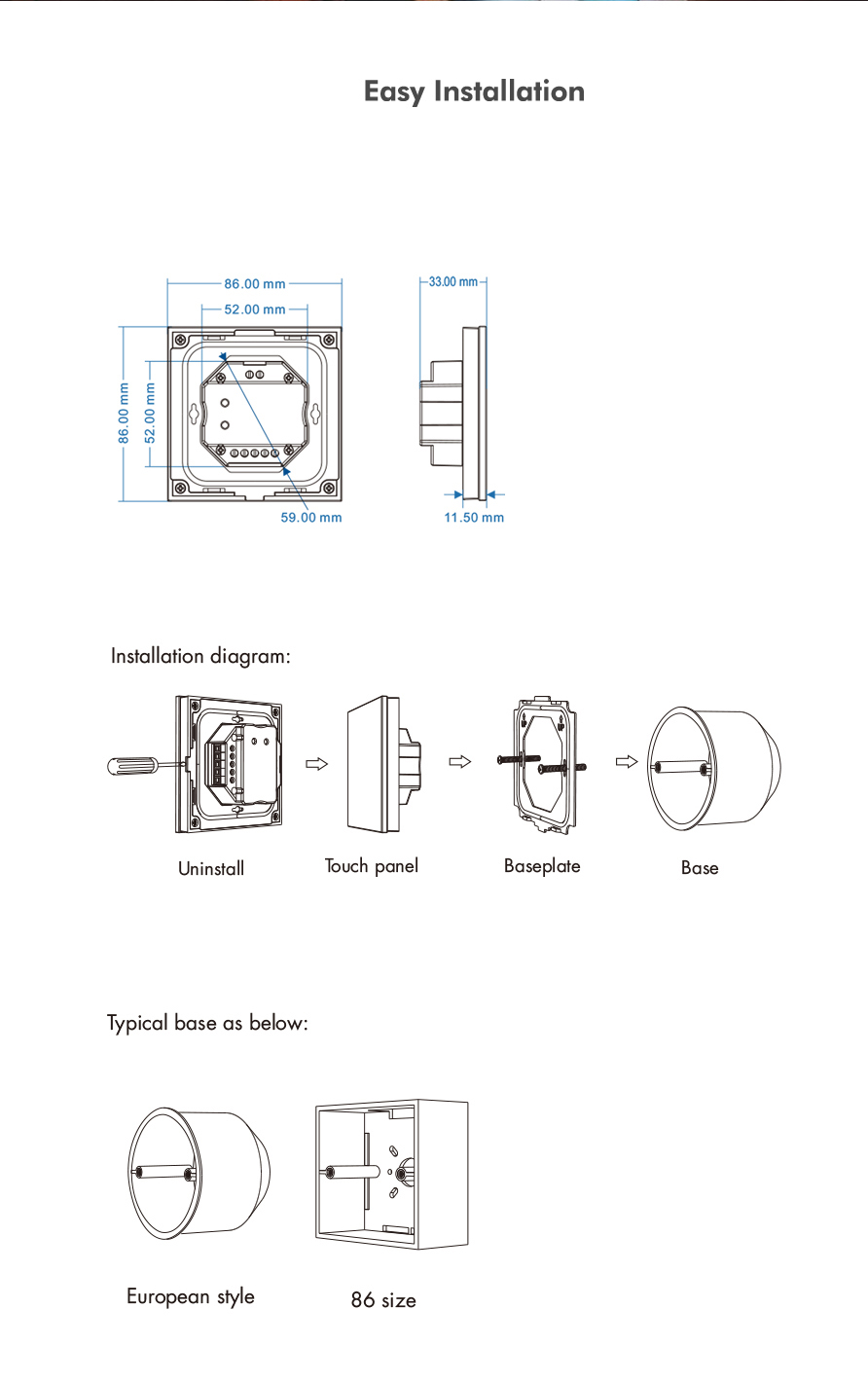

  6. 6. Mount the baseplate into an 86-type wall backbox with supplied screws, then snap the touch glass panel assembly into place.
  7. 7. To pair an optional 2.4GHz RF remote: Turn light on, turn off, immediately press the panel On/Off key for 5s, then press the remote On/Off or Zone key within 5s. The indicator flashes 3 times upon success.
  8. 8. To save a scene: Adjust desired color temperature and brightness, then long press scene key 1, 2, 3, or 4 for 5 seconds.
  9. 9. To lock scenes: Turn light on, turn off, immediately press On/Off for 5s, then immediately long press any scene key for 5s. (Repeat holding for 10s to unlock).
⚠ Precautions
  • Do not connect AC 100-240V mains power directly to the T2 panel; it requires an external constant-voltage DC 12V-48V power supply.
  • Ensure the power supply output voltage strictly matches the working voltage of the connected LED strip.
  • Do not exceed the current thresholds: 5A per channel at 12-24VDC, or 3A per channel at 36-48VDC. For higher loads, install a constant voltage power repeater.
  • Higher PWM frequency (8KHz) reduces maximum load capacity slightly and may increase power driver noise; use 2KHz unless video recording flicker is an active concern.
  • Install away from high electromagnetic interference sources to maintain optimal 2.4GHz wireless communication stability.

What's in the Box

  • ✓1 x Skydance T2 Wall Mount Dual Color CCT Touch Panel Controller
  • ✓1 x User Operation & Wiring Manual

⇩ Downloads & Documents

PDFT1 T2 T3 T4 touch panel controller user guide

Frequently Asked Questions

Q: What is the difference between the Skydance T2 and a standard remote panel like the TW2?

A:The Skydance T2 contains an internal 2-channel PWM controller that wires directly to your LED strip lights and DC power supply. In contrast, battery-powered remote panels like the TW2 only transmit wireless signals and require a separate receiving controller box like the V2 to operate the lights.

Q: what is dmx controller for led lights and is the T2 a DMX unit?

A:A DMX controller sends digital serial data packets over a daisy-chained bus to addressable fixtures or decoders in stage and architectural systems. The Skydance T2 is not a DMX device; it is a direct constant-voltage PWM dimmer that receives local touch inputs and 2.4GHz RF wireless signals.

Q: Can I use the T2 controller with single-color or RGB LED strips?

A:The T2 is specifically engineered for 2-channel dual-color tunable white (CCT) LED strip systems. For single-color dimming, select the T1 model, and for RGB or RGBW color-mixing arrays, choose the T3 or T4 models respectively.

Q: how to change xbox controller led color using this wall panel?

A:The Skydance T2 is designed strictly for hardwired architectural DC 12V-48V lighting circuits and cannot interface with, reprogram, or alter internal gaming console controller LEDs.

Q: Why would I choose 8KHz PWM frequency over the standard 2KHz?

A:Standard 2KHz PWM dimming is imperceptible to human eyes but can create visible banding lines on high-frame-rate digital cameras. Setting the internal DIP switch to 8KHz eliminates video rolling-shutter flicker in commercial studios and broadcast rooms.

Q: What happens if my tunable white LED strip circuit requires more than 10A total current?

A:If your total load exceeds 10A (5A per channel at 12-24V), you can expand output capacity by wiring a constant voltage power repeater between the T2 output terminals and additional LED strip runs.

Q: Can multiple T2 touch panels control the same LED strip circuit?

A:Because the T2 directly powers the load, two T2 units cannot be wired in parallel to the exact same LED strip segment. However, you can pair a wireless 2.4GHz handheld remote or secondary RF wall transmitter to the T2 to gain multi-point control.

Q: Does the T2 support scene locking for commercial public areas?

A:Yes, holding the On/Off button for 5 seconds after power-cycling, followed immediately by holding any scene button for 5 seconds, locks scenes 1 through 4 so guests or visitors cannot overwrite preset lighting configurations.
