DC24V COB 2pin CCT LED Strip Light 5mm Ultra Thin

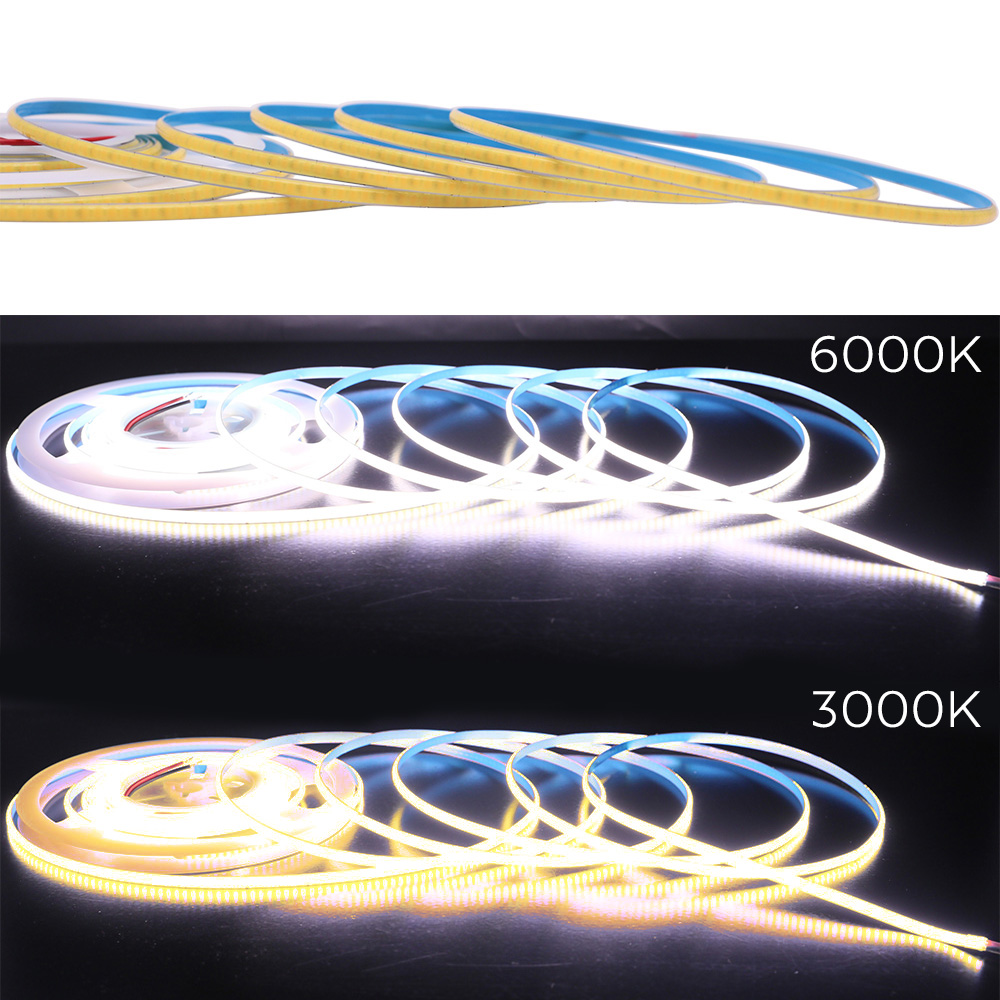

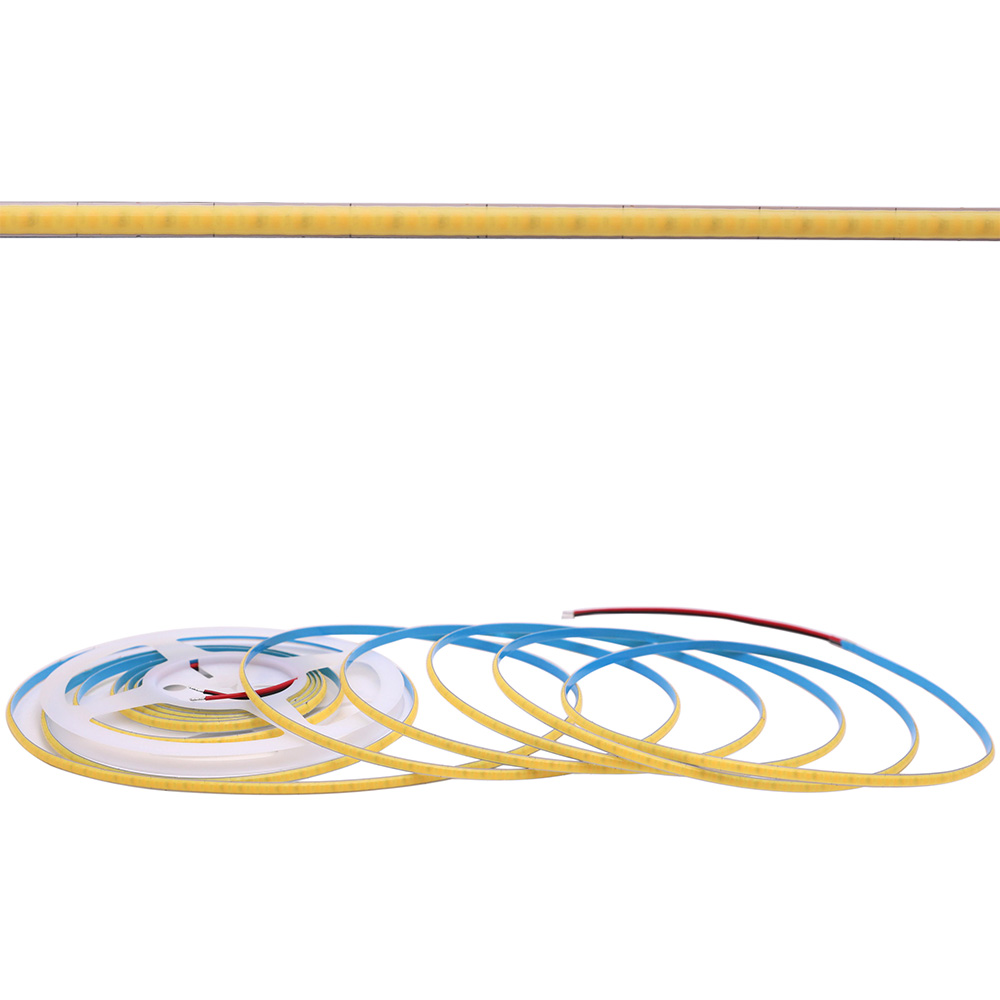

Check this 5mm ultra thin led strip light with COB LEDs, more LED chips are integrated on the FPCB board, 600 COB LED lights per meter, high density, high brightness, is a special 2pin CCT dimmable led light strip, with the V2-S CCT 2 wires led strip controller and the RF CCT remote can adjust the white light color temperature from 3000K warm white to 6000K pure white, suitable for narrow installation places or restricted places.

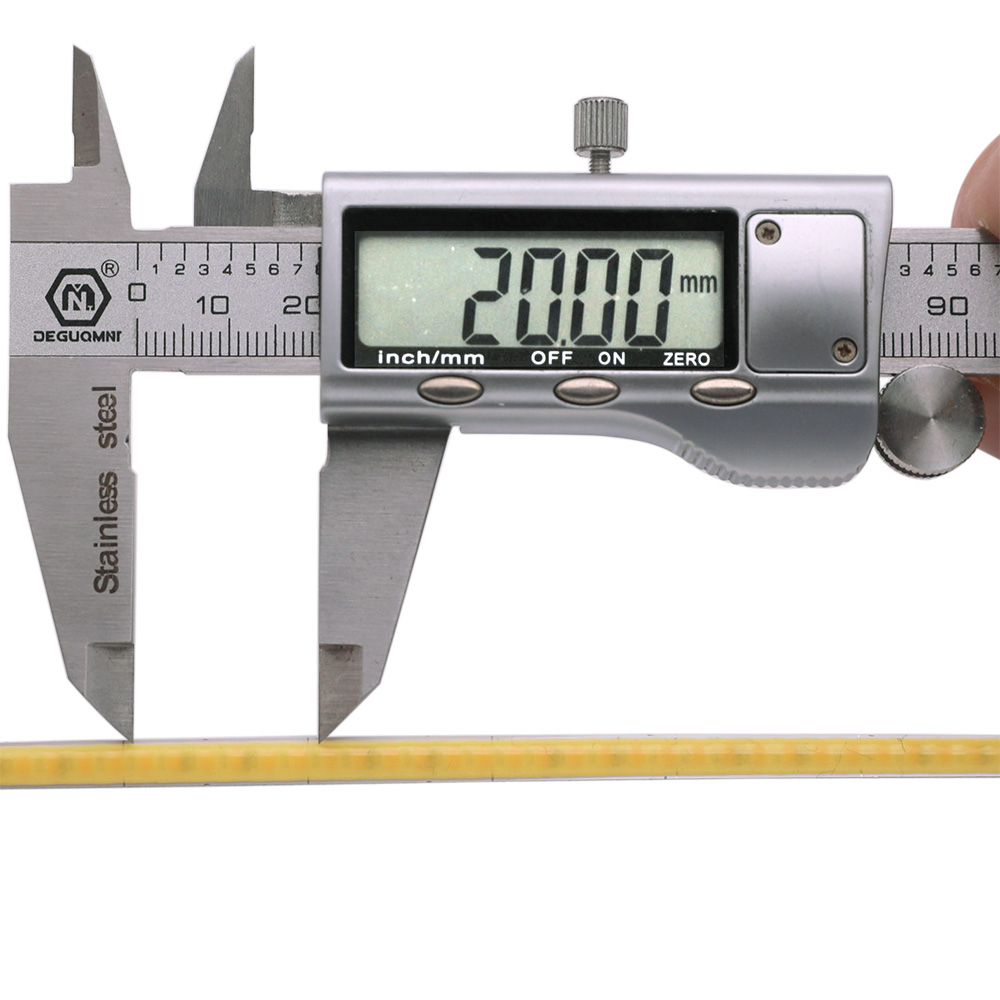

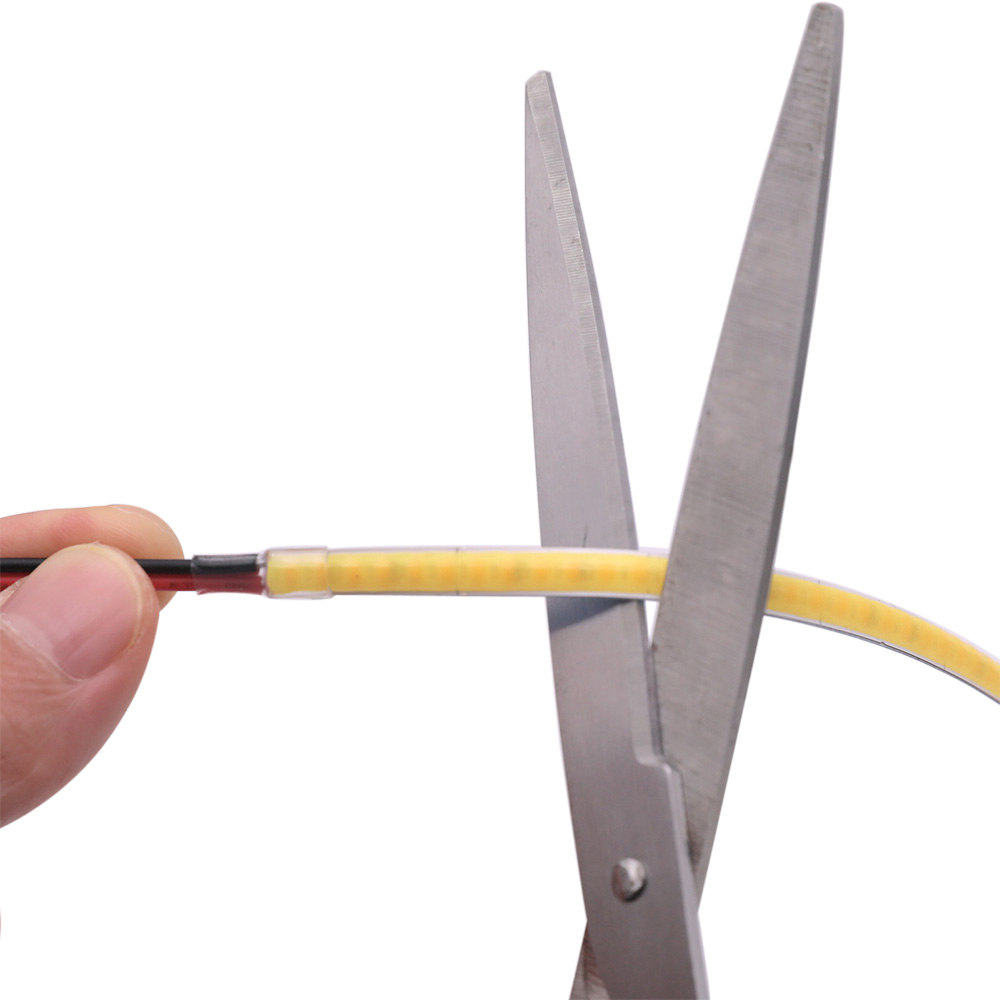

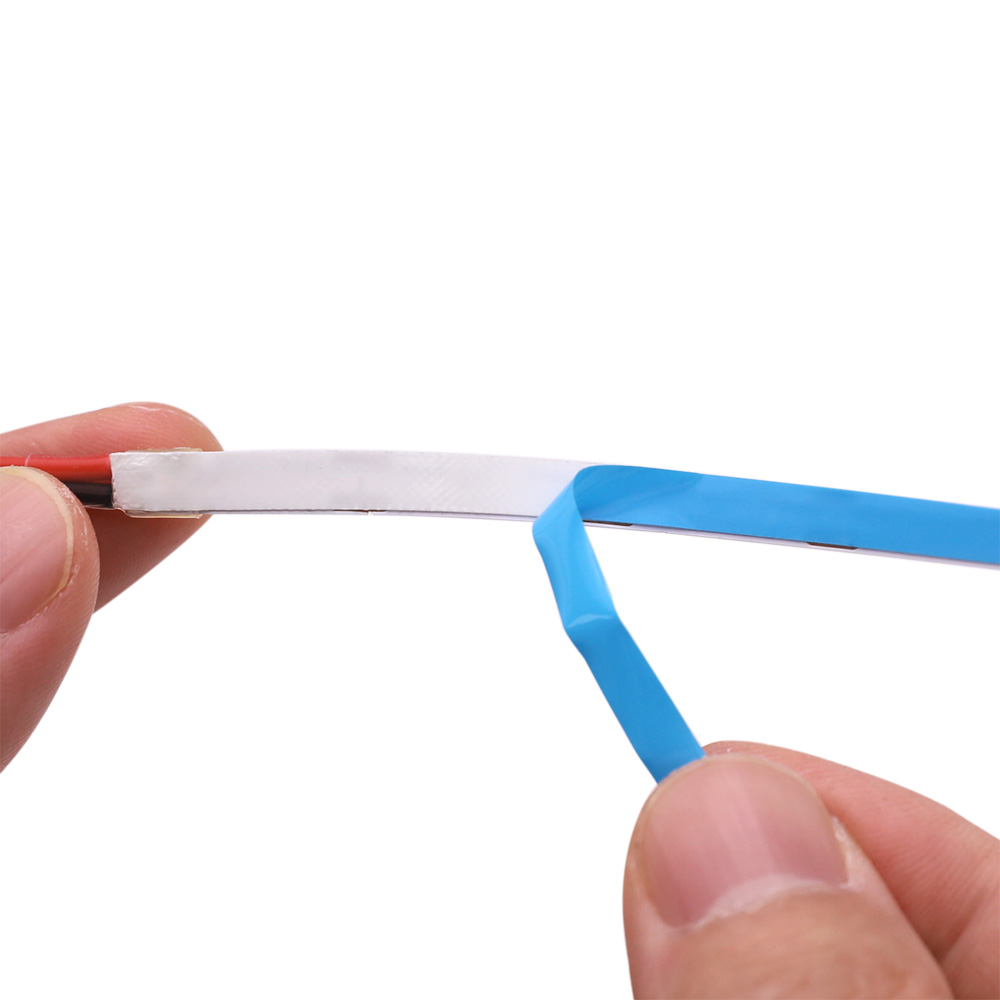

Low voltage DC24V drive, this flexible COB led strip with different led color temperatures needs to be connected to a 24V DC power supply, can be cut every 20mm, flexible to adapt to your different installation lengths. The COB led light strip comes with self-adhesive backing, tear off the backing glue and paste it to your place, easy to install. Waterproof rating optional.
Standards and Certifications
LED Strip Type: COB CCT LED
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White to Daylight White
LED Quantity: 600 LEDs per meter (3.28 ft)
Dimensions: L500cm(196.8 in ) x W0.5cm(0.2 in ) x H0.25cm(0.10 in )
Input Voltage(V): 24V DC
Working Power: 14W/m, 70W/16.4ft Max
Beam Pattern: 120 degree
Water Proof: Non-waterproof; Waterproof IP67 (led strip in silicone tube)

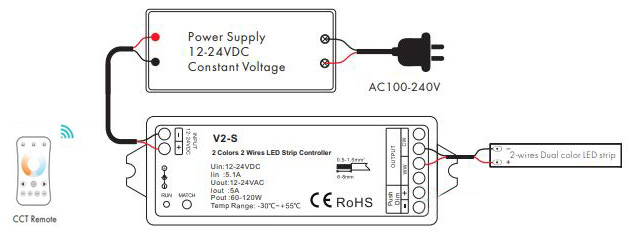

CCT 2pin led strip Wiring Diagram
