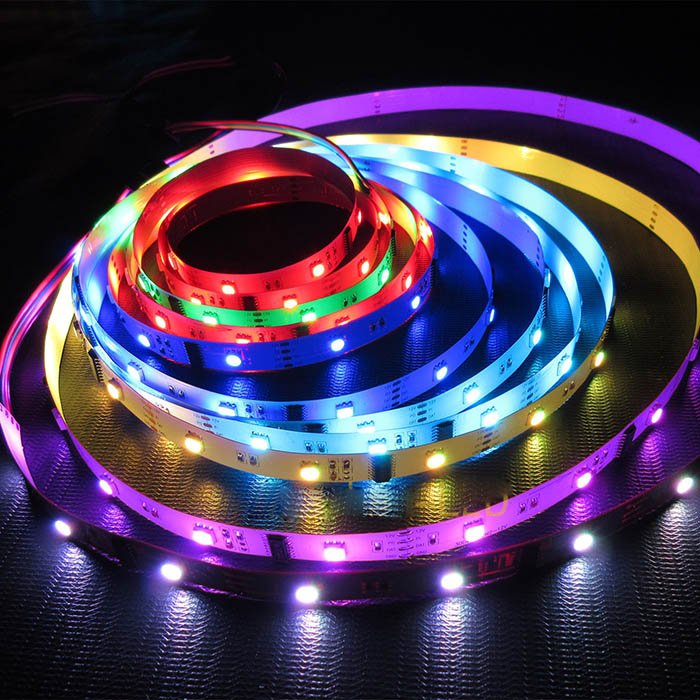

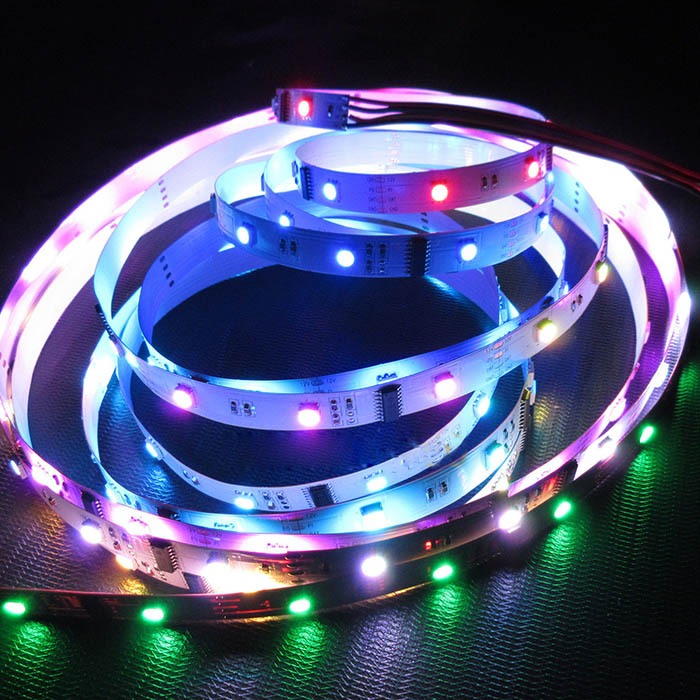

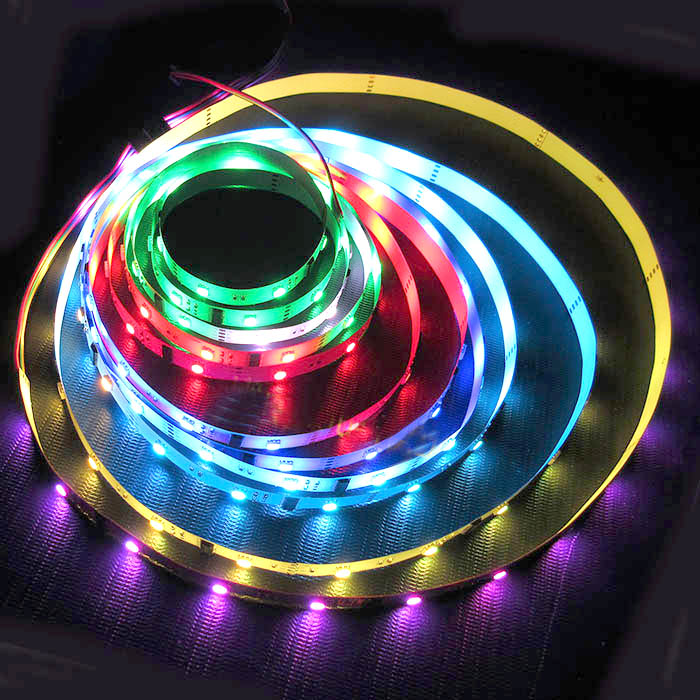

DMX512 RGB DC12V 150 LEDs Digital LED Strip Light with Built-in 485 Programmable Parallel Signal Breakpoint Resume, Matrix Control,16.4feet/roll
The DMX512 Digital LED Strip can be compatible DMX512 (1990) signal protocol international agreement,the control method is differential parallel, made by 485 decoding module, realize DMX512 control. Compared with other dream strips, it has a very good anti-interference ability. It can save the DMX-SPI controller, so as to enhance the reliability of the product.
Each roll of this DMX512 LED strip is 16'4" long (5 meters). The LED type used is the super bright Epistar brand 5050SMD LEDs. There are 150 per 16' roll. Using low-voltage DC12V power supply, users use more secure. Can be made into a waterproof level of diversification, Epoxy waterproof (IP65), All inclusive casing waterproof (IP67).

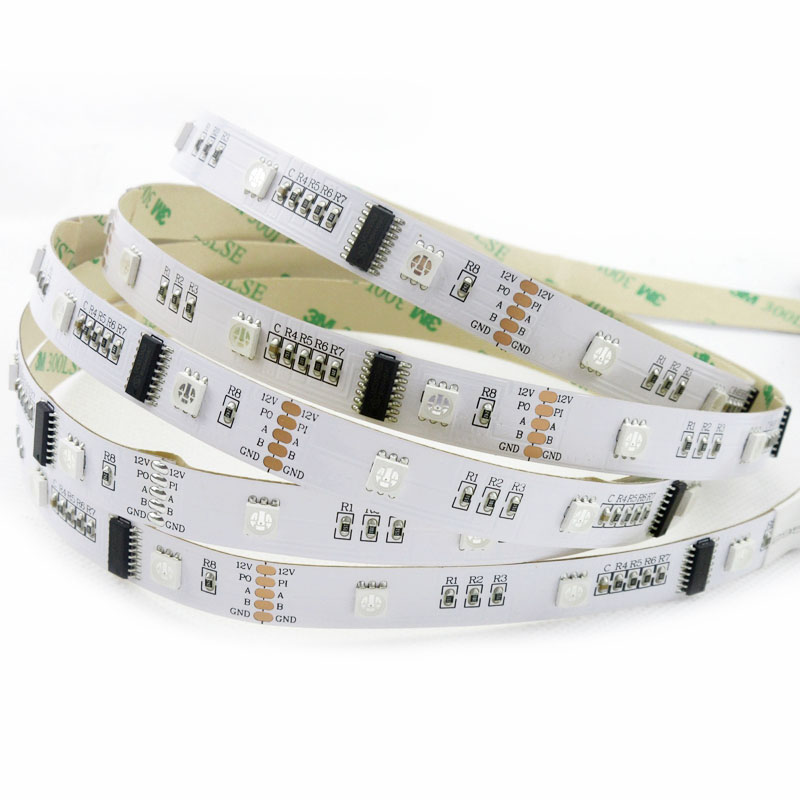

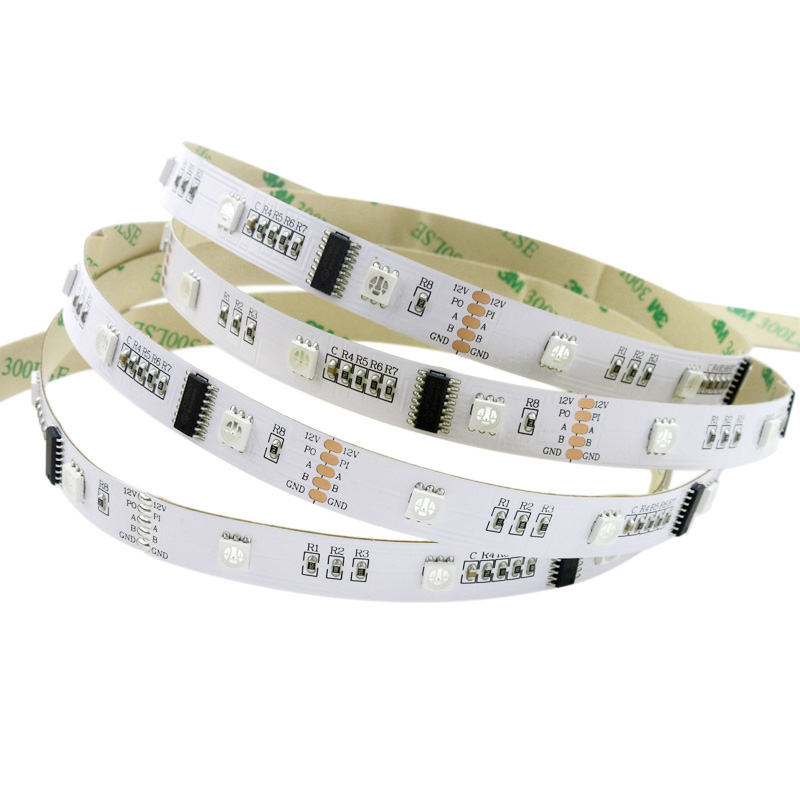

The light strip use FPC as the base which has good flexibility ,good conductivity, good heat dissipation, bending resistance, can be bent into any shape . they are very easy to connect and work with!
This is our recommended T-1000S Programmable controller and DMX controller link. We are a professional lighting system company, you can tell us your lighting project requirements, we will recommend the most reasonable lighting solutions for you. If you need a customized lighting scheme, please feel free to contact me.
Standards and Certifications
LED Strip Type: SMD 5050 DreamColor 150LEDs/16.4ft
LED Chip: DMX512 IC super brights Chip
Board material : FPCB
Packing : 5 meters (16.4ft)/roll
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Dimension: 16.4ft/roll, every 3 PCS LED can be cut
LED Quantity: 30 LEDs per 1meter (3.28 ft)
IC Quantity: 10 LEDs per 1meter (3.28 ft)
Warantty: 3 years
Grey level : 256
Dimensions: L500cm(127 in ) x W1.2cm(0.47 in ) x H0.25cm(0.10 in )
Input Voltage(V): 12VDC
Working Power: 40W/16.4ft Max
Lumen Per LED: 20-22Lumen 3300lm/16.4ft 201lm/ft 82.5lm/watt Max
Beam Pattern: 120 degree
Water Proof: Waterproof IP67, IP65 or Non-waterproof IP20
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);

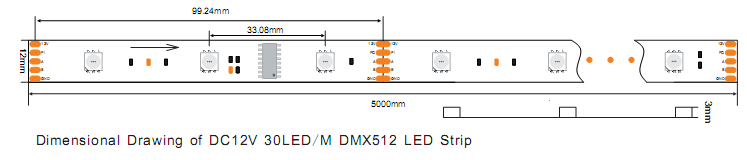

Light strip size
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
