DMX512 SMD3535 RGB DC24V 300LEDs Dream Color Programmable Parallel signal - HTTP Breakpoint Resume Transmission Matrix Control Flex LED Strip Lights, 16.4feet/roll
SMD3535 LEDs are used, which is different from ordinary SMD5050. SMD3535 LEDs have more advantages in appearance, higher than 5050/4040 LEDs, and have the characteristics of high density and good brightness.
The voltage of the light strip is DC24V, six leds can be cut, the low voltage has the effect of energy-saving, environmental protection, safety, and stability, and can avoid voltage drop. The width of FPC is 12mm, which has the characteristics of fast heat dissipation.
FPC is a 5-channel parallel signal line, power failure resumes, and one led is damaged, which does not affect the normal use of other leds. It has programmable features and can be used with a DMX console.
Compatible and extended DMX512 (1990) signal protocol, the control method is the differential parallel connection, built-in 485 decoding module, strong anti-interference ability
strip lights of different waterproof ratings can be customized, IP20/67, PCB can be bent arbitrarily, easy to install
Standards and Certifications
LED Strip Type: SMD 3535 DreamColor 300LEDs/16.4ft
LED Chip: DMX512 IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Dimension: 16.4ft/roll, every 6 PCS LED can be cut
LED Quantity: 60 LEDs per 1meter (3.28 ft)
IC Quantity: 10ICs per 1meter (3.28 ft)
Warantty: 3 years
PCB Width: W1.2cm/0.47 in
Input Voltage(V): 24VDC
Working Power: 14.4W/m 72W/16.4ft Max
Beam Pattern: 120 degrees
Water Proof: Non-waterproof IP20 or Waterproof IP67
Lighting Color: Full Color RGB
1*5M 3535SMD DMX512 LED strip light
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);

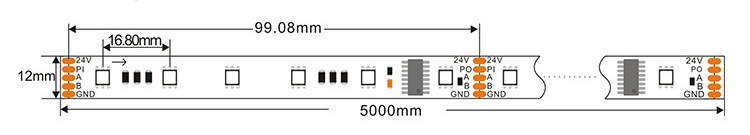

Light strip size
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
DMX512 Console Connection diagram:
