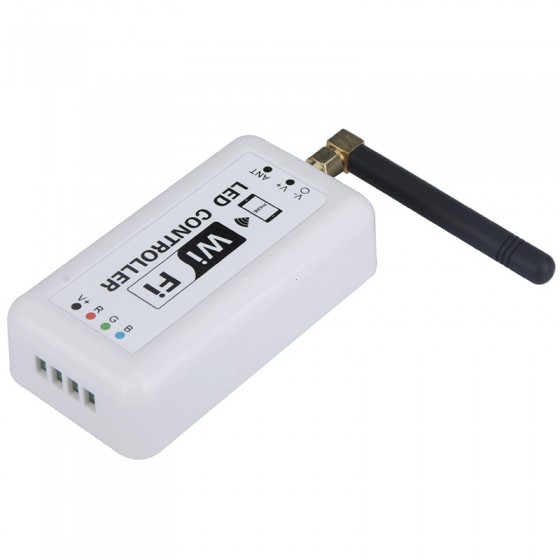

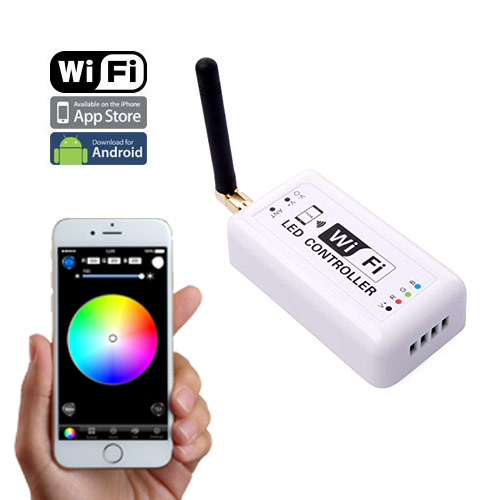

MINI 2.4GHz WIFI RF Wireless Slave Controller Control Via IOS or Android Smart Phone Tablet PC Constant Current For SC,CCT,RGB LED Strips

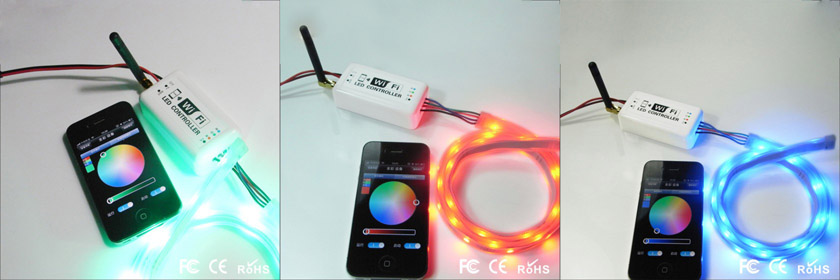

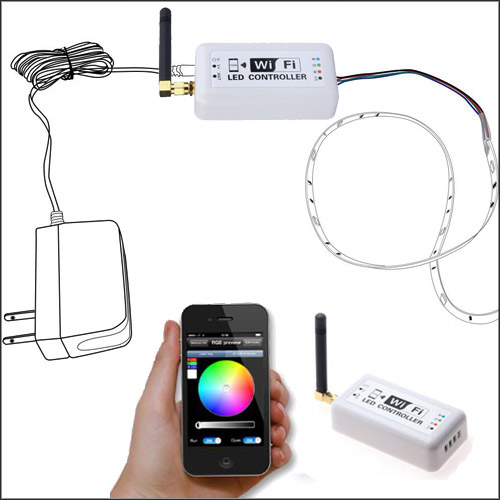

This Wifi RGB LED Controller Wireless For RGB color change LED Strip Iphone Ipad IOS Android. 100% brand new and high quality Mini powerful led controller Support both wifi control of iOS products(such as iPod, iPad, iPhone, iMac), and Android mobile devices such as Samsung, HTC, Nokia, etc. This controller is designed for led strip, module etc. After easy installation and settings, you can use you Phone (Ios or Android system) to control the light. You can get apps free from the Apple App Store and from the Google Play or you can connect one or more than one LED RGB WIFI CONTROLLER to an existing network. The remote control distance reach 50 meters indoor and more than 100 meters outdoor. Switch freely via phone between stand-alone and on-line modes. Strong compatability with Android 2.3 version or above with wifi function, with iOS 4.3 or above. Built-in 20 fixed modes, infinite changes mixed by the three primary colours--red, green and blue. Small-sized, energy-efficient, environmental protection, great convenience and humanized design.
Working temperature: -20~+60
WIFI Receiving frequency: 2.4G
Output gray scale: 256
Working voltage: DC 12-24V
Output current: 4A x 3CH
Connecting method: Common anode
Remote distance: 50 Meters indoor, 100 meters outdoor
Software: Android system(at least version 2.3 with WiFi function) or iOS system(version 4.3 or above)
Receiver sensitivity: 802.11b DSSS(-5dBm), 802.11b CCK(-10dBm), 802.11g OFDM(-15dBm)

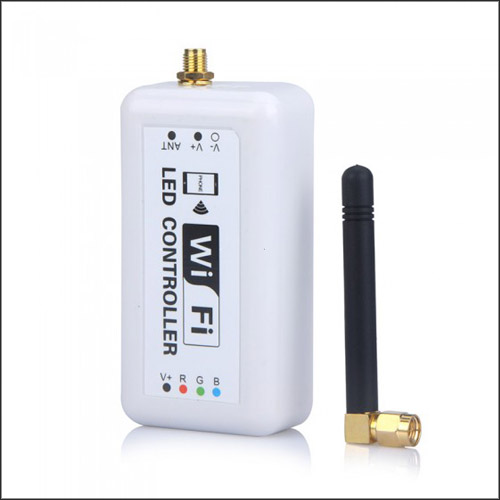

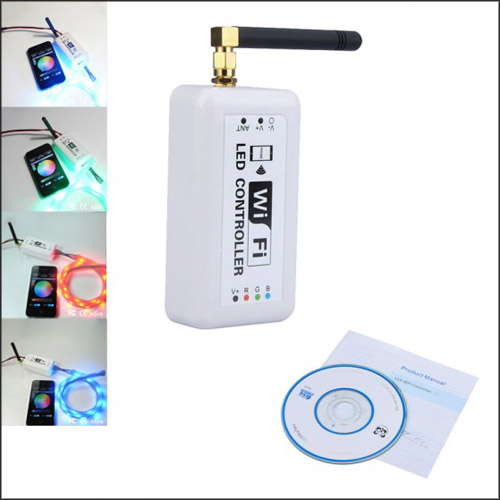

Connect way: V + R, G, B for LED light, V+, V- for power supply, ANT for wifi signal reception
Reset button(Inside the controller): Short press: change in 20 modes for RGB version.

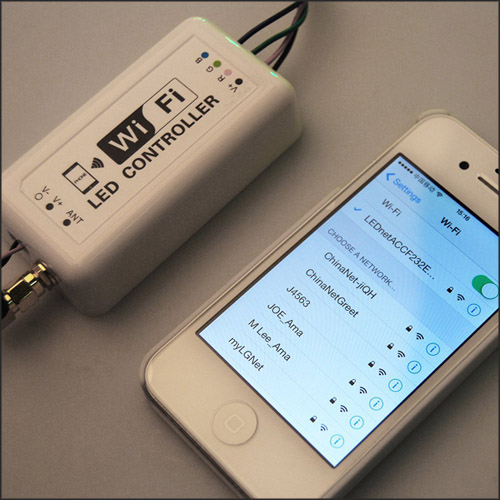

Long press(more than 20s): Restore to factory settings. Wifi SSID for connection is "LEDnetXXXXXXXXXX", password: "88888888", IP: 192.168.10.1
Product size: Approx. 9.3 • 4.5 • 2.2cm / 3.66 • 1.77 • 0.87in
Product weight: Approx. 53g / 1.86oz (Not including the antenna)
Package size: Approx. 12.3 • 9.9 • 3cm / 4.84 • 3.9 • 1.18in
Package weight: Approx. 117g / 4.12oz
1 X WiFi controller
1 X Antenna
1 X CD
1 X User manual
