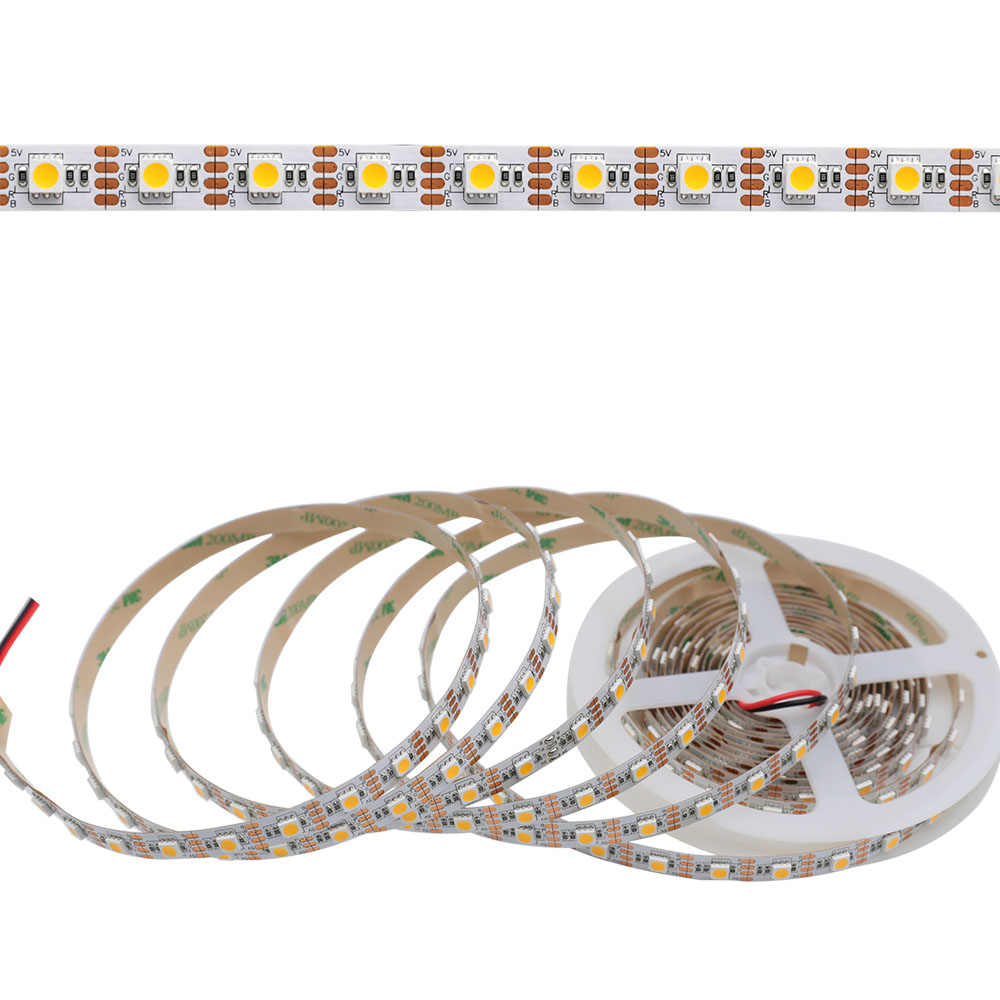

DC5V 5050SMD Flexible LED Tape Light - Single Color and Waterproof Optional - 16.4Ft/roll

Model: FSLSR-DC5V-5050X300
DC5V 5050SMD Flexible LED Tape Light - Single Color and Waterproof Optional - 16.4Ft/roll
  • DC5V 5050SMD Flexible LED Tape Light - Single Color and Waterproof Optional - 16.4Ft/roll
  • DC5V 5050SMD Flexible LED Tape Light - Single Color and Waterproof Optional - 16.4Ft/roll
  • DC5V 5050SMD Flexible LED Tape Light - Single Color and Waterproof Optional - 16.4Ft/roll
  • DC5V 5050SMD Flexible LED Tape Light - Single Color and Waterproof Optional - 16.4Ft/roll
  • DC5V 5050SMD Flexible LED Tape Light - Single Color and Waterproof Optional - 16.4Ft/roll
  • DC5V 5050SMD Flexible LED Tape Light - Single Color and Waterproof Optional - 16.4Ft/roll
  • DC5V 5050SMD Flexible LED Tape Light - Single Color and Waterproof Optional - 16.4Ft/roll
  • DC5V 5050SMD Flexible LED Tape Light - Single Color and Waterproof Optional - 16.4Ft/roll
  • DC5V 5050SMD Flexible LED Tape Light - Single Color and Waterproof Optional - 16.4Ft/roll
  • DC5V 5050SMD Flexible LED Tape Light - Single Color and Waterproof Optional - 16.4Ft/roll

Select Specifications:

Select Operating Voltage :

Starting at: $17.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-4
$17.98
5-9
$17.80
10-19
$17.62
20+
$17.08
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    What is 5050 SMD LED?

    5050 SMD LED means that the size of the LED light is 5.0mm width and 5.0mm length. 5050 SMD LED is high brightness due to its huge luminous area, and the LED lumen and wattage are higher too. Difference between SMD LEDs: 5050SMD vs 3528SMD, 2835SMD vs 3528SMD, etc.

    Product features:

    1. Low Voltage DC5V Single color 5050 SMD(SMD: Surface Mounted Devices) Flexible LED Tape strips, Epistar chip, 300LEDs/16.4ft, 16.4ft(5 meters) Per Reel By Sale. 5V DC operation.

    3000K Warm White, 4000K Nature White, 6000K Daylight White, 7000K Cool White, RedGreen, BlueIce BlueAmberPurpleYellowGolden, RGB color changing LED light color optional.

    About LED color and white light color temperature, you can read: What is kelvin color temperatureHow to choose the right color for your led strip lights(what is rgb)The Color Difference Between Warm White 2700K, 3000K, 4000K, 6000K Pure White and 7000K Cool White(warm white vs cool white, 2700K vs 3000K, natural white vs daylight white)

    2. Our brightest super flexible LED Solid Color light Strips soft and easy bent for installation. Available in 5 meters (197 in) flexible light strips with adhesive backing and can be stuck just about anywhere. can be cut into 1-LED segments, so you could cut a different length for your project and request.

    This LED Light strip is perfect for retail shops, supermarkets, museums, galleries, photography or any indoor applications where presentation, appearance, and depth of color are critical, Suitable for the average home lighting as well as lighting professionals.

    3. How important is the CRI to the LED lightingHigh color rendering index (+95 CRI) enhances vibrant colors more than traditional LEDs nearly matching the color quality of incandescents.

    4. Different waterproof rating optional, IP20 non-waterproof LED, IP65, IP67, IP68 outdoor waterproof level. To know the difference: IP20 vs IP65 vs IP67 vs IP68


    ►Everything you need to know before buying led strip lights:

    What are led strip lights?

    Is it worth getting led strip lights?

    Are led strip lights safe?

    What are the types of led strip lights? Flexible led strip lights VS rigid led strip lights

    Choose a suitable LED power supply and an LED dimmer controller:

    How to calculate power for led strip lights?

    How to choose led strip light power supply?

    How to choose led strip light controllers?




    Standards and Certifications



    Product Specification

    LED Strip Type:   SMD 5050 300PCS/16.4ft

    LED Chip:   Epistar super brights Chip

    Working Temperature:   -4°F (-20°C) ~ 122°F (50°C)

    Storage Temperature:   -40°F (-40°C) ~ 176°F (80°C)

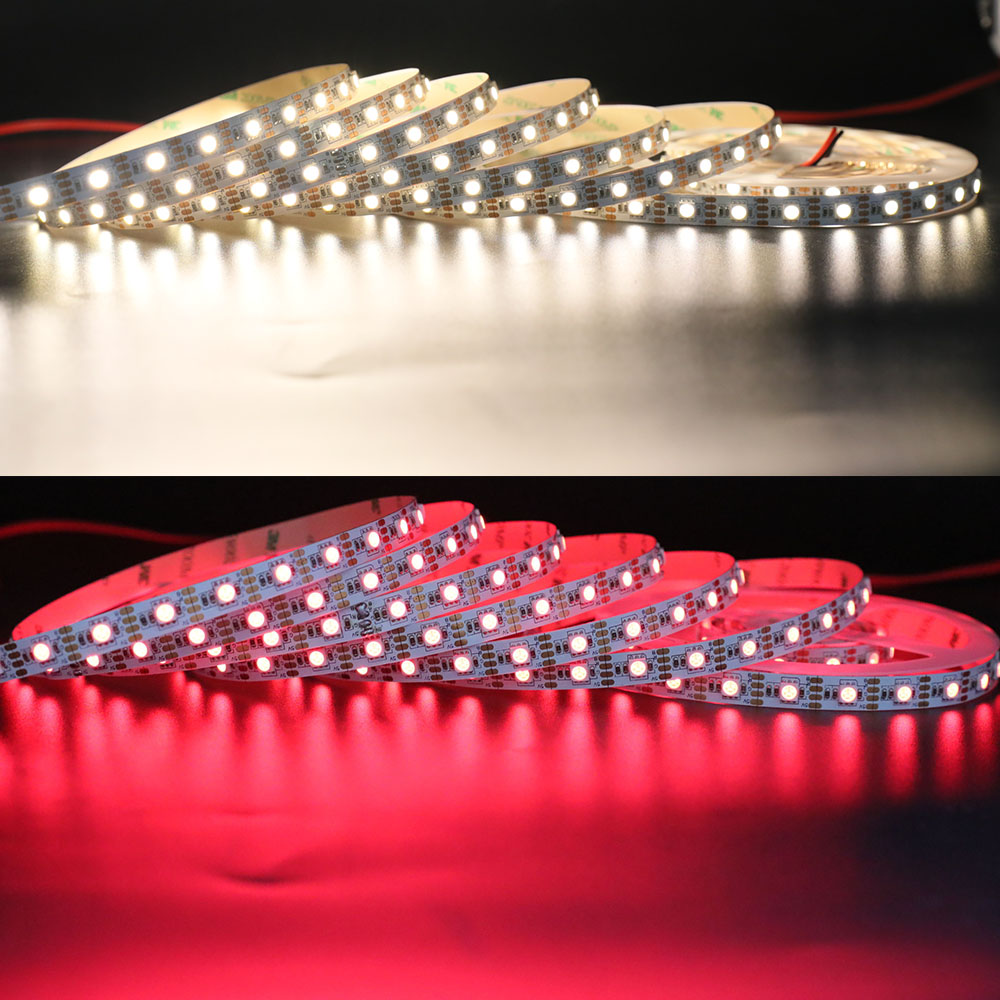

    Light Color:   Warm White, Nature White, Daylight White, Cool White, RedGreen, Blue, Ice BlueAmber, Purple, Yellow, Golden, RGB (optional)

    Dimension:   16.4ft/roll, every 3 PCS LED can be cut

    LED Quantity:   60 LEDs per 1meter (3.28 ft)

    Lifespan  50,000+hours

    Warantty:   3 years

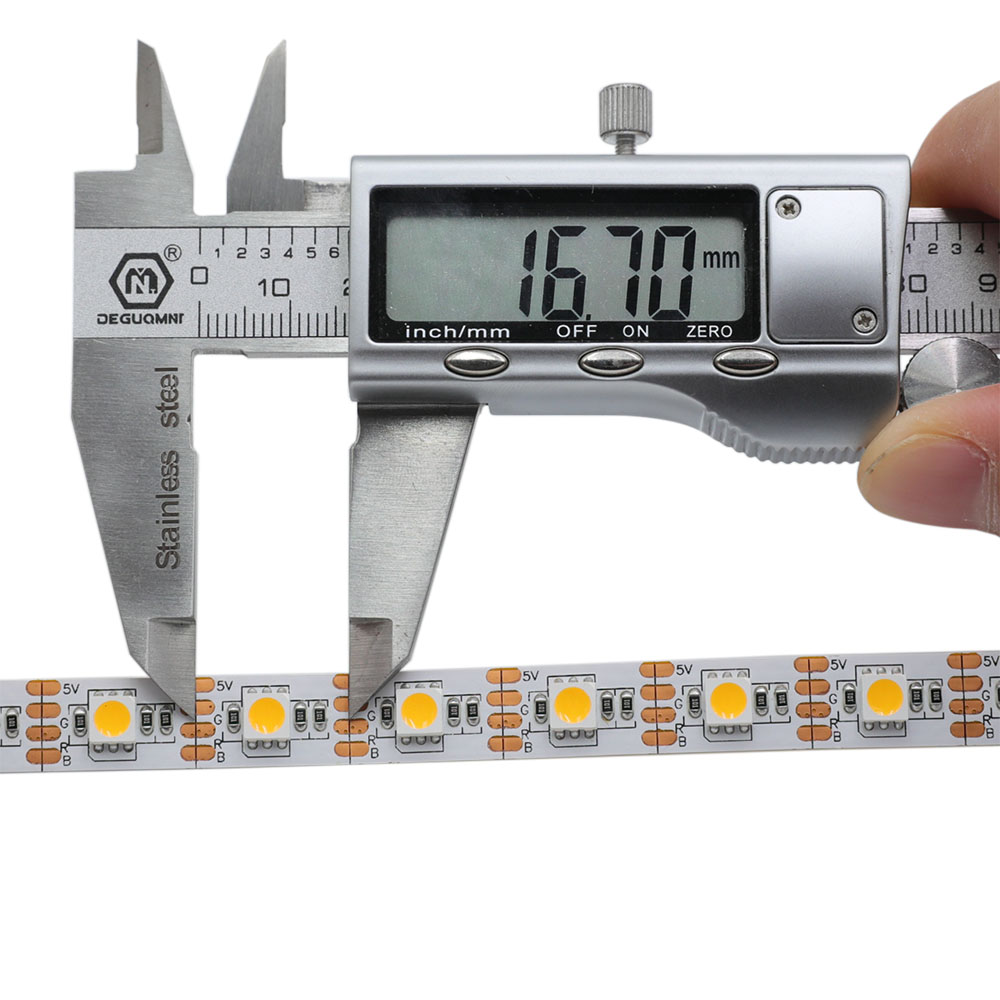

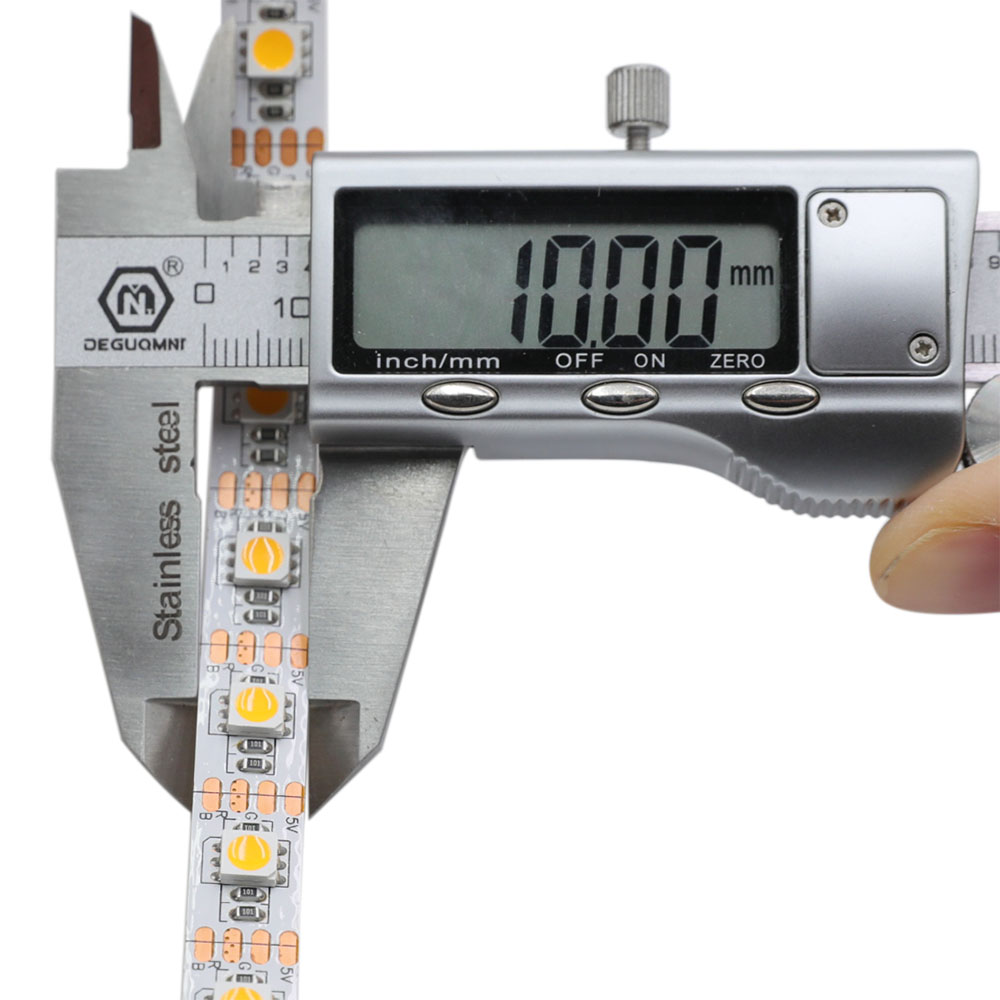

    Dimensions:     L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.20cm(0.08 in )

    Input Voltage(V):   5VDC

    Working Power:   14.4A  72W/16.4ft  Max

    Lamp Luminous Flux(lm):   22lm/LED     6600lm/16.4FT

    Color Temperature CCT(White):  Warm White(2800-3600k), Daylight White(5200-6600k), Cool White(7600-9500k)

    Wavelength NM(RGBY):   Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)

    Beam Pattern:   120 degree

    Water Proof:   Non-Waterproof IP20, Waterproof IP65/IP67/IP68

    CRI (Ra>):  95

    *The blue font can be clicked to jump to related content articles.




    How to Use LED Strip Lights?


    create_a_Large_flexible_led_strip_light_Installation.jpg create_a_Large_flexible_led_strip_light_Installation.jpg

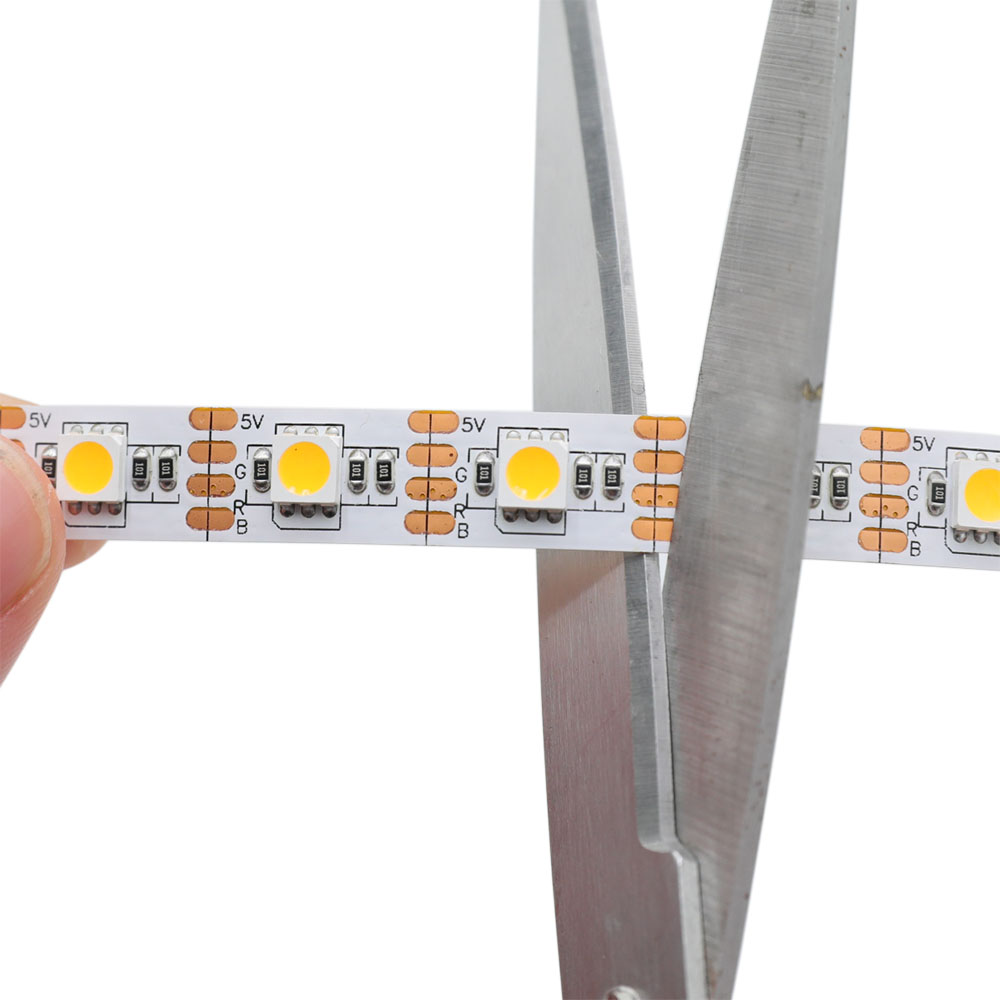

     You can cut the flex LED strip lights every few inches(individual LED), allowing you to freely design your lighting project without worrying about space requirements to many different surfaces.

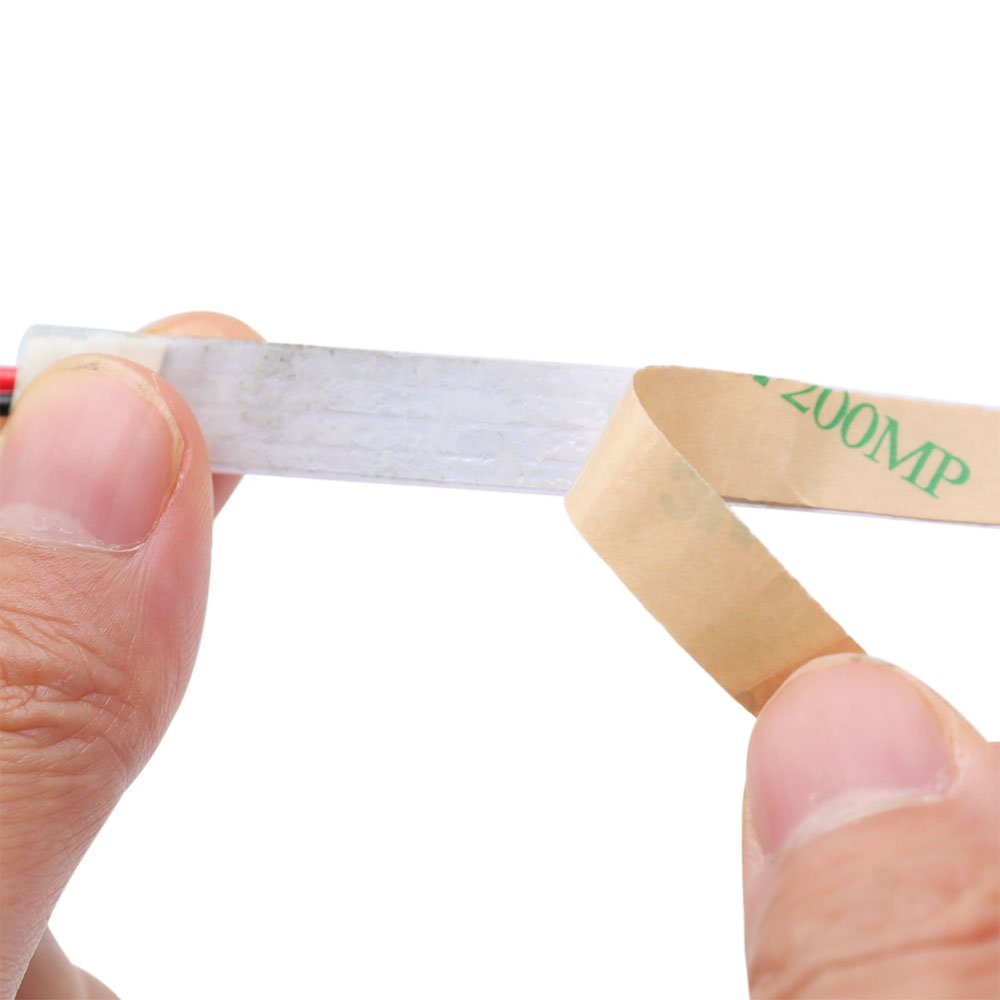

     The back of the LED strip is fitted with a strong 3M tape, allowing you to peel and stick the LED lights to anywhere.

     IP67/IP68 LED waterproof type which will come with mounting brackets. And all the LED strip lights can be installed with LED aluminum channel and LED neon tube to get an uniform, soft, and no light spot LED lighting effect.

    Can you cut LED light strips and how to reconnect:

    How to cut led light strips? 

    How to connect led strip lights together?

    How to choose led strip light connectors?

    How to install LED light strip:

    Ultimate Guide on Aluminum Profile for LED Strip Lighting

    How to install led strip lights? What accessories will be needed?

    How to install LED motion sensor stair lights?

    LED light strip wiring diagram:

    How to wire single color led strip lights?

    How to wire RGB color changing led strip lights?

    How to connect 5050 led strip to the power supply?




    Application

     Trademark lighting                              Logo lighting

     Channel letters lighting                       Lightboxes lighting

     Landscape layout lighting                    Stage decoration lighting

     Sign cabinets                                       Channel lights

     Cove LED lighting                                Edge lit signs

     Canopy illumination                            Off-grid lighting

     Home decoration lighting                    Commercial lighting

     Accent lighting                                    Mood lighting
